Special Item

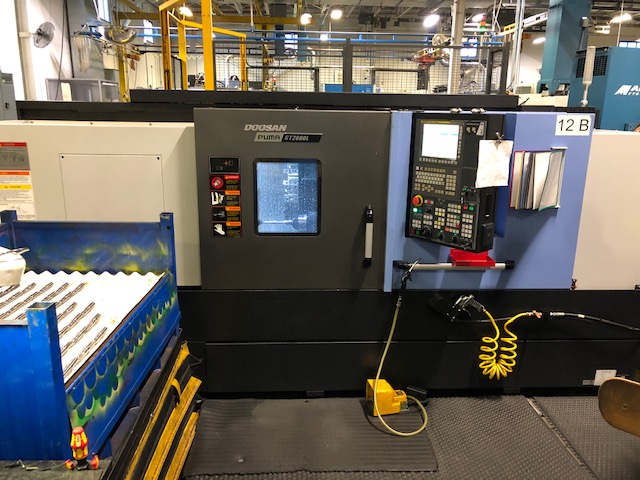

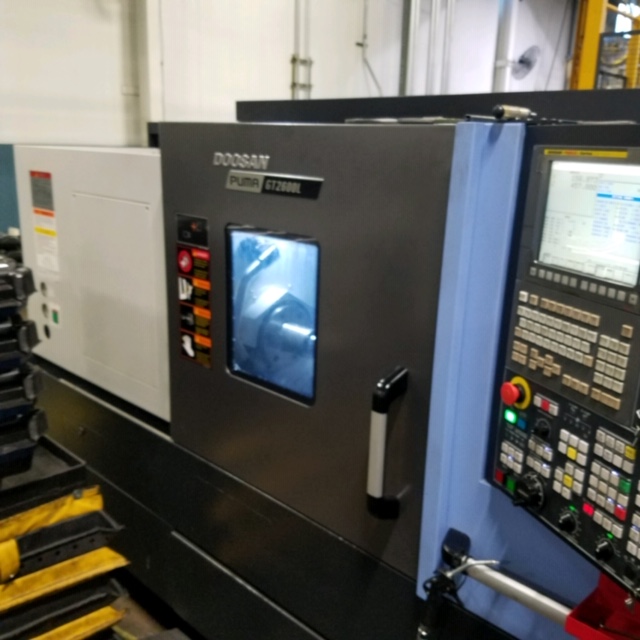

2017 DOOSAN PUMA GT2600L

Fanuc 0i, 3.2" Bar, 10" Chuck, 18.1" Dia, 42" Length, 30 HP, 12 Tools, 3500 RPM, Tool Presetter, Chip Conveyor, Tailstock, 1162 Cutting Hours
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.2"
  • Max Swing Over Bed / Carriage 24.8" / 18.1"
  • Max Machining Length 42.5"
  • Spindle Motor 30 HP
  • Spindle Speed 3500 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.58"

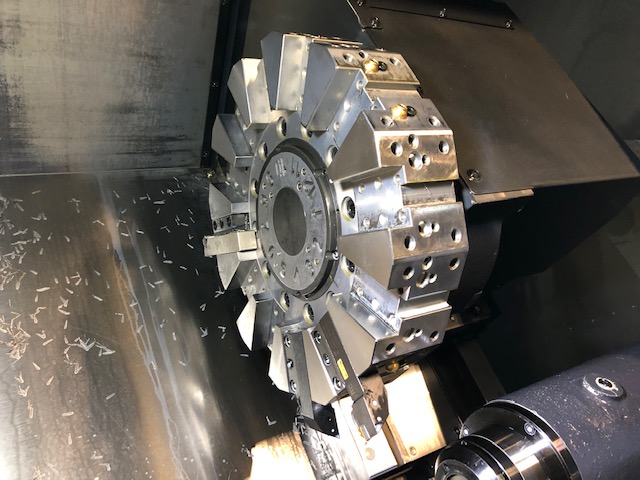

  • Tools 12
  • Rapid Traverse Rates (X / Z) 945 / 1181 IPM
  • X-Axis Travel 10.4"
  • Z-Axis Travel 43.3"
  • Turret Index (Single Step) 0.15 Seconds
  • Machine Dimensions (L x D x H) 147" x 64" x 68"
  • Machine Weight 12,570 lbs.
  • Max Turning Diameter 18.1"
  • Spindle Torque 459 ft. lbs.
  • Tailstock Taper MT #5

Product Features

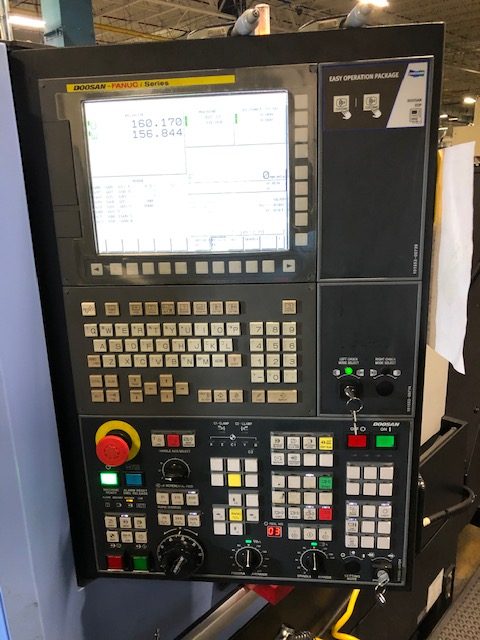

  • FANUC 0i Series CNC Control
  • 10.4" Color LCD
  • USB Port
  • Ethernet Function
  • PC/MCIA Interface
  • DOOSAN EZ Guide i Programming
  • 10" Hydraulic Chuck
  • 42" Optional Cutting Length
  • Automatic Tool Presetter

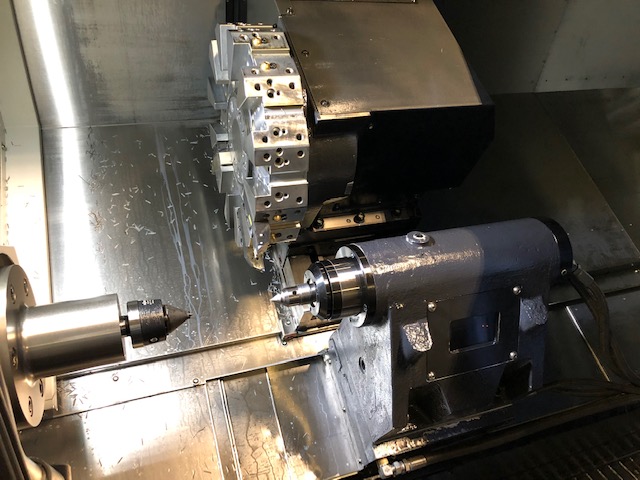

  • Programmable Hydraulic Tailstock (Built-In Center)
  • Tailstock Air Blast

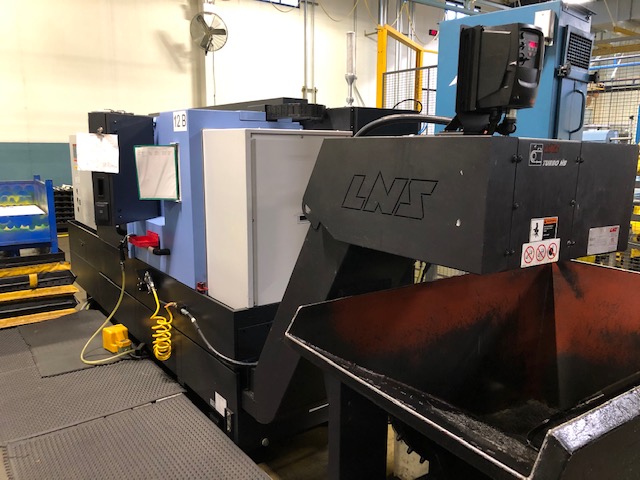

  • LNS Turbo Chip Conveyor (Hinge-Type Side Exit)
  • Automatic Front Door
  • Robot Interface
  • Rigid Tapping
  • Three Color Tower Light
  • 512 KB Program Memory
  • 400 Registerable Programs
  • 128 Sets of Tool Offsets
  • Nano Interpolation
  • Backlash Compensation
  • Heavy Duty Slant Bed Box Way Construction
  • Manufacture Date November 2017

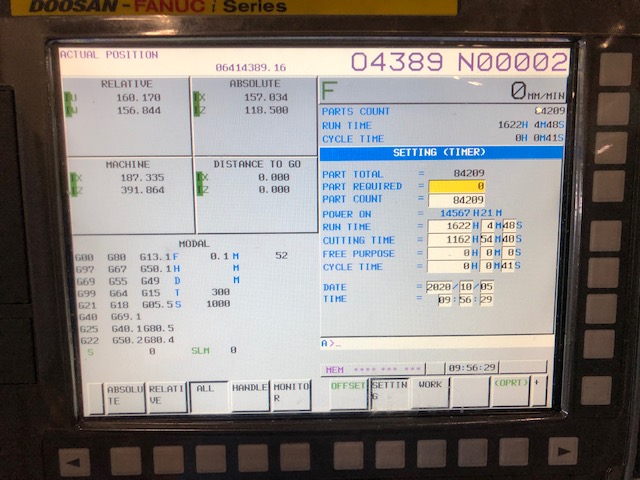

  • 14,567 Power On Time
  • 1622 Run Time
  • 1162 Cutting Time
