Special Item

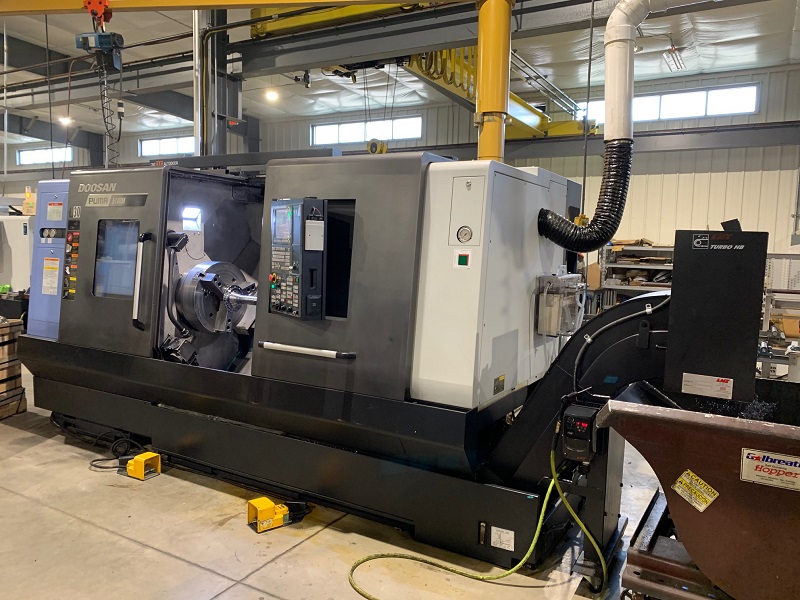

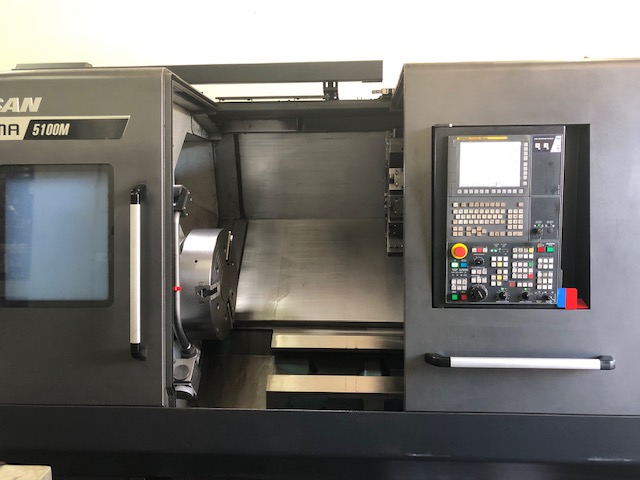

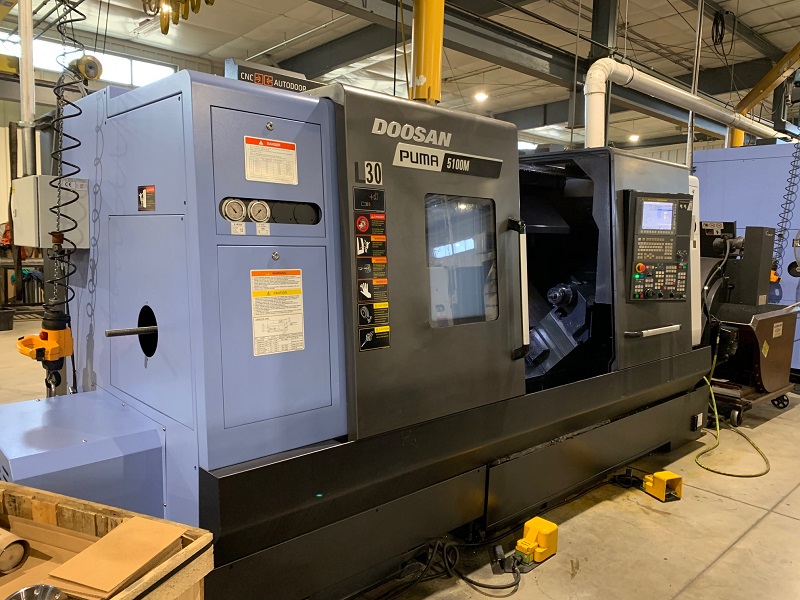

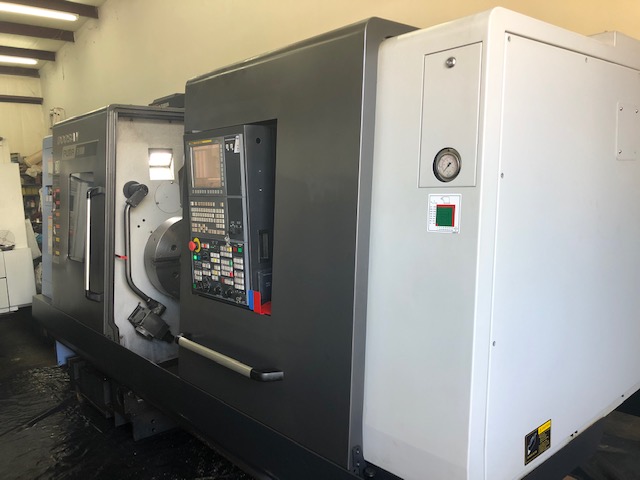

2017 DOOSAN PUMA 5100MB

FANUC i Series, 6.6" Bar, 21" Chuck, 25.6" Max Dia, 60 HP, 1500 RPM, 12 Tools, Live Tooling, Chip Conveyor, Tailstock
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 21"
  • Max Diameter Bar Capacity 6.6"
  • Max Swing Over Bed 35.4"
  • Spindle Motor 60 HP
  • Spindle Speed 1500 RPM
  • Spindle Nose A1-15
  • Spindle Bore 7.1"

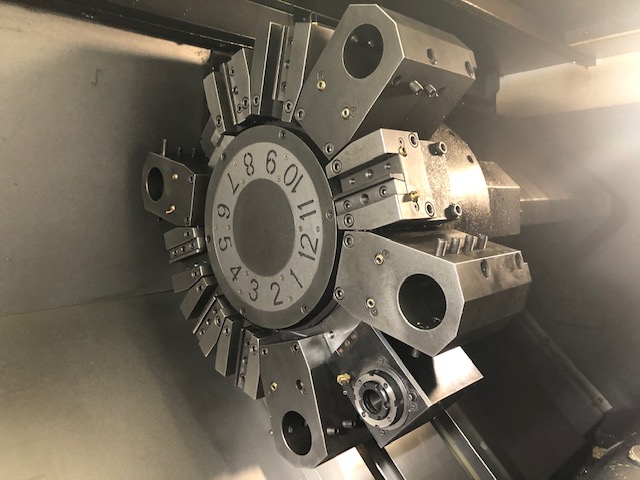

  • Tools 12 (All Live)
  • Rapid Traverse Rates (X / Z) 630 / 787 IPM
  • X-Axis Travel 14.3"
  • Z-Axis Travel 43.5"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x D x H) 188" x 87" x 81"
  • Machine Weight 22,000 lbs.
  • Boring Bar Diameter 2.5"
  • Live Tool Motor 30 HP
  • Live Tool Speed 4000 RPM
  • Max Turning Diameter 25.58"
  • Max Turning Length 37.5"
  • Spindle Torque 2180 ft. lbs.
  • Tool Holder Type BMT-75

Product Features

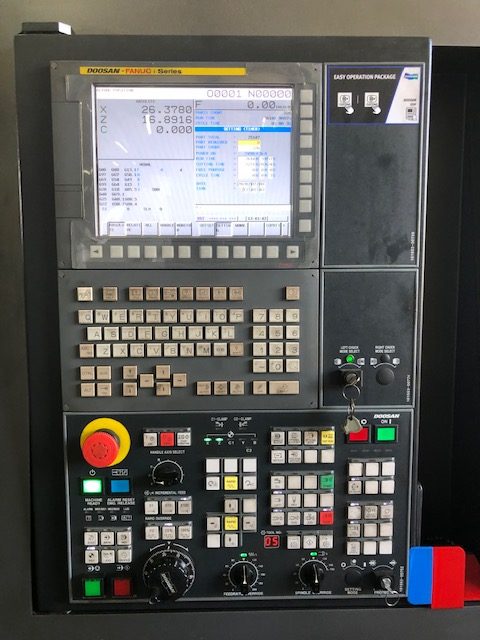

  • FANUC i Series CNC Control
  • 10.4" Color LCD
  • C-Axis Live Tooling Capability
  • USB Port
  • PC/MCIA Interface

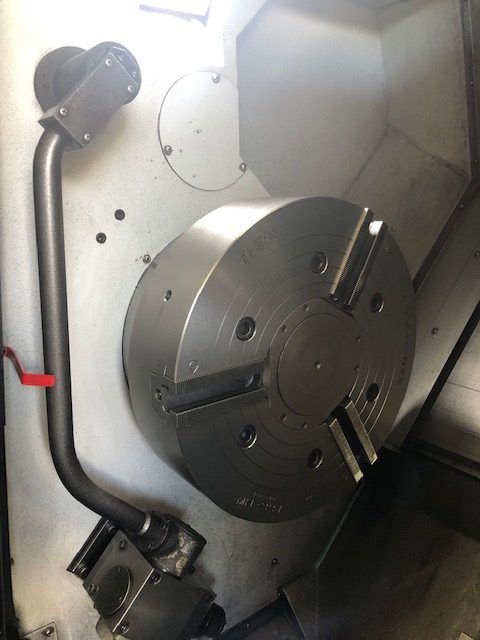

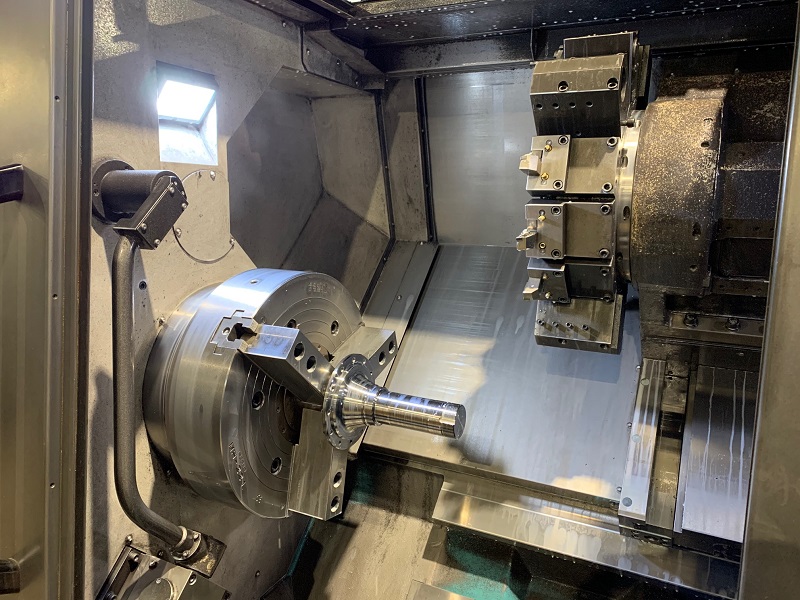

  • 21" Samchully MH-221 Hydraulic Chuck

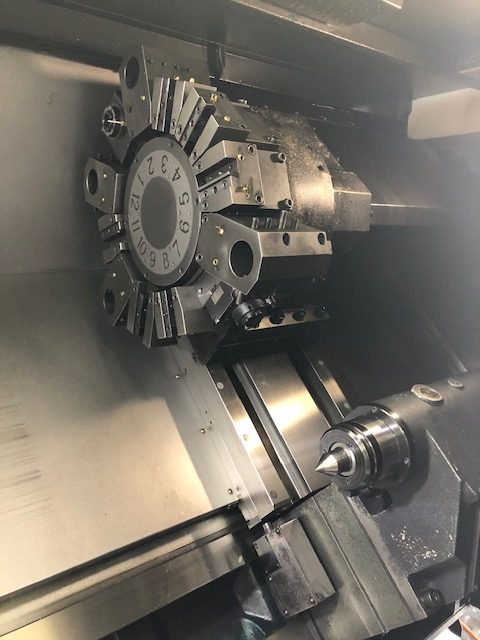

  • Tow-Along Tailstock
  • Automatic Tool Presetter
  • LNS Turbo Chip Conveyor (Hinge Type Side Exit)
  • Auto Door
  • Two Speed Gearbox
  • (1) OD Live Holder
  • (1) Face Live Holder
  • (6) Turning Holders
  • (4) Boring Bar Holders

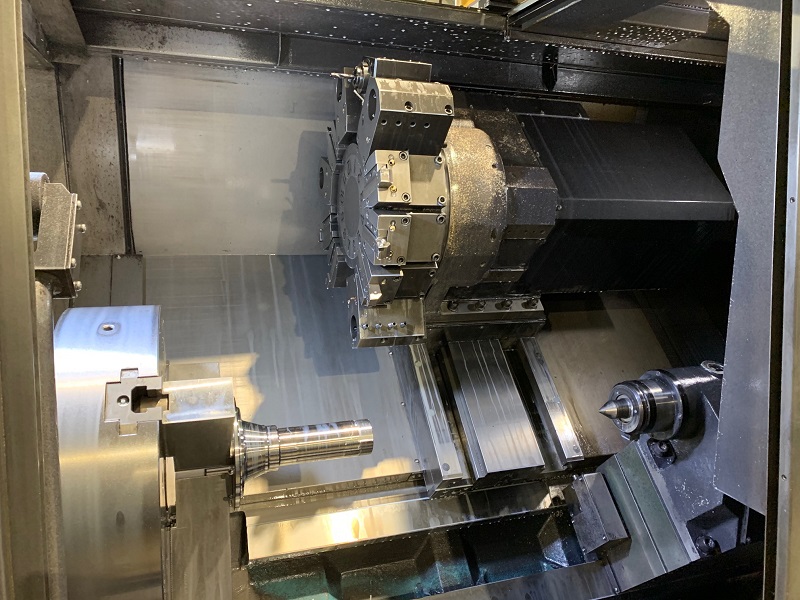

  • Heavy Duty Slant Bed Box Way Construction
  • Manufacture Date October 2016
  • Installed in June 2017

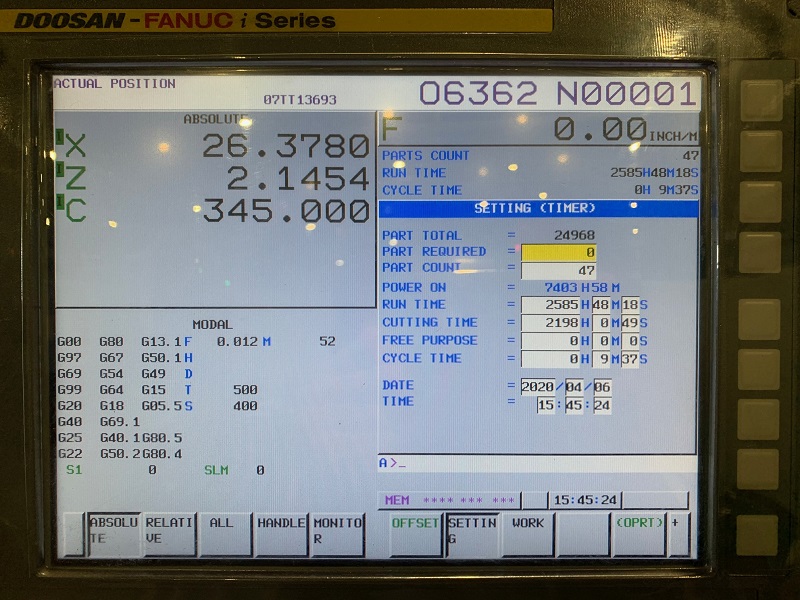

  • 7490 Power On Time
  • 2614 Run Time
  • 2221 Cutting Time
