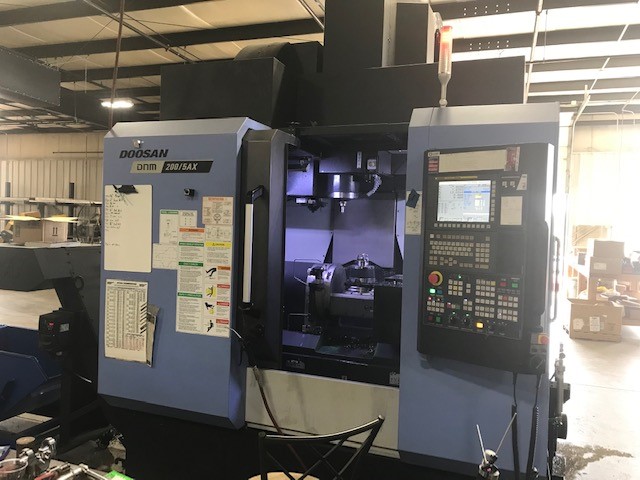

2017 DOOSAN DNM 200/5AX 5-AXIS

FANUC 0iMD, 7.8" Dia. Platter, 16.17.20", 12000 RPM, Cat 40 Big Plus, 25 HP, 30 SMTC, TSC 230 psi, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 15.7"
  • Y-Axis 17.12"
  • Z-Axis 19.7"
  • A-Axis (Table Tilt) +30 Degrees to -120 Degrees
  • C-Axis (Table Index) .001 Degrees

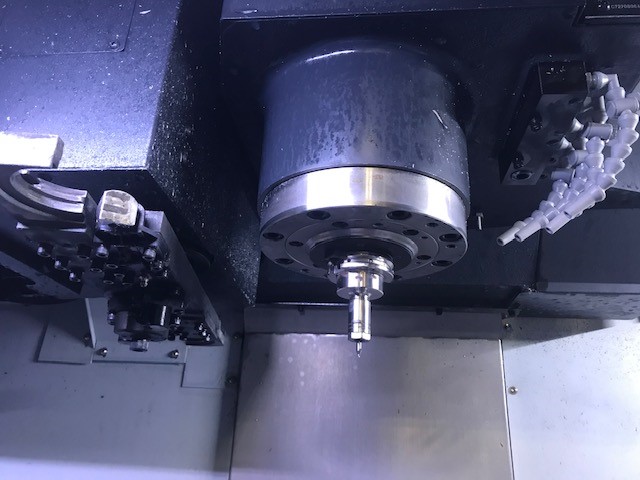

  • Spindle Speed 12,000 RPM
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 25 HP
  • Tools 40
  • Rapid Traverse Rates (X & Y / Z) 1417 / 1181 IPM
  • Max Table Load 88 lbs.
  • Max Tool Diameter 3.1" / 4.9"
  • Max Tool Length 11.8"
  • Max Workpiece Dia/Height 11.8" / 7.9"
  • Machine Dimensions (L x D x H) 112" x 97" x 130"
  • Machine Weight 12,100 lbs.
  • Platter Diameter 7.8"
  • Spindle Nose to Table Top 1.2" - 20.9"
  • Spindle Torque 87 ft. lbs.

Product Features

  • FANUC 0iMD CNC Control
  • 10.4" Color LCD
  • USB Port
  • PC/MCIA Interface
  • 5-Axis Milling Capability

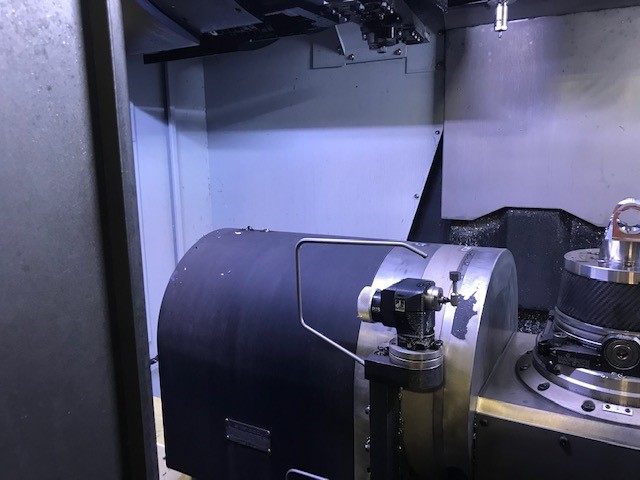

  • Integral Trunnion Rotary/Tilt Table
  • Through Spindle Coolant (230 psi)
  • Renishaw Touch Probe RMP600
  • Renishaw RTS Tool Setter
  • Renishaw Axiset Calibration Artifact with Magnetic Base
  • Doosan Intelligent Kinematic Compensation (IKC) Software for Fine Calibration of Rotary Axes
  • Tool Load Monitoring and Adaptive Feedrate Control
  • LNS Turbo Chip Conveyor (Hinge Type Left Side Exit)
  • Screw Conveyors on Both Troughs for Chip Disposal
  • Spindle Chiller Unit
  • Remote Jog Handle
  • Three Color Tower Light
  • Flood Coolant with Large Separate Coolant Tank & Way Oil Skimmer
  • Rigid Tapping
  • Spindle Orienation
  • AICC II (200 Block Look Ahead)

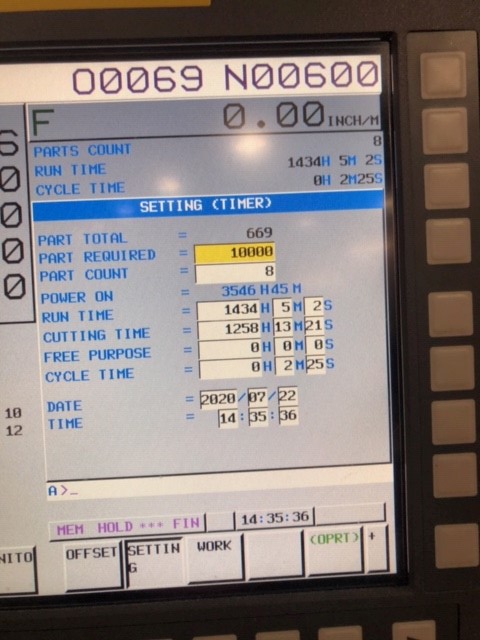

  • 3546 Power On Time
  • 1434 Run Time
  • 1258 Cutting Time
