< Back to Lathes
Special Item

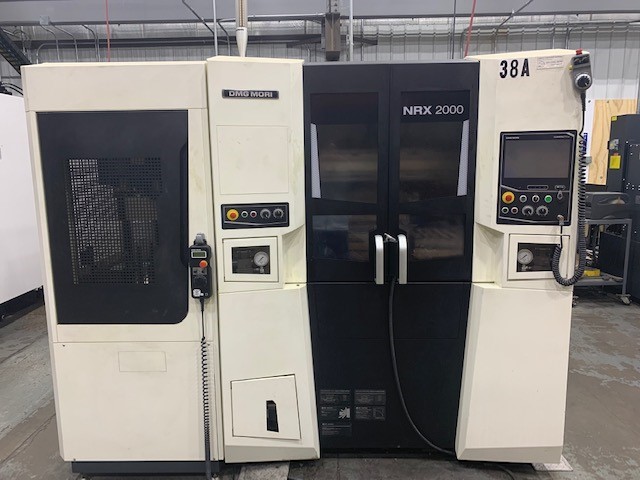

2017 DMG MORI NRX-2000

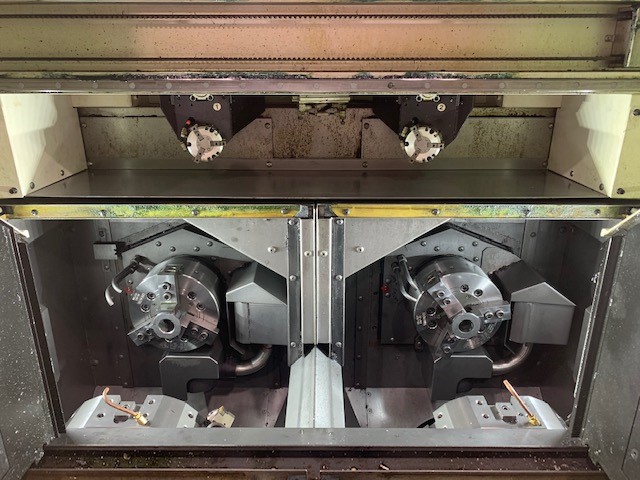

Compact Line, (2) 8" Chucks, (2) 8 Tools, 15 HP, 6000 RPM, Twin Adjacent Spindles, Gantry Loader, Tool Presetters, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Spindle Motor 15 / 10 HP
  • Spindle Speed 6000 RPM
  • Spindle Nose A2-5
  • Tools 8 (2)
  • Rapid Traverse Rates (X & Z) 1181 IPM
  • X-Axis Travel 3.9"
  • Z-Axis Travel 8.7"
  • Machine Dimensions(L x W x H) 98.2" x 106.5" x 82.7"
  • Machine Weight 12,320 lbs.
  • Maximum Distance Between Spindle Centers 26.4"
  • Maximum Turning Diameter 7.1"
  • Maximum Turning Length 3.9"
  • Maximum Workpiece Swing Diameter 13.7"
  • Spindle Bearing Inner Diameter 3.9"
  • Through Spindle Hole Diameter 2.4"

Product Features

  • DMG-MORI Compact Line Control (M730UM)
  • 12.1" TFT Color LCD
  • Overhead Gantry Loader with Dual Grippers
  • 14 Station Workpiece Stocker (Left Side)
  • Work Turnover Unit (5.9" Dia.)

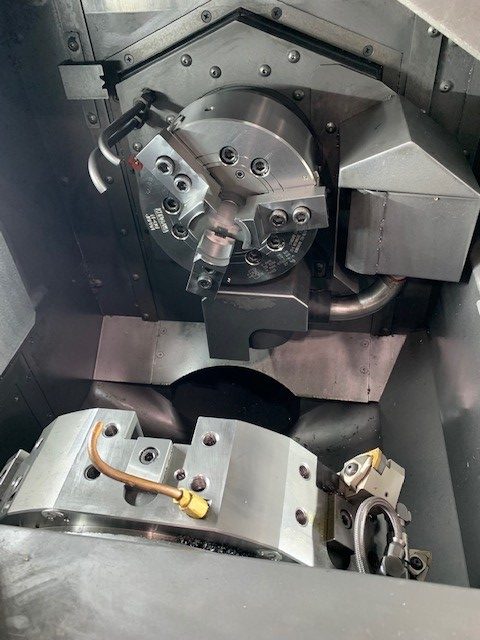

  • (2) 8" KITAGAWA N-08A521 Solid Hydraulic Chucks
  • (2) 8 Station Turrets

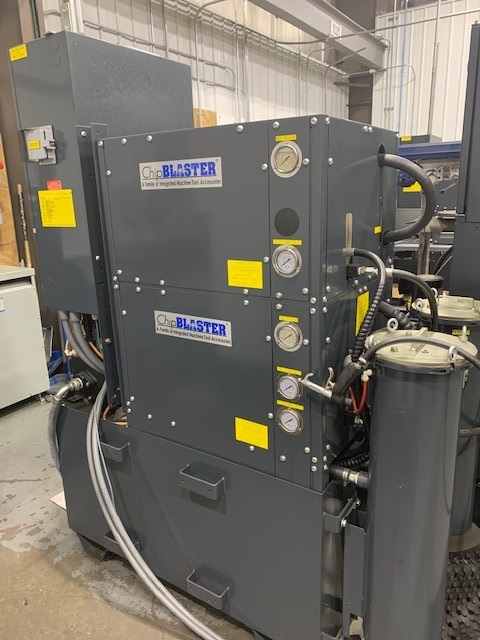

  • Chip Blaster GV2-80 High Pressure Coolant System (1000 PSI)
  • Manual In-Machine Tool Presetter (Removable) Spindle 1 & 2
  • High Output Spindle Motor 15/10 HP
  • Chip Conveyor (Rear Exit Hinge Type)
  • Auto Power Off
  • Signal Light (4 Colors)
  • (2) Remote Jog Handles (For Machine & Gantry)
  • MAPPS
  • SMARTkey (MODE 3 & 4)
  • EtherNET/IP Interface
  • GAGE Interface
  • USB Port
  • Tool Life Management System
  • Earth Leakage Breaker
  • Automatic Power-Off System
  • (10) Additional M-Functions
  • Air Blow for Chuck
  • Manufacture Date 2016
  • Installed in June 2017
  • 3546 Running Time
