Special Item

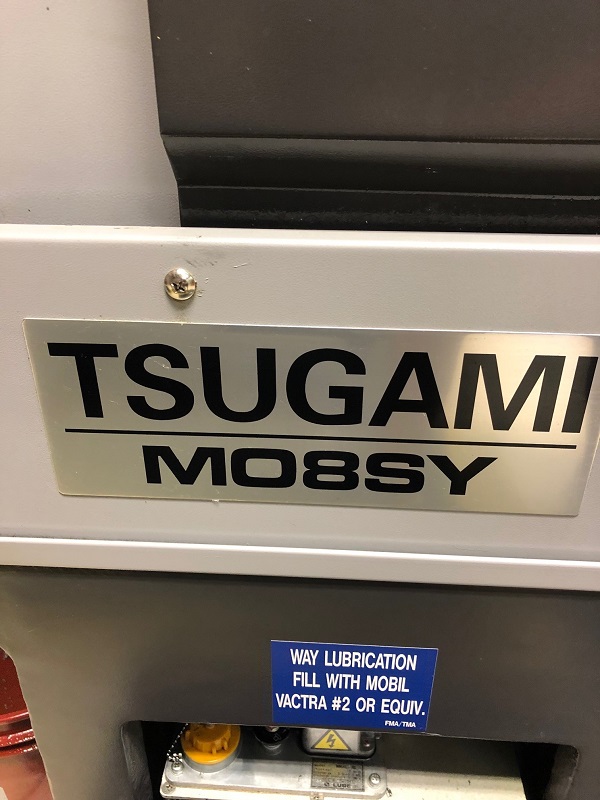

2016 TSUGAMI M08SY

FANUC 0i-TD, 2.56" Bar, 8" Chuck, 15 HP, 4500 RPM, 12 Tools, C & Y-Axis Milling, Tool Presetter, APC, Chip Conveyor, Barfeed
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.56"
  • Max Machining Length 14.96"
  • Spindle Speed 4500 RPM
  • Tools 12 (All Live)
  • Sub Spindle Chuck Size 6"
  • Sub Spindle Speed 4500 RPM
  • X-Axis Motor 2.4 HP
  • X-Axis Travel 8.7"
  • Z-Axis Motor 2.4 HP
  • Z-Axis Travel 15.75"
  • Y-Axis Motor 2.4 HP
  • Y-Axis Travel +/- 1.97"
  • Machine Dimensions (L x W x H) 98" x 73" x 76"
  • Machine Weight 13,007 lbs.
  • Live Tool Motor 3.5 HP
  • Live Tool Speed 5000 RPM
  • Main Spindle Bore 2.87"
  • Main Spindle Motor 14.8/10 HP

Product Features

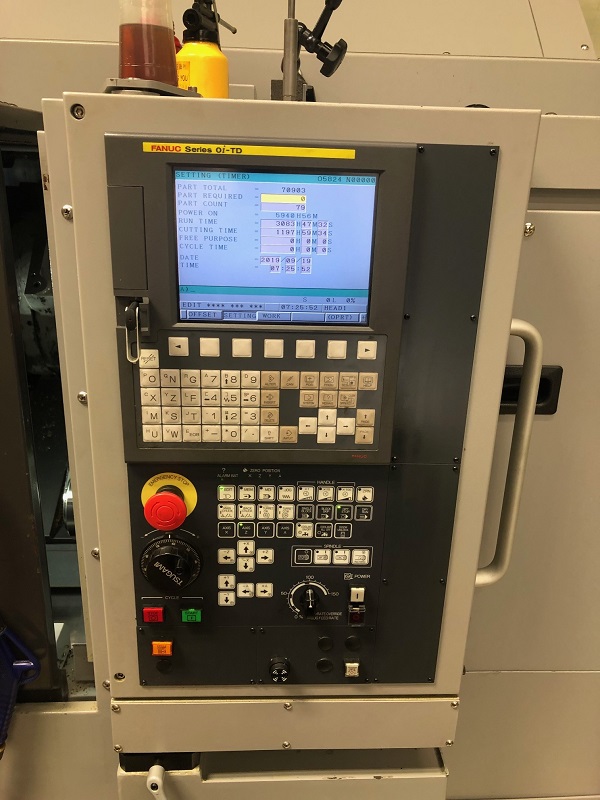

  • FANUC 0i-TD CNC Control
  • 10.4" Color LCD
  • C & Y-Axis Milling Capability
  • Servo Driven Sub Spindle
  • 8" Hydraulic 3-Jaw Chuck on Main
  • 6" Hydraulic 3-Jaw Chuck on Sub Spindle
  • Tool Presetter
  • High Pressure Coolant Thru Turret and Ejector (300 PSI)
  • Automatic Parts Catcher
  • Work Exit Conveyor
  • Chip Conveyor (Side Exit)
  • Barfeed Interface
  • RS232 Interface
  • Door Interlock
  • Manual Hand Retrace
  • Spindle Air Purge
  • Live Tool Rigid Tapping
  • Foot Switch for Main and Sub Spindle Chucks
  • Royal Quick-Grip 65 Collet Chucks
  • Edge Technologies Rebel V-65 Servo Driven Short Magazine Barfeed

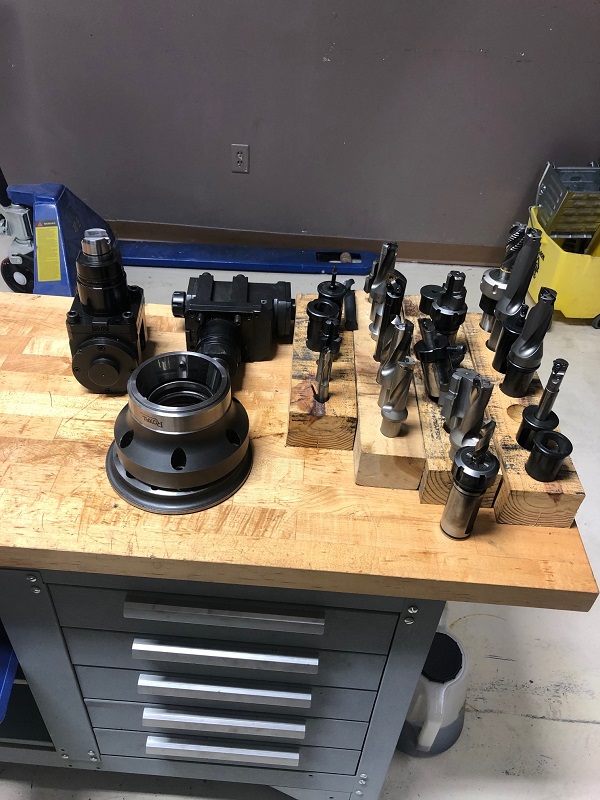

  • (2) Face Live Holders
  • (2) OD Live Holders
  • (3) Double Turning Holders
  • (4) Double Drill Holders
  • (4) Boring Sleeves
  • (2) Cross Drill Heads
  • (1) Front Drill Head
  • (1) Back Drill Head
  • (1) Cut-off holder

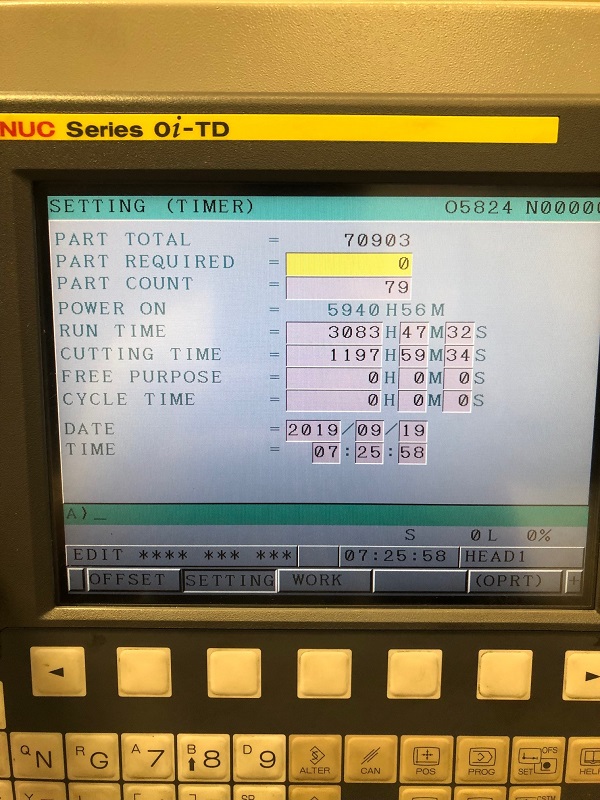

  • 5940 Hours Power On Time
  • 3083 Hours Run Time
  • 1197 Hours Cutting Time
