Special Item

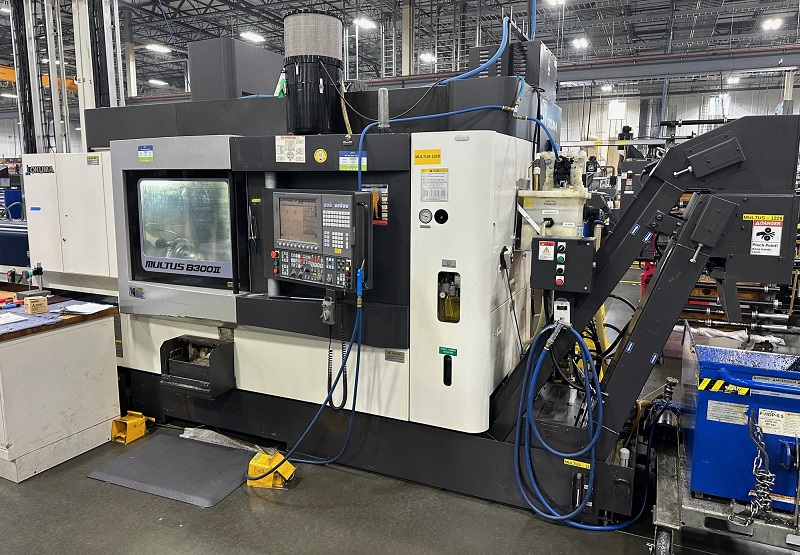

2016 OKUMA MULTUS B300BB/SBW II

OISP-P300S, 2.75" Bar, 10" Chuck, 3800 RPM, 120 Tools, 30 HP, Y-Axis, Sub Spindle, Tool Presetter, Auto Parts Catcher, Barfeed, High Pressure Coolant
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.75"
  • Max Swing Over Bed / Carriage 24.8" / 24.8"
  • Max Machining Length 35.43"
  • Spindle Motor 30 / 20 HP
  • Spindle Speed 38 - 3800 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Tools 120
  • Milling Motor 20 / 15 HP
  • Milling Speed 10000 RPM
  • Sub Spindle Bar Capacity 2"
  • Sub Spindle Chuck Size 8"
  • Sub Spindle Index 0.001 Degrees
  • Sub Spindle Motor 15 / 11 HP
  • Sub Spindle Nose A2-6
  • Sub Spindle Speed 45 - 5000 RPM
  • Rapid Traverse Rates (X&Z / Y /W) 1574 / 1024 / 787 IPM
  • X-Axis Travel 22.83"
  • Z-Axis Travel 36.81"
  • Y-Axis Travel 6.30"
  • C-Axis Index 0.001 Degrees
  • B-Axis Index .001 Degrees
  • B-Axis Swivel 225 Degrees
  • Machine Dimensions (L x W x H) 170.8" x 88.8" x 101.8"
  • Machine Weight 22,000 lbs.
  • Distance Between Spindles 35.43"
  • Max Tool Diameter 3.54" / 5.12"
  • Max Tool Length 11.81"
  • Max Tool Weight 17.6 lbs.
  • Max Turning Diameter 24.8"
  • W-Axis Travel (Sub Spindle) 39.37"

Product Features

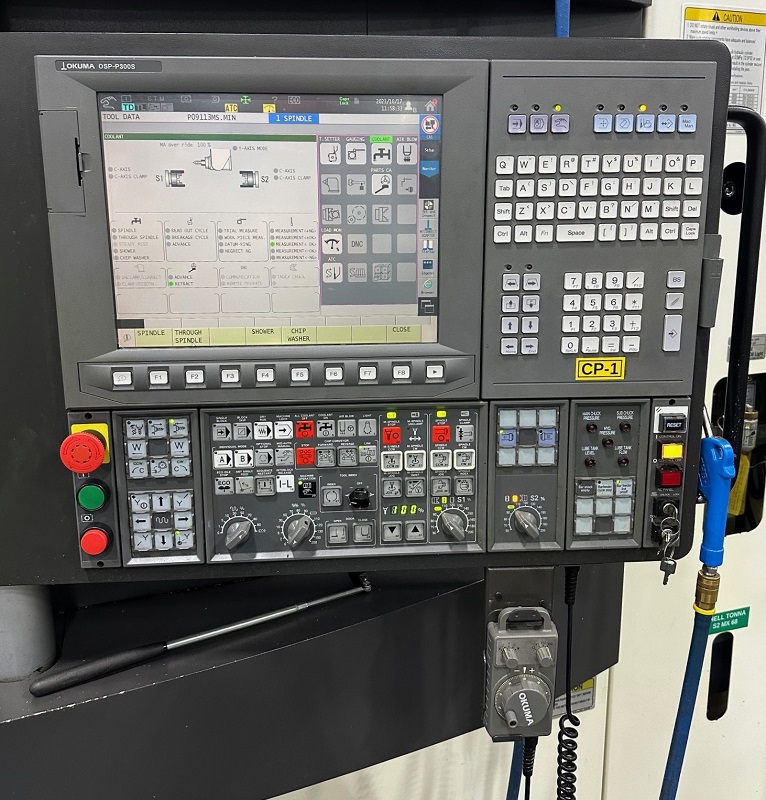

  • OKUMA OSP P300S CNC Control
  • 10.4” Color LCD
  • Upper Tool Spindle with Big Bore Main Spindle
  • Royal Quick Grip 80 Collet Chucks for Main Spindle
  • SMW KNCS-N 8.5" Quick Change Hydraulic Chuck for Sub Spindle
  • Automatic Touchsetter
  • Auto Parts Catcher for Sub Spindle
  • 120 Tool Magazine (Capto C6)
  • Double Decker Chip Conveyor with Filter (Hinge Type Right Side Exit)

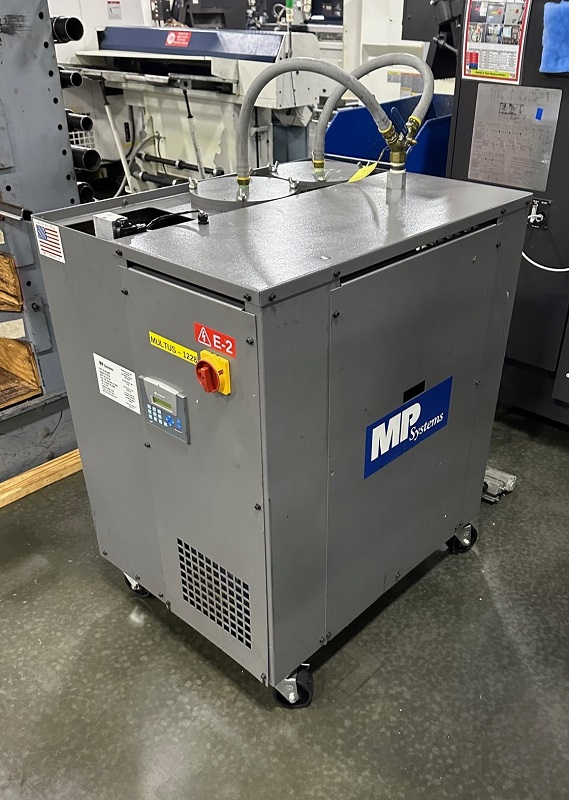

  • MP Systems High Pressure Coolant System (1000 psi)
  • Programmable Sub Spindle
  • Edge Technologies Rebel 102 Servo SE Short Magazine Barfeed
  • Renishaw RMP60 Touch Probe with Auto Gauging
  • Mist Collector
  • Coolant Filtration
  • Air Blast & Coolant Through Sub Spindle
  • Coolant Gun
  • Remote Jog Handle
  • Three Color Tower Light
  • Off-Center Turning Function
  • Lathe Tool Index Function
  • (4) Spare M-Codes
  • 25,247 NC Running Time
  • 4690 Spindle Revolution Time
  • 199 Cutting Time
  • Manufacture Date December 2015
  • Installed in 2016
