< Back to Lathes
Special Item

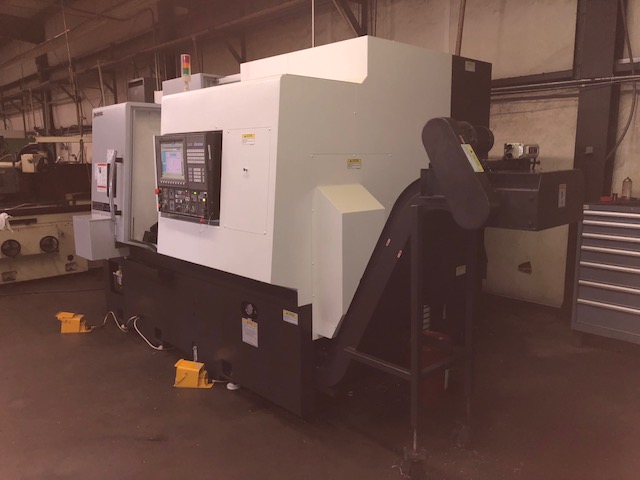

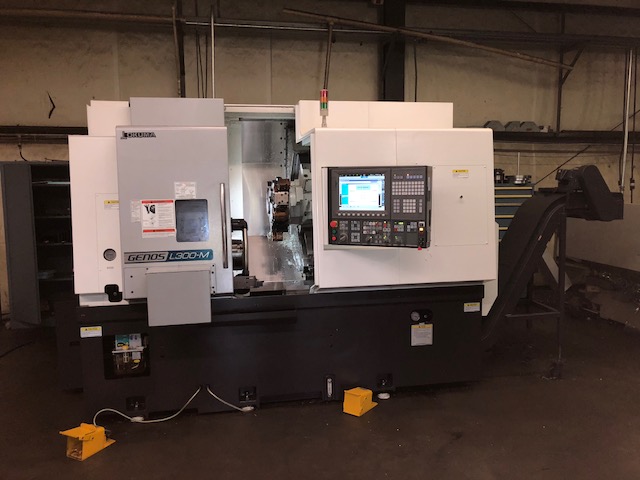

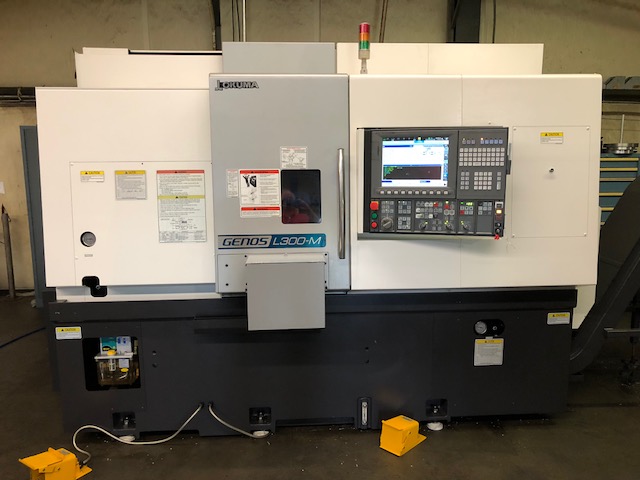

2016 OKUMA GENOS L300MYW

OKUMA OSP-P300LR, 2.63" Bar, 10" Chuck, 4500 RPM, 12 Tools, 20 HP, Y-Axis Milling, Sub Spindle, Chip Conveyor, Tool Presetter, Auto Parts Catcher
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.63"
  • Max Swing Over Bed / Carriage 20.47" / 14.57"
  • Max Machining Length 17.7"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 25 - 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Tools 12
  • Milling Motor 5 HP
  • Milling Speed 4500 RPM
  • Sub Spindle Bore 2.09
  • Sub Spindle Size 6"
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates (X / Z) 787 / 984 IPM
  • X-Axis Travel 9.25"
  • Z-Axis Travel 17.72"
  • Y-Axis Travel + / - 2.0"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step) 0.1 Second
  • Machine Dimensions (L x W x H) 119" x 73" x 72.1"
  • Machine Weight 14,000 lbs.
  • Max Turning Diameter 11.81"

Product Features

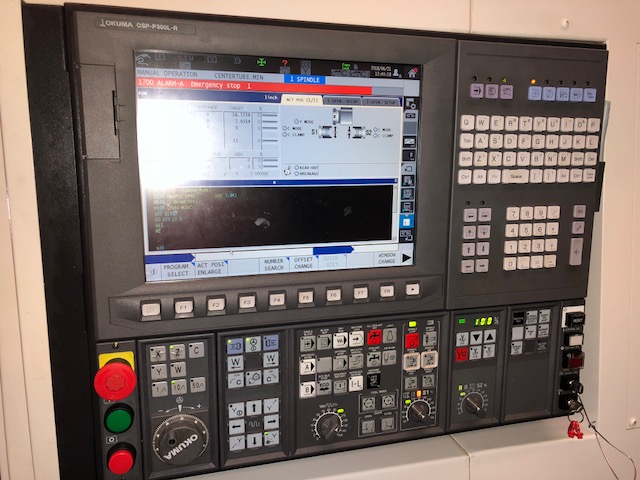

  • OSP-P300L-R CNC Control
  • 10.4" Color LCD
  • (2) USB Ports
  • Y-Axis Milling Capability

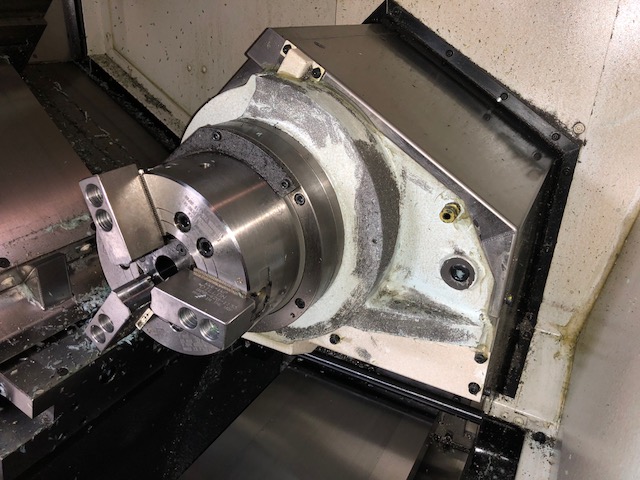

  • Programmable Sub Spindle
  • 10" Kitagawa B210 Hydraulic Chuck on Main Spindle
  • 6" Kitagawa B206 Hydraulic Chuck on Sub Spindle
  • Automatic Tool Presetter
  • Auto Parts Catcher
  • Jordan IndustriesChip Conveyor (Side Exit)
  • (1) Face Live Holder
  • (1) OD Live Holder
  • (5) Boring Bar Holders
  • (1) Double Boring Bar Holder
  • (1) Back Boring Bar Holder
  • (2) Tandem Turning Holders
  • (2) Facing Holder
  • (6) Boring Bar Sockets
  • (3) Turret Caps
  • Three Color Tower Light
  • Manufacture Date August 2016
  • 6353 Power On Time
  • 988 NC Running Time
  • 761 Spindle Revolution Time
  • 613 Cutting Time
