Special Item

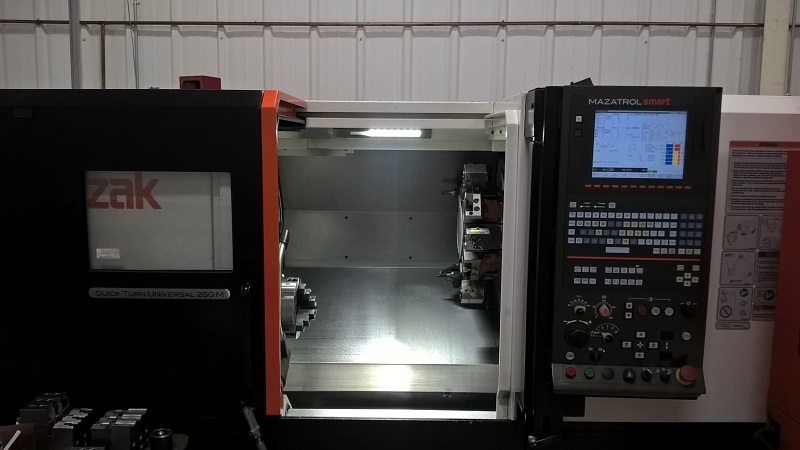

2016 MAZAK QUICK TURN UNIVERSAL 250M

Mazatrol Smart, 2" Bar, 8" Chuck, 16" Dia, 24" Length, 4500 RPM, 20 HP, 12 Tools, Live Tooling, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Diameter Bar Capacity 2.6"
  • Max Swing Over Bed / Carriage 27.4"
  • Turning Diameter (Max / Std) 16.25" / 8.35"
  • Max Machining Length 23.66"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"

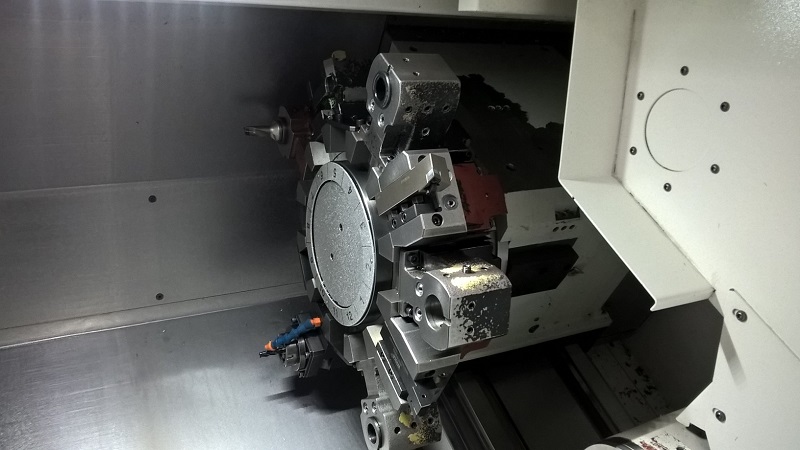

  • Tools 12
  • Milling Motor 5 HP
  • Rapid Traverse Rates (X & Z) 1181 IPM
  • X-Axis Travel 8.38"
  • Z-Axis Travel 24.88"
  • Machine Dimensions (L x W x H) 102.4" x 66.5" x 67.9"
  • Machine Weight 11,000 lbs.
  • Spindle Torque 123 ft. lbs.
  • Tailstock Taper MT #5
  • Tailstock Travel 22.13"

Product Features

  • Mazatrol Smart CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • Conversational Programming
  • C-Axis Milling Capability

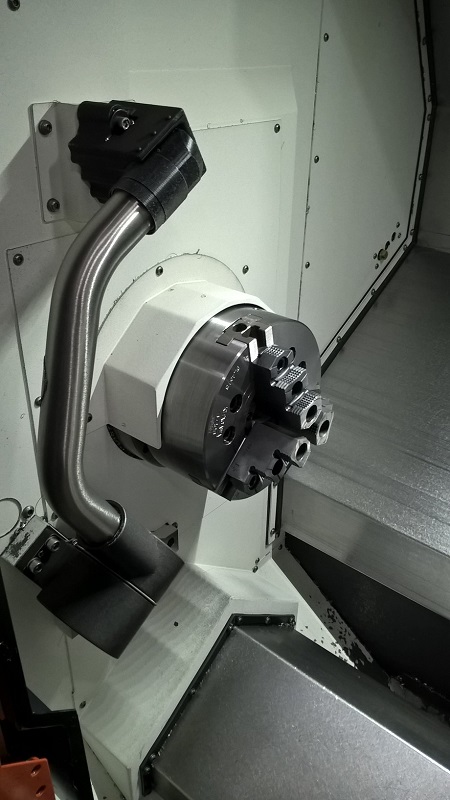

  • 8" Kitagawa Hydraulic Chuck

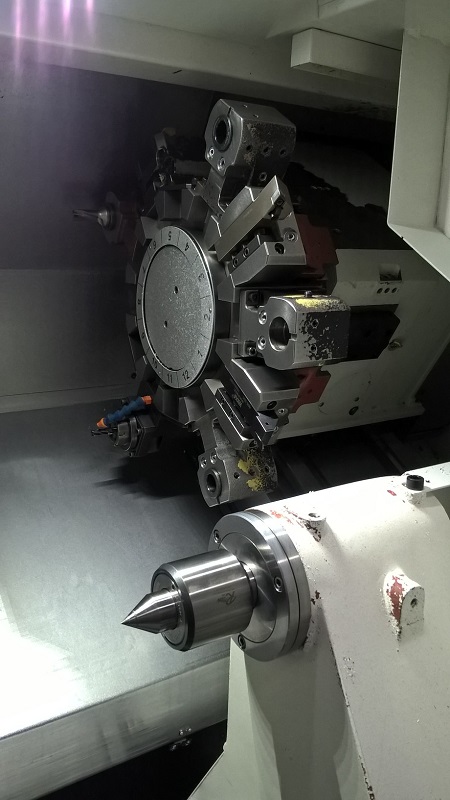

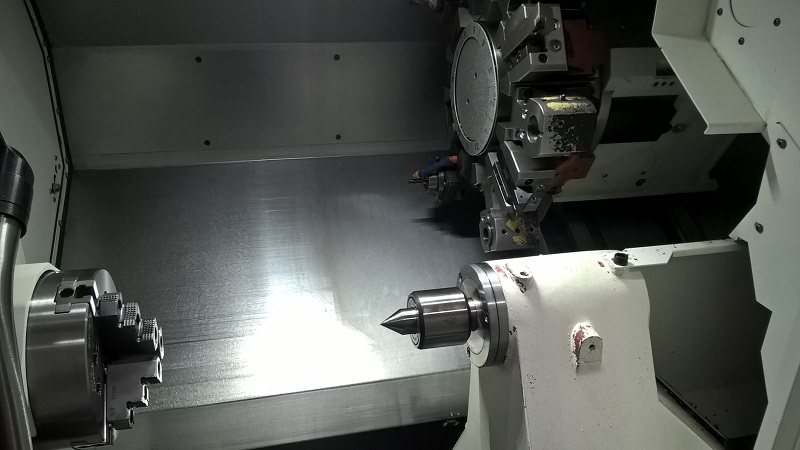

  • Servo Driven Tailstock
  • Programmable Tool Eye

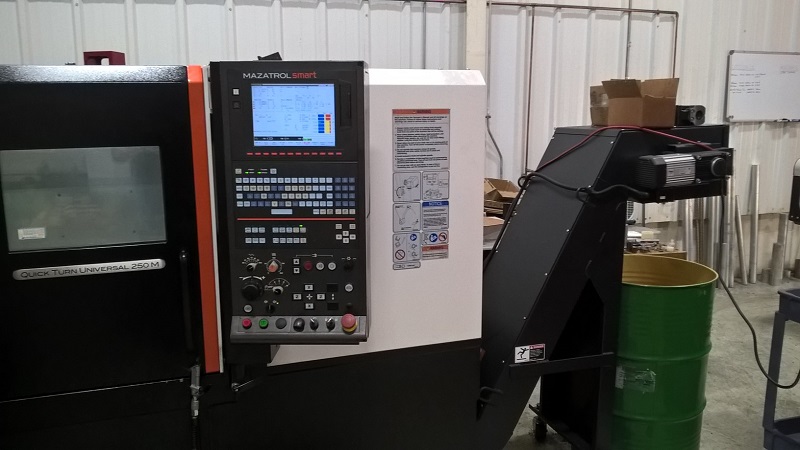

  • Chip Conveyor (Side Exit Hinge-Type)
  • High Power Coolant (213 psi)
  • Re-Threading Function
  • 2 MB Max Program Size
  • (2) Live Holders
  • (5) Boring Bar Holders
  • (2) Turning Holders
  • (1) Facing Holder
  • Manufacture Date January 2016
  • 2075 Power On Time
  • 535 Auto Operation Time
  • 520 Auto Cut Time
  • 383 Total Cut Time
  • 2180 Total Time
