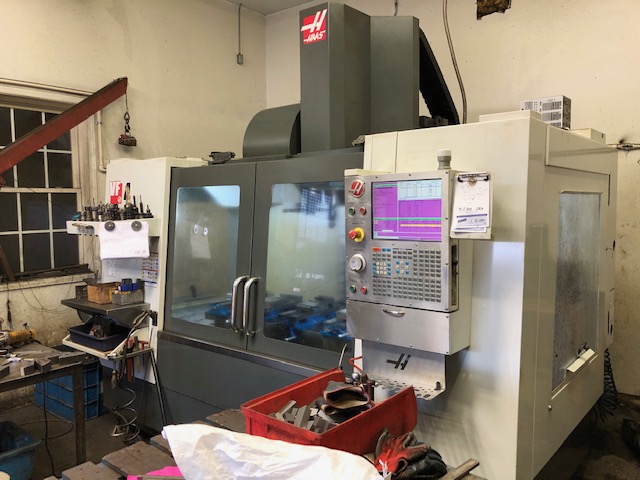

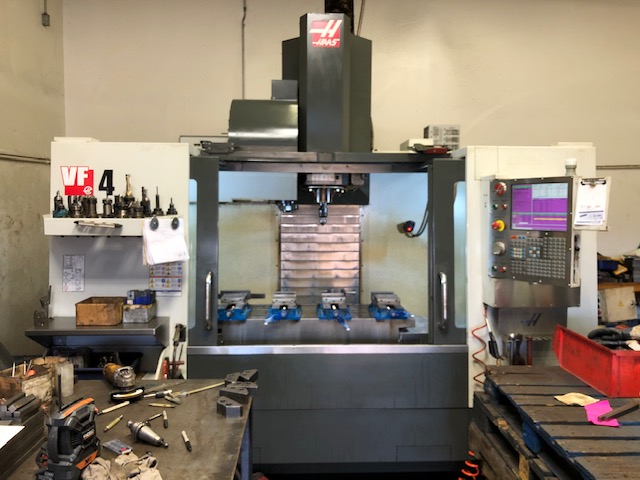

2016 HAAS VF-4

50.20.25", 8100 RPM, 30 HP, Cat 40, 24 SMTC, Probes, Programmable Coolant, Chip Auger, Macros, Low Hours
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 50"
  • Y-Axis 20"
  • Z-Axis 25"
  • Table Size 52" x 18"
  • Spindle Speed 8100 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 24
  • Table Load Capacity 3500 lbs.
  • Rapid Traverse Rates 1000 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 122" x 110" x 117.5"
  • Machine Weight 13,000 lbs.
  • Spindle Nose to Table Top 4" - 29"

Product Features

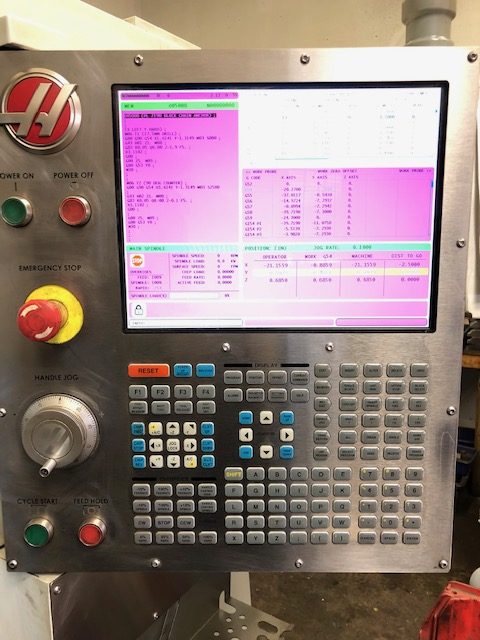

  • HAAS CNC Control
  • 12" Color LCD

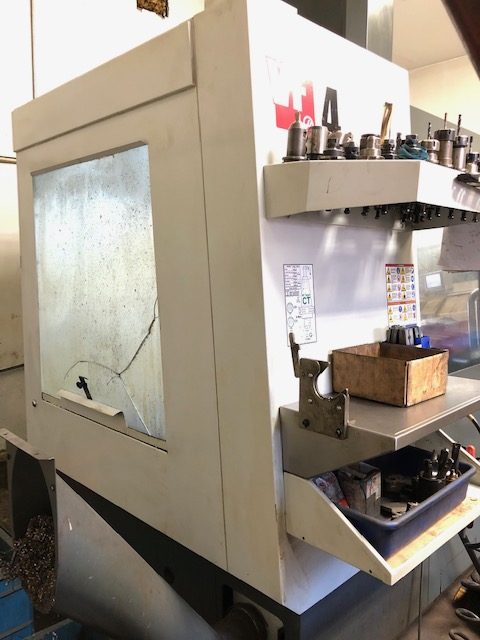

  • 24 Position Side Mount Tool Changer

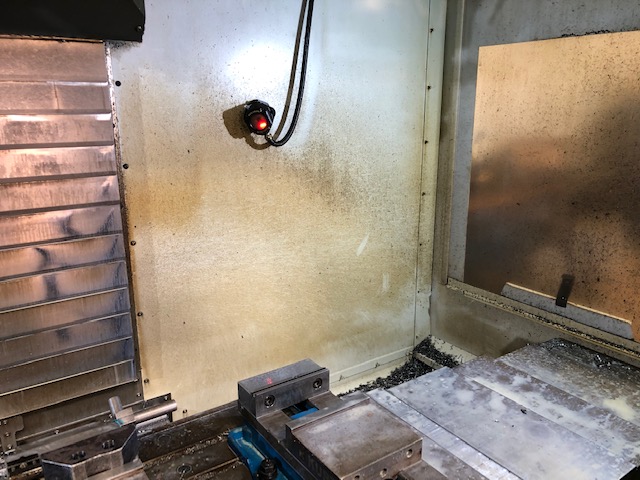

  • Wireless Intuitve Probing System
  • Programmable Coolant Nozzles
  • Chip Auger
  • User Macros
  • Spindle Orientation
  • Coordinate Rotation & Scaling
  • Rigid Tapping
  • Manufacture Date January 2016
  • 7825 Servo Time
  • 2609 Motion Time
  • 2708 Spindle Time
