Special Item

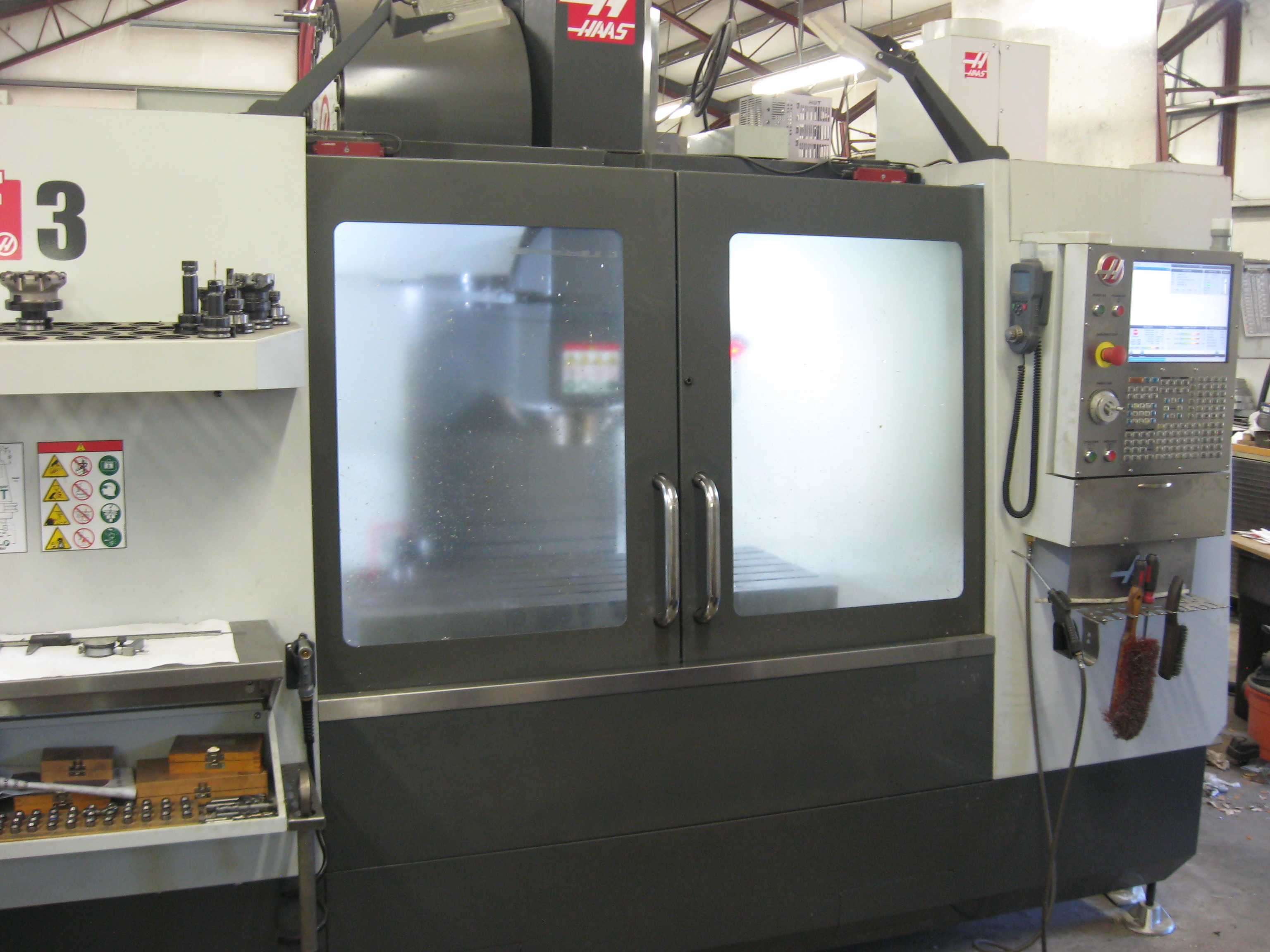

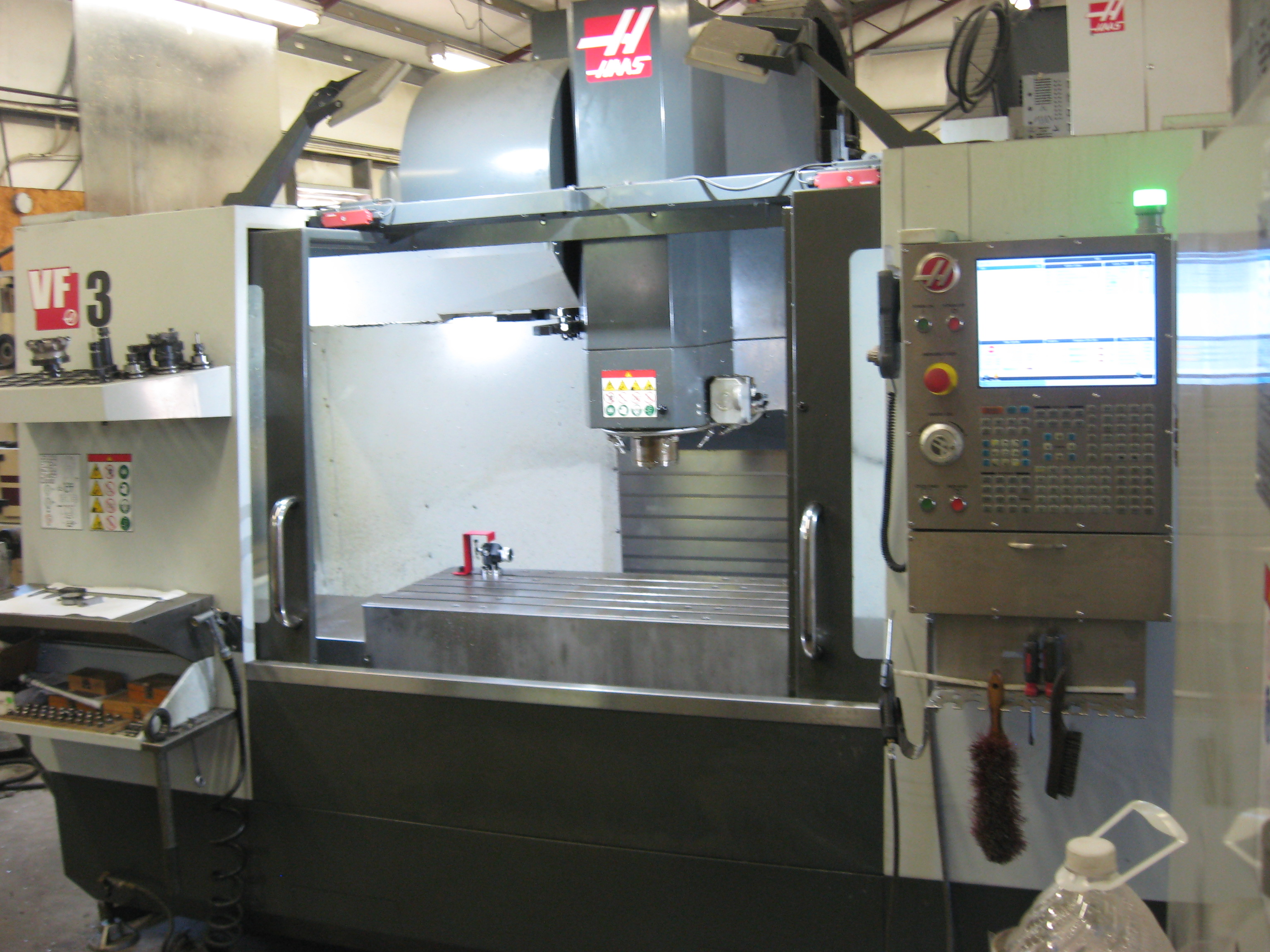

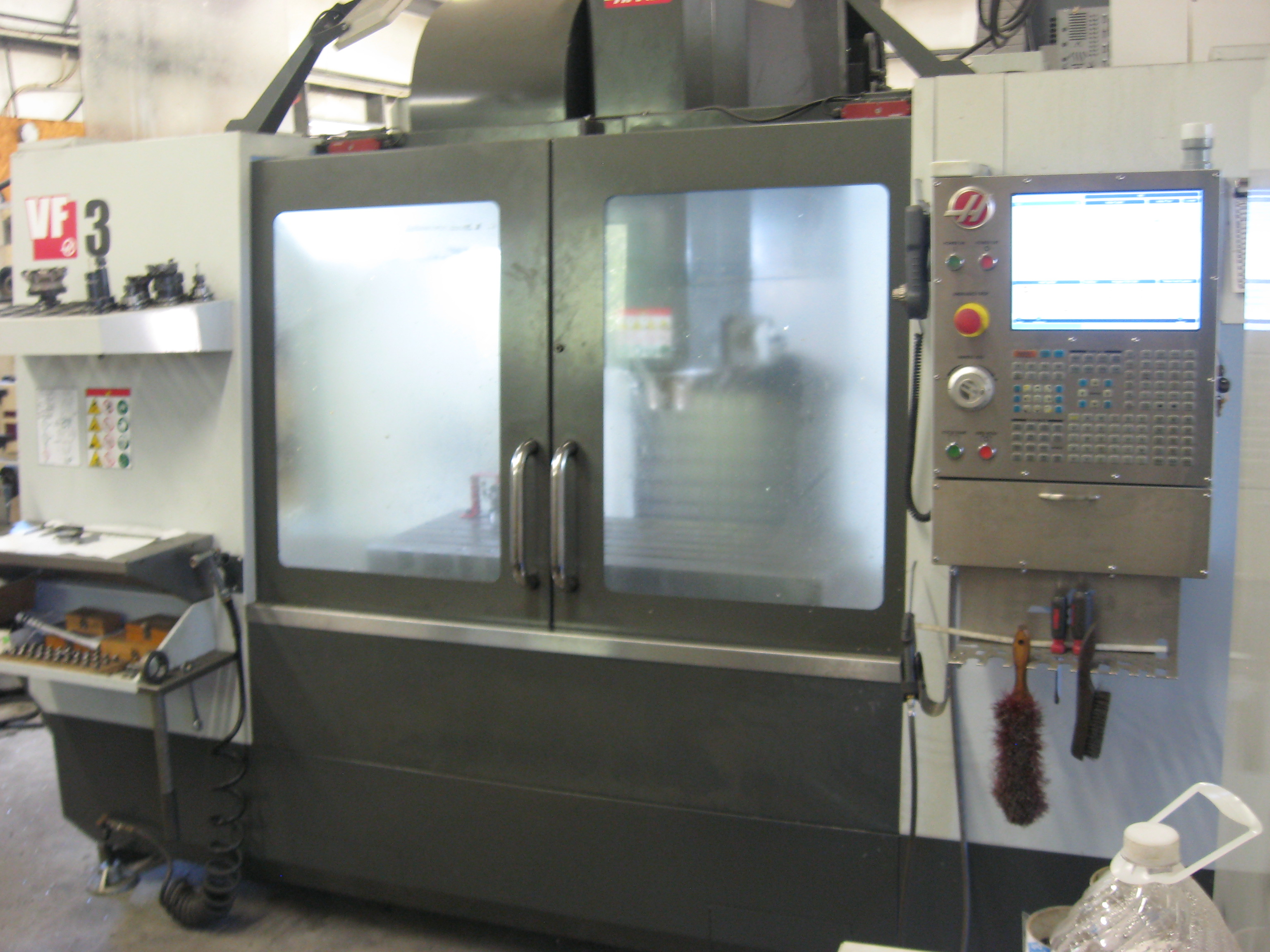

2016 HAAS VF-3

40.20.25", 8100 RPM, Cat 40, 24 Tools, Fourth Axis Interface, TSC, Prog. Coolant Nozzles, Probes
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40"
  • Y-Axis 20"
  • Z-Axis 25"

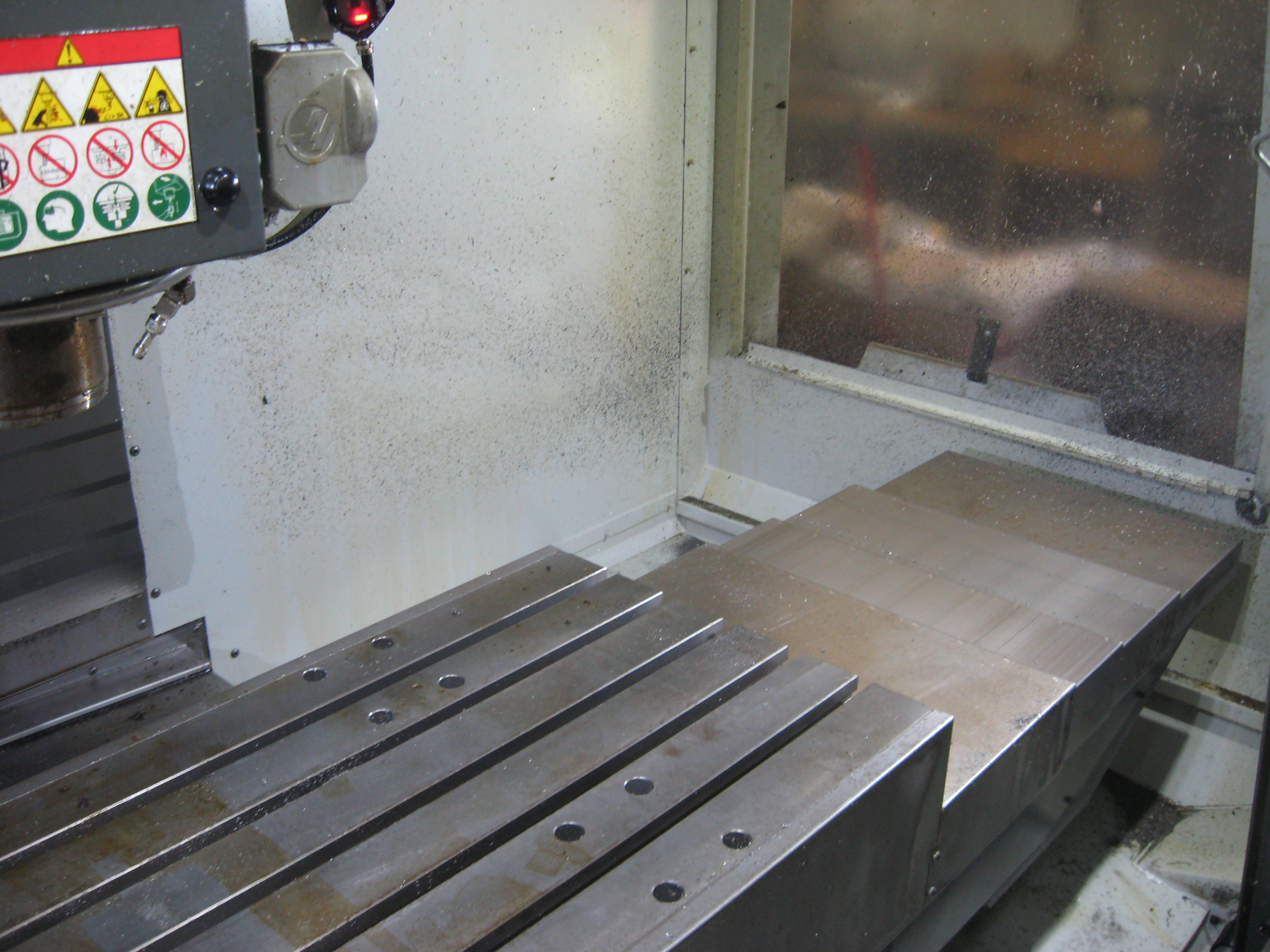

  • Table Size 48" x 18"
  • Spindle Speed 8100 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 15 HP
  • Tools 24
  • Table Load Capacity 3500 lbs.
  • Rapid Traverse Rates 1000 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Length 13"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 118" x 110" x 119.5"
  • Machine Weight 12,500 lbs.
  • Spindle Nose to Table Top 4" - 29"
  • Spindle Torque 250 ft. lbs.

Product Features

  • HAAS CNC Control
  • 12" Color LCD
  • USB Port
  • Gearbox
  • 24 Position Side Mount Tool Changer
  • Cat 40
  • Thru-Spindle Coolant (300 PSI)
  • 8100 RPM Spindle Speed
  • Fourth Axis Interface

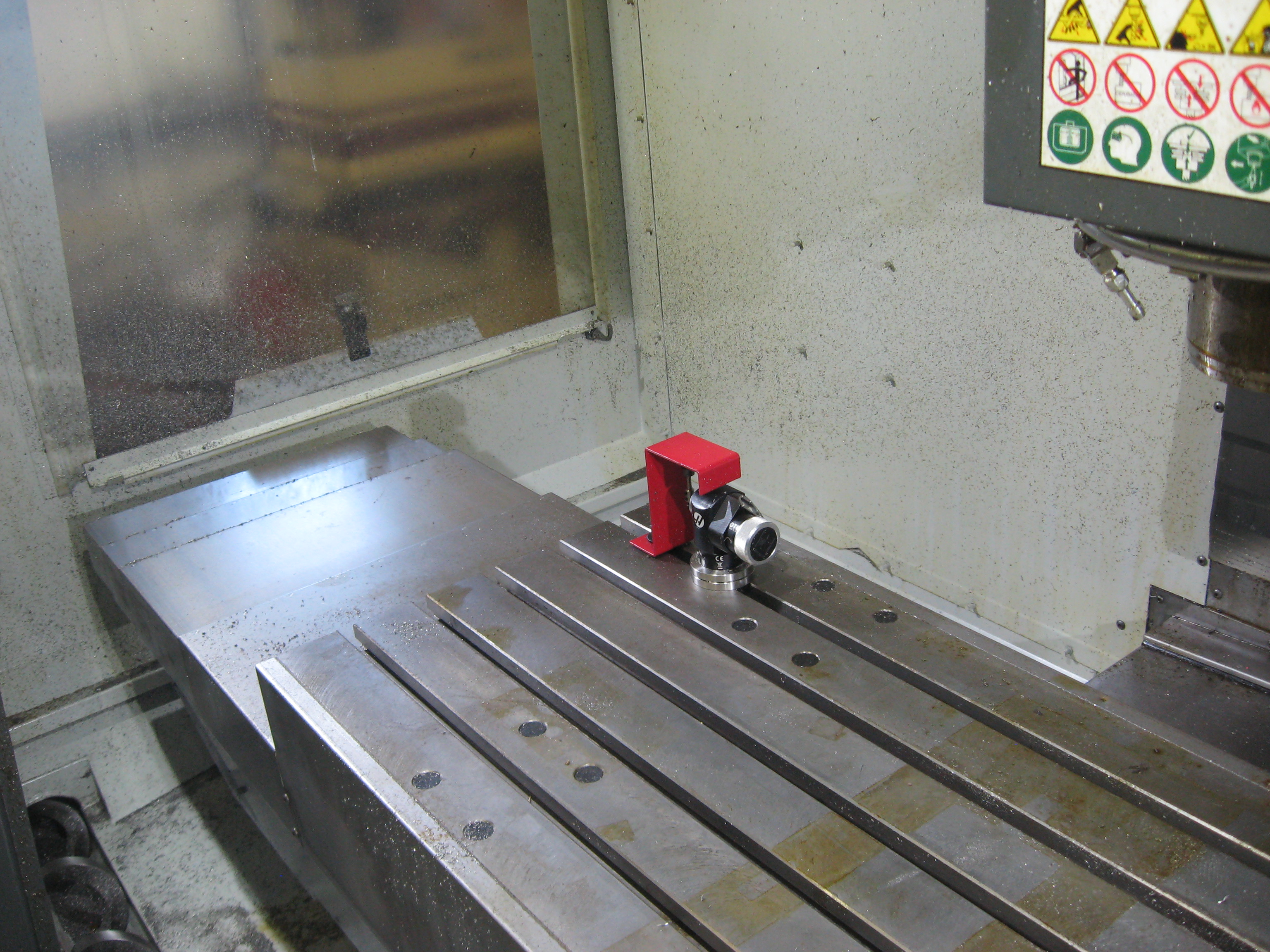

  • Wireless Intuitive Probing System
  • Chip Auger
  • Programmable Coolant Nozzles

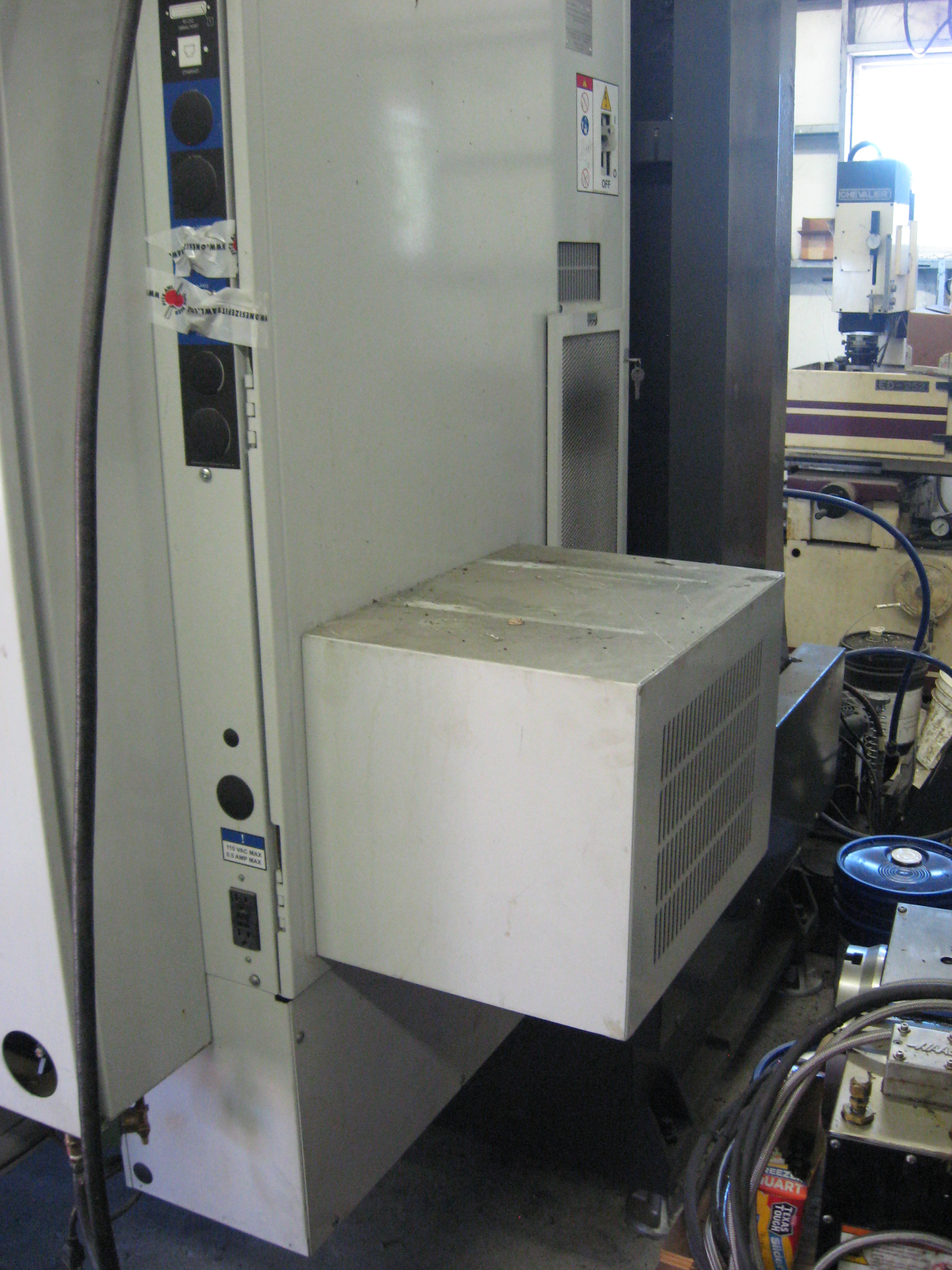

  • CNC Control Cabinet Cooler
  • Remote Jog Handle
  • High Intensity Lighting
  • Tool Shelves
  • Green Indication Light
  • Manufacture Date September 2016
