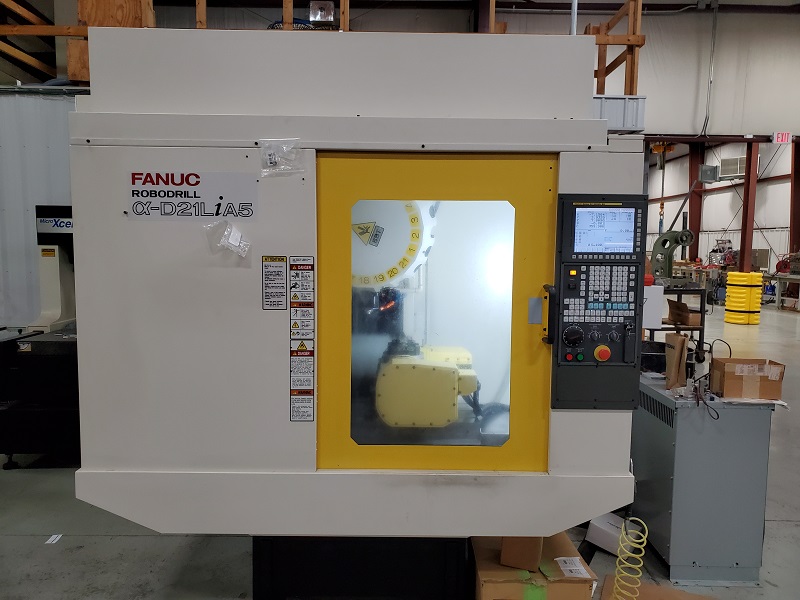

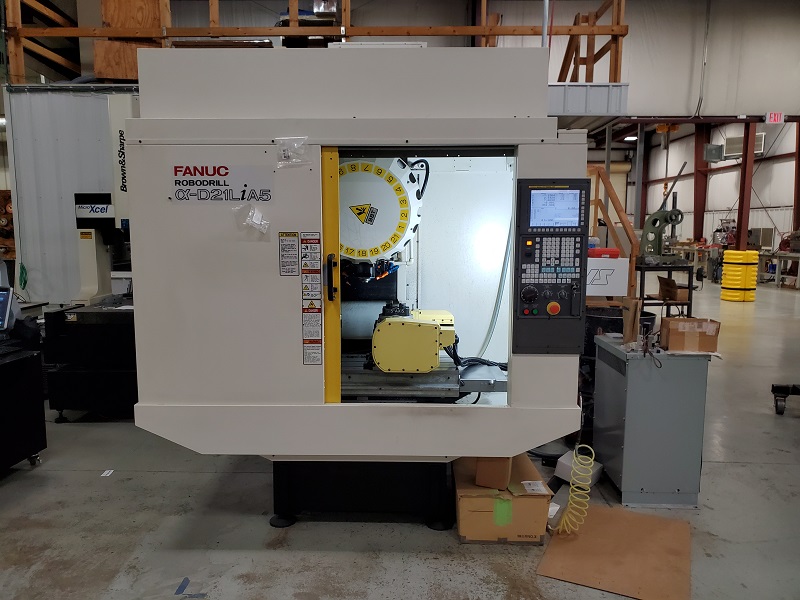

2016 FANUC ROBODRILL a-D21LiA5 5-AXIS

FANUC 31i-B5, 27.15.13", 24000 RPM, 21 Tools, BT-30 Big Plus, 35 HP, 5-Axis Table, TSC 1000 psi, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 27.55"
  • Y-Axis 15.74"
  • Z-Axis 12.99"
  • Table Size 33.46" x 16.14"
  • Spindle Speed 24000 RPM
  • Spindle Taper BT-30 Big Plus
  • Spindle Motor 34.8/7.3 HP
  • Tools 21
  • Table Load Capacity 660 lbs.
  • Rapid Traverse Rates 2125 IPM
  • Max Tool Diameter 3.14"
  • Max Tool Length 9.84"
  • Max Tool Weight 6.6 lbs.
  • Machine Weight 5104 lbs.
  • Tool Change Time (T - T / C - C) 0.9 / 1.6 Seconds

Product Features

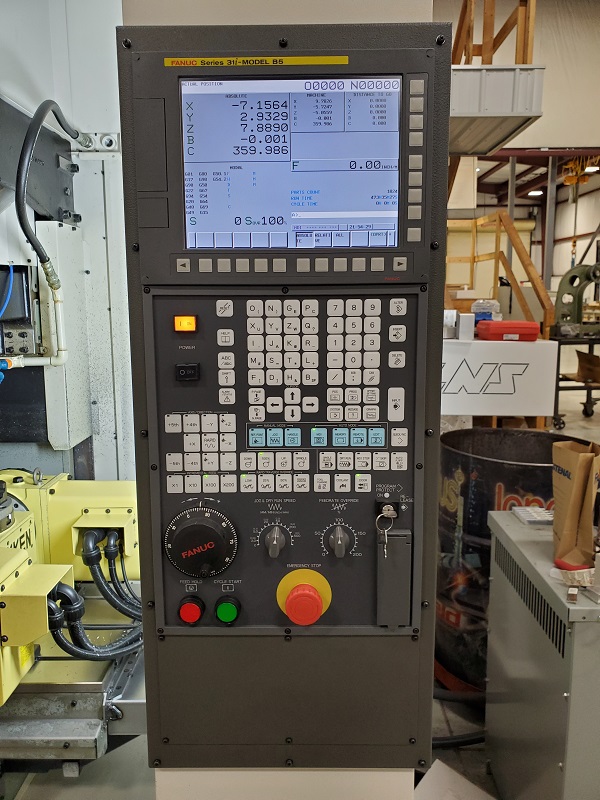

  • Fanuc 31i-B5 CNC Control
  • 10.4" Color LCD
  • Through Spindle Coolant (1000 psi)
  • Renishaw NC4 Laser Tool Setter & Broken Tool Detection
  • 24000 RPM Spindle Speed

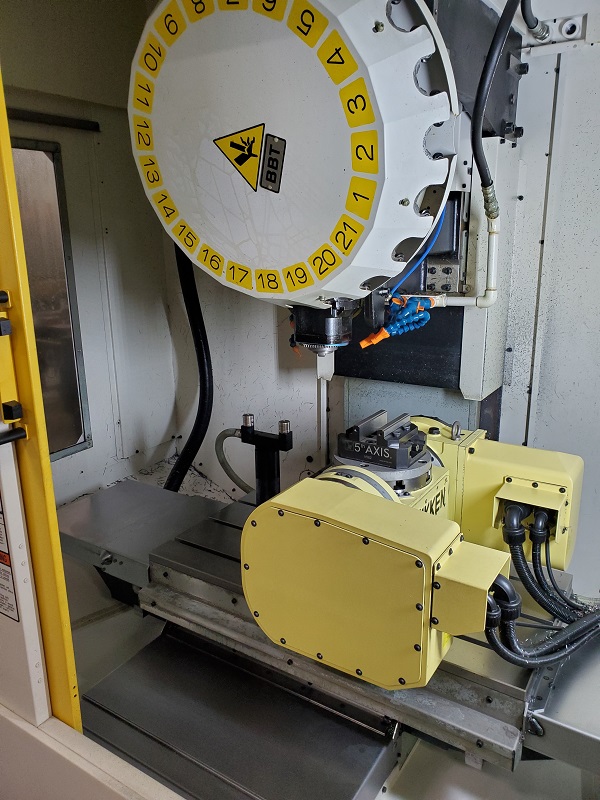

  • 21 Tool Turret
  • 27.55" Extended X-Axis Travel

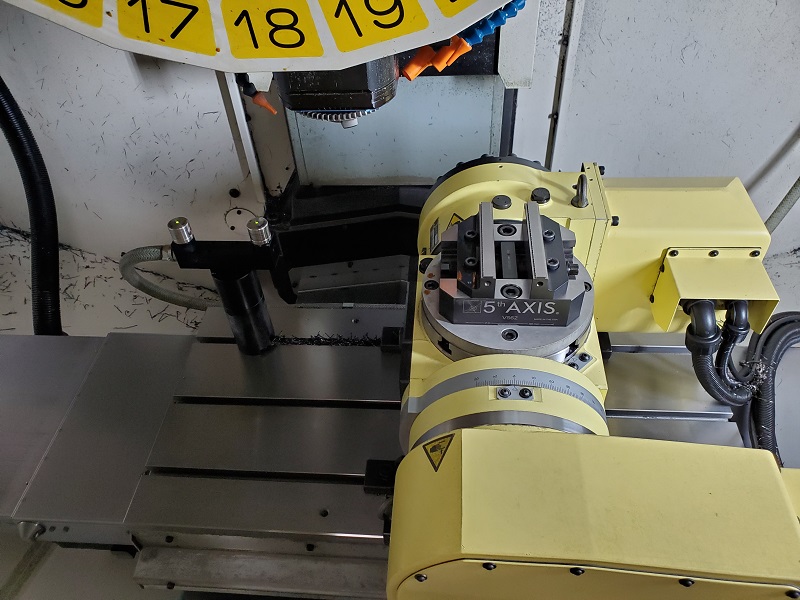

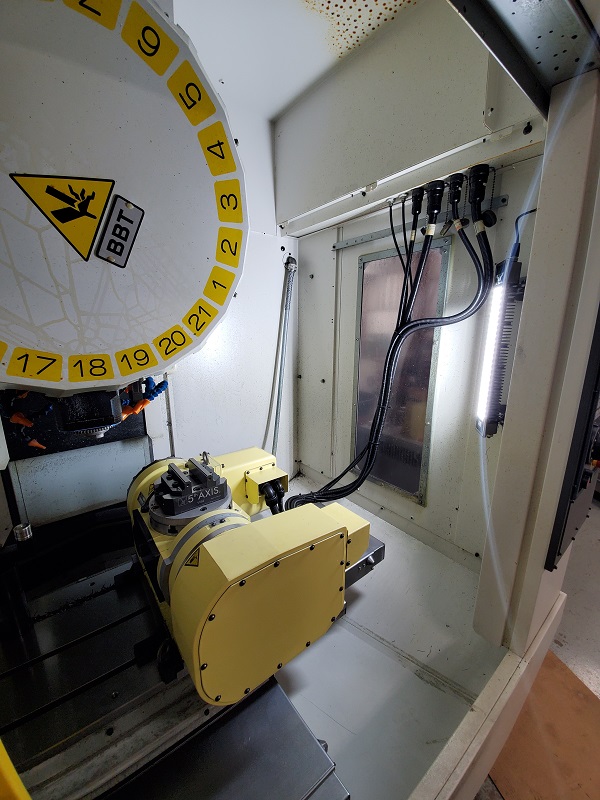

  • Nikken 5AX-201FA-M-AB 5-Axis Rotary Table

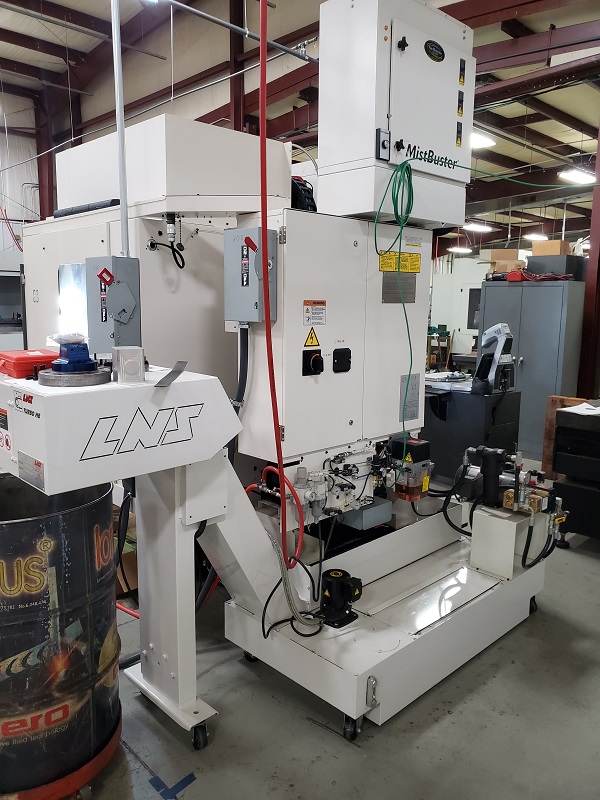

  • LNS Turbo Hinge Belt Chip Conveyor (Right Rear Exit)
  • AI Contour Control II
  • NANO Smoothing
  • Jerk Control
  • High Speed Processing
  • 1000 Block Look Ahead Expansion
  • 2 MB NC Memory
  • Rotary Table Dynamic Fixture Offset
  • Inverse Time Feed
  • Tool Center Point Control for 5-Axis
  • Tilted Work Plane Command
  • 3D Cutter Compensation
  • Fanuc Fast Data Server ATA Card 2 GIG (Flash Memory)
  • Background Editing
  • 1280 M Memory
  • 1000 Registerable Programs
  • Tool Compensation C
  • Work Coordinates 6 + 48
  • Custom Macro B
  • Rigid Tapping
  • 600 Sets Variable Memory Expansion
  • Multi-Step Skip Function
  • 300 mm Column Riser
  • Roof Insert
  • Manufacture Date October 2016
  • 1791 Power On Time
  • 473 Run Time
  • 313 Cutting Time
