Special Item

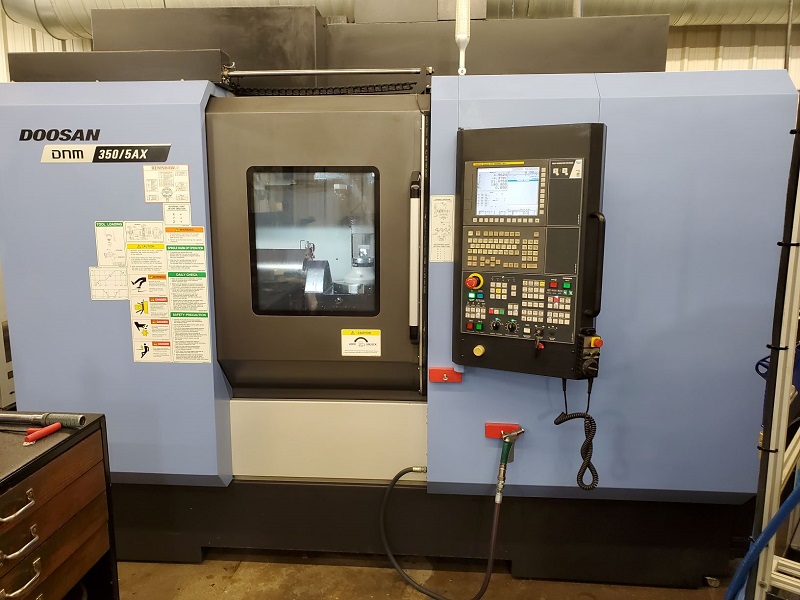

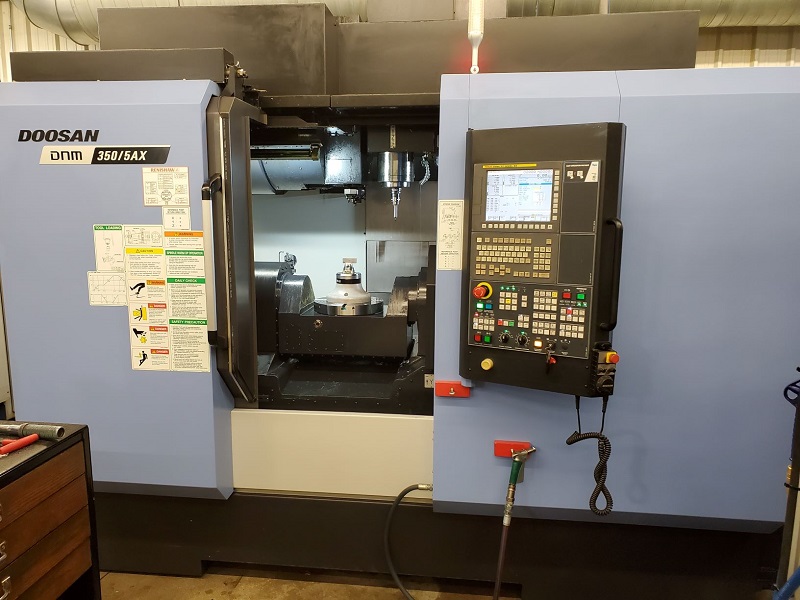

2016 DOOSAN DNM 350/5AX 5-AXIS
FANUC 31i-MB5, 24.26.20", 12000 RPM, Cat 40 Big Plus, 30 SMTC, 30 HP, 5-Axis, TSC 265 psi, Probes, Chip Conveyor, Data Server
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
X-Axis 23.6"
-
Y-Axis Travel 25.8"
-
Z-Axis 19.7"
-
A-Axis (Table Tilt) +30 Degrees to -120 Degrees
-
C-Axis (Table Rotation) .001 Degrees
-
Spindle Speed 12,000 RPM
-
Spindle Taper Cat 40 Big Plus
-
Spindle Motor 30 HP
-
Tools 30
-
Rapid Traverse Rates (X & Y / Z) 1417 / 1181 IPM
-
Max Table Load 551 lbs.
-
Max Tool Diameter 3.1" / 4.9"
-
Max Tool Length 10.6"
-
Max Tool Weight 17.6 lbs.
-
Max Workpiece Dia / Height 15.7" / 13.2"
-
Machine Dimensions (L x D x H) 118" x 117" x 130"
-
Spindle Nose to Table Top 2" - 21.7"
-
Spindle Torque 123 ft. lbs.
-
Table Diameter 13.8"
Product Features

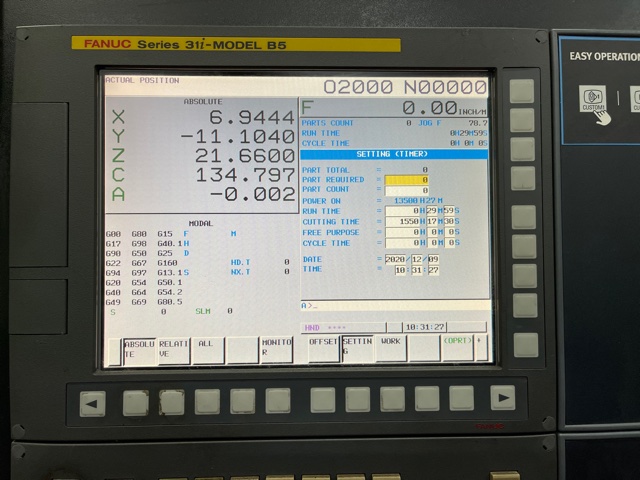

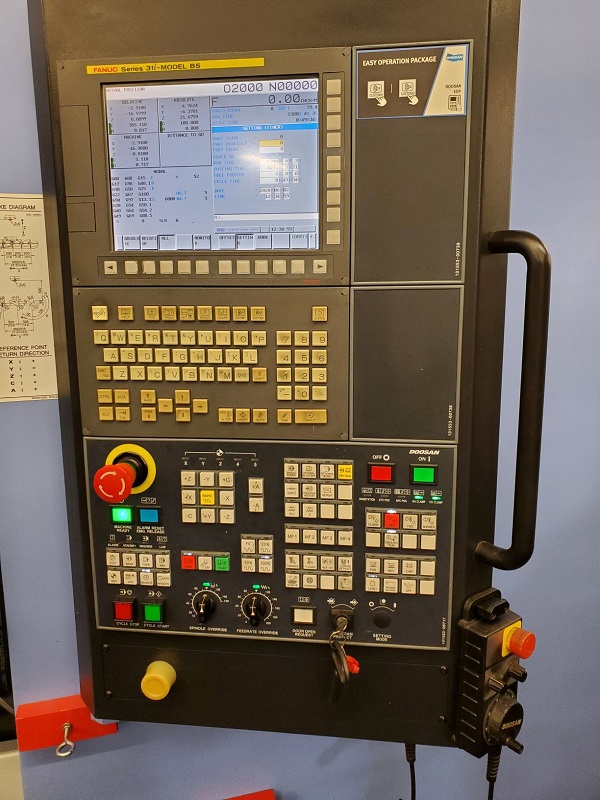

- FANUC 31i-MB5 CNC Control
- 10.4" Color LCD

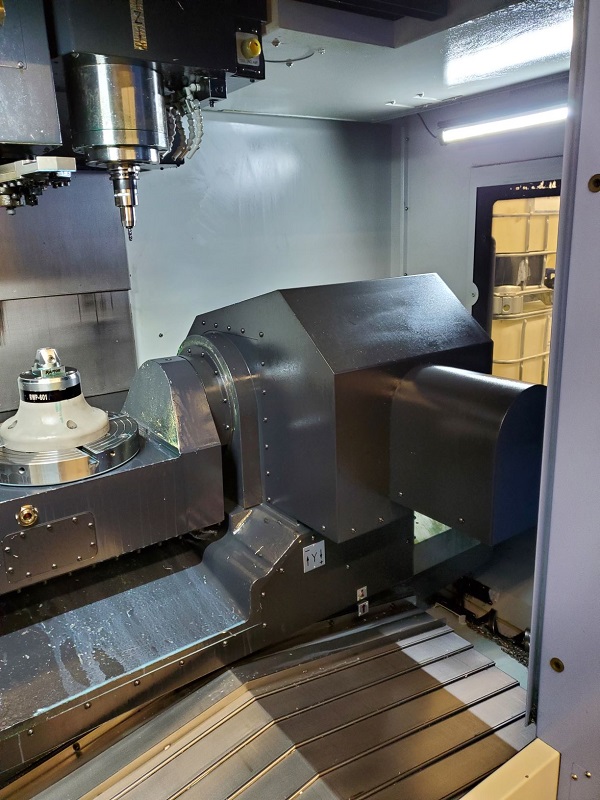

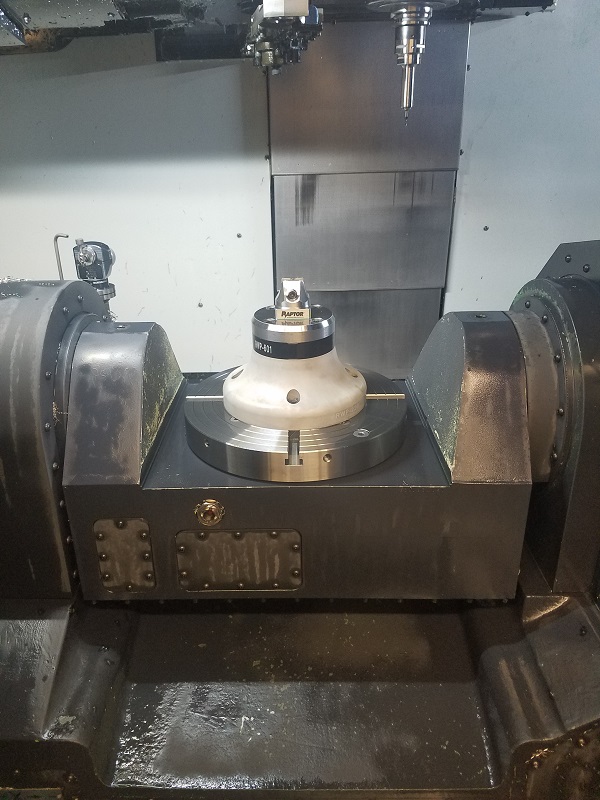

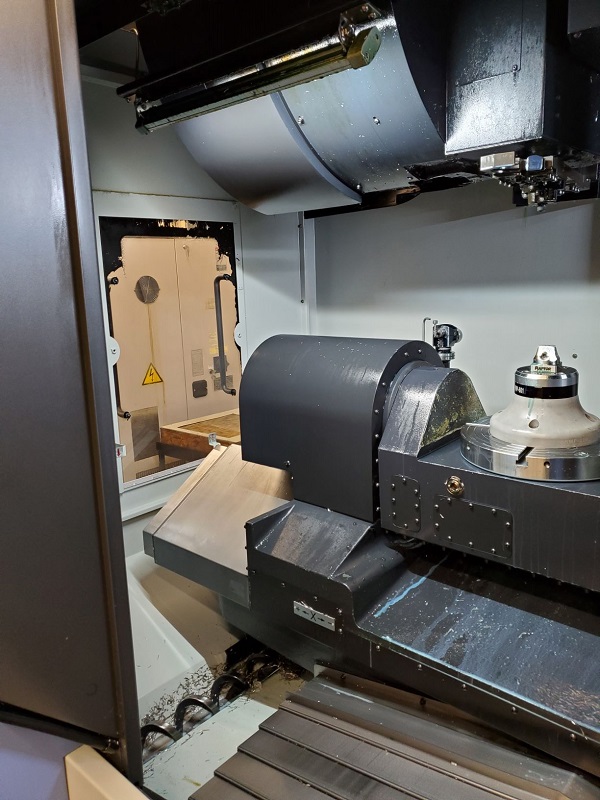

- Integrated 5-Axis Trunnion Rotary/Tilt Table
- Through Spindle Coolant (265 psi)
- 30 Position Side Mount Tool Changer
- LNS Turbo Micro Fine Conveyor
- Renishaw RMP 600 Touch Probe
- Renishaw Tool Setter
- Remote Jog Handle

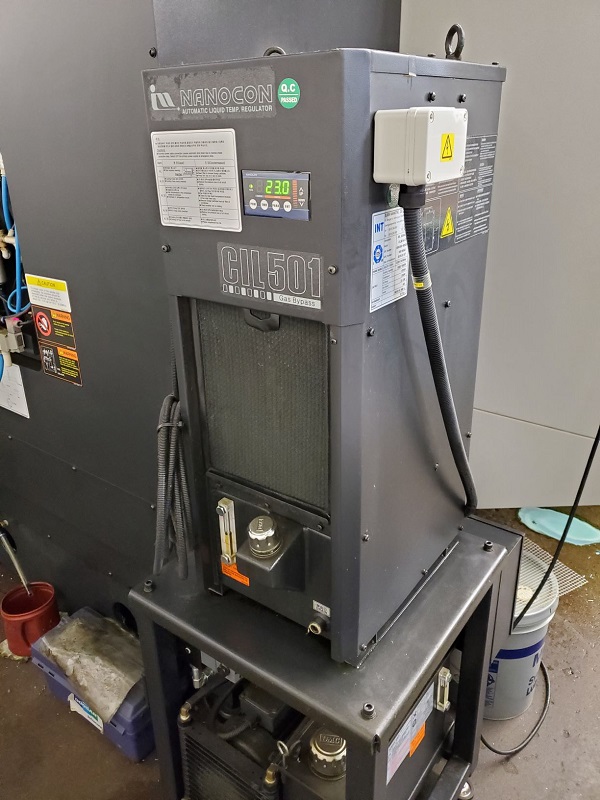

- Spindle Chiller Unit
- Auto Door
- Coolant Gun
- External Air Blow
- Auto Power Off
- (4) Additional M-Codes
- Data Server
- 200 Sets of Tool Offsets
- 8 MB Program Storage
- Jerk Control
- Tool Radius Compensation
- Manufacture Date January 2016

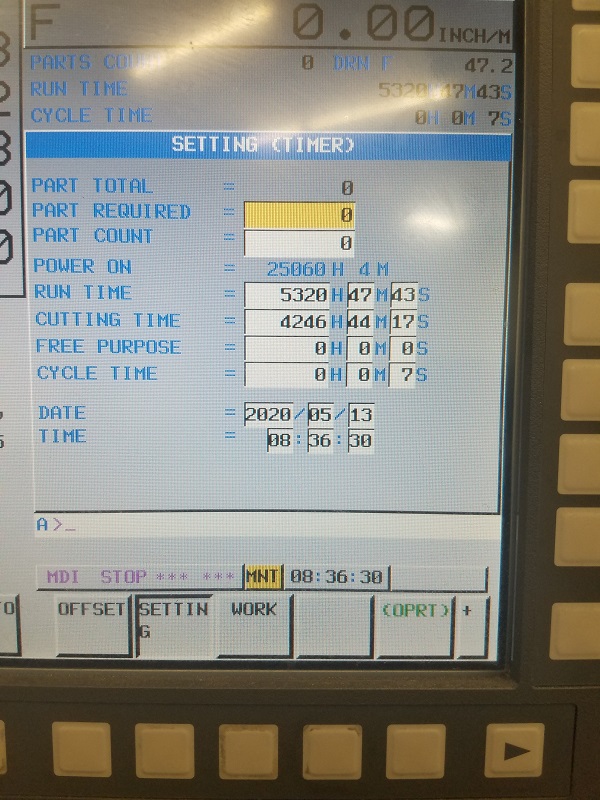

- 25,060 Power On Time
- 5320 Run Time
- 4246 Cutting Time
