Special Item

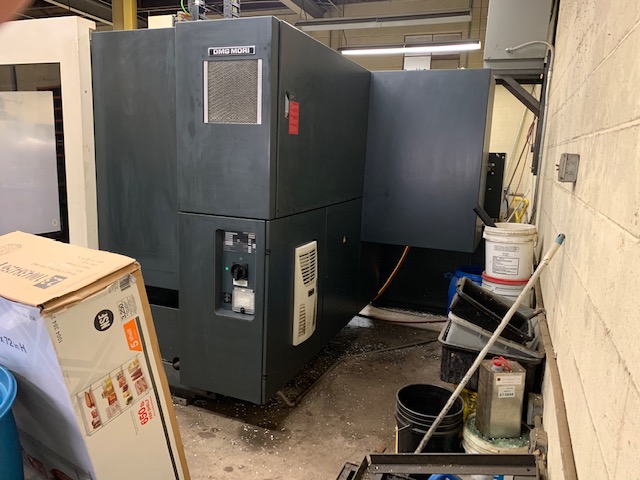

2016 DMG MORI DMU 50

Siemens 840D, 25 x 20" Pallet, 20.18.16", 18000 RPM, Cat 40 Big Plus, 28 HP, 60 Tools, TSC, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 19.6"
  • Y-Axis Travel 17.7"
  • Z-Axis 15.74"
  • B-Axis (Table Swivel) -5 to +110 Degrees
  • C-Axis Index 0.001 Degree
  • Table Size 24.8" x 19.7"
  • Spindle Speed 18,000 RPM
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 27.2 / 19.4 HP
  • Tools 60
  • Table Load Capacity 661 lbs.
  • Rapid Traverse Rates 1181 IPM
  • Max Tool Diameter 5.1"
  • Max Tool Length 11.8"
  • Max Tool Weight 13.2 lbs.
  • Machine Dimensions (L x D x H) 112" x 92" x 108"
  • Machine Weight 12,000 lbs.
  • Spindle Torque 89.24 ft. lbs.

Product Features

  • CELOS with Siemens 840D SlimLine CNC Control
  • 21.5" ERGOline Control with Multi-Touch Screen
  • 8 GB Memory
  • USB Port
  • Fast ethernet 10/100 Base T

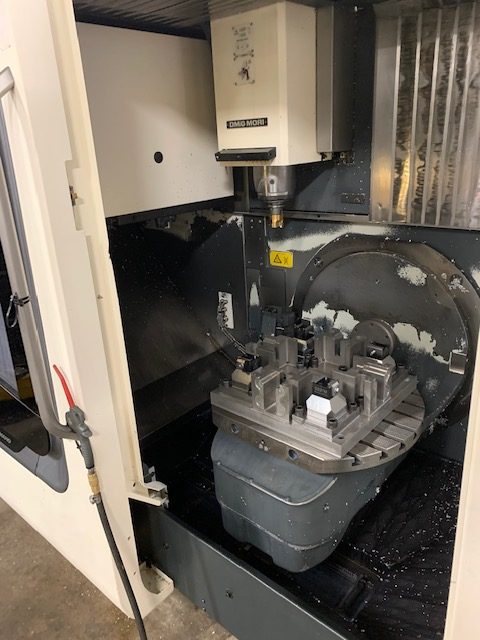

  • Swivel Rotary Table
  • 5-Axis Simultaneous Contouring
  • Renishaw Optical Touch Probe
  • Heidenhain Tool Touch Probe
  • Through Spindle Coolant (1000 psi Chip Blaster D30-70)
  • 60 Tool Magazine
  • Chip Conveyor (Hinge Type Left Side Exit)
  • Rotary Window
  • Coolant - Air Blast Changeover
  • Manual Pulse Generator
  • Manufacture Date 2015
  • Installed in July 2016

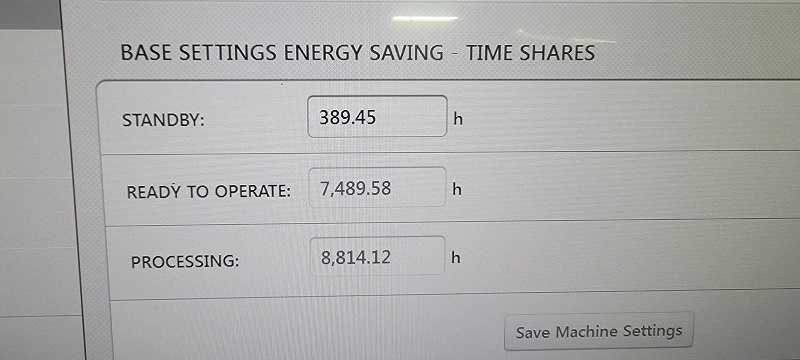

  • 8814 Processing Time
  • 7489 Ready to Operate
  • 389 Standby Time
