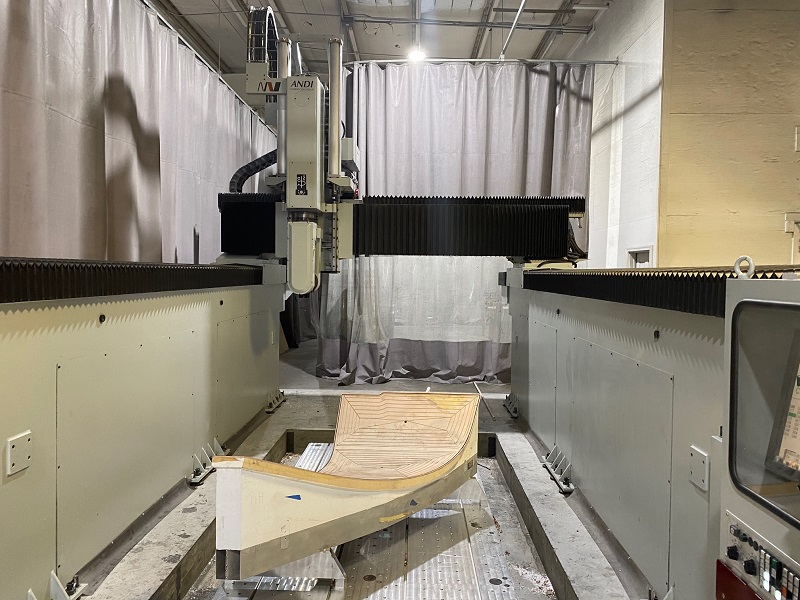

2016 ANDERSON MASS 1540 IP 5-AXIS ROUTER

Fanuc 31iMB5, 181.82.47", 18000 RPM, HSK-63F, 10 Tools, 20 HP, Traveling Open Gantry, 5-Axis, (2) Vacuum Pumps
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis Travel 181.1"
  • Y-Axis Travel 82.67"
  • Z-Axis Travel 47.24"
  • B-Axis +/- 105 Degrees
  • C-Axis 200 Degrees
  • Table Size 157" x 59"
  • Spindle Speed 18,000 RPM
  • Spindle Taper HSK-63F
  • Spindle Motor 20 HP
  • Tools 10
  • Rapid Traverse (X & Y/Z) 1560 / 472 IPM
  • Machine Dimensions (L x D x H) 281" x 175" x 167"
  • Machine Weight 25,000 lbs.

Product Features

  • FANUC 31iMB5 CNC Control
  • 15" Color CRT

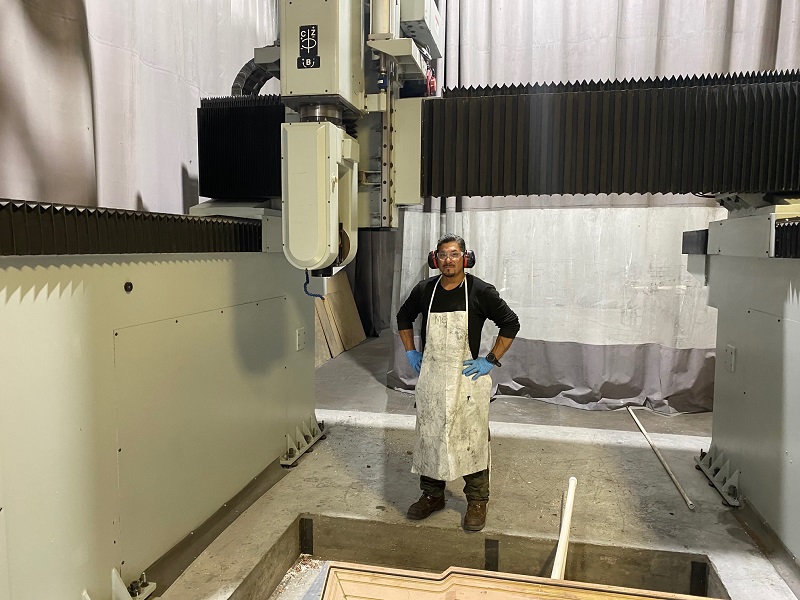

  • Traveling Open Gantry Design
  • 5-Axis Contouring Capability
  • Inch/Metric Conversion
  • Work Coordinate System
  • 8 MB Memory
  • 1000 Registerable Programs
  • Mirror Image
  • Helical Interpolation
  • Double Yoke Spindle
  • (2) Becker 9 HP Vacuum Pumps
  • Aluminum T-Slotted Table with Steel Base

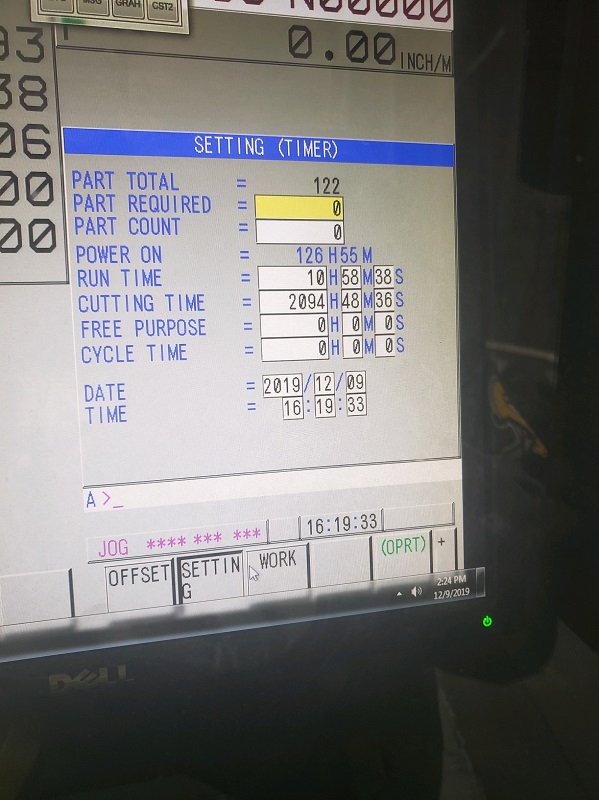

  • 126 Power On Hours
  • 2094 Cutting Time
