< Back to Lathes

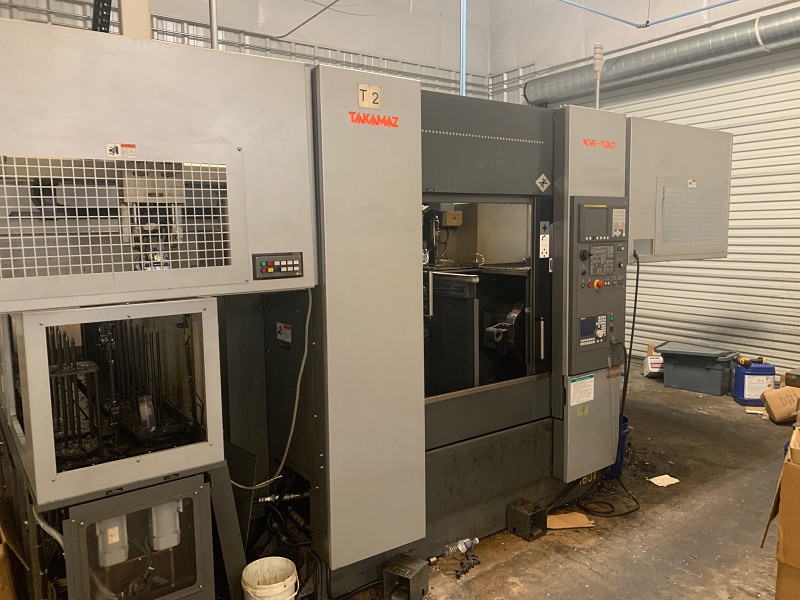

2015 TAKAMAZ XW-130

FANUC 0iTD, 8" Chucks (2), 4000 RPM, 15 HP, 8 Tools (2), 16 Station Stocker, Part Turnover, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8" (2)
  • Spindle Motor 15 / 10 HP (2)
  • Spindle Speed 4000 RPM
  • Spindle Nose (L & R) A2-6
  • Tools 8 (2)
  • Rapid Traverse Rates 945 IPM
  • X-Axis Travel 5.91"
  • Z-Axis Travel 6.3"
  • Machine Weight 12.250 lbs.
  • Loader Max Diameter 5.9"
  • Loader Max Weight 6.6 lbs x 2
  • Loader Rapid Traverse (X Y Z) 1400 / 700 / 500 ipm
  • Max Turning Diameter 11"
  • Max Turning Length 6.1"
  • Spindle Bearing ID 3.93"

Product Features

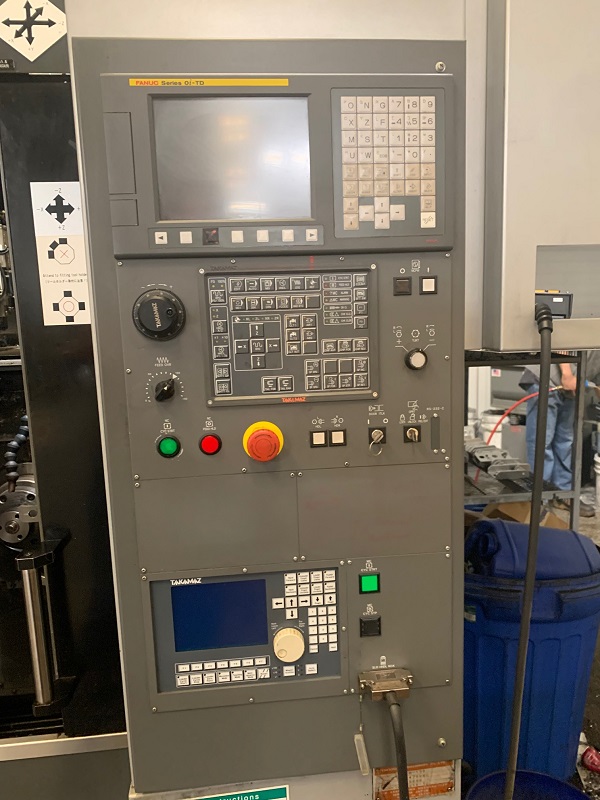

  • FANUC 0i-TD CNC Control
  • 10.4" Color LCD
  • USB Port

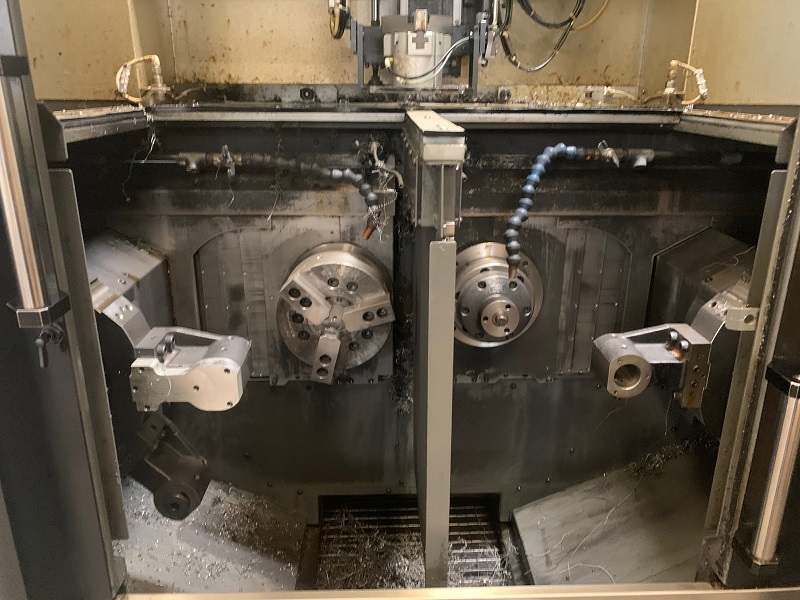

  • Twin Adjacent Spindles & Turrets
  • GTH150 Gantry Loader with Dedicated L Hand (OP 10/10 or 10/20)

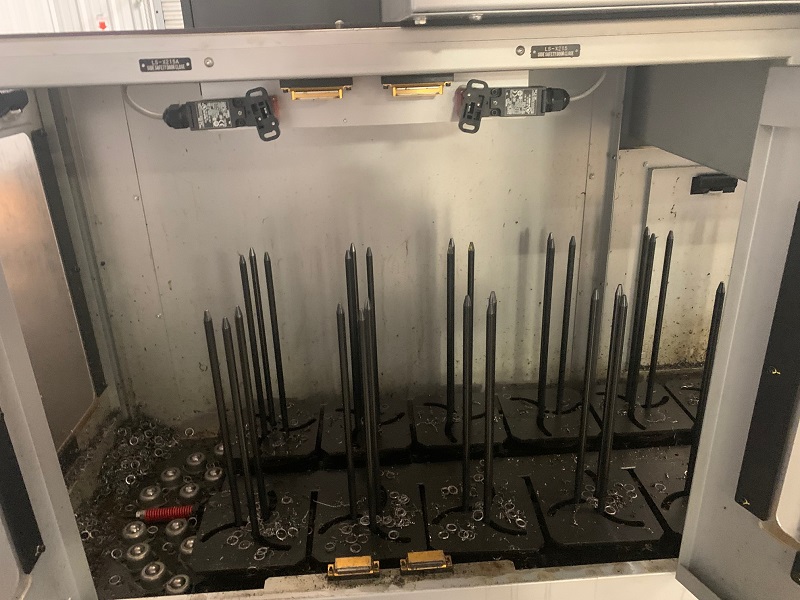

  • 16 Station Rotary Stocker (IN / OUT)
  • Part Turnover Station
  • (2) 8" Kitagawa B208 Hydraulic Chucks
  • (2) 8 Position Turrets
  • Spindle Chiller Unit
  • Thread Cutting Device
  • Air Blow Device
  • Three Color Tower Light
  • Chip Conveyor (Hinge Type Rear Exit)
  • (4) Boring Bar Holders
  • (4) Turning Holders
  • Extended Loader Rail
  • Chip Blaster D-30 / 70 1000 psi Coolant Pump with Dual Outlets
  • Coolant Through Spindle Flushing
  • Manufacture Date May 2015

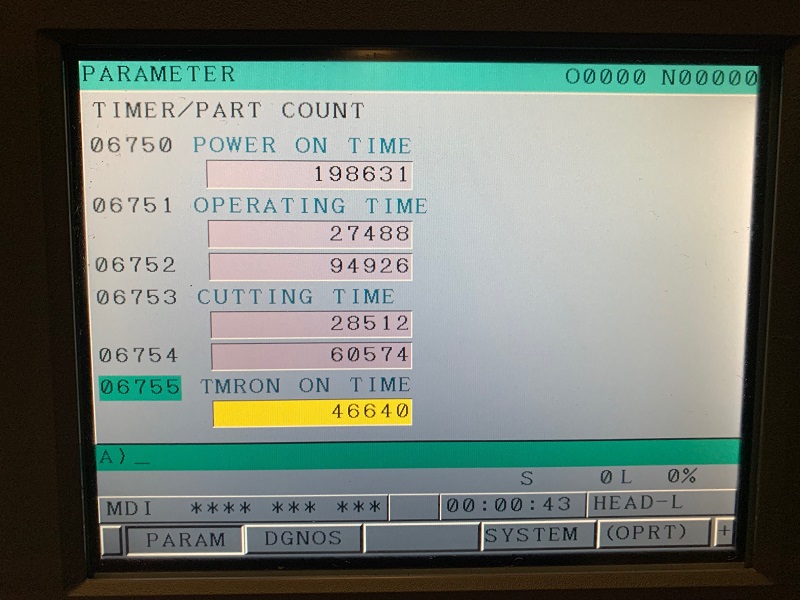

  • 3306 Power On Time
  • 1582 Operating Time
  • 1009 Cutting Time
