2015 OKUMA MB-4000H

OSP-P200M, 15.7" Pallets, 22.22.24", 15000 RPM, Fourth Axis, 64 Tools, 40 HP, Through Spindle Coolant, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Max Load 880 lbs.
  • Pallet Size 15.75" (2)
  • X-Axis Travel 22.05"
  • Y-Axis Travel 22.05"
  • Z-Axis Travel 24.61"
  • Pallet Index .001 Degrees
  • Spindle Speed 15,000 RPM
  • Spindle Motor 40 / 30 HP
  • Spindle Center to Table Top 1.97" - 24.02"
  • Spindle Nose to Pallet Center 2.76" - 27.96"
  • Tools 64
  • Max Tool Length 15.75"
  • Max Tool Weight 22 lbs.
  • Maximum Workpiece Dimensions 23.63" x 35.44"
  • Machine Dimensions (L x W x H) 95" x 185" x 106"

Product Features

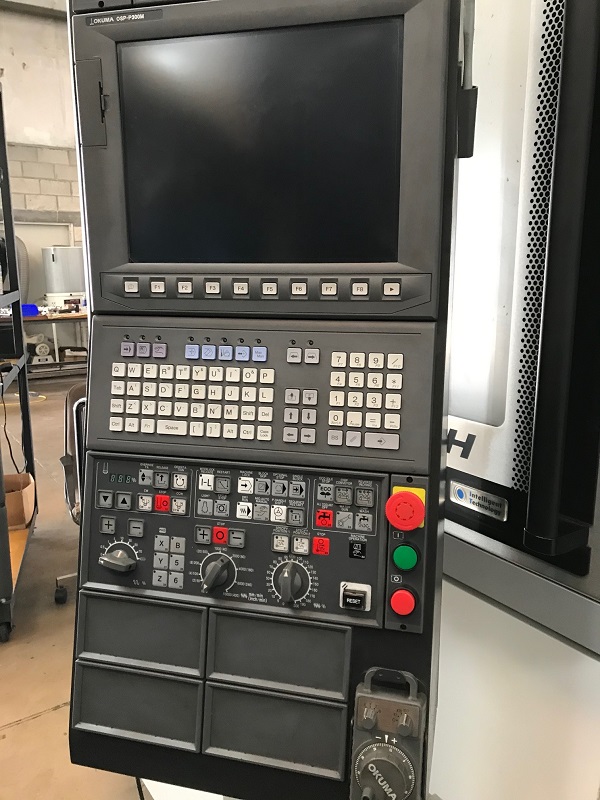

  • OKUMA OSP-P200M CNC Control
  • 15" Color LCD
  • 15,000 RPM Spindle

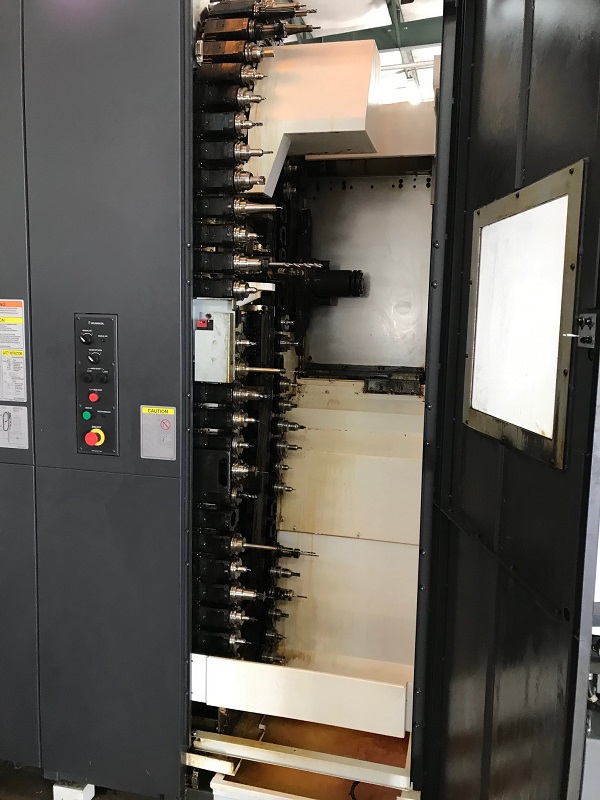

  • 64 Tool Magazine
  • Renishaw Tool Setter and Part Probe

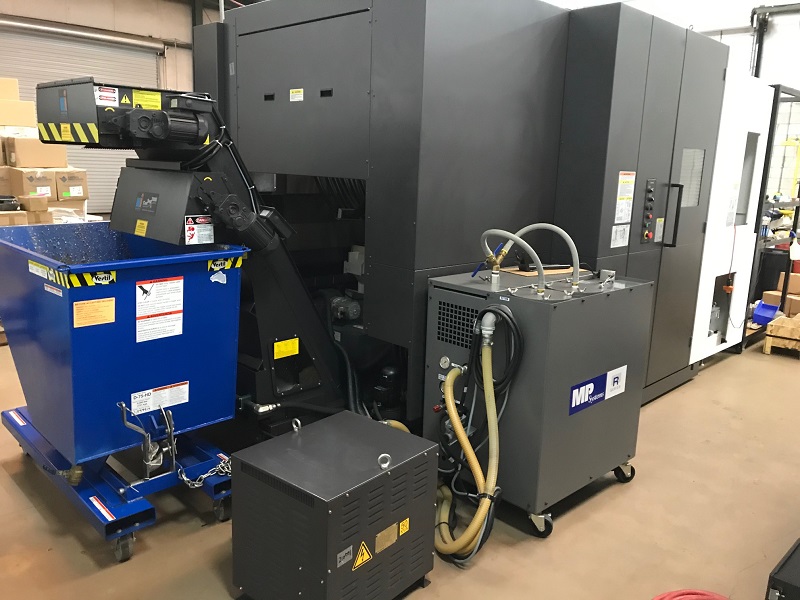

  • MP Systems High Pressure Through Spindle Coolant System (1000 PSI)
  • Chip Conveyor
  • Tool Length and Tool Diameter Compensation (100 sets)
  • Helical Cutting
  • Synchronized Tapping II
  • Arbitrary Angle Chamfering
  • Programmable Travel Limits
  • Tool Life Management
  • Auto Program Schedule Update
  • Auto Power Shut Off
  • 2 GB Program Storage Memory
  • USB Ports
  • Ethernet

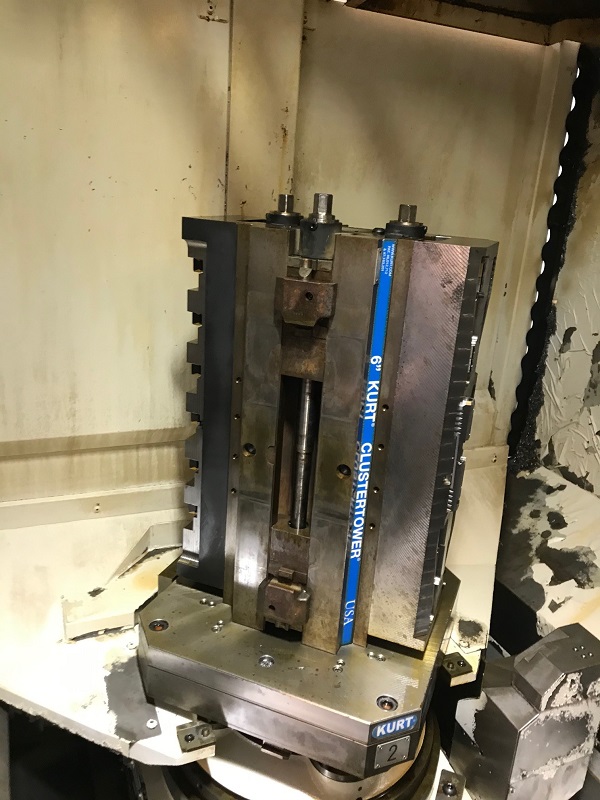

  • (2) Kurt Double Vise Jay Tombstones
  • 12,827 Cutting Hours
