Special Item

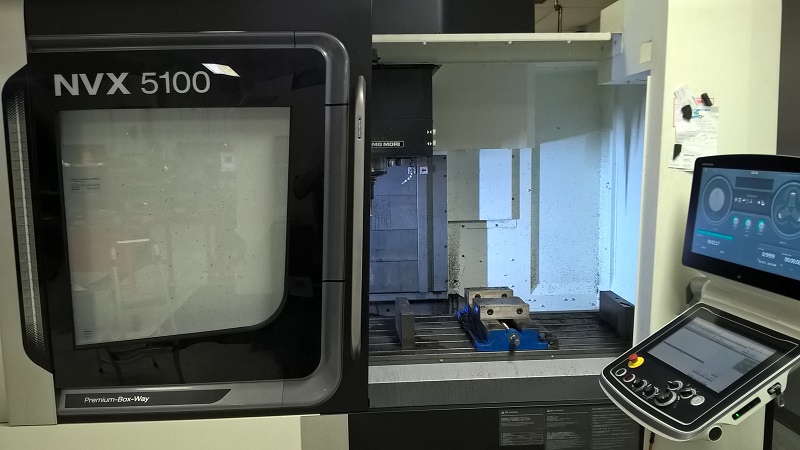

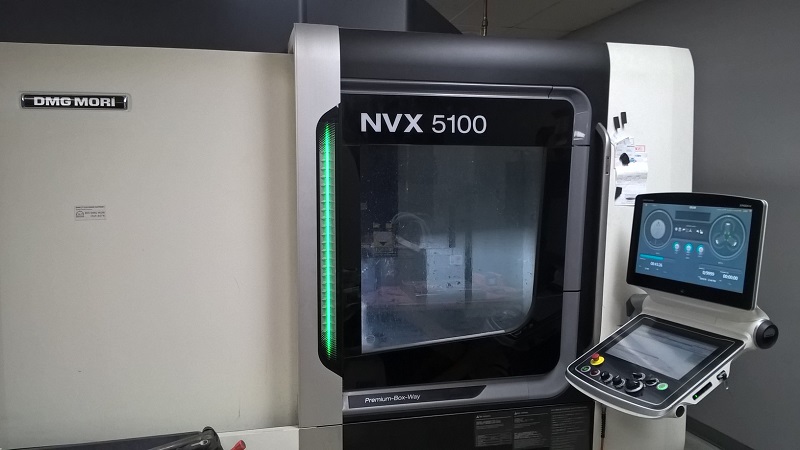

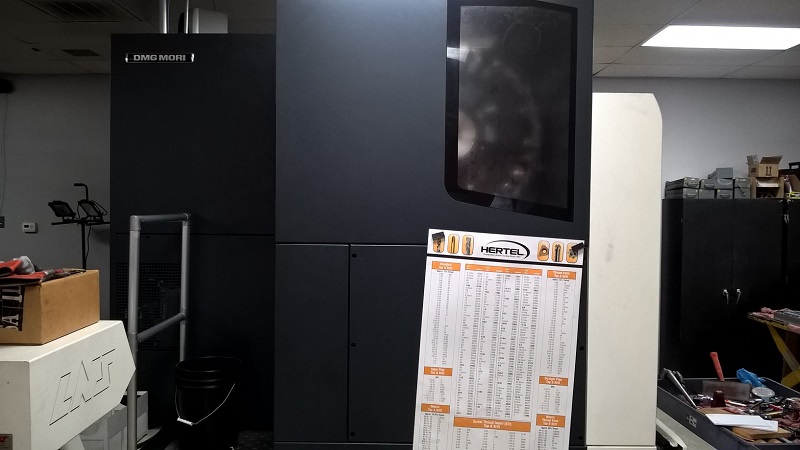

2015 DMG MORI SEIKI NVX-5100/40

Celos, 41.21.20", 15000 RPM, Cat 40, 20 HP, 30 Tools, TSC 1000 psi, Touch Probe, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 41.3"
  • Y-Axis 20.9"
  • Z-Axis 20.1"
  • Table Size 53.1" x 23.6"
  • Spindle Speed 15,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 15 HP
  • Tools 30
  • Table Load Capacity 2640 lbs.
  • Rapid Traverse Rates 1181 IPM
  • Max Tool Diameter 3.1" / 5.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 118.8" x 116.5" x 102.2"
  • Machine Weight 15,432 lbs.
  • Spindle Nose to Table Top 5.9" - 26"
  • Tool Change Time (T - T / C - C) 1.3 / 3.5 Seconds

Product Features

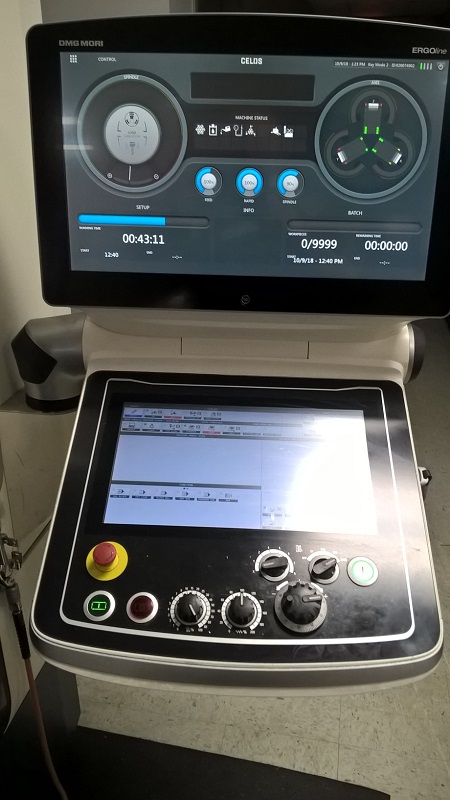

  • Celos CNC Control
  • 15" Color TFT
  • 15000 RPM Spindle Speed

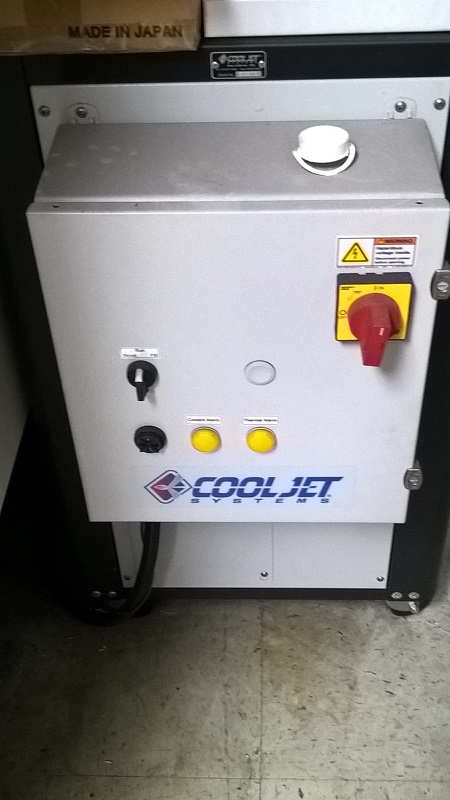

  • Through Spindle Coolant (1000 psi Chip Blaster)
  • LNS Turbo HB Chip Conveyor
  • 30 Postion Side Mount Tool Changer

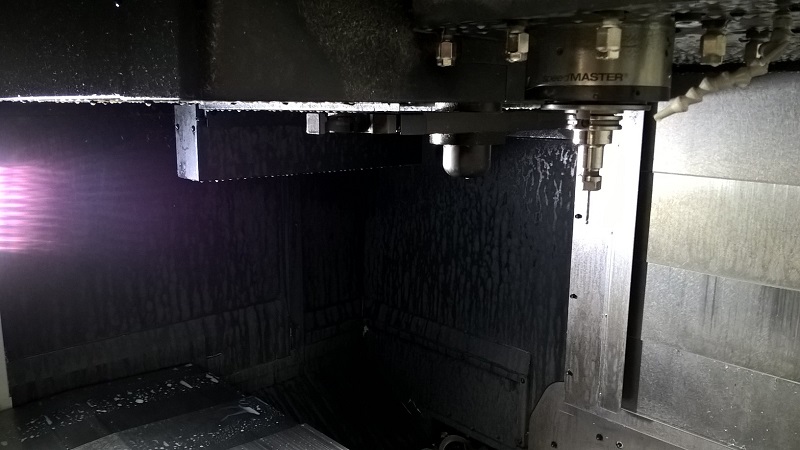

  • Renishaw Touch Probe
  • Rigid Tapping
  • Spindle Chiller Unit
  • Heavy Duty Box Way Construction
  • 5756 Total Time
  • 1887 Processing Time
  • 1425 Ready to Operate Time
  • 2444 Standby Time
