Special Item

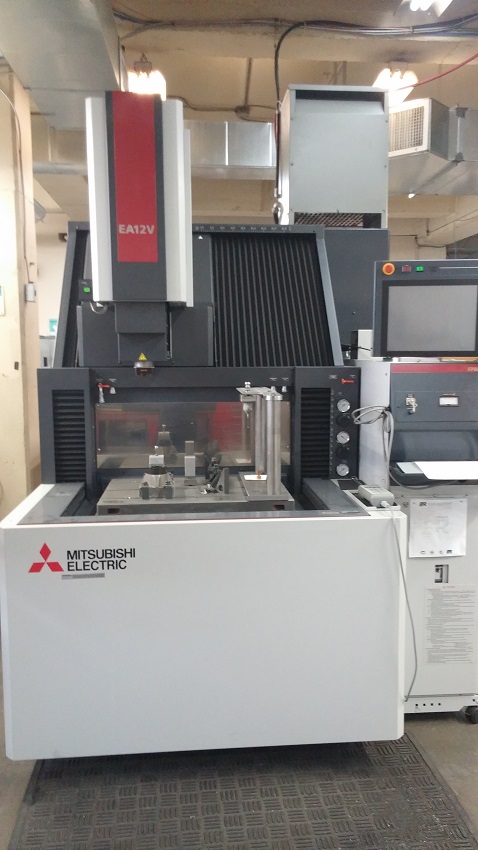

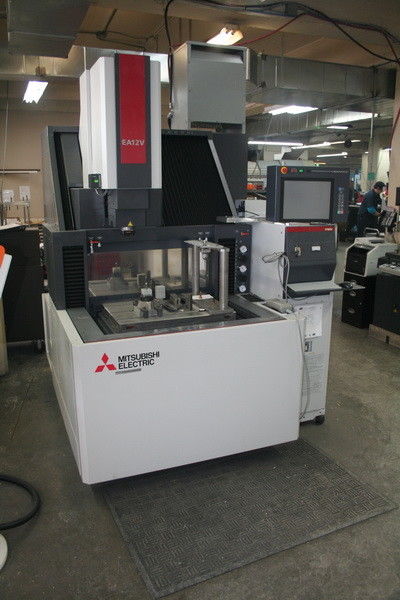

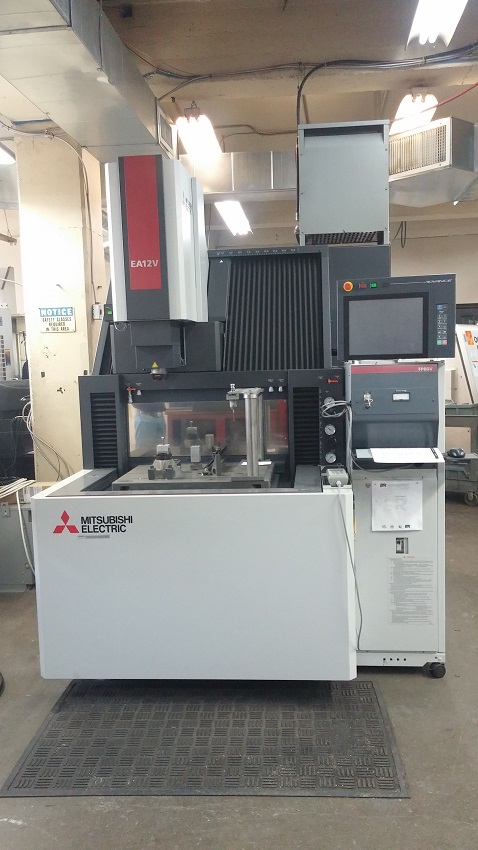

2015 MITSUBISHI EA12V-M SINKER EDM

Mit 700, 16.12.12", C-Axis, 3R Macro Chuck, Manual Pulse Generator
Talk to a representative today!
(803) 548-8000

Product Details

  • C-Axis Index .001 Degrees
  • C-Axis Spindle Speed 1 - 1500 RPM
  • Dielectric Capacity 106 Gallons
  • Distance From Table To Electrode Mount 10.62" - 22.44"
  • Machine Dimensions (L x W x H) 69" x 81" x 93"
  • Machine Weight 11
  • Machine Weight 8200 lbs
  • Maximum Work Piece Dimensions (L x W x H) 31.5" x 21.7" x 9.8"
  • Maximum Work Piece Weight 1543 lbs.
  • Power Pack 80 Amp
  • Power Supply FP80V-A
  • Table Size 27.55" x 19.68"
  • Tool Changer 5 Positions
  • Work Tank Size 43.3" x 29.5" x 17.7"
  • X-Axis Travel 15.74"
  • Y-Axis Travel 11.81"
  • Z-Axis Travel 11.81"

Product Features

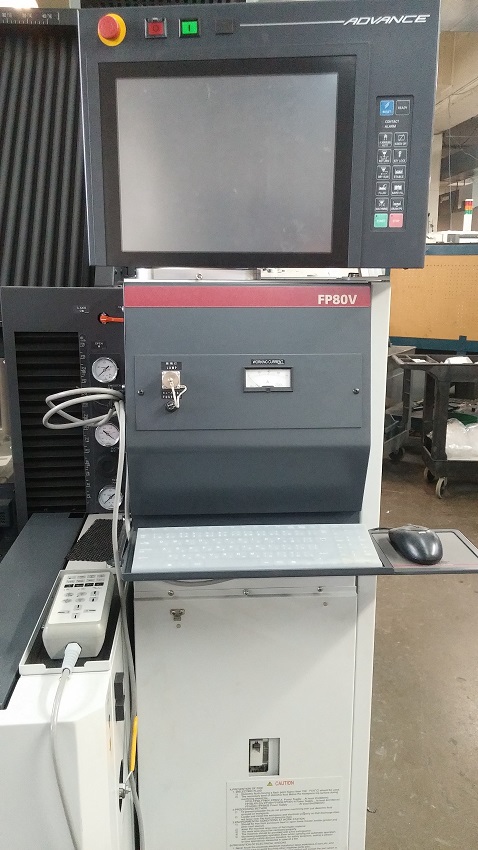

  • MITSUBISHI 700 ADVANCED SERIES CNC CONTROL
  • 15" Color TFT
  • Alpha Numeric Keyboard
  • C-Axis Capability
  • 3R Macro Chuck
  • Automatic Elevation Tank
  • Automatic Lubrication Unit
  • Scale Feedback Specifications
  • Thermal Displacement Compensation System
  • Chiller Unit
  • Remote Manual Pulse Generator
