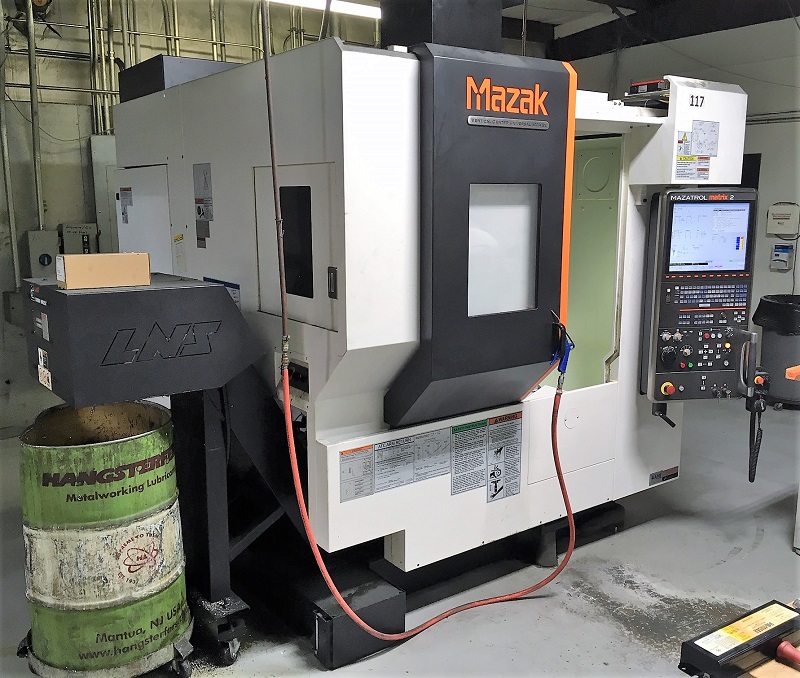

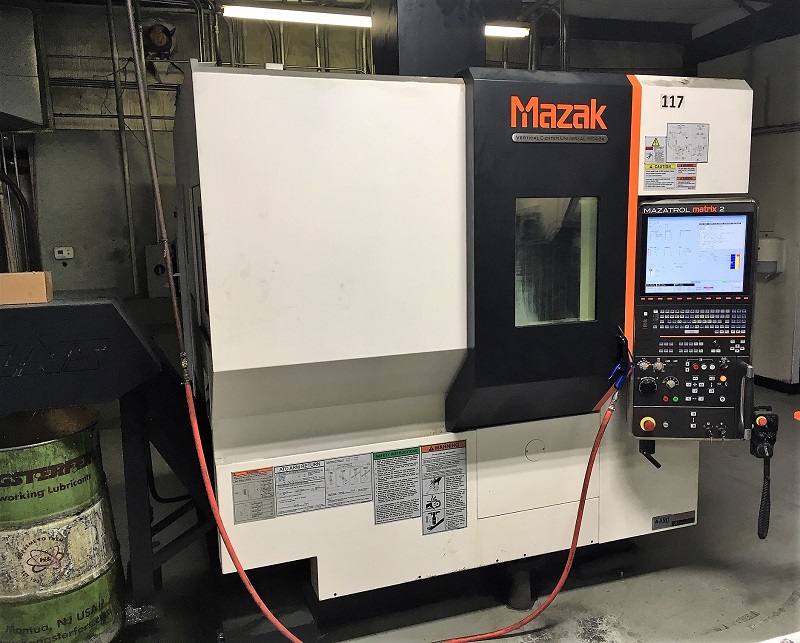

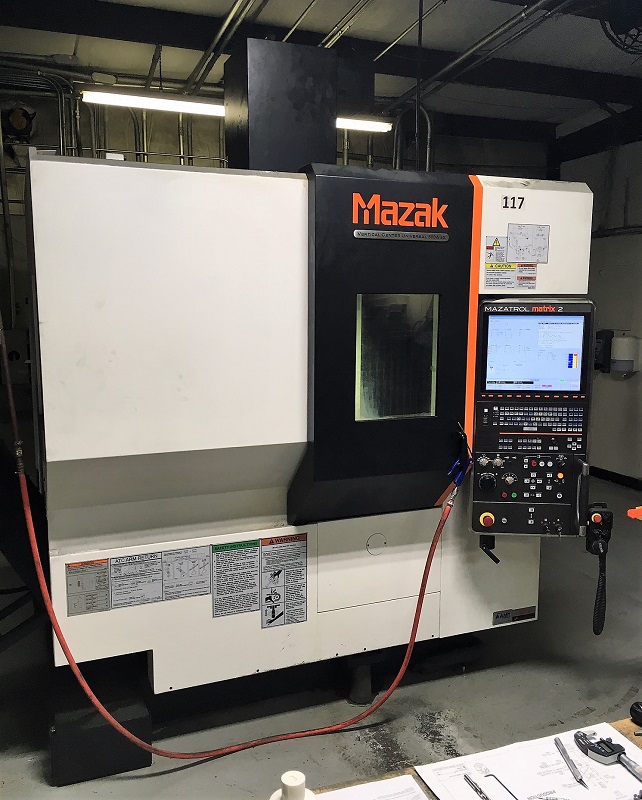

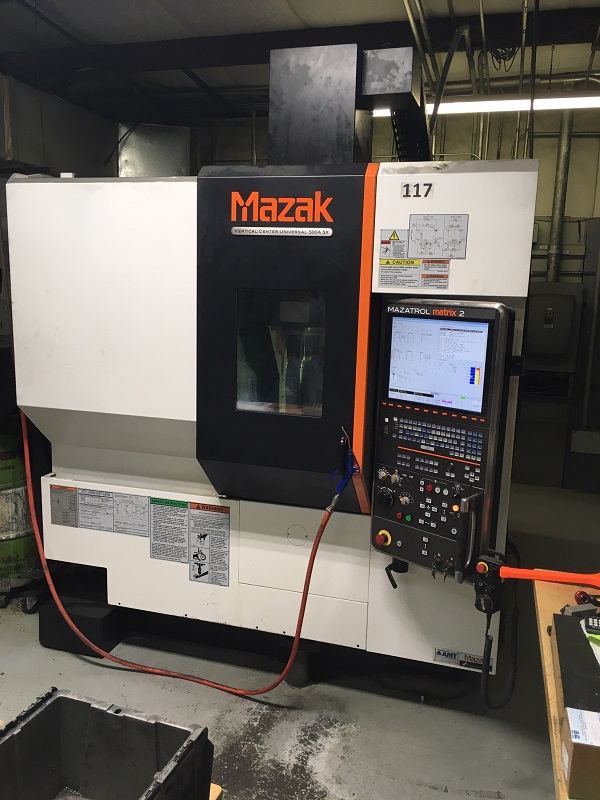

2015 MAZAK VCU-500A 5X

Matrix 2, 20.20.20", 10000 RPM, #40, 30 HP, 30 Tools, 5-Axis, Touch Probe, TSC, Chip Conveyor, ATLM
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 19.88"
  • Y-Axis 19.7"
  • Z-Axis 20.07"
  • B-Axis +/- 140 Deg
  • C-Axis +/- 360 Deg
  • Table Size 19.7" x 19.7"
  • Spindle Speed 12,000 RPM
  • Spindle Motor 30 HP
  • Tools 30
  • Table Load Capacity 440 lbs.
  • Rapid Traverse Rates 1181 IPM
  • Max Tool Diameter 4.92"
  • Max Tool Length 10.23"
  • Max Tool Weight 17.64 lbs.
  • Machine Weight 14,525 lbs.
  • Spindle Nose to Table Top 4.52" - 24.6"
  • Tool Change Time (C - C) 2.8 Seconds

Product Features

  • Mazatrol Matrix 2 CNC Control
  • 15" Color TFT
  • Conversational Programming
  • EIA/ISO Input Function

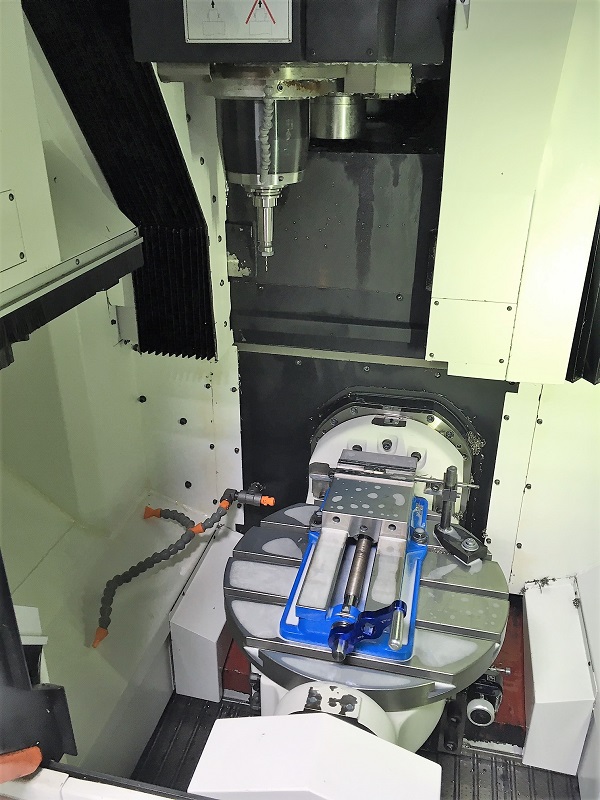

  • Integral Trunnion Rotary Tilt 5-Axis Table
  • Through Spindle Coolant (213 psi)
  • Chip Conveyor (Left Side Exit)
  • Renishaw Touch Probe
  • Auto Tool Length Measurement
  • Remote Jog Handle
  • Manufacture Date April 2015
  • 54 Power On Time
  • 5296 Auto Operation Time
  • 2 Auto Cut Time
  • 3299 Total Cut Time
  • 9055 Total Time
