Special Item

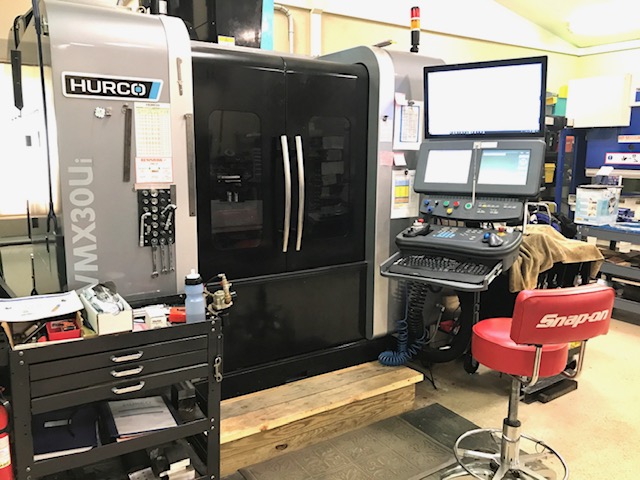

2015 HURCO VMX30Ui 5-AXIS

Winmax, 30.20.20", 12000 RPM, CAT 40, 17.6 HP, 40 SMTC, 5-Axis Trunnion, TSC, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 20"
  • Z-Axis 20.5"
  • A-Axis - 30 / + 110 Degrees
  • C-Axis 360 Degrees
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 17.6 HP
  • Tools 40
  • Table Load Capacity 440 lbs.
  • Max Tool Diameter 3.2"
  • Max Tool Length 11.8"
  • Max Tool Weight 15 lbs.
  • Machine Dimensions (L x W x H) 155" x 156" x 112"
  • Machine Weight 11,466 lbs.
  • Platter Diameter 9.8"
  • Tool Change Time (T - T / C - C) 3 / 7 Seconds

Product Features

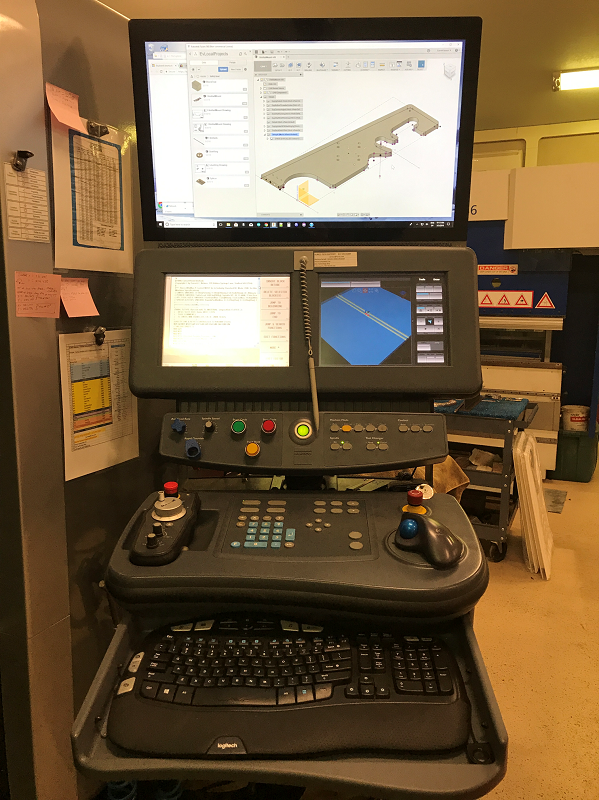

  • WinMax CNC Control
  • Dual Color CRTs

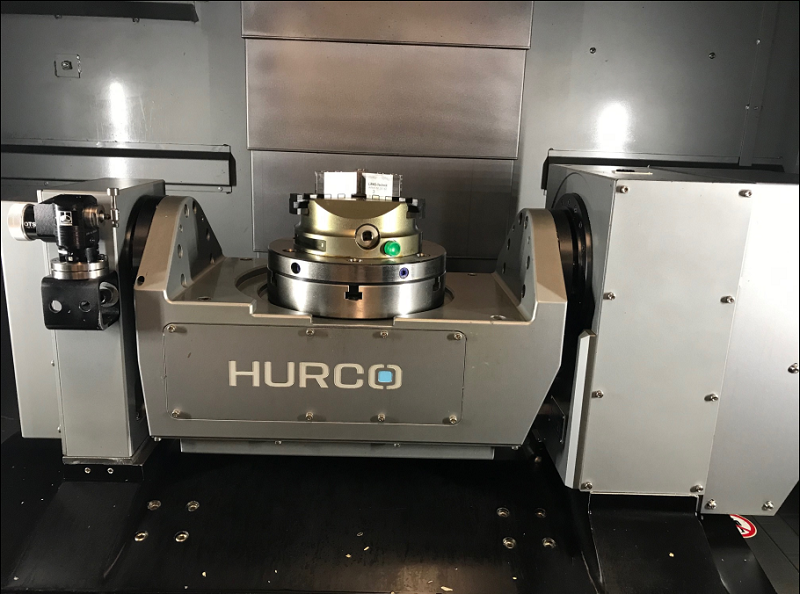

  • Integral Trunnion Table
  • Simultaneous 5-Axis Machining Capability

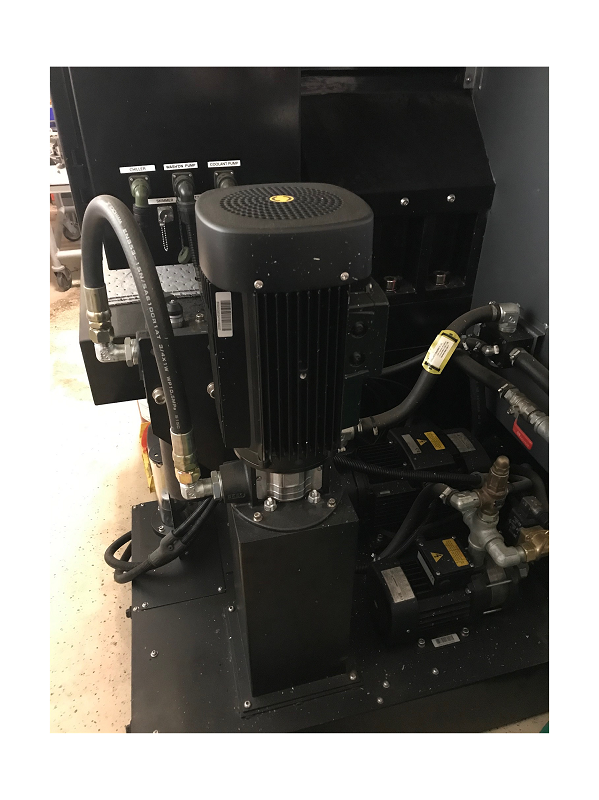

  • High Pressure Through Spindle Coolant (1000 psi)
  • Programmable Coolant & Air
  • Chip Conveyor (Left Side Exit)
  • Renishaw OMP40 Touch Probe
  • Renishaw Laser Automatic Tool Length Measurement
  • 40 Position Side Mount Tool Changer
  • Two Color Tower Light
  • Spindle Chiller Unit
  • Base Coolant Wash System
  • Remote Jog Handle
  • 2.5 Arc Second Encoders on A & C Axes
  • Tool Centerpoint Management
  • Coordinate Rotation & Scaling
  • Automatic Side Door
  • Automation Ready with Pneumatic Coupling Through Trunnion

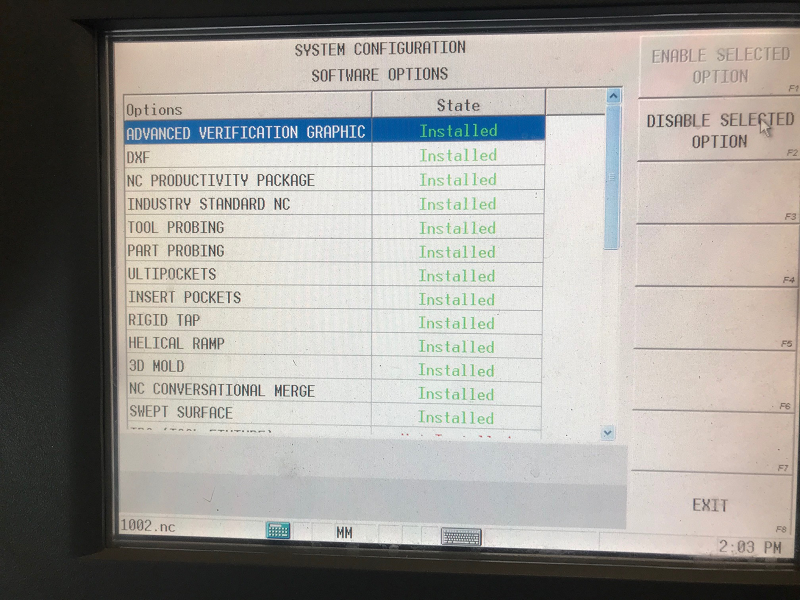

  • Advanced Verification Graphic
  • 3D Mold
  • Industry Standard NC
  • Ultipockets
  • Insert Pockets
  • Rigid Tapping
  • Helical Interpolation
  • Select Surface Finish Quality
  • Ultimotion
  • Tool Change Optimization
  • Robot Interface

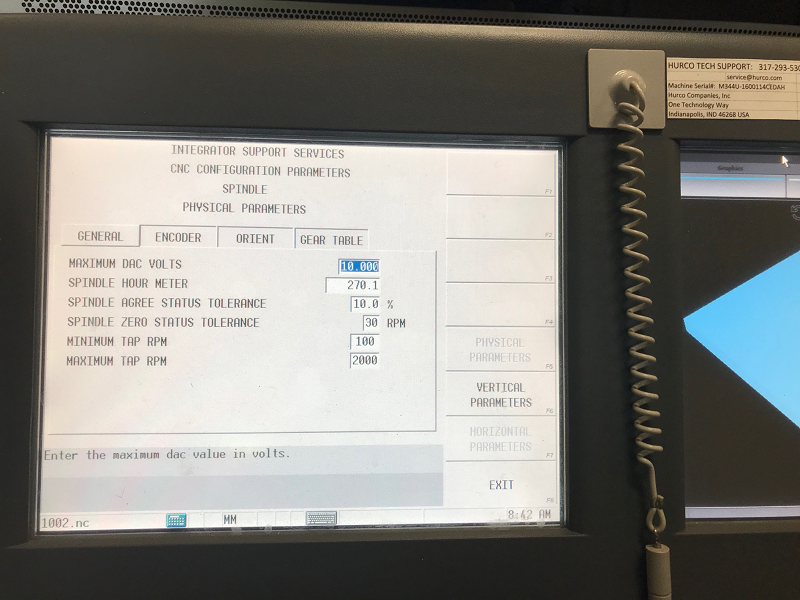

  • 270 Spindle Hours
  • Manufactured Date 2014
  • Installed in August 2015
