Special Item
2015 HAAS VF-4SS
50.20.25", 12000 RPM, 24 SMTC, Cat 40, 30 HP, WIPS, Fourth Axis Interface, High Speed Machining, Programmable Coolant
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
X-Axis 50"
-
Y-Axis 20"
-
Z-Axis 25"
-
Table Size 52" x 18"
-
Spindle Speed 12,000 RPM
-
Spindle Taper CAT 40
-
Spindle Motor 30 HP
-
Tools 24
-
Table Load Capacity 1750 lbs.
-
Rapid Traverse Rates 1400 IPM
-
Max Tool Diameter 2.5" / 5"
-
Max Tool Length 13"
-
Max Tool Weight 12 lbs.
-
Machine Weight 12,000 lbs.
-
Spindle Nose to Table Top 4" - 29"
-
Spindle Torque 75 ft. lbs.
-
Spindle Torque 90 ft. lbs.
-
Tool Change Time (T - T / C - C) 1.6 / 2.2 Seconds
Product Features

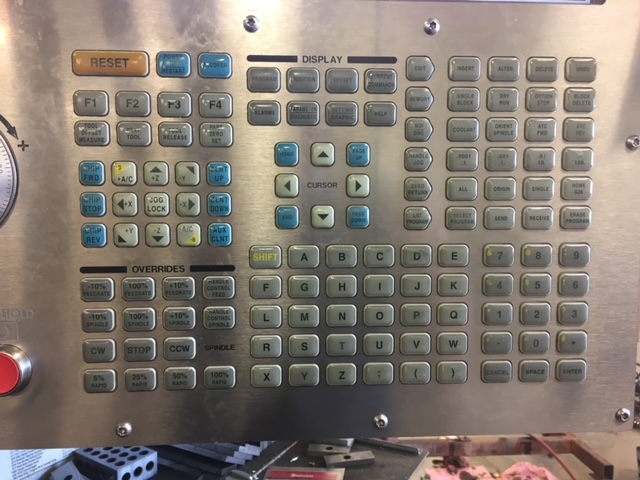

- HAAS CNC Control
- 12" Color CRT
- USB Port
- Wireless Intuitive Probing System
- Fourth Axis Interface
- High Speed Machining
- Programmable Coolant Nozzles
- Chip Auger
- 24 Position Side Mount Tool Changer
- 480V Internal Transformer
- Early Detection Power Failure
- Rigid Tapping
- Spindle Orientation
- Coordinate Rotation & Scaling
- User Macros
- Manufacture Date August 2015

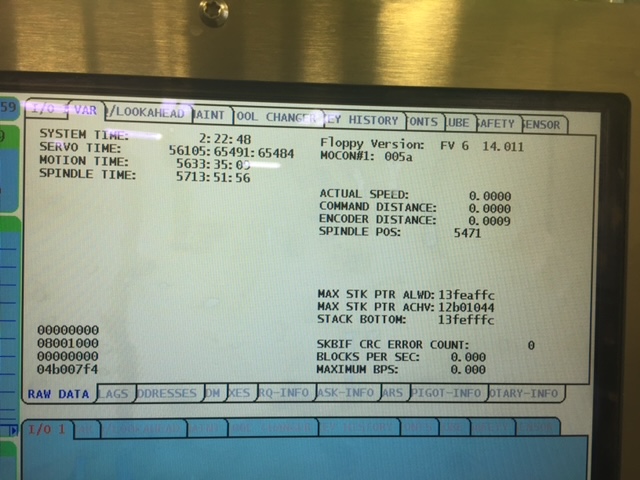

- 5633 Motion Time
- 5713 Spindle Time
