< Back to Lathes
Special Item

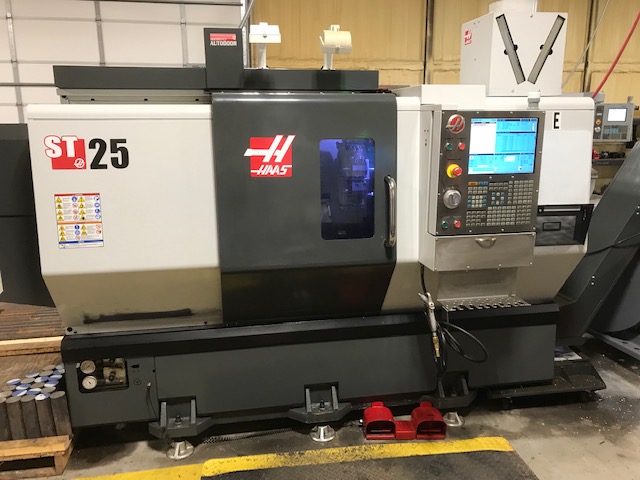

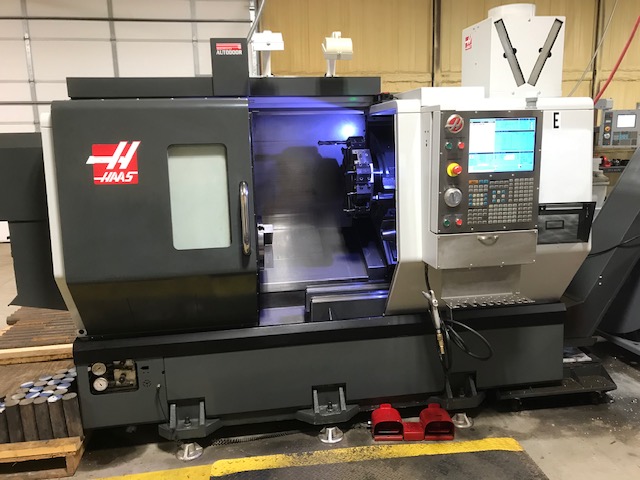

2015 HAAS ST-25

3" Bar, 12" Chk, 15" Max Dia, 21" Length, 30HP, 3400 RPM, 12 Tools, Tail, Transformer, Rigid Tap, Chip
Talk to a representative today!
(803) 548-8000

Product Details

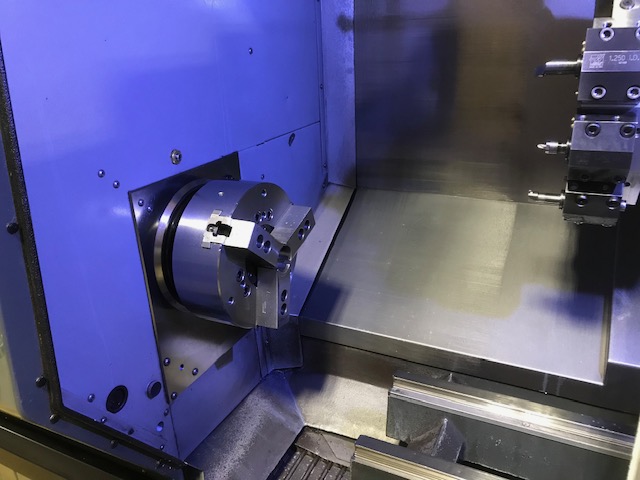

  • Chuck Size 12"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Front Apron / Cross Slide 31.75" / 20.75"
  • Max Machining Length 21"
  • Spindle Motor 30 HP
  • Spindle Speed 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"
  • Tools 12
  • Rapid Traverse Rates 945 IPM
  • X-Axis Travel 9.3"
  • Z-Axis Travel 21"
  • Machine Dimensions (L x W x H) 142" x 90" x 89"
  • Machine Weight 12,000 lbs.
  • Max Turning Diameter 15"
  • Spindle Torque 300 ft. lbs.
  • Tailstock Taper MT#4

Product Features

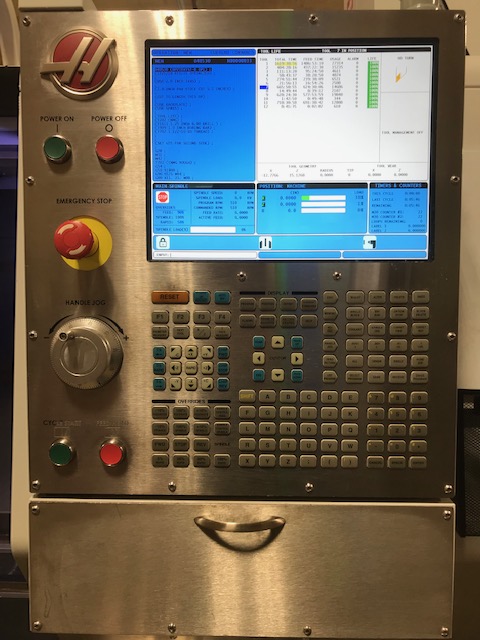

  • HAAS CNC CONTROL
  • 15" Color LCD
  • USB Port
  • Expanded Memory
  • 12" Hydraulic Chuck

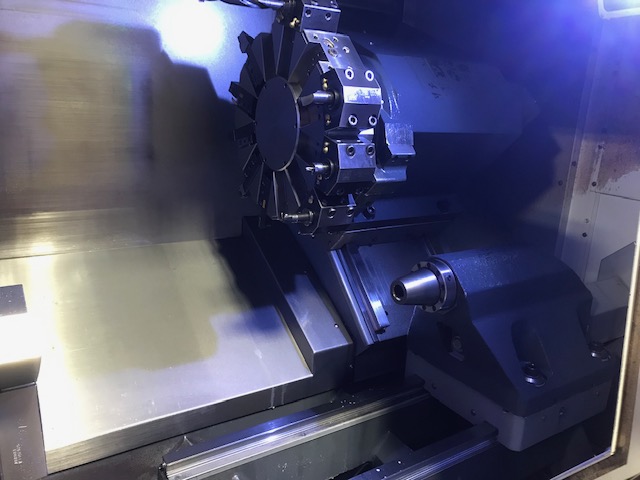

  • FullyProgrammable Hydraulic Tailstock
  • Auto Servo Door
  • Rigid Tapping
  • Hennig Chip Conveyor (Side Exit)
  • High Voltage Internal Transformer
  • Bolt-on Turret
  • (2) Boring Bar Holders
  • (3) OD Wedge Blocks
  • (3) Turning Holders
  • High Intensity Lighting
  • Haas Mist Collector
  • Green Indicator Light
  • 4871 Motion Time
  • 4741 Spindle Time
