Special Item

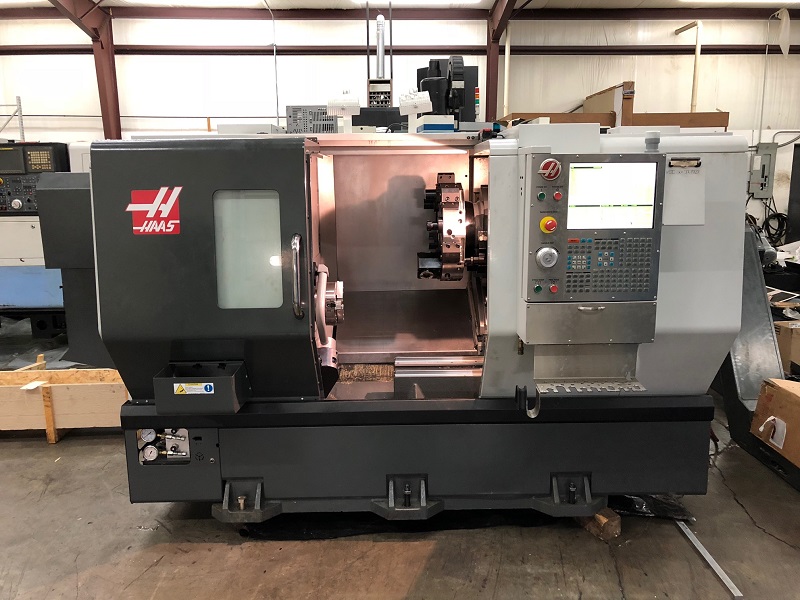

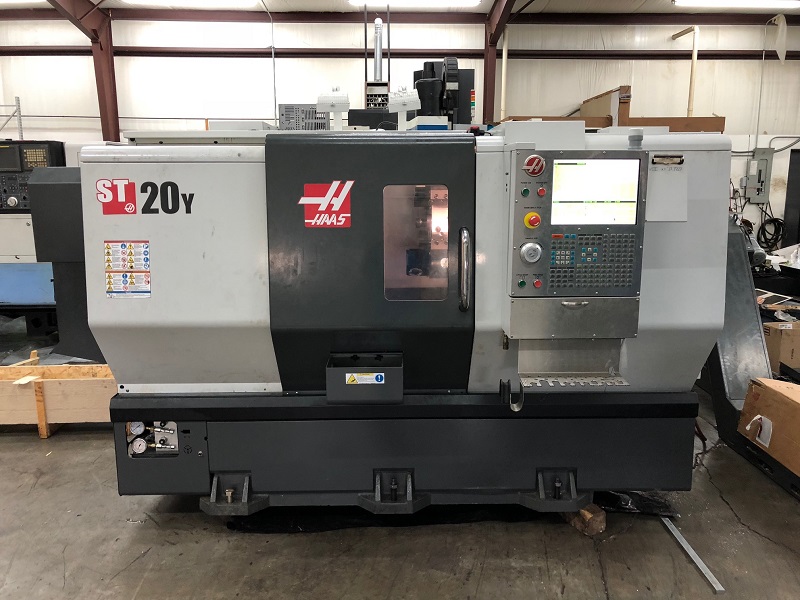

2015 HAAS ST-20Y

2" Bar, 8" Chk, 12" Max Dia, 21" Length, 20 HP, 4000 RPM, 12 Tools, Y-Axis, Tailstock, Tool Presetter, APC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Swing Over Front Apron / Cross Slide 31.75" / 20.75"
  • Max Machining Length 21"
  • Spindle Motor 20 HP AC
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"
  • Tools 12
  • X-Axis Travel 9.3"
  • Z-Axis Travel 21"
  • Y-Axis Travel +/- 2.0"
  • Machine Dimensions (L x W x H) 142" x 90" x 89"
  • Machine Weight 12,000 lbs.
  • Max Bar Capacity 2"
  • Max Turning Diameter 12"
  • Spindle Torque 150 ft. lbs.
  • Tailstock Taper MT#4

Product Features

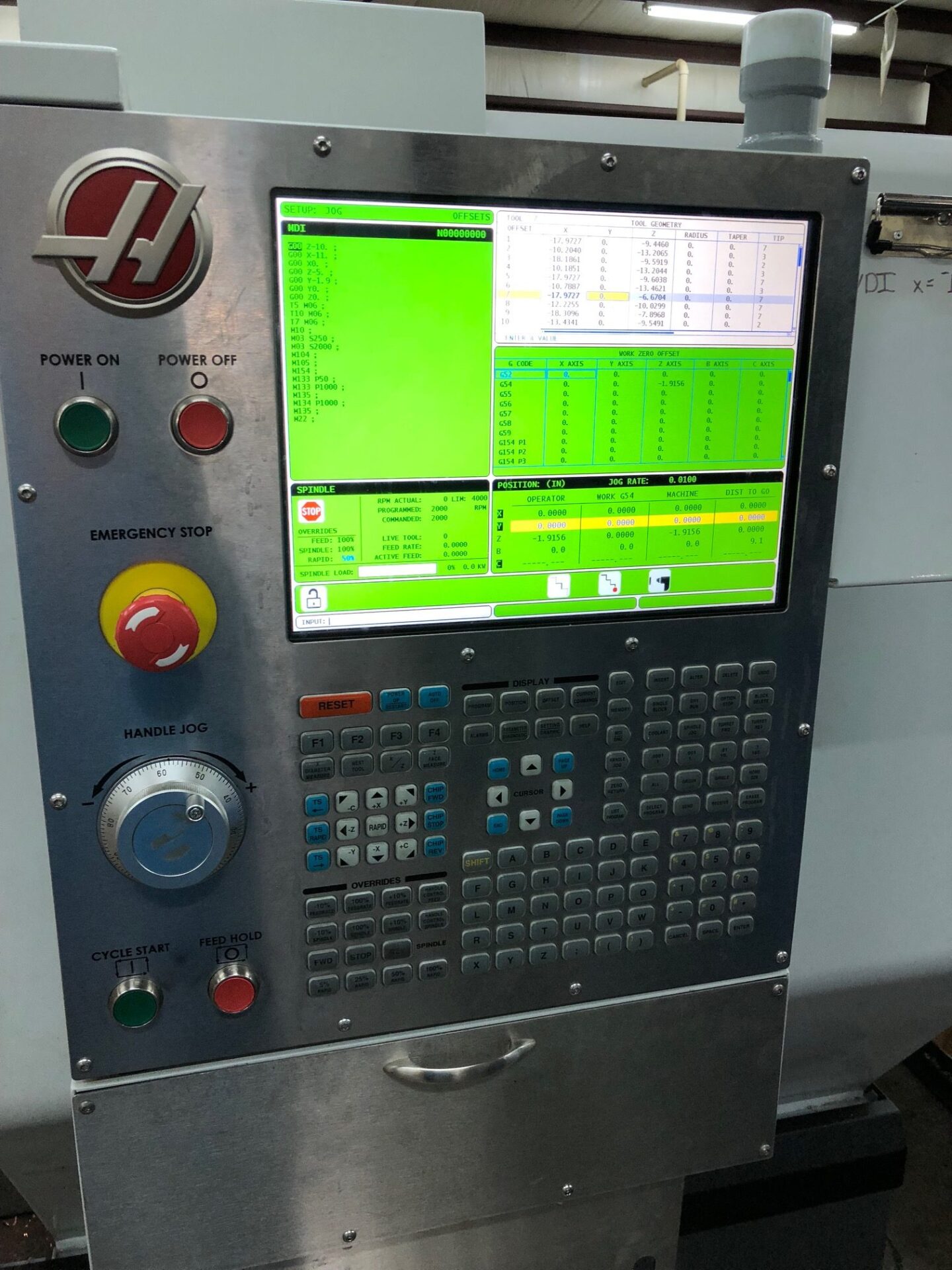

  • HAAS CNC Control
  • 15" Color TFT
  • USB Port
  • Ethernet Capability
  • C & Y-Axis Milling Capability

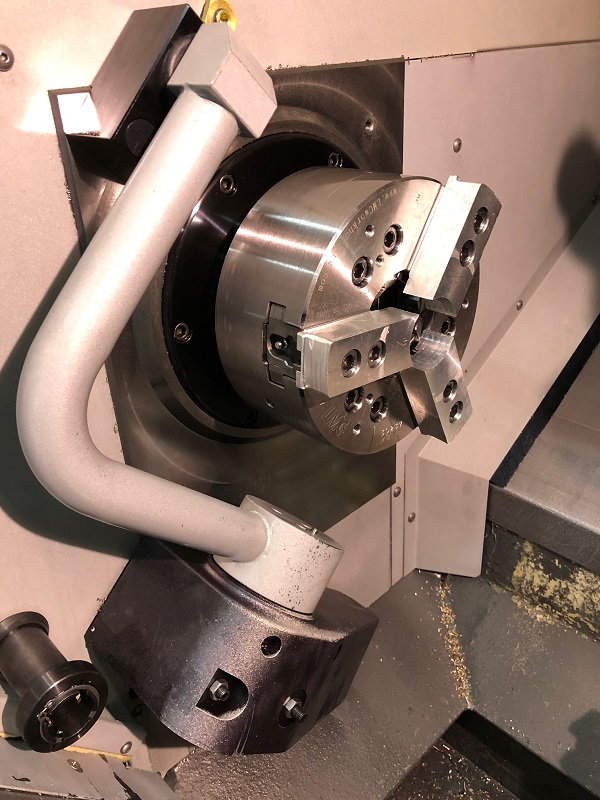

  • 8" LM PC-8-52-01 Hydraulic Chuck

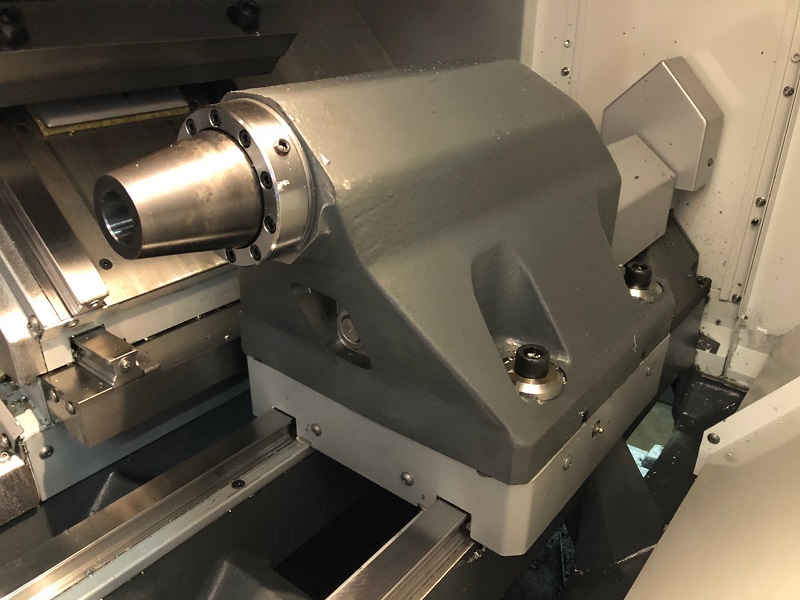

  • Fully Programmable Hydraulic Tailstock
  • Auto Parts Catcher
  • Automatic Tool Presetter
  • High Torque Live Tooling

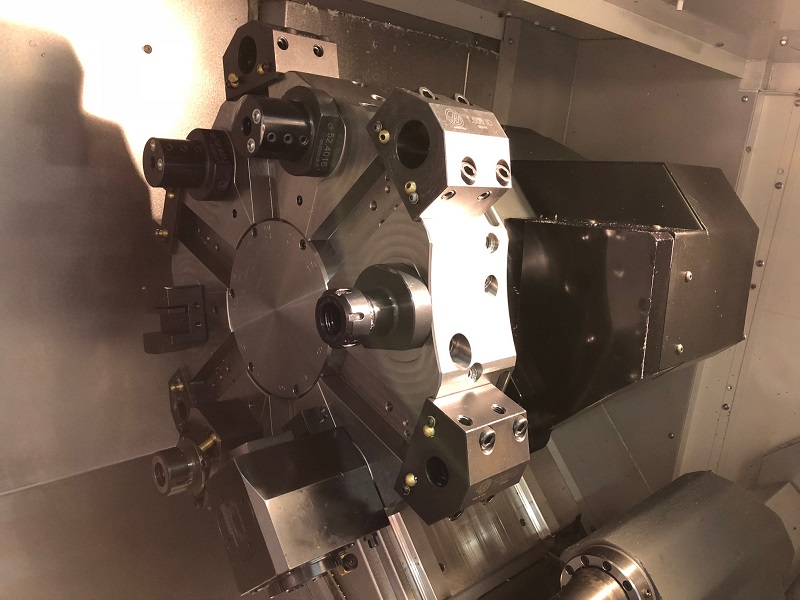

  • Hybrid Turret
  • Spindle Orientation
  • Rigid Tapping
  • Chip Conveyor (Belt Type Side Exit)
  • High Pressure Coolant (300 psi)
  • High Intensity Lighting
  • Early Power Fault Detection Module
  • (1) OD Live Holder
  • (1) Face Live Holder
  • (4) Boring Bar Holders (Bolt-On Type)
  • (3) Boring Bar Holders (VDI Type)
  • (1) Turning Holder
  • (1) Facing Holder
  • (12) Spindle Liners
  • Manufacture Date July 2014
  • Installed in September 2015
  • 2243 Servo Time
  • 306 Motion Time
  • 349 Spindle Time
