2015 BELMONT MW-140X Sinker EDM

16.12.16", 100 Amps, 30" x 16" Table, 300 lb. Electrode, 47.30.17" Tank Size, 205 Gallon Tank
Talk to a representative today!
(803) 548-8000

Product Details

  • Electrode Weight Capacity 330 lbs.
  • Machine Dimensions (L x D x H) 100" x 74" x 98"
  • Machine Weight 3900 lbs.
  • Max Electrode Weight 88 lbs.
  • Max Oil Level 11"
  • Max Part Weight 4400 lbs.
  • Open Height 12.5" - 28.3"
  • Power Supply 100 AMPS
  • Table Size 29.5" x 15.7"
  • Tank Capacity 205 Gal.

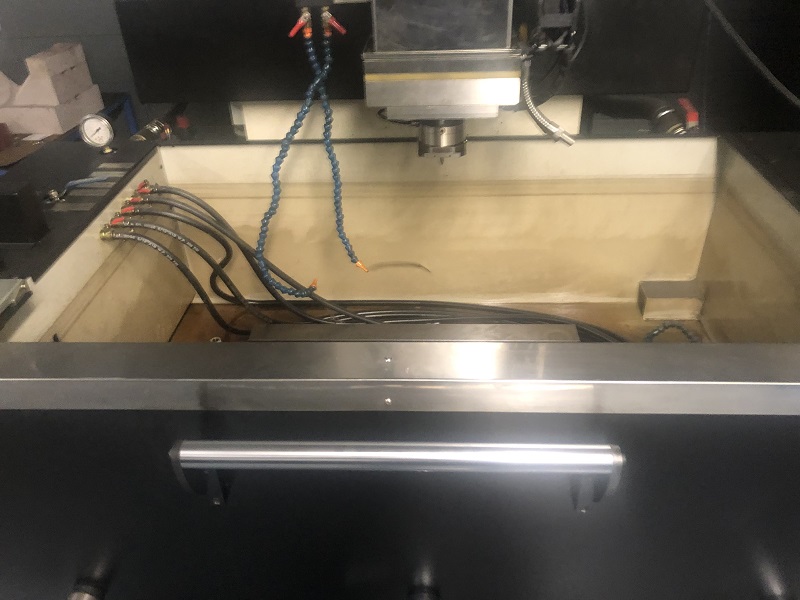

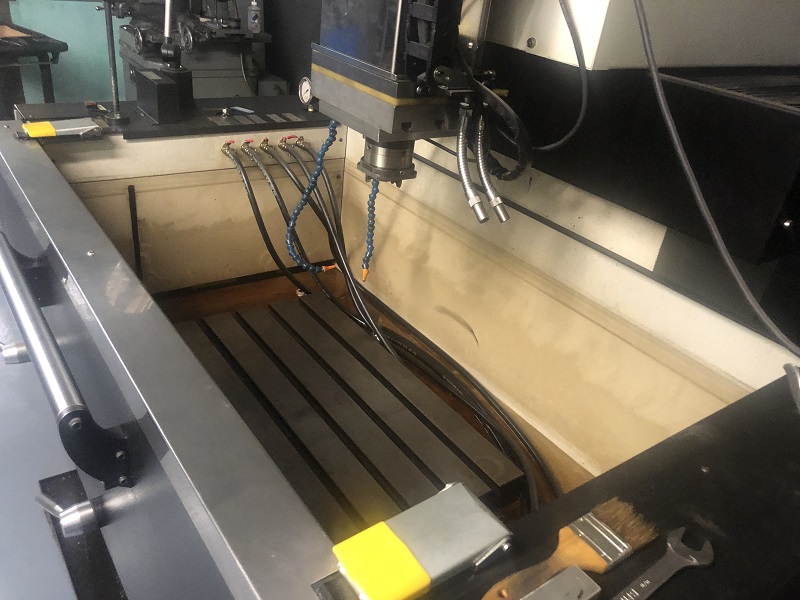

  • Tank Size (L x D x H) 47.2" x 29.5" x 16.9"
  • X-Axis Travel 15.74"
  • Y-Axis Travel 11.81"
  • Z-Axis 15.7"

Product Features

  • 10.4" Color CRT
  • USB Port
  • 10 Orbit Patterns
  • Auxiliary Input / Output
  • Linear Glass Scales with 1 Micron Resolution
