< Back to Lathes
Special Item

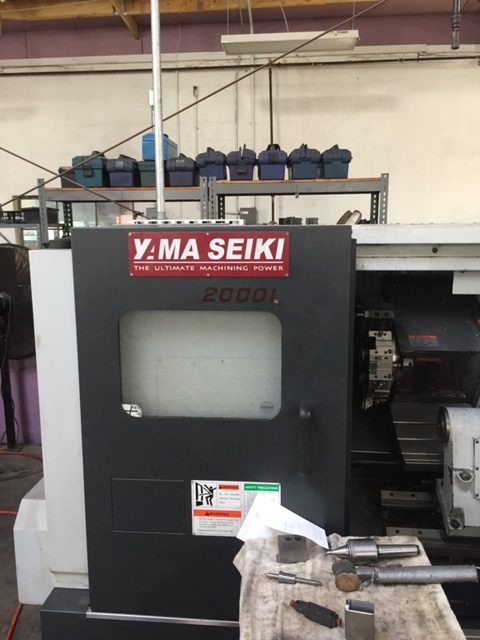

2014 YAMA SEIKI GLS-2000L

Fanuc 0iTD, 2" Bar, 8" Chuck, 10 Tools, 4200 RPM, 20 HP, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 22.05" / 9.06"
  • Spindle Motor 20 HP AC
  • Spindle Speed 20 -4200 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.0"
  • Tools 10
  • Rapid Traverse Rates (X & Z) 1181 IPM
  • X-Axis Travel 9.06"
  • Z-Axis Travel 24.8"
  • Machine Dimensions (L x D x H) 103" x 71" x 69"
  • Machine Weight 7458 lbs.
  • Max Turning Diameter 15.35"
  • Max Turning Length 24.8"
  • Spindle Torque 211 ft. lbs.
  • Tailstock Taper MT#4

Product Features

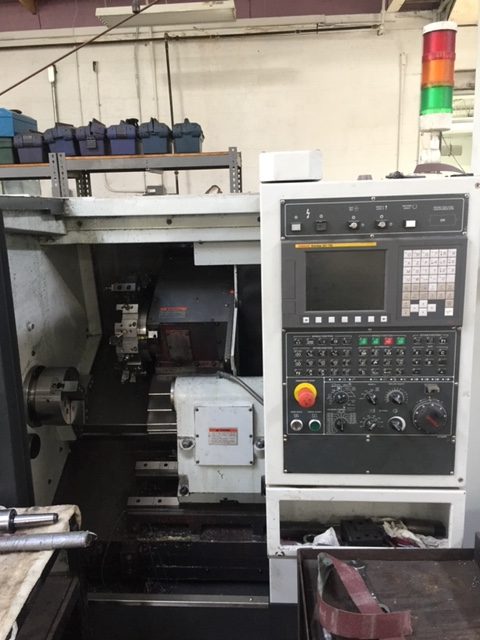

  • FANUC 0i-TD CNC Control
  • 10.4" Color LCD
  • USB Port
  • PC/MCIA Interface
  • 8" Hydraulic Chuck
  • Tailstock

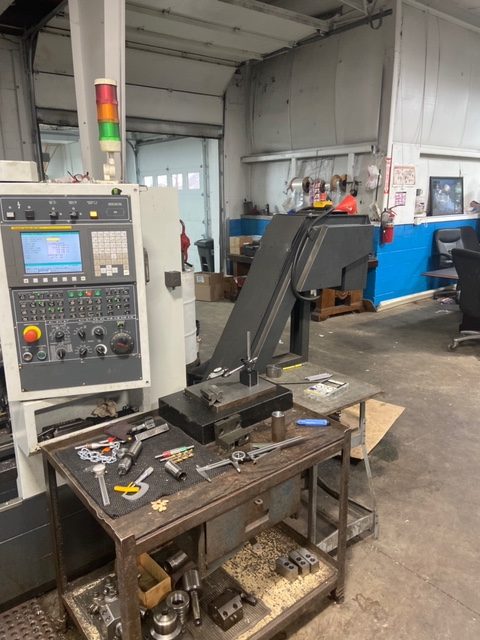

  • Chip Conveyor (Side Exit Hinge Type)
  • Three Color Tower Light
  • Manufacture Date September 2009

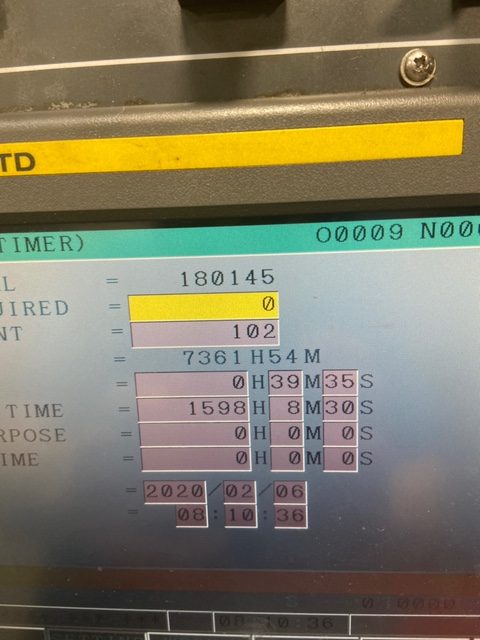

  • 7361 Power On Time
  • 1598 Cutting Time
