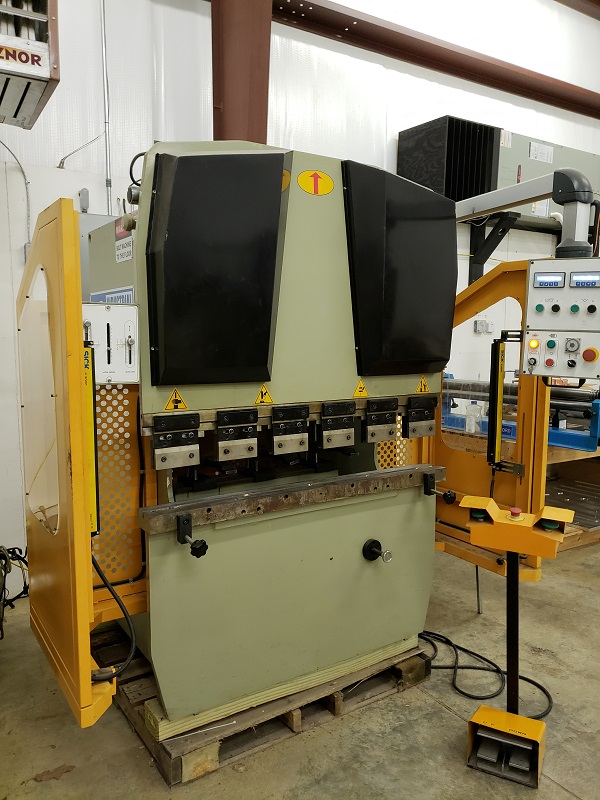

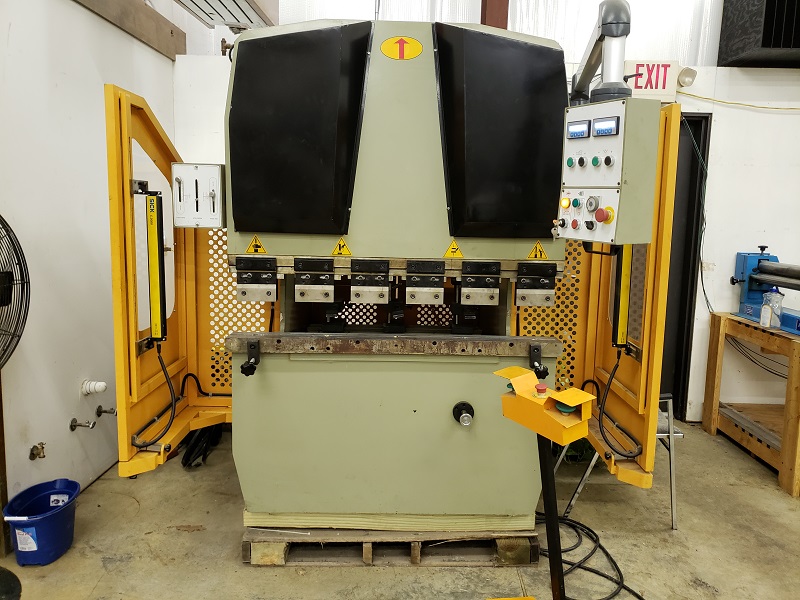

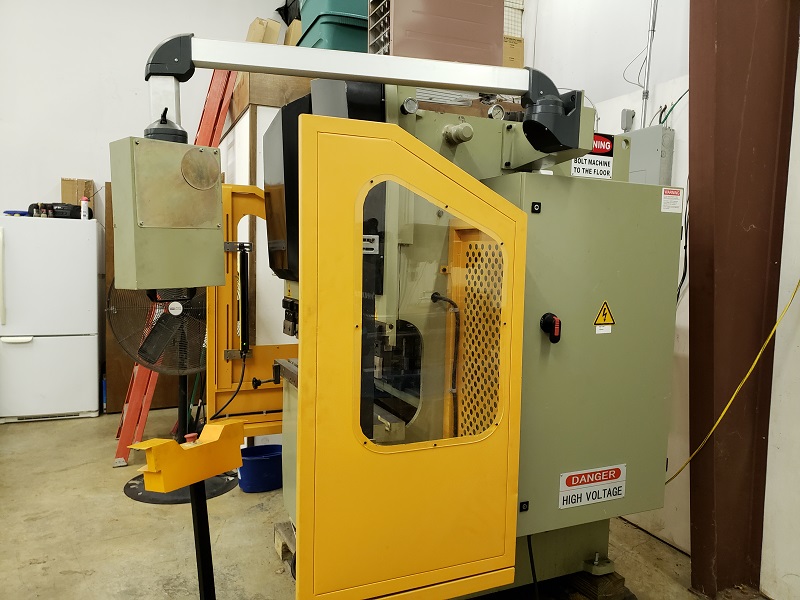

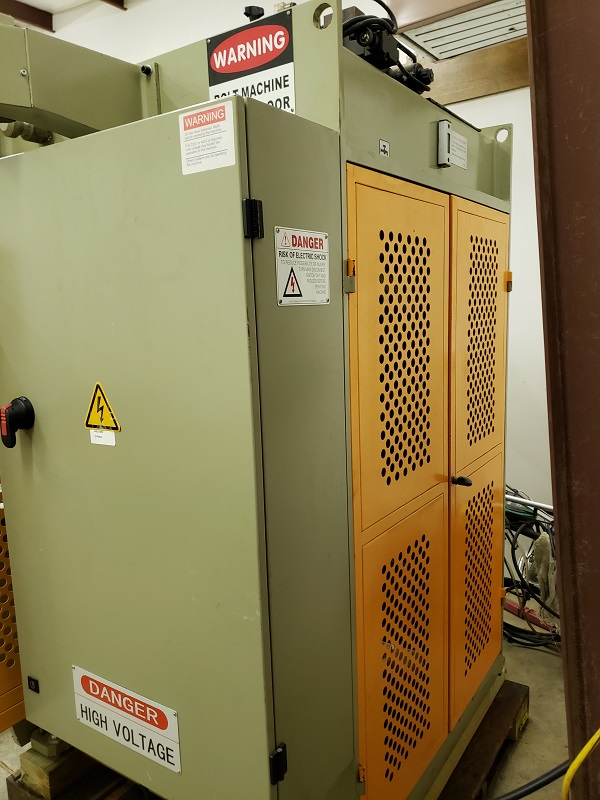

2014 US INDUSTRIAL US224M Press Brake

22 Tons, 52" Length, 3.14" Ram Stroke, 9.64" Open Height, Powered Ram Control, Back Gauge Control, Light Curtains, All Steel Construction
Talk to a representative today!
(803) 548-8000

Product Features

  • Capacity in Tons: 22 Inch
  • Bed Length: 51.9 Inch
  • Distance Between Housing: 40.1 Inch
  • Ram Stroke: 3.14 Inch
  • Ram Stroke Adjustment: 2.75 Inch
  • Open Height: 9.64 Inch
  • Throat: 7.8 Inch
  • Rapid Ram Travel Speed: 2.4 Inch per Second
  • Rapid Ram Retreat Speed: 2 Inch per Second
  • Back Gauge Travel: 24 Inch
  • Motor: 7.5 HP
  • Oil Capacity: 21 Gallons
  • Weight: 4,400 lbs.
  • Dimension: 73 L x 56 D x 77 H
