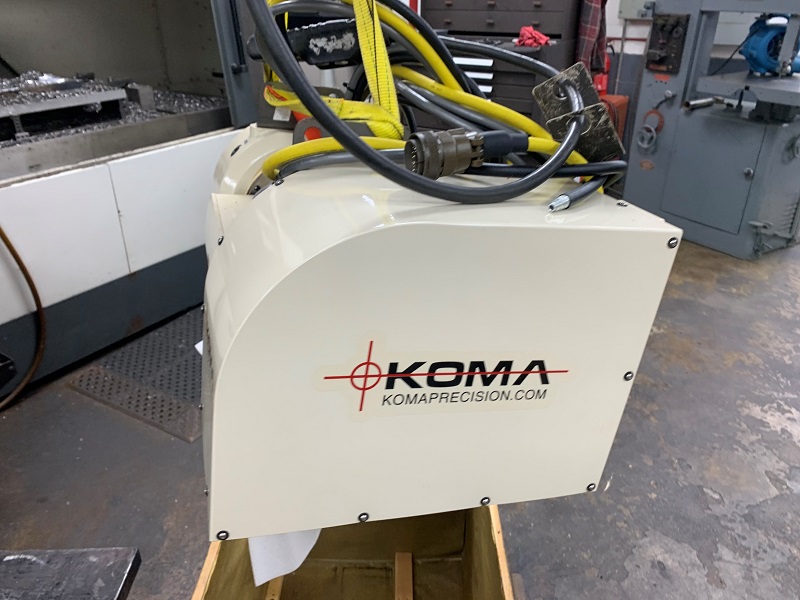

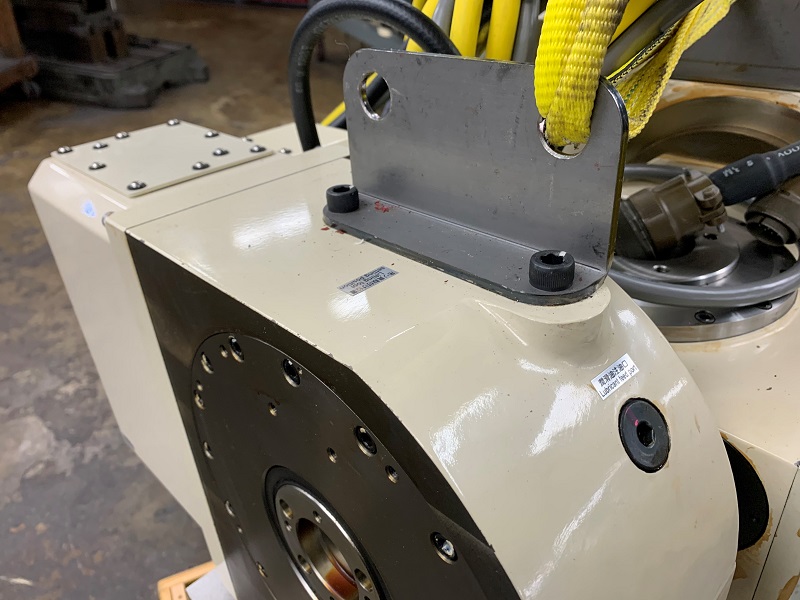

2014 TSUDAKOMA TN-201 5-AXIS TRUNNION TABLE

-30 to +110 Deg Tilt, 7.87" Table Diameter, 10.63" Table Height, 1.77" Thru Hole, Fanuc 0iMD, Alpha 4i Servo Motors
Talk to a representative today!
(803) 548-8000

Product Features

  • -30 to +110 Degree Tilt Range
  • 120h7 Spindle OD
  • 7.87" or 9.84" Table Diameter
  • 10.63" Table Height

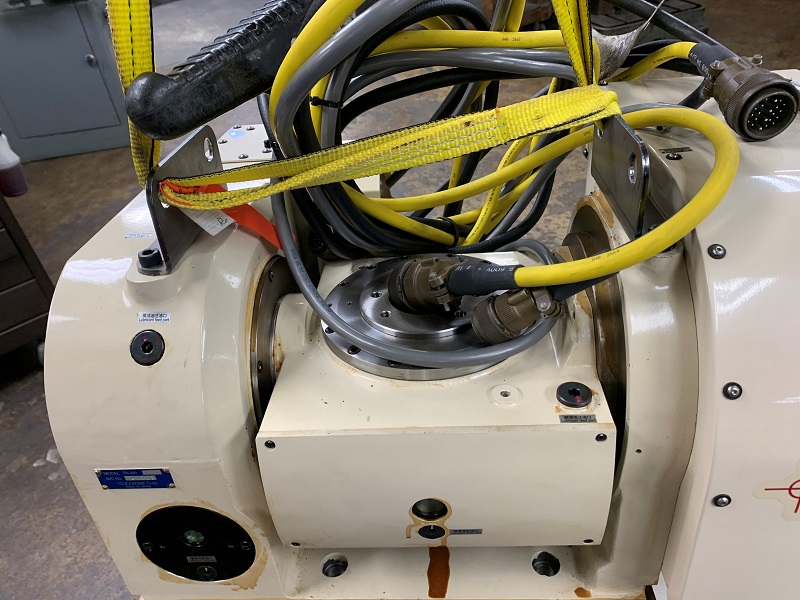

  • 11.81" Table Height with Faceplate
  • 8.27" Center Height at 90 Degrees
  • 65h7 Center Bore Nose Diameter
  • 1.77" Center Bore Thru Diameter
  • Alpha 4i Servo Motors for Tilt & Rotary
  • 4000 RPM Max Motor Speed
  • 86.9 RPM Max Table Speed Rotary
  • 44.4 RPM Max Table Speed Tilt
  • 590 ft. lbs. Clamping Force Rotary
  • 737 ft. lbs. Clamping Force Tilt
  • +/- 15 Arc Seconds Indexing Accuracy
  • +/- 2 Arc Seconds Indexing Repeatability
  • +/- 22.5 Arc Seconds Tilting Accuracy
  • +/- 2 Arc Seconds Tilting Repeatability
  • 264 lbs. Allowable Work Weight
  • 418 lbs. Table Weight
  • 27.6" L x 19" D x 15.1" H
  • Fanuc Motor A06B-0223-B000
  • BRAND NEW, Never Used!
  • Came from a 2014 DOOSAN DNM 750 with Fanuc 0iMD Control
  • $45,400 New Purchase Price in 2014
