Special Item

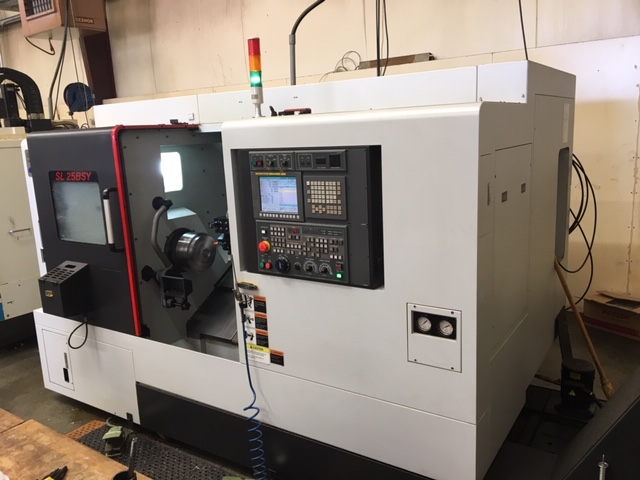

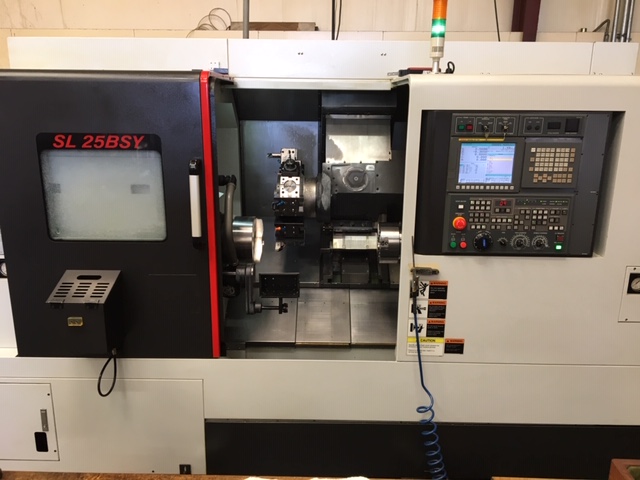

2014 SAMSUNG SL-25BSY

Fanuc 0i-TD, 3" Bar, 10" Chuck, 12/24 Tools, 30 HP, 3500 RPM, Y-Axis, Sub Spindle 8" Chuck, Tool Presetter, Parts Catcher, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Swing Over Bed 25.6"

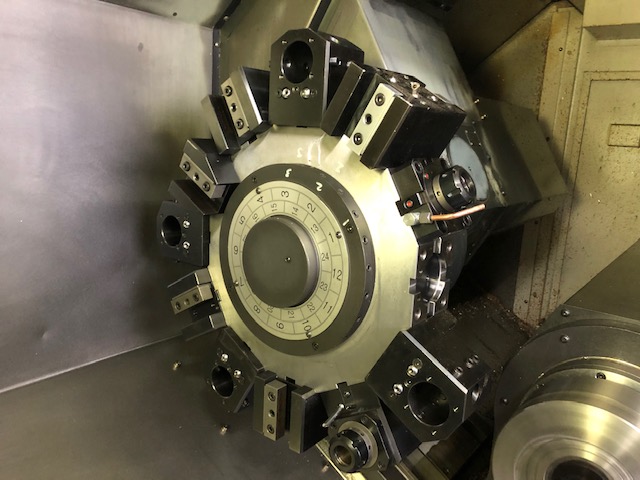

  • Tools 12 / 24 (All Live)
  • Sub Spindle Bar Capacity 2"
  • Sub Spindle Chuck Size 8"
  • Sub Spindle Motor 20 HP
  • Sub Spindle Nose A2-6
  • Sub Spindle Speed 4000 RPM
  • Rapid Traverse Rates (X / Y / Z) 709 / 472 / 945 IPM
  • X-Axis Travel 9.25"
  • Z-Axis Travel 22.83"
  • Y-Axis Travel 3.94"
  • C-Axis Index (Main & Sub Spindle) .001 Degrees
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x D x H) 184" x 76" x 80"
  • Machine Weight 16,000 lbs.
  • Live Tool Motor 7.5 HP
  • Live Tool Speed 5000 RPM
  • Main Spindle Bar Capacity 3"
  • Main Spindle Chuck Size 10"
  • Main Spindle Indexing .001 Degrees
  • Main Spindle Motor 30 HP
  • Main Spindle Speed 3500 RPM
  • Max Turning Diameter 14.2"
  • Max Turning Length 19.9"
  • Tool Type BMT-65

Product Features

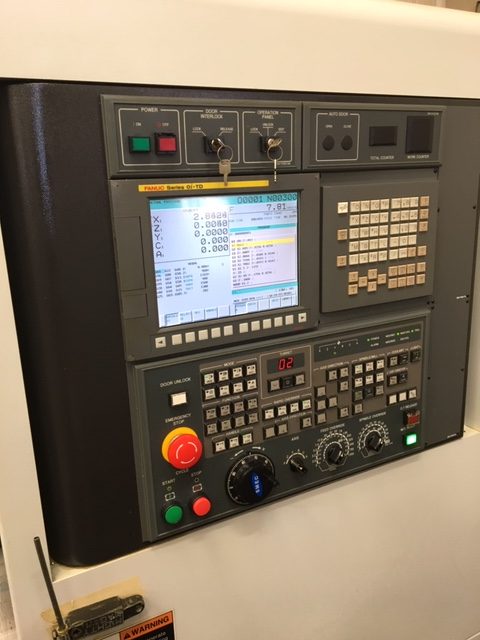

  • FANUC 0i-TD CNC Control
  • 10.4" Color TFT
  • Y-Axis Live Tooling Capability
  • Programmable Sub Spindle

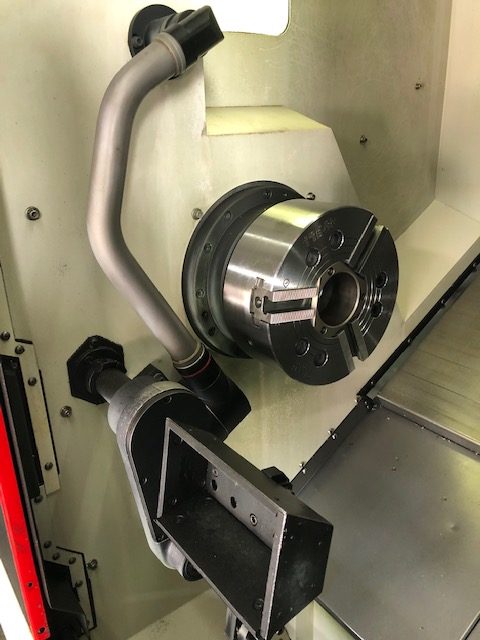

  • 10" Samchully HS-10 Hydraulic Chuck on Main Spindle

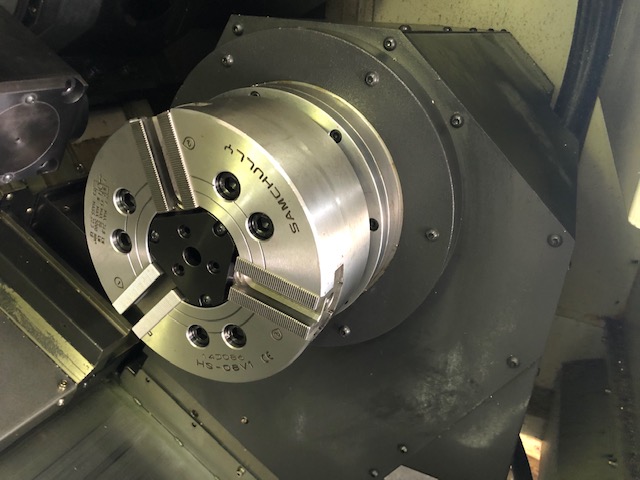

  • 8" Samchully HS-08V1 Hydraulic Chuck on Sub Spindle
  • Tool Presetter
  • Auto Parts Catcher

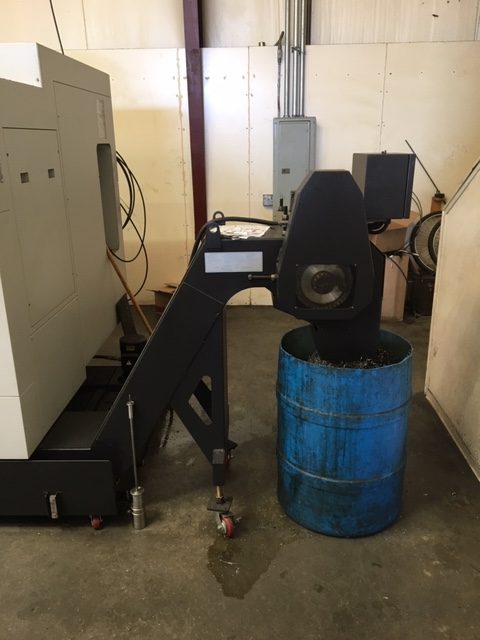

  • Chip Conveyor (Hinge-Type Side Exit)
  • Three Color Tower Light
  • Full Contouring on Main & Sub Spindle
  • Rigid Tapping on Main & Sub Spindle
  • (1) OD Live Holder
  • (1) Face Live Holder
  • (4) Boring Bar Holders
  • (4) Tandem Turning Holders
  • (1) Facing Holder
  • Heavy Duty Slant Bed Box Way Construction
  • 5491 Power On Time
  • 711 Run Time
  • 1196 Cutting Time
