Special Item

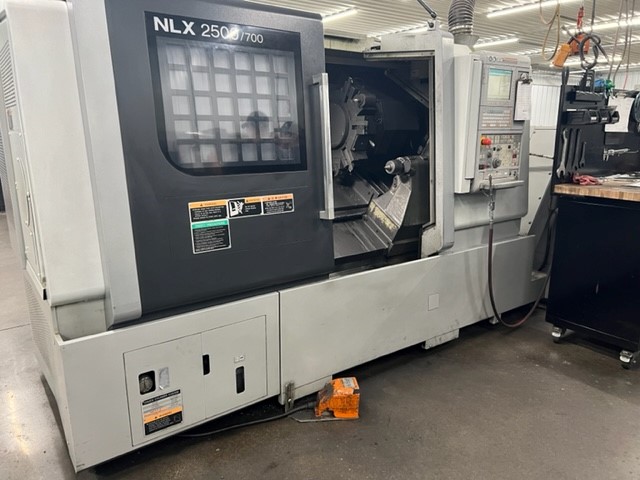

2014 MORI SEIKI NLX-2500MC / 700

Mit, 3.1" Bar, 10" Chuck, 14.4" Max Dia, 27.7" Length, 24.7HP, 4000 RPM, Live Tooling, Tail, Tool Presetter, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed / Cover / Carriage 31" / 23" / 21.3"
  • Max Machining Length 27.7"
  • Spindle Motor 24.7 / 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 12 (All Live)
  • Milling Motor 7.5 HP
  • Milling Speed 6000 RPM
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 31.3"
  • C-Axis Index .001 Degree
  • Turret Index (Single Step) 0.27 Seconds
  • Machine Dimensions (L x W x H) 156.3" x 80.8" x 74.8"
  • Machine Weight 12,000 lbs.
  • Max Turning Diameter (Max / Std) 14.4" / 10.6"
  • Spindle Torque 441.8 ft. lbs.
  • Tailstock Taper MT#5

Product Features

  • MORI SEIKI M730BM (MITSUBISHI) CNC CONTROL
  • 10.4" Color TFT
  • C-Axis Milling Capability

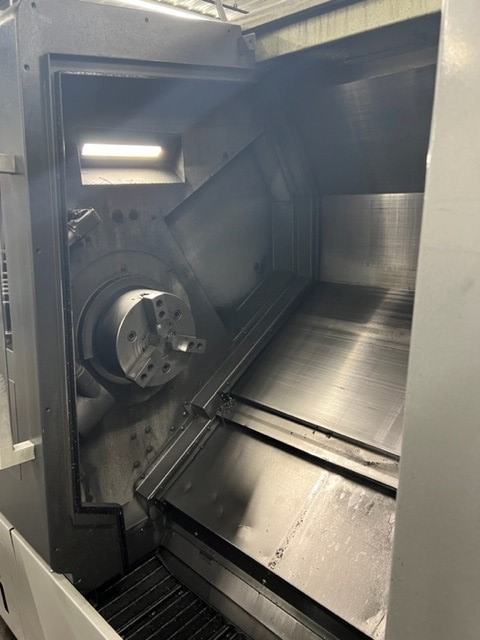

  • 10" Hydraulic Chuck
  • Digital Tailstock
  • Built-In Integral Milling Spindle Motor

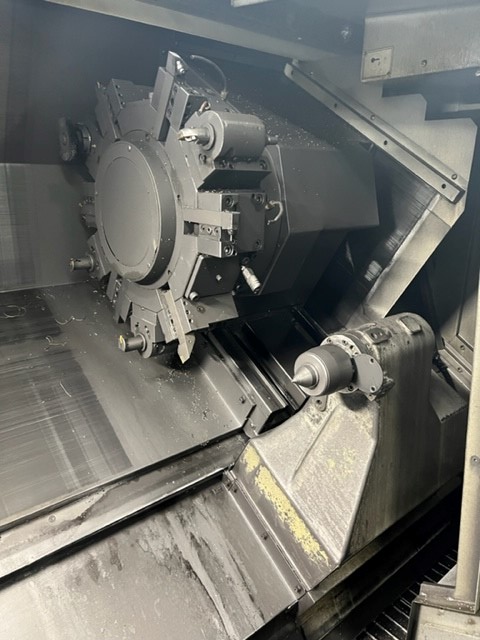

  • Servo Driven Turret
  • Tool Presetter
  • Chip Blaster (1000 PSI)
  • Turbo Chip Conveyor (Side Exit)
  • Slant Bed Box Way Construction
  • Manufacture Date July 2014
