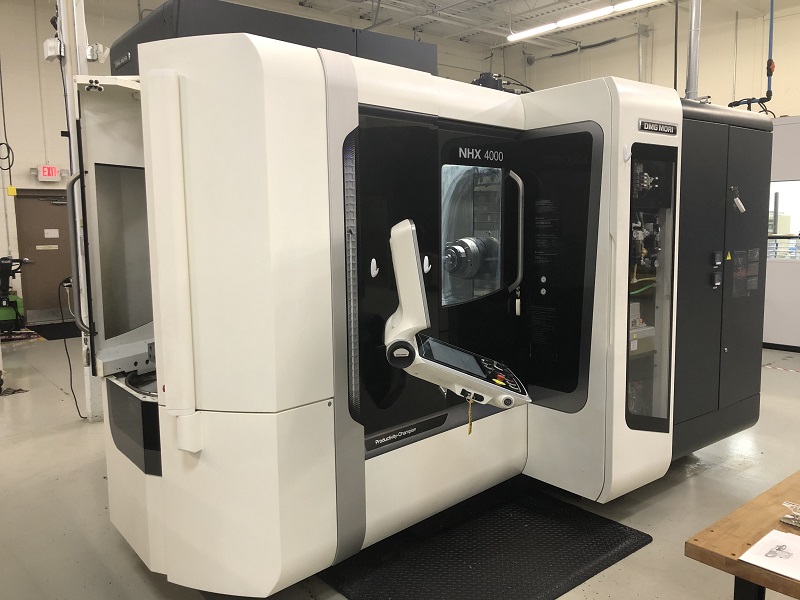

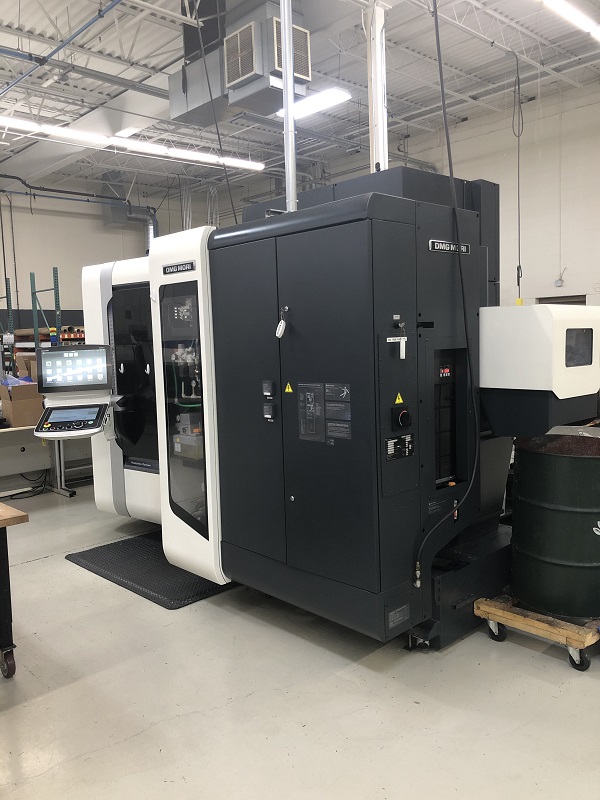

2016 MORI SEIKI NHX-4000

MIT M730BM, 15.7" Plts, 22.22.26", 15000 RPM, Cat 40, 20 HP, 120 Tools, Fourth Axis, TSC, Scales, ATLM, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 8 Seconds
  • Pallet Load Capacity 880 lbs.
  • Pallet Size 15.7" (2)
  • X-Axis 22.0"
  • Y-Axis 22.0"
  • Z-Axis 26.0"
  • Pallet Index .001 Degree
  • Spindle Speed 15,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 15 HP
  • Spindle Center to Table Top 2.4" - 24.4"
  • Spindle Nose to Table Center 2.8" - 28.7"
  • Tools 120
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (T - T / C - C) 0.9 / 2.8 Seconds
  • Max Tool Diameter 2.7" / 6.6"
  • Max Tool Length 17.7"
  • Max Tool Weight 17.6 lbs.
  • Max Workpiece Dia / Height 24.8" / 34.6"
  • Machine Dimensions (L x W x H) 165.9" x 107.1" x 98.9"
  • Machine Weight 16,000

Product Features

  • Celos M730UM Control
  • 21.5" ERGOline Touch Control with Multiple Screens
  • 15,000 RPM Dual Contact Spindle
  • Full Fourth Axis Contouring

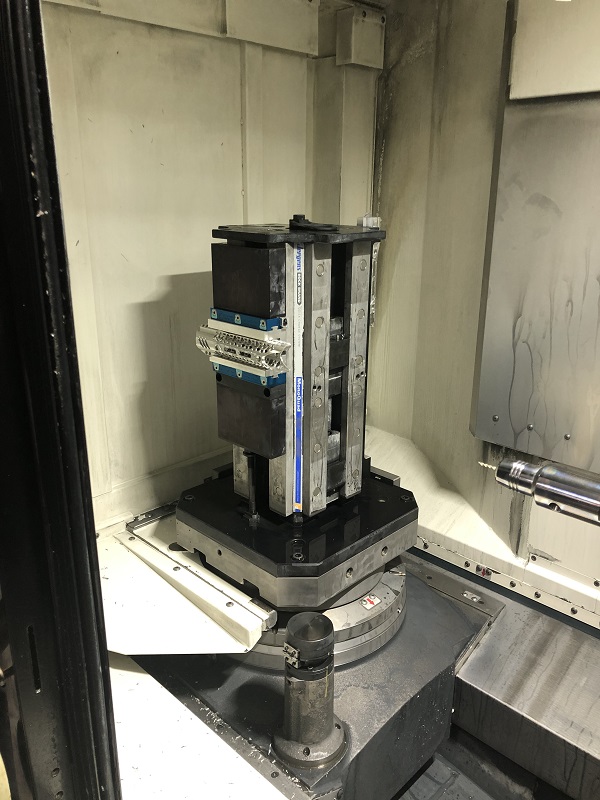

  • (2) Jergens Clustertowers. (Capable of 8 vises per tower)
  • Pallet Edge Locators (2)
  • 120 Tools

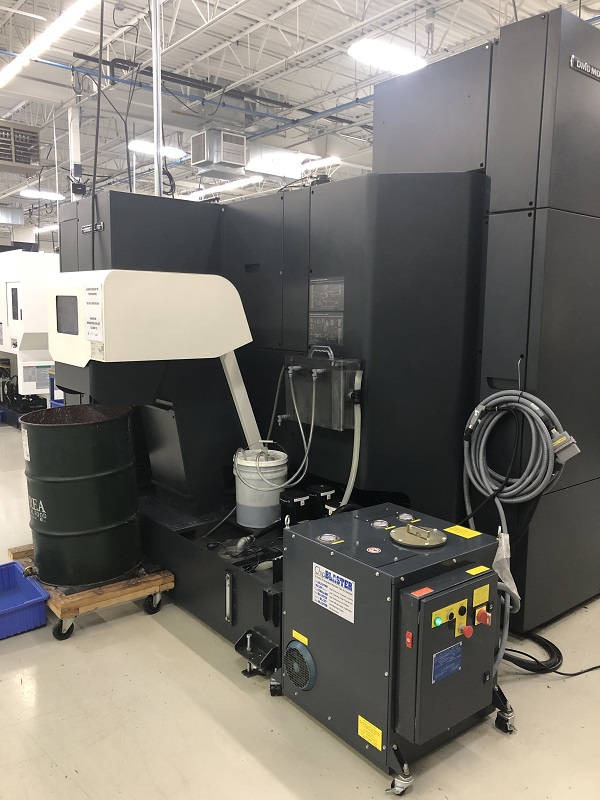

  • ChipBlaster D30-35 (500psi) Through Spindle Coolant System
  • Renishaw OMP60 Spindle Probe
  • Automatic Tool Length Measurement
  • Spindle Chiller
  • MAPPS System
  • 48 Sets Additional Workpiece Coordinate Systems
  • AI Contour Control (High Speed/High Precision Function)
  • Coordinate System Rotation
  • Chip Conveyor
