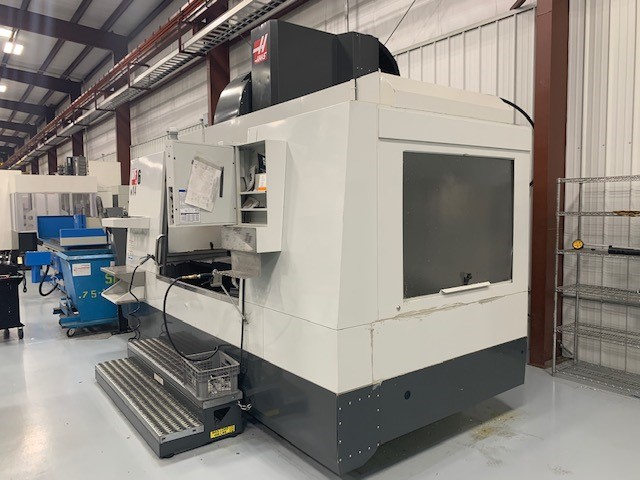

2014 HAAS VF-6/50

64.32.30", 10000 RPM, Cat 50, 30 HP, 30 SMTC, TSC 300 psi, Probes, Fourth Axis Interface, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 64"
  • Y-Axis 32"
  • Z-Axis 30"
  • Table Size 64" x 28"
  • Spindle Speed 10,000 RPM
  • Spindle Taper CAT 50 Big Plus
  • Spindle Motor 30 HP
  • Tools 30
  • Rapid Traverse Rates (X & Y / Z) 540 / 600 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Length 8"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 156" x 111" x 126"
  • Machine Weight 21,000 lbs.
  • Spindle Nose to Table Top 5" - 35"

Product Features

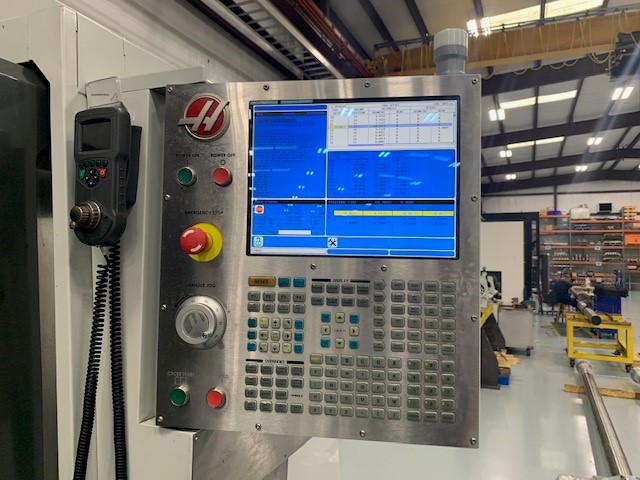

  • HAAS CNC Control
  • 12" Color LCD
  • USB Port
  • Through Spindle Coolant (300 psi)
  • 10,000 RPM Spindle with Two Speed Gearbox
  • Wireless Intuitive Probing System
  • Fourth Axis Interface

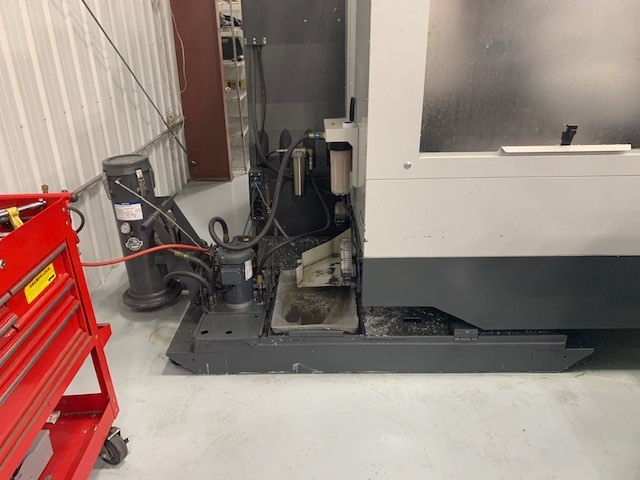

  • Chip Conveyor (Hinge Type Left Side Exit)
  • 30 Position Side Mount Tool Changer
  • 64 GB Expanded Memory
  • Coordinate Rotation & Scaling
  • Spindle Orientation
  • User Definable Macros
  • Programmable Coolant Nozzles
  • Remote Jog Handle
  • Rigid Tapping
  • Manufacture Date April 2014
  • New List Price $207,765
