Special Item

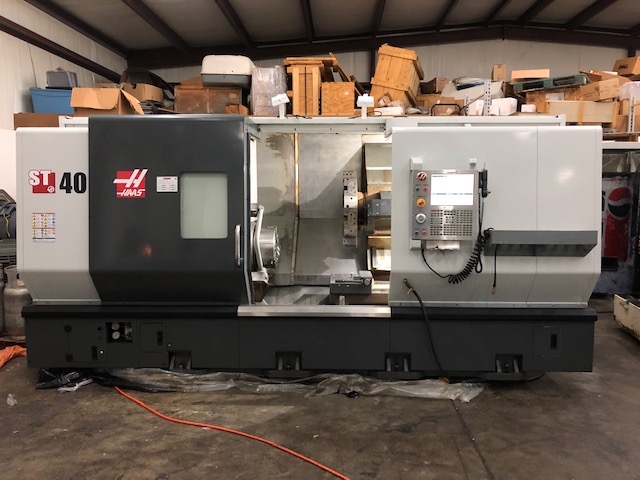

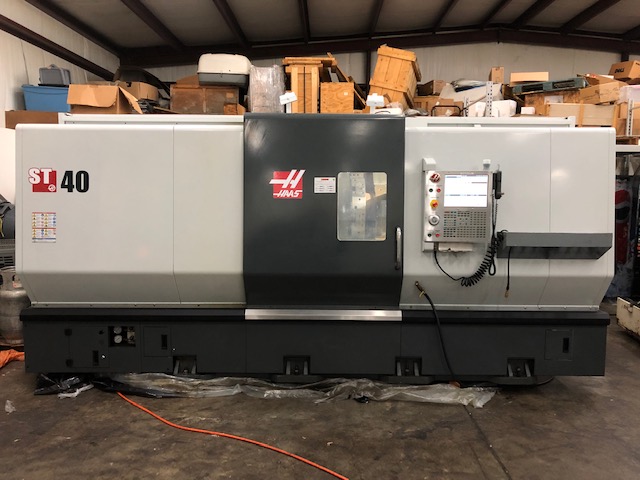

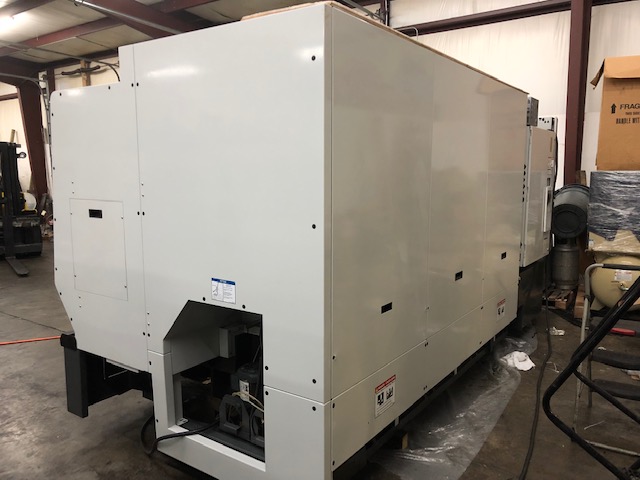

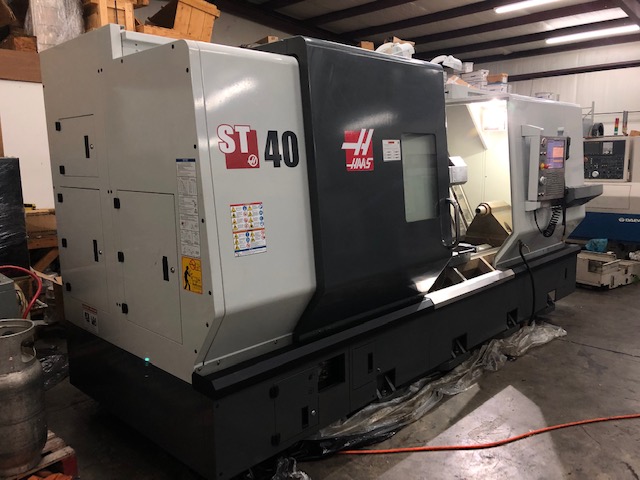

2014 HAAS ST-40TM

4" Bar, 15" Chuck, 25.5" Max Dia, 44" Length, 2400 RPM, 40 HP, 12 Tools, Live Tooling, Steady Rest, Gear Box, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 15"
  • Max Diameter Bar Capacity 4"
  • Max Swing Over Bed / Carriage 34.5" / 25.5"
  • Spindle Motor 40 HP
  • Spindle Speed 2400 RPM
  • Spindle Nose 4.62"
  • Spindle Bore A2-8
  • Tools 12
  • Rapid Traverse Rates 710 IPM
  • X-Axis Travel 17"
  • Z-Axis Travel 44"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x W x H) 230" x 103" x 90"
  • Machine Weight 25,000 lbs.
  • Max Turning Diameter 25.5"
  • Spindle Torque 1400 ft. lbs.
  • Tailstock Taper MT #5

Product Features

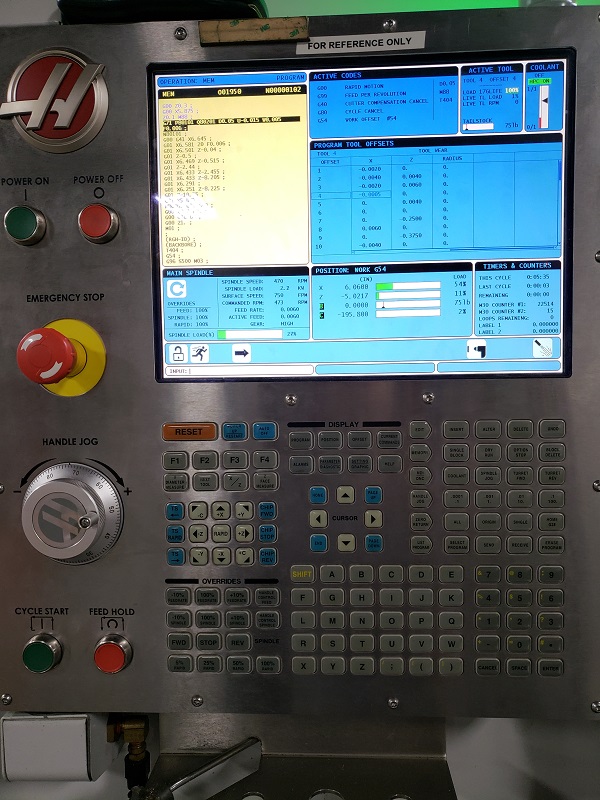

  • HAAS CNC Control
  • 12" Color TFT
  • C-Axis Live Tooling Capability

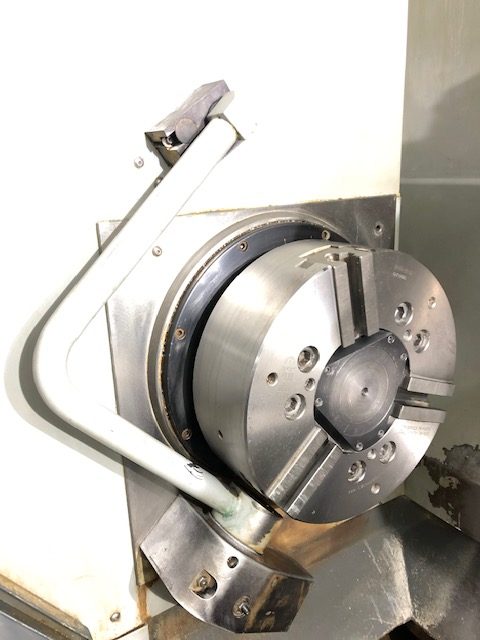

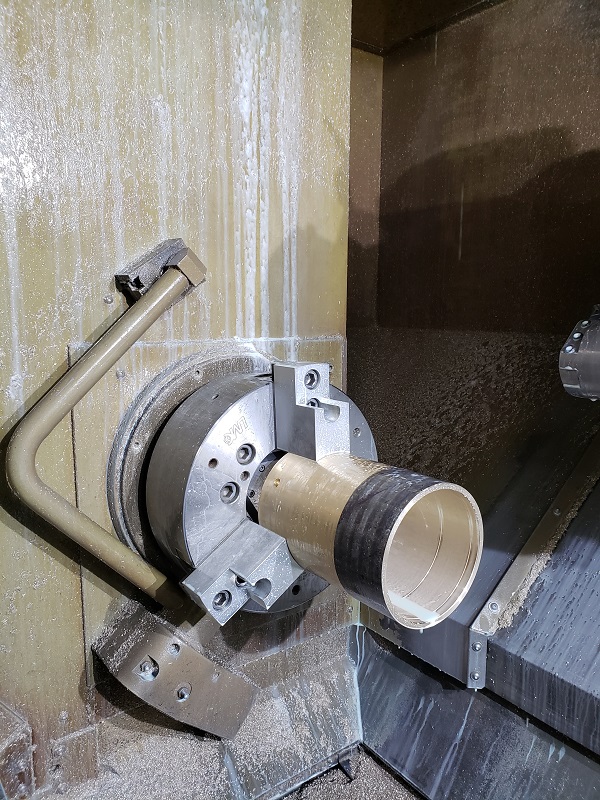

  • 15" LMC PC-15-120-01 Hydraulic Chuck
  • Automatic Tool Presetter
  • Servo Driven Tailstock
  • Belt-Type Chip Conveyor (Side Exit)
  • Steady Rest Provision

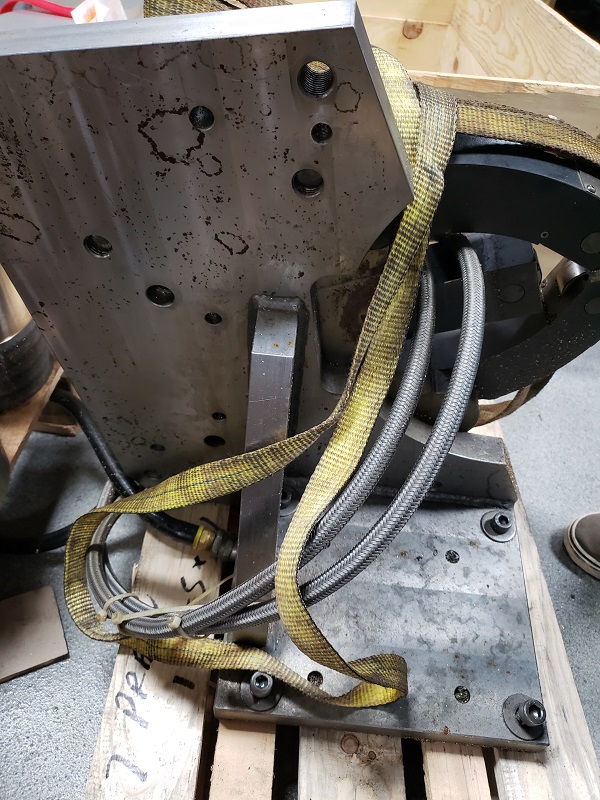

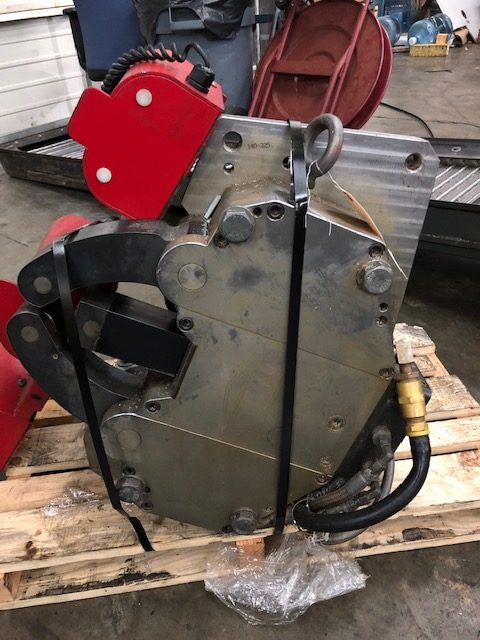

  • Atling Steady Rest Bracket
  • Two Speed Gear Box
  • High Pressure Coolant (300 psi)

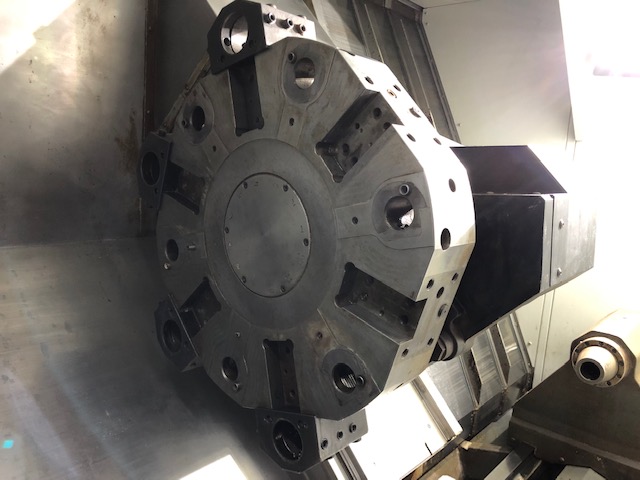

  • 12 Position Hybrid BOT/VDI Tool Turret
  • Intuitive Programming System
  • User Definable Macros
  • Remote Jog Handle
  • Rigid Tapping
  • Spindle Orientation
  • High Intensity Lighting
  • (4) Boring Bar Holders
  • Manufacture Date March 2014
  • 10,862 Servo Time
  • 5010 Motion Time
  • 5227 Spindle Time
