Special Item

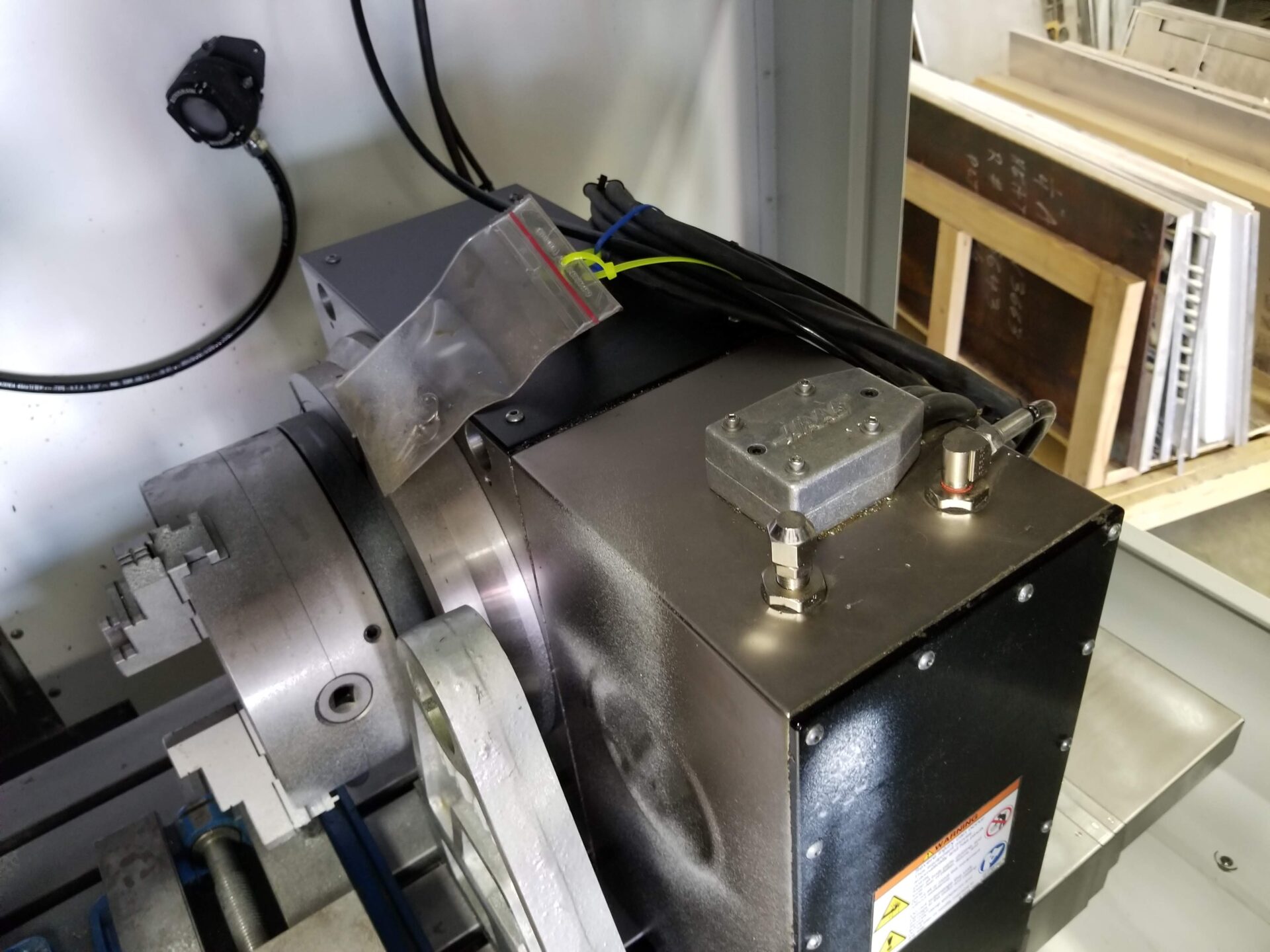

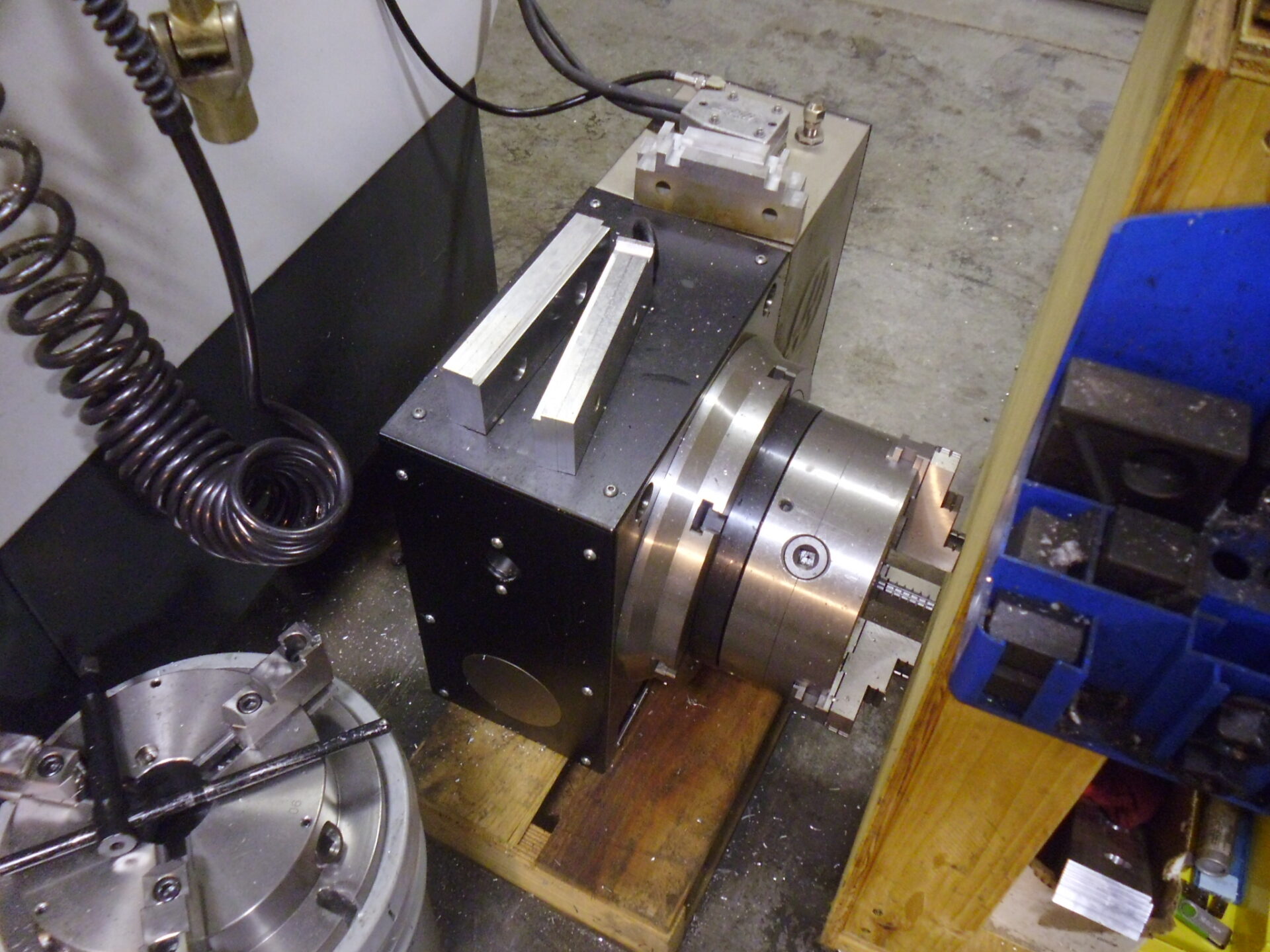

2014 HAAS HRT-310 FOURTH AXIS ROTARY TABLE

.001 Degrees, 10" Chuck, 12.2" Table, 300 ft. lbs. Torque
Talk to a representative today!
(803) 548-8000

Product Details

  • Accuracy +/- 15 Arc Sec.
  • Backlash 30 Arc Sec.
  • Brake Torque at 100 psi 500 ft. lbs.
  • Center Height 9.000 +/- 0.001
  • Duty Cycle (Full / Low Speed) 50 / 100%
  • Gear Ratio (worm & gear) 72
  • Max Air Pressure 150 PSI
  • Max Rotation / Step 999.999 Deg
  • Max Rotation 0.001
  • Max Speed 0.001 to 75 Deg / Sec
  • Operating Temp 100 Degrees F
  • Power Required 115 VAC ± 10% @ 15 amps
  • Repeatability 10 Arc Sec.
  • Runout Max 0.001"
  • Spindle Bore 3.25" x 9.875"
  • Table 435 lbs.
  • Timing 2
  • Torque 300 ft. lbs.
  • Worm Gear Diameter 9.4"

Product Features

  • 12.2" Platter
  • 10" 4-Jaw Chuck

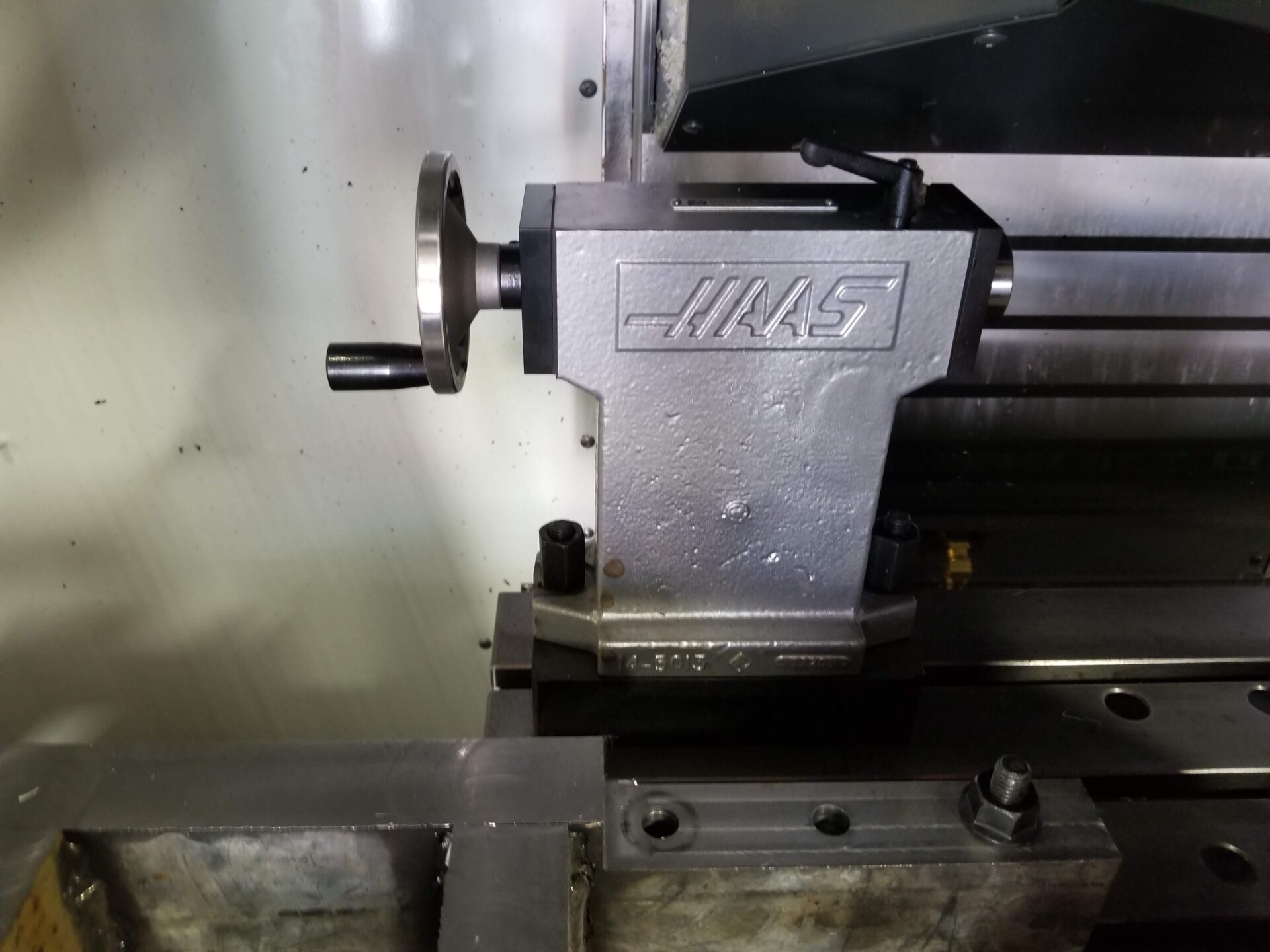

  • Manual Tailstock
  • Serial Number 317989
  • Mfg Date 2014
  • Weight 435 LBS
