2014 FANUC ROBODRILL a-D21MiA5

FANUC 31i-B5, 19.15.12", 21 Tools, BT-30, 24000 RPM, 7.5 HP
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 19.68"
  • Y-Axis 15.74"
  • Z-Axis 12.99"
  • Table Size 25.59" x 15.74"
  • Spindle Speed 24000 RPM
  • Spindle Taper BT-30 Big Plus
  • Spindle Motor 7.5 HP
  • Tools 21
  • Table Load Capacity 660 lbs.
  • Rapid Traverse Rates 2125 IPM
  • Max Tool Diameter 3.14"
  • Max Tool Length 9.84"
  • Max Tool Weight 6.6 lbs.
  • Machine Dimensions (L x W x H) 63.58" x 80.3" x 88"
  • Machine Weight 4409 lbs.
  • Spindle Torque 51.6 ft. lbs.
  • Tool Change Time (T - T / C - C) 0.9 / 1.6 Seconds

Product Features

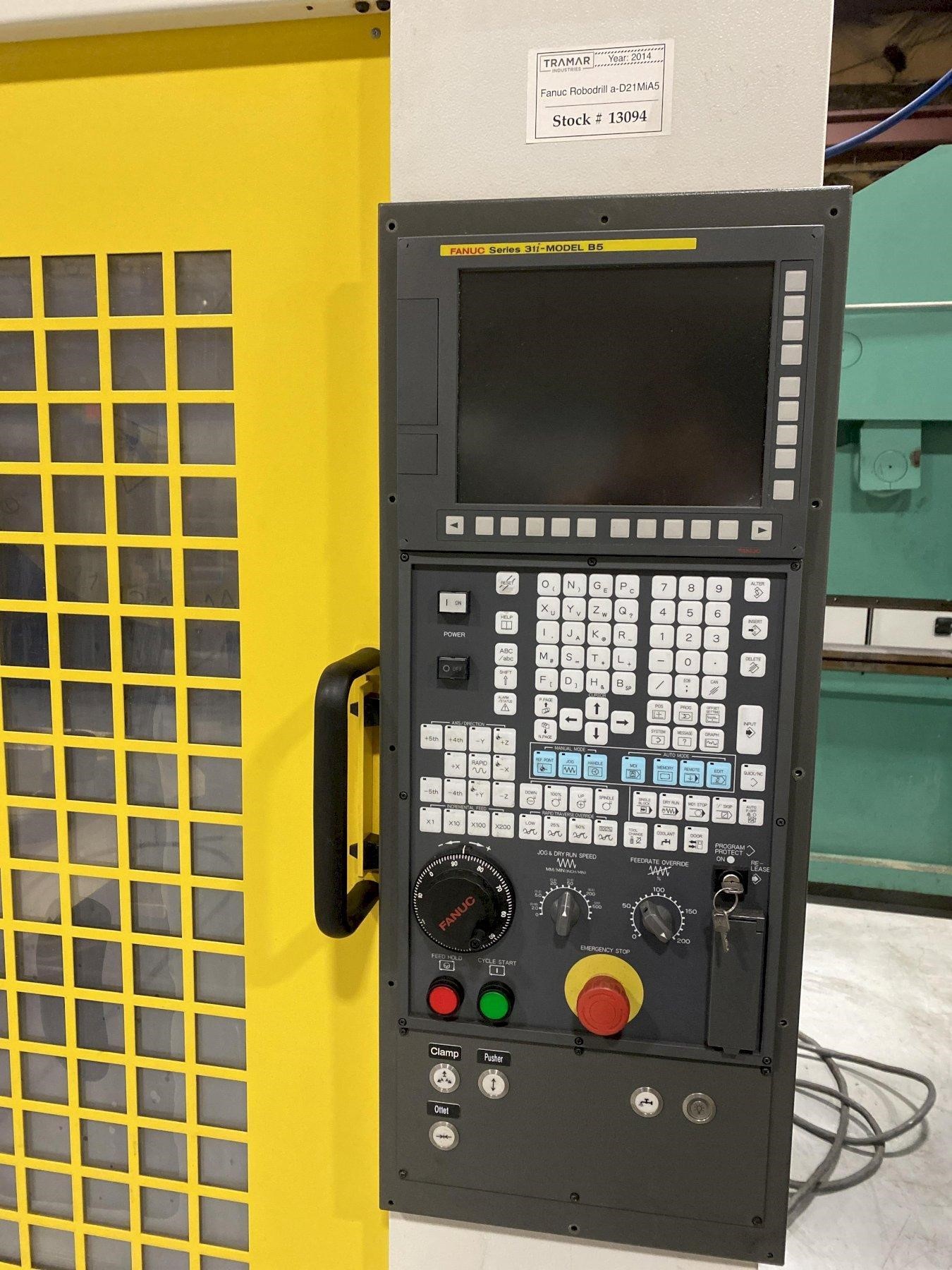

  • FANUC 31i B5 CNC Control

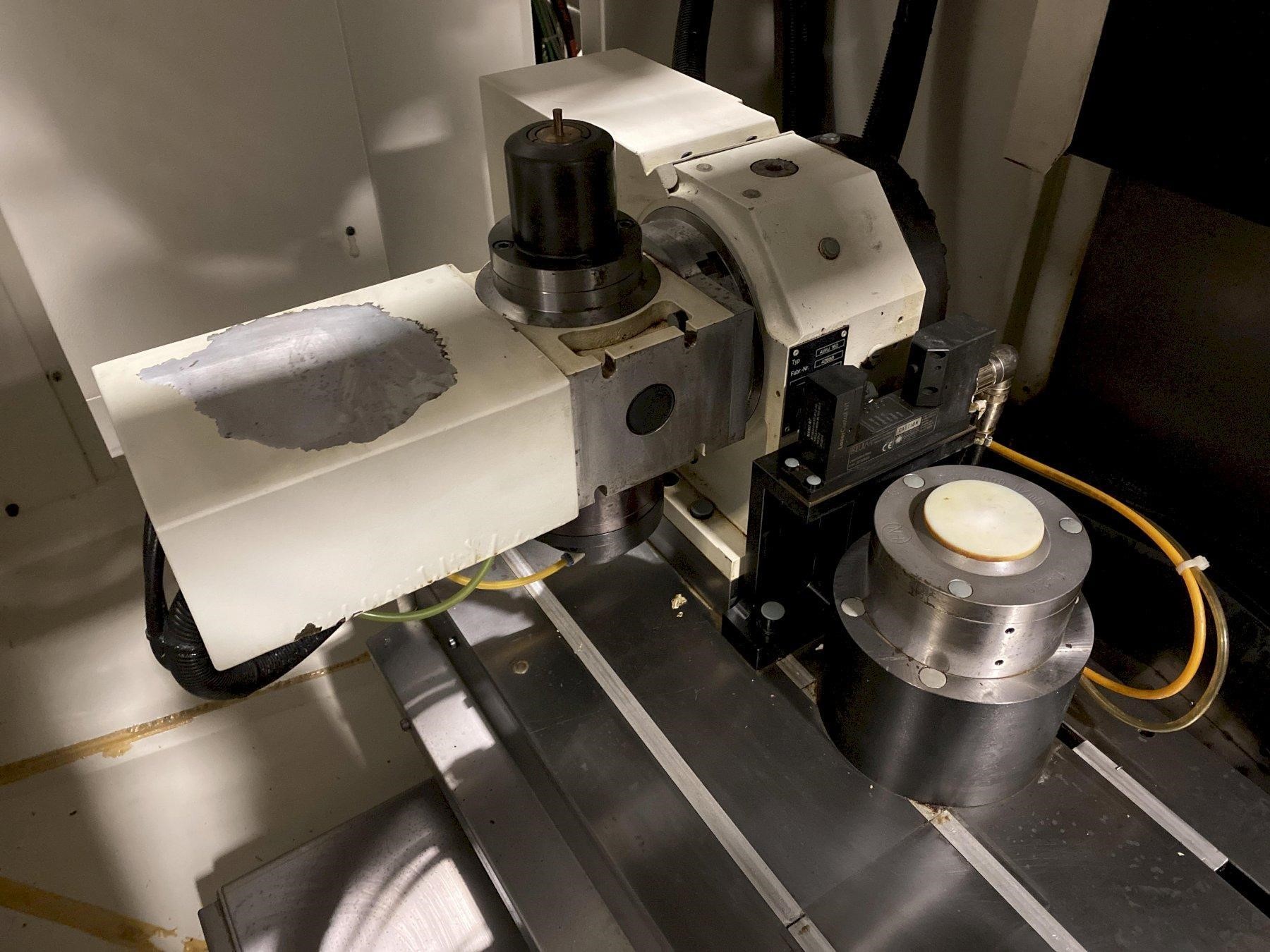

  • 100mm Peiseler 5th Axis Table
  • Renishaw Probe
  • Blum Laser Tool Measurement
  • 100mm Riser Block
  • Mist Collector

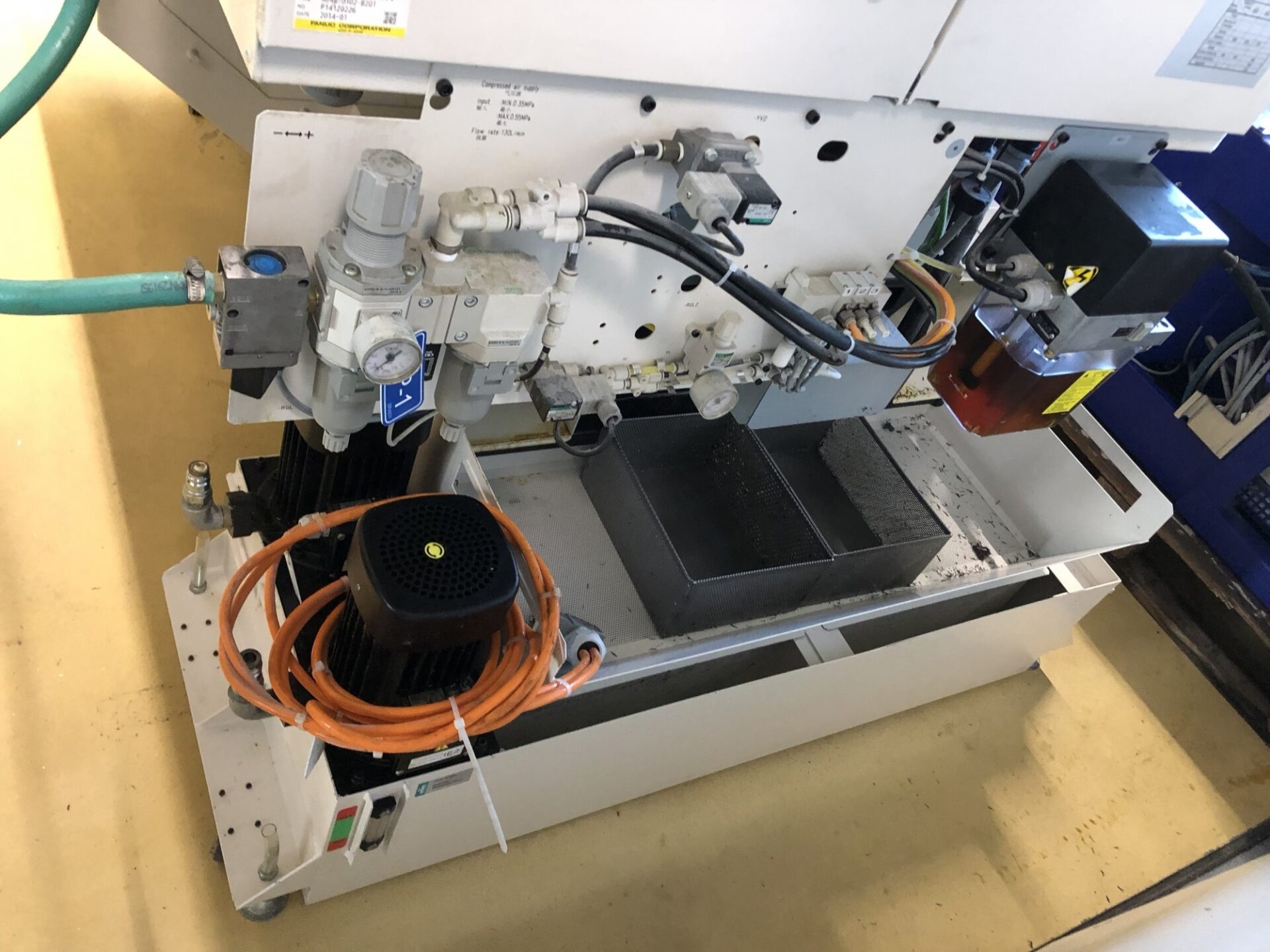

  • Coolant Tank
  • Fire Suppression System
