< Back to Lathes
Special Item

2014 DOOSAN LYNX 220LC

Fanuc 0i-TD, 2.63" Bar, 8.25" Chuck, 20 HP, 4000 RPM, 12 Tools, Parts Catcher, Tailstock, Tool Presetter, Collet Chuck
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8.25"
  • Max Diameter Bar Capacity 2.63"
  • Max Swing Over Bed / Carriage 20.1" / 11.4"
  • Turning Diameter(Max / Std) 12.6" / 8.3"
  • Spindle Motor 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 12
  • Rapid Traverse Rates 1400 IPM
  • X-Axis Travel 6.9"
  • Z-Axis Travel 21.7"
  • Turret Index (Single Step) 0.15 Seconds
  • Machine Dimensions (L x W x H) 101" x 63" x 65"
  • Machine Weight 6834 lbs.
  • Max Turning Length 20.7"
  • Tailstock Taper MT#4

Product Features

  • Fanuc i Series CNC Control
  • 10.4" Color LCD
  • Collet Chuck
  • Manual Tailstock
  • Auto Parts Catcher
  • Three Color Tower Light
  • Manufacture Date September 2014

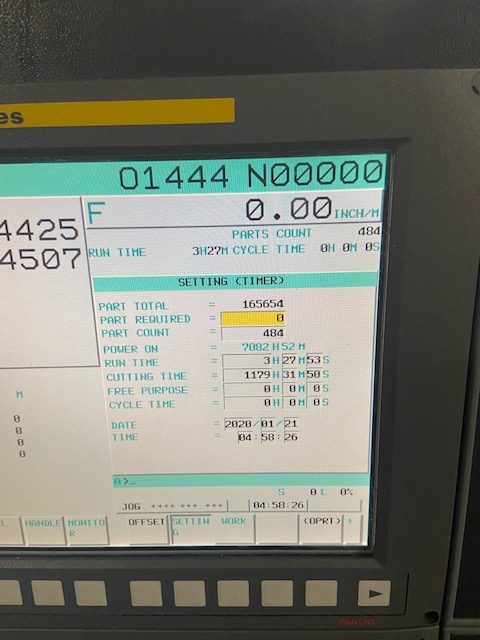

  • 7082 Power On Time
  • 1179 Cutting Time
