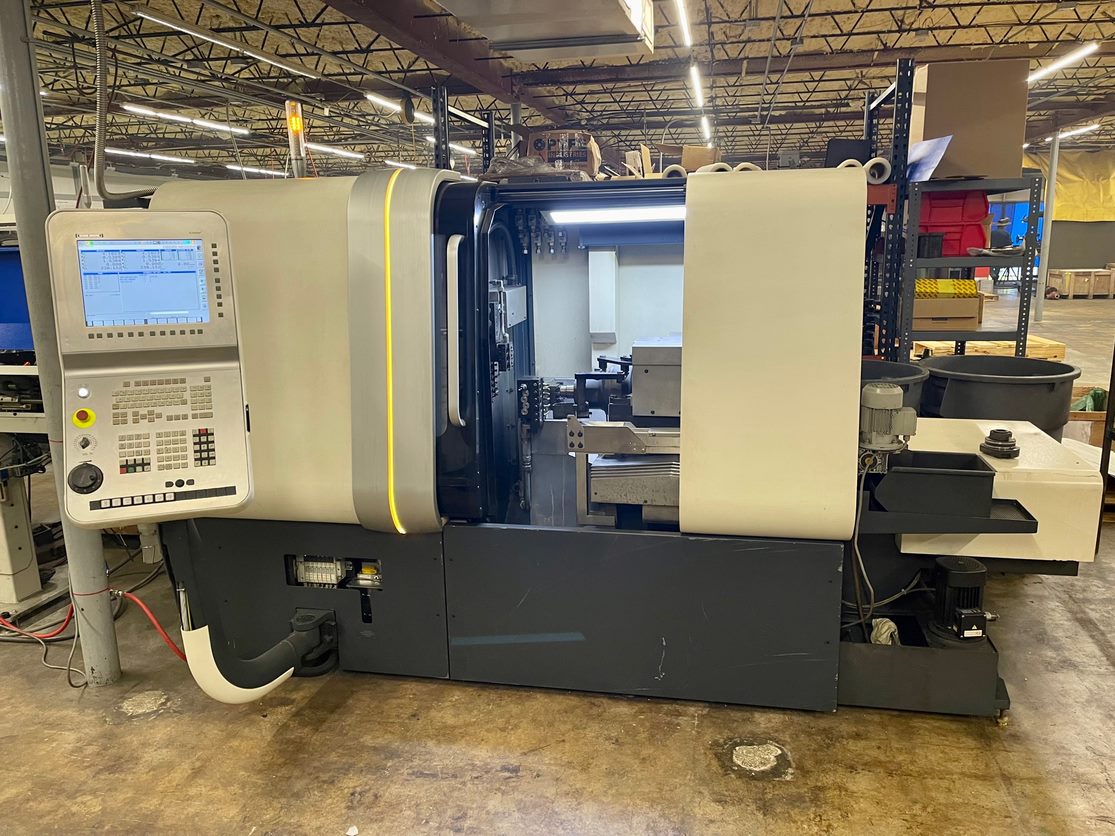

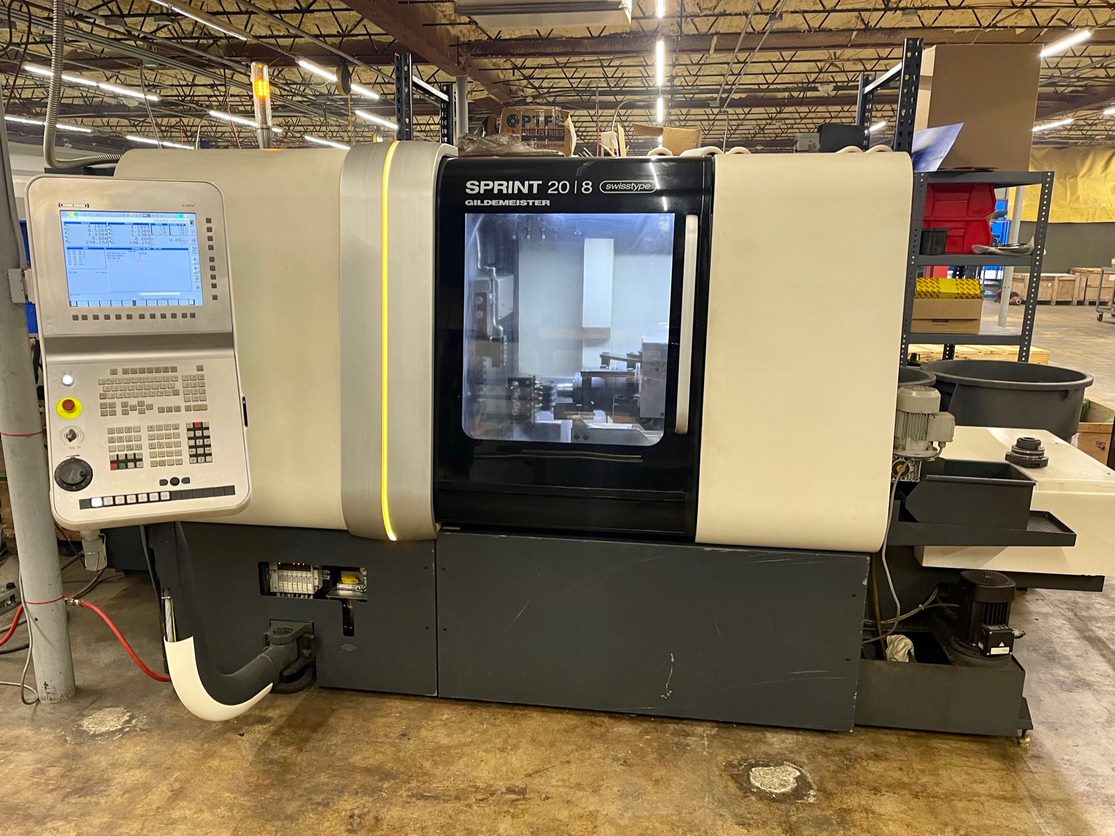

2014 DMG MORI SPRINT 20/8 LINEAR

Fanuc 310is, 1" Bar, 5 HP, 10000 RPM, 5 Live Tools, Sub Spindle, (2) Y-Axis, Barfeed, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 1"
  • Sub Spindle Motor 7.5 / 5 HP
  • Sub Spindle Travel 11.8"
  • Rapid Traverse Rates (X/Y/Z) 1575 IPM
  • C-Axis Index (Main & Sub) .001 Degrees
  • Machine Dimensions (L x W x H) 151.5" x 55.5" x 71.8"
  • Machine Weight 9920 lbs.
  • Backworking Tools 4
  • Front End - Working Tools 6
  • Live Tools for Main Spindle 5
  • Live Tools for Sub Spindle 5
  • Main Spindle Motor 7.5 / 5 HP
  • Main Spindle Speed 10,000 RPM
  • Rotary Tool Motor 1.7 HP
  • Rotary Tool Speed 6000 RPM
  • SLIDE 1 X1 Travel 2"
  • SLIDE 1 Y1 Travel 13.8"
  • SLIDE 2 X2 Travel 9.5"
  • SLIDE 2 Y2 Travel 4.7"
  • Turning Tools Main / Sub 6 / 4

Product Features

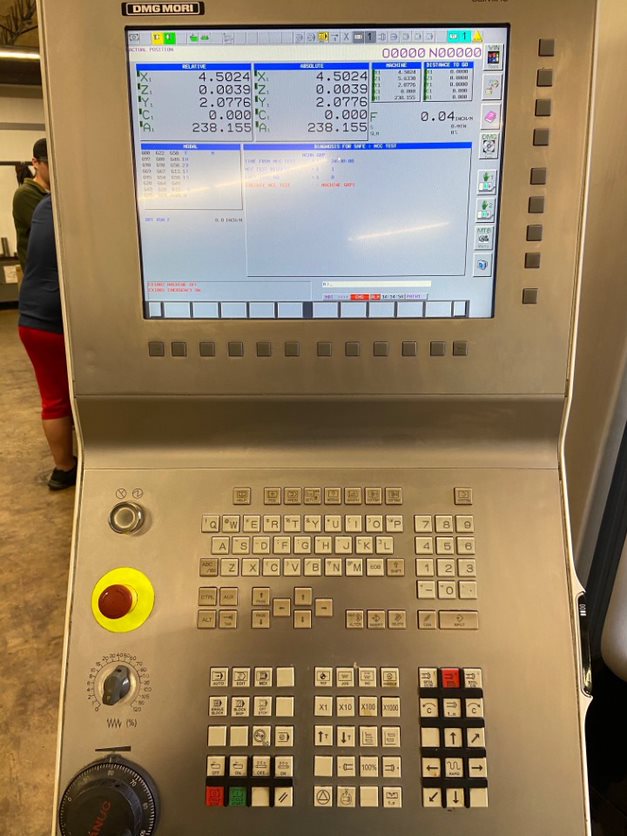

  • DMG SlimLine (Fanuc 310is) CNC Control
  • 15" Color TFT
  • USB Port

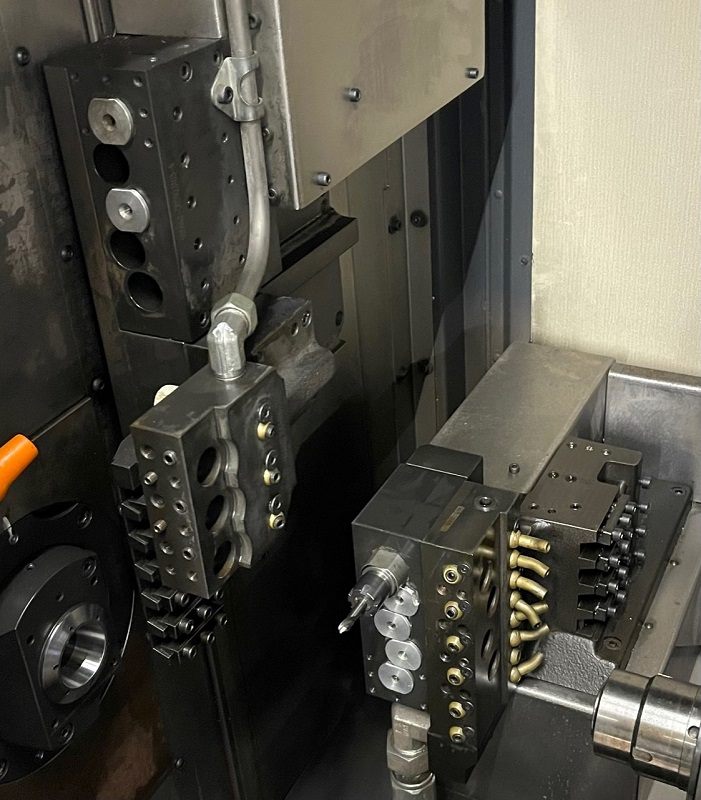

  • 6 OD/ 5 Live/ 6 End Working Tools for Main Spindle
  • 4 OD/ 5 Live/ 4 End Working Tools for Counter Spindle
  • C-Axis Live Tool Capability on Main & Counter Spindle
  • Conversion Kit from Steady to Sliding Headstock
  • Kit for Bar Machining till 25 mm
  • Thru Spindle Coolant on Counter Spindle
  • Chip Conveyor (Right Side Exit Hinge Type)

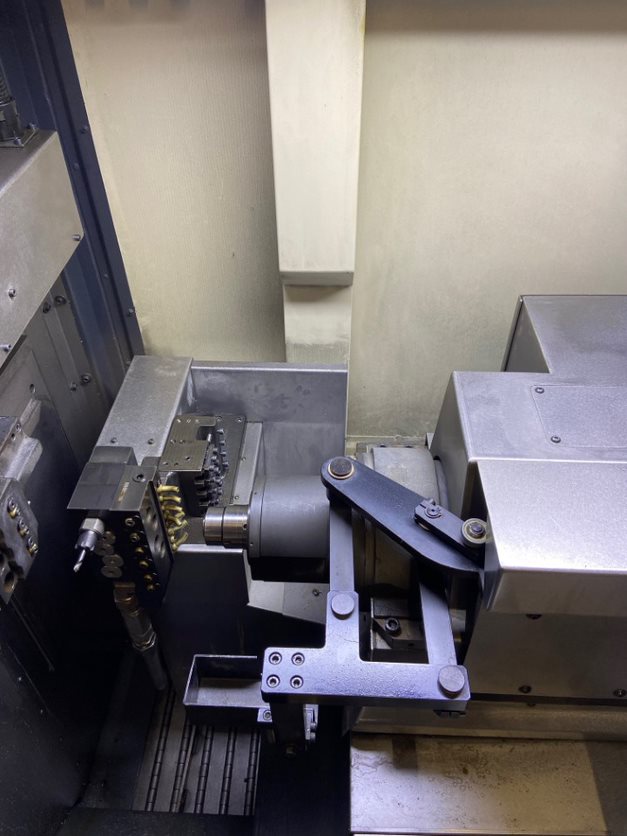

  • Auto Parts Catcher
  • Parts Exit Conveyor

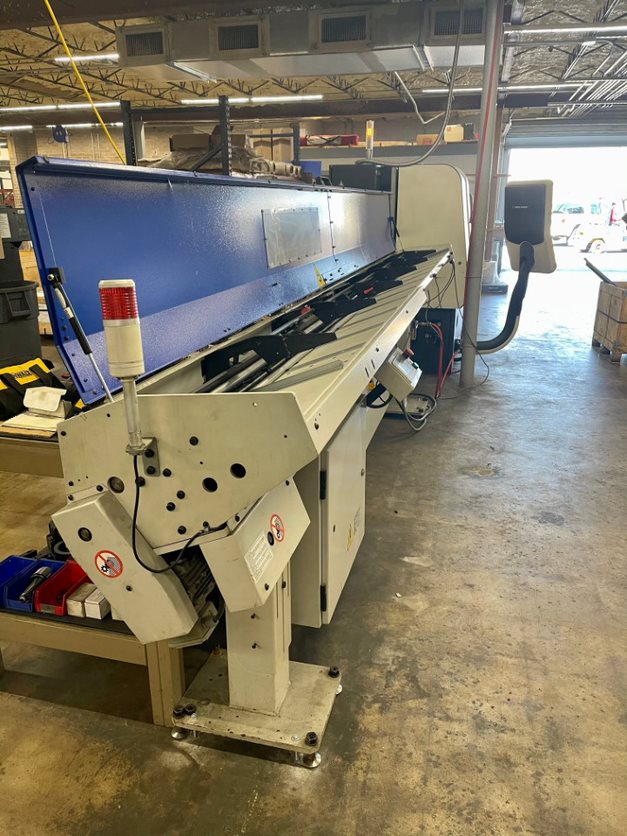

  • Iemca Ideal 325 Magazine 12 ft. Barfeed
  • Synchronous Rotary Guide Bushing
  • Three Color Tower Light
  • 2878 Power On Hours
  • 1141 Cutting Hours
