Special Item

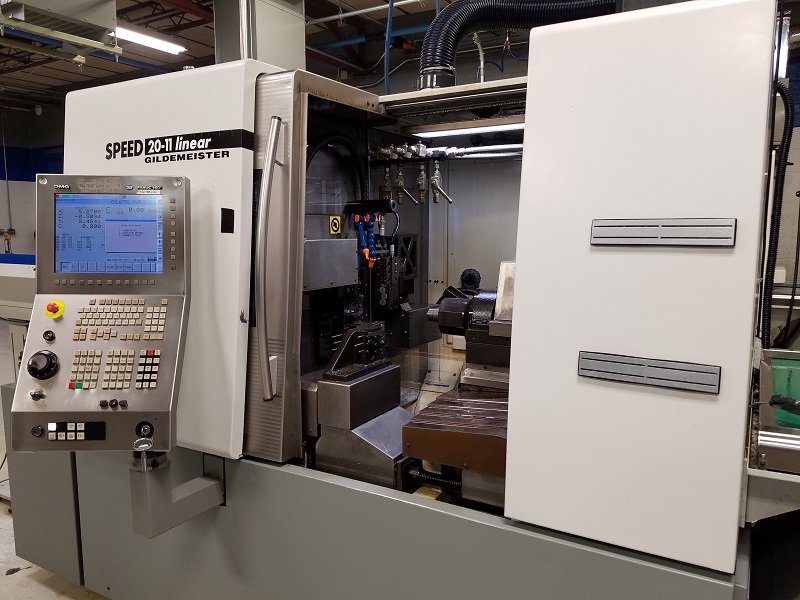

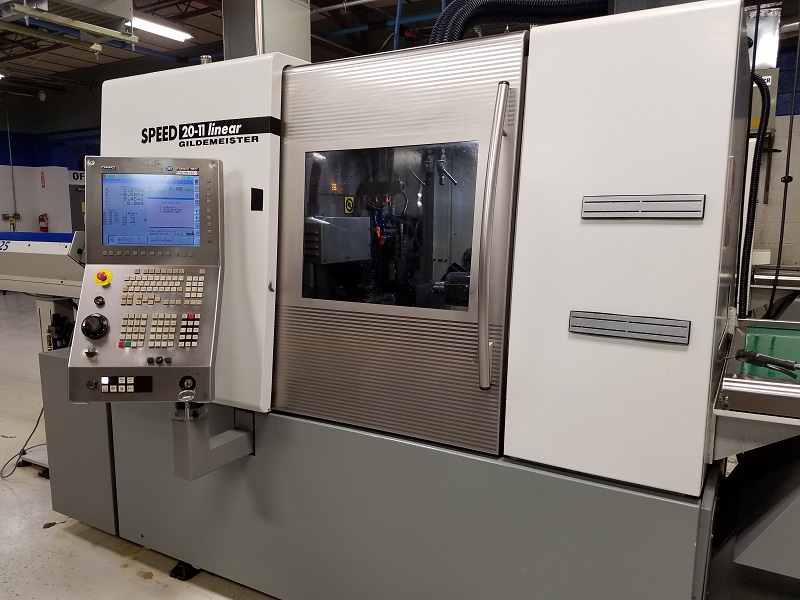

2014 DMG MORI SPEED 20-11 LINEAR

Fanuc 160iTB, 1" Bar, 7.5 HP, 10000 RPM, 5 Live Tools, Y-Axis, Sub Spindle, (3) Slides, Barfeed, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 1"
  • Sub Spindle Motor 7.4 HP
  • Sub Spindle Speed 10000 RPM
  • Rapid Traverse Rates (X/Y/Z) 1575 IPM
  • C-Axis Index (Main & Sub) .001 Degrees
  • Machine Dimensions (L x W x H) 151.5" x 55.5" x 71.8"
  • Machine Weight 9920 lbs.
  • Long Stoke of Spindle Z2 11.8"
  • Long Stroke of Spindle Z1 9.5"
  • Main Spindle Motor 7.5 HP
  • Main Spindle Speed 10,000 RPM
  • Rotary Tool Motor 1.7 HP
  • Rotary Tool Speed 6000 RPM
  • SLIDE 1 X1 Travel 1.57"
  • SLIDE 1 Y1 Travel 9.5"
  • SLIDE 2 X2 Travel 12.2"
  • SLIDE 2 Y2 Travel 4.7"
  • SLIDE 3 X3 Travel 2.95"
  • SLIDE 3 Y3 Travel 9.5"
  • SLIDE 3 Z3 Travel 5.9"

Product Features

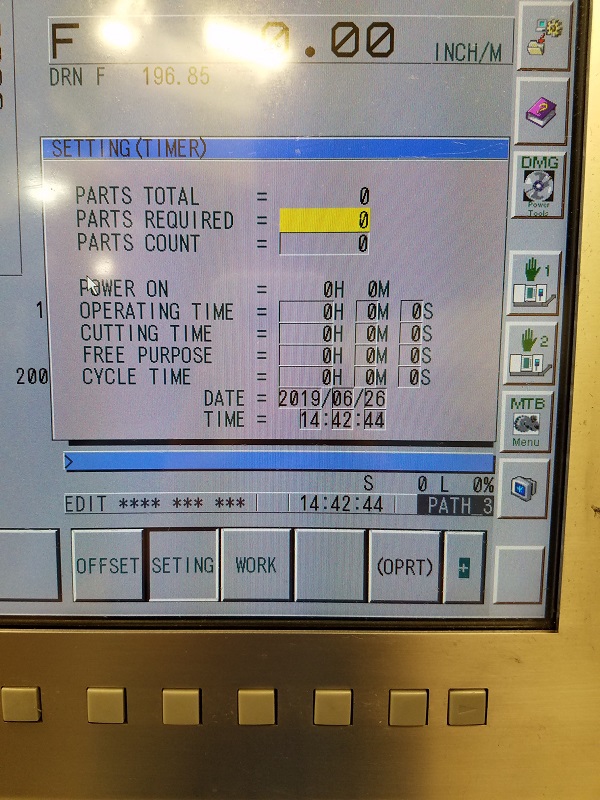

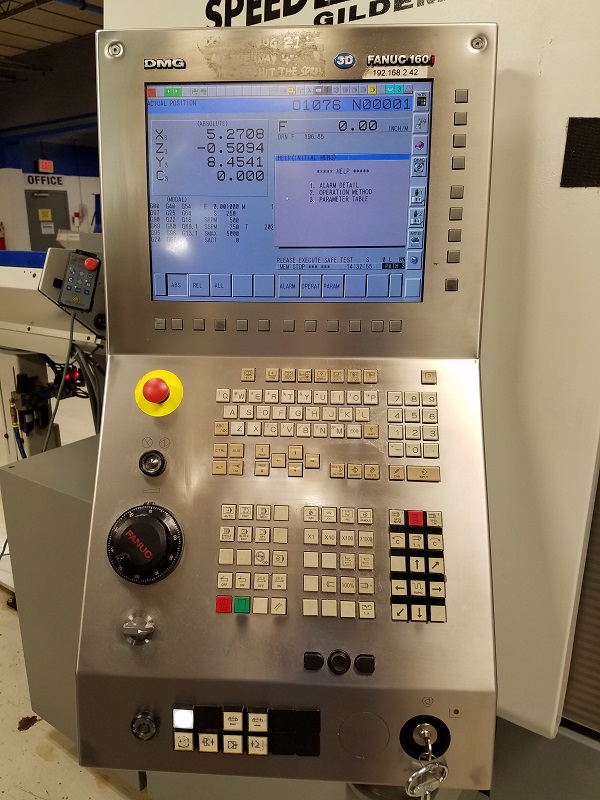

  • Fanuc 160iTB CNC Control
  • 15" Color TFT
  • 11-Axis Machining Capability
  • C-Axis Live Tooling for Main & Counter Spindles
  • Synchronized Rotating Bushing (Duenner B260)
  • Kit for Bar Machining Till 1" Diameter
  • 6 Position Tool Holder 12 x 12 for SLIDE 1
  • 4 Driven Tools with ESX16 Holders for SLIDE 1
  • 3 Position Tool Holder 12 x 12 for SLIDE 2
  • 4 Driven Tools with ESX16 Holders for SLIDE 2
  • 4 Fixed Tools with 20 mm for SLIDE 2
  • 2 Position Tool Holder 12 x 12 for SLIDE 3
  • 4 Driven Tools with ESX16 Holders for SLIDE 3
  • 6 Fixed Tools with 20 mm for SLIDE 3

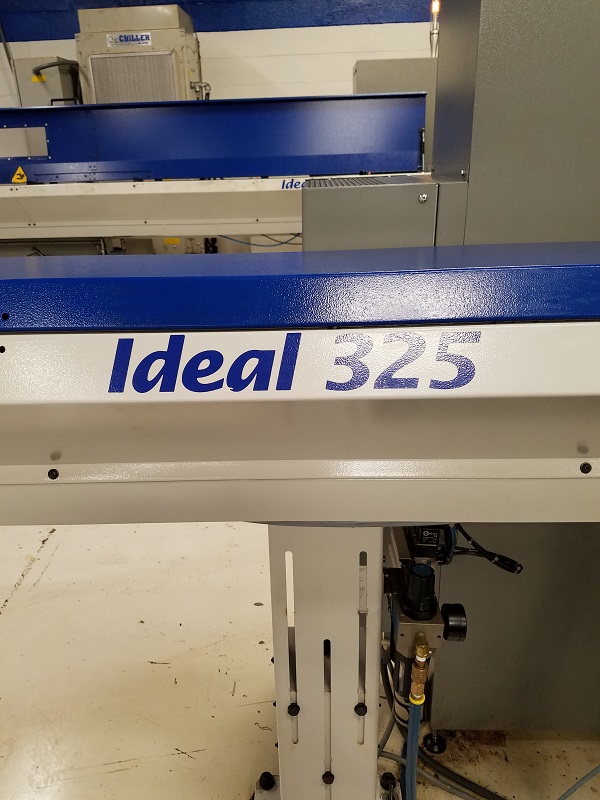

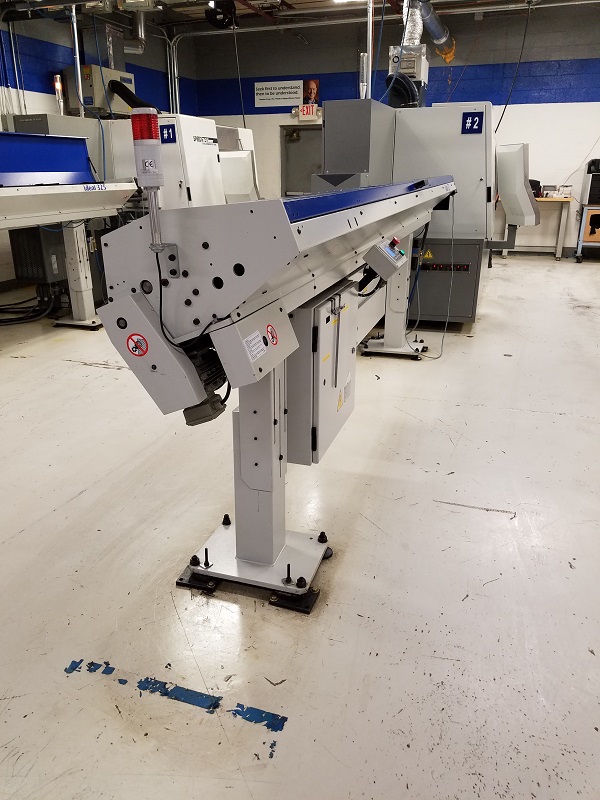

  • Ideal 325 12 ft. Magazine Barfeed
  • Chip Conveyor Belt Type (Side Exit)
  • Pneumatic Ejector & Workpiece Unloading Belt
  • Pneumatic Cleaning System for Counter Spindle Collet
  • Angular Synchronism Between the Spindles
  • On/Off Outputs (4 M-Functions)
  • Automatic Machine Shutdown
  • Polygon Turning Software
  • Rigid Tapping
  • Helical Interpolation
  • Triple Warning Light
  • Tool Radius Compensation
  • Direct Control of Radii, Chamfer & Edges
  • Axes Displacement with Reduced Force
  • Transformer
  • Manufacture Date 2011
  • Installed in July 2014
