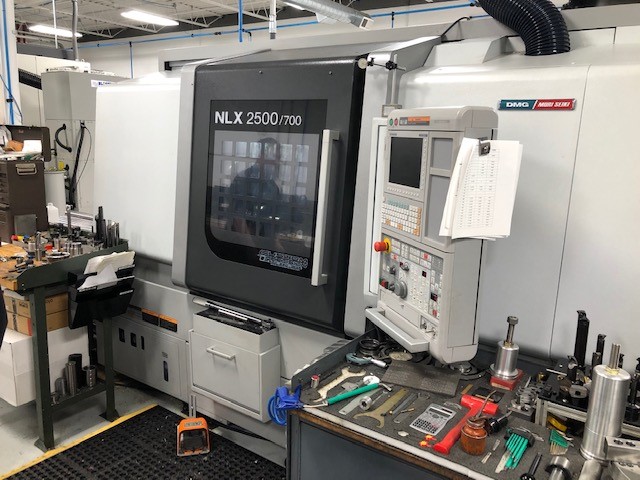

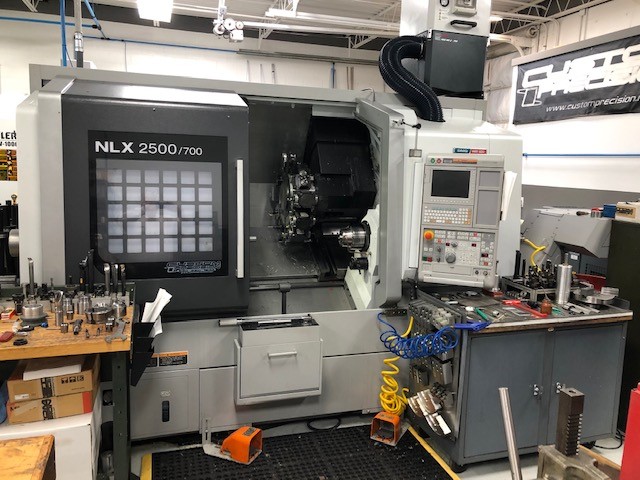

2014 DMG MORI SEIKI NLX-2500SY/700

MIT 730BM, 3.1" Bar, 35J Collet Chuck, 25 HP, 4000 RPM, 20 Tools, C&Y-Axis Milling, Sub Spindle, Tool Presetter, Parts Catcher, Chip Conveyor, High Pressure Coolant
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed / Carriage / Front Cover 36.2" / 29.2" / 23.6"
  • Turning Diameter (Max / Std) 14.4" / 10.6"
  • Max Machining Length 27.7"
  • Spindle Motor 25 / 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 20
  • Milling Motor 7.5 HP
  • Milling Spindle 10,000 RPM

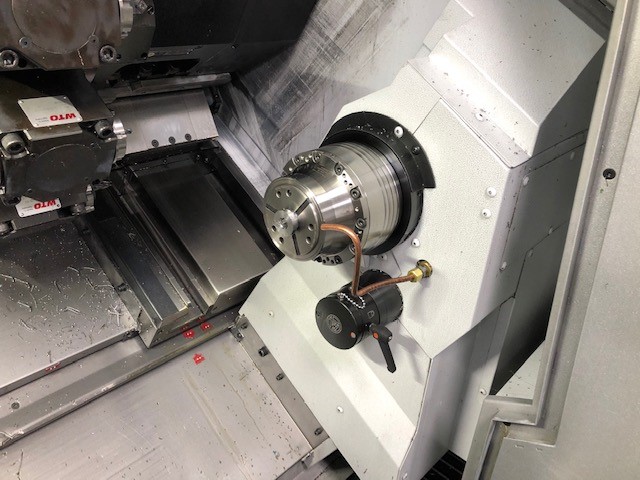

  • Sub Spindle Chuck Size 6"
  • Sub Spindle Motor 15 / 10 HP
  • Sub Spindle Nose A2-5
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 31.3"
  • Y-Axis Travel + / - 2.0"
  • C-Axis Index (Main & Sub Spindle) .001 Degrees
  • Turret Index (Single Step) 0.27 Seconds
  • Machine Dimensions (L x W x H) 156.3" x 81.7" x 86.1"
  • Machine Weight 14,000 lbs.
  • Spindle Torque 522.9 ft. lbs.

Product Features

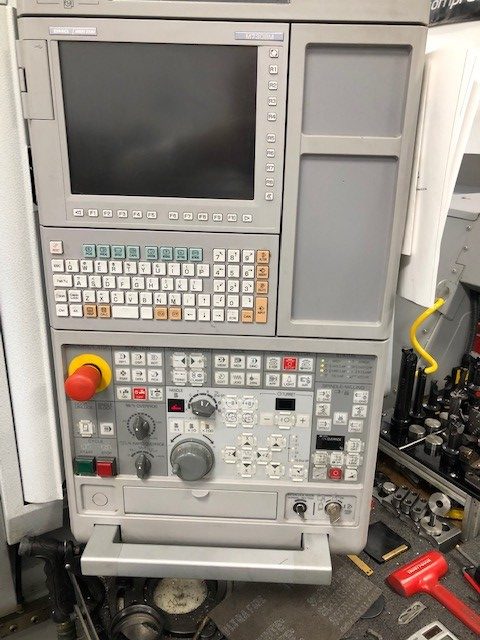

  • Mitsubishi 730BM CNC Control
  • 10.4" Color TFT
  • MAPPS IV Programming
  • C & Y-Axis Milling Capability
  • Magnetic Scales on X & Y-axis
  • Liquid Cooled Ball Screws
  • Servo Driven Sub Spindle
  • PC/MCIA Interface
  • USB Port
  • ATS 35J Collet Chuck on Main Spindle
  • ATS Collet Chuck on Sub Spindle
  • Integral Built-In Milling Spindle Motor (10,000 RPM)

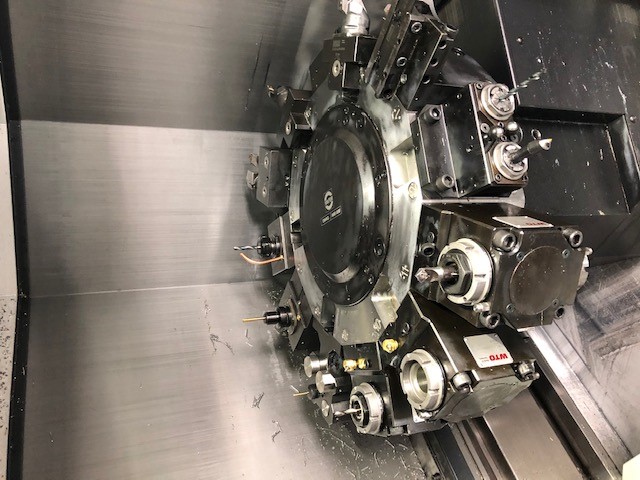

  • 20 Station Servo Driven Turret
  • Automatic Tool Presetter
  • Auto Parts Catcher
  • Parts Exit Conveyor
  • LNS Turbo Chip Conveyor (Side Exit)

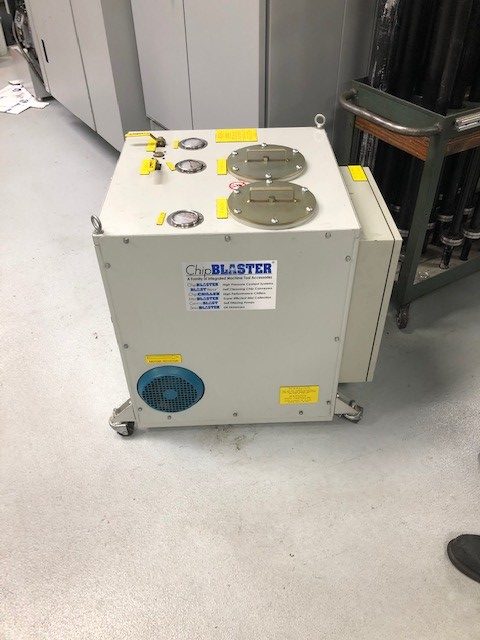

  • Cool Blaster High Pressure Coolant Pump (1000 psi)
  • Tool Presetters Main & Sub Spindle
  • Extra High Intensity Lighting
  • Three Color Tower Light
  • (10) OD Live Holders
  • (2) Face Live Holders
  • (2) Double Face Live Holders
  • (2) Double Capto C4 OD Holders
  • (6) Double Capto C4 ID Holders
  • (1) Capto C4 ID Holder
  • (2) Quad 3/4" OD Turning Blocks
  • (2) Double 3/4" OD Turning Blocks
  • (1) Single 3/4" OD Turning Blocks
  • (1) Cutoff Block
  • (1) 1 1/4" ID Holder
  • (6) ID Bushings
  • 2308 Operation Time
  • 1423 Cutting Time
  • 4504 Power On Time
  • Manufacture Date September 2014
