Special Item

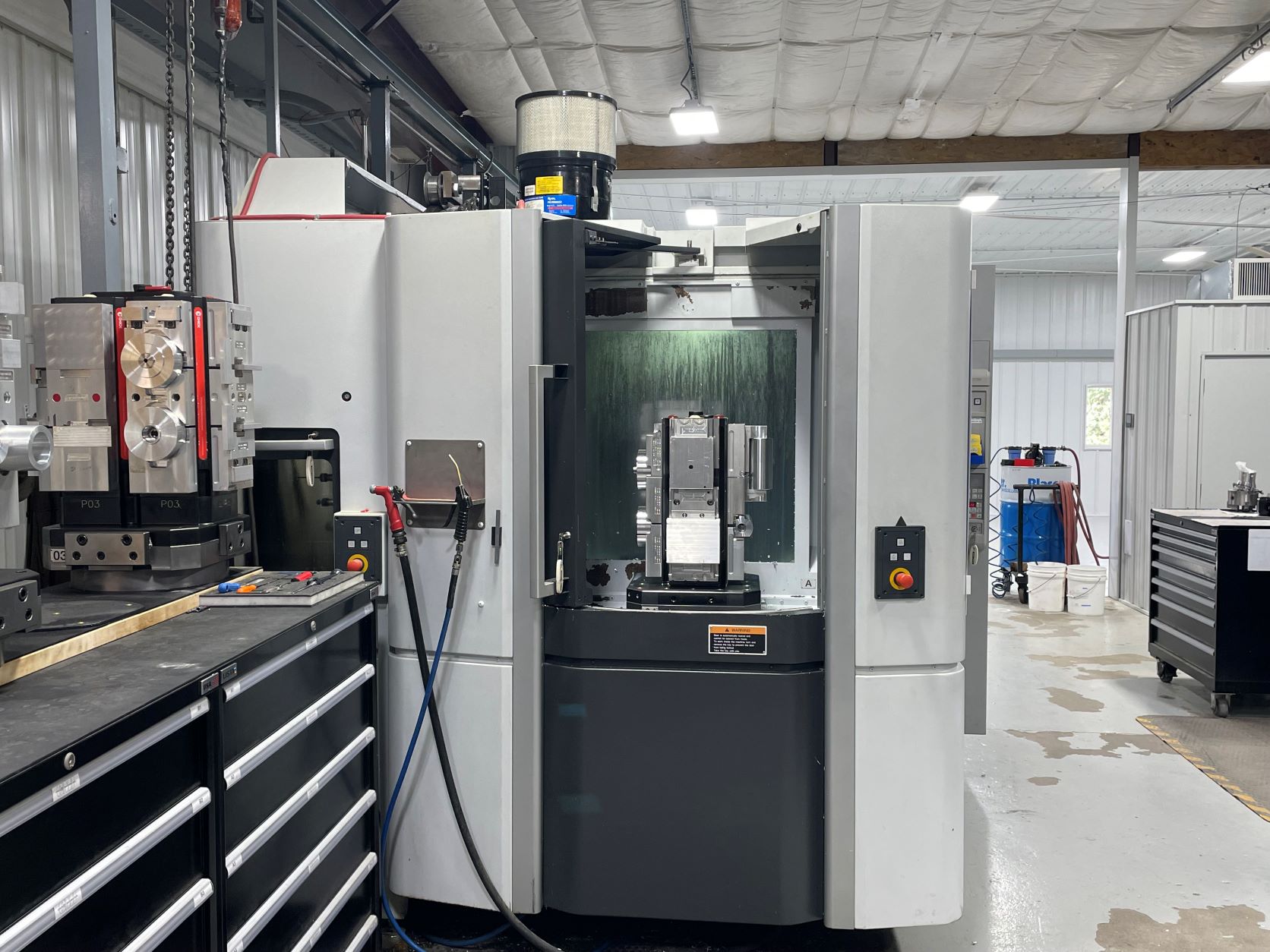

2014 DMG MORI SEIKI NHX-4000

MORIC 730BM, 15.7" Plts, 22.22.26", One Degree Index, CTS, 12000 RPM, 20HP, 60 Tools, TSC 1000PSI
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 8 Seconds
  • Pallet Load Capacity 880 lbs.
  • Pallet Size 15.7" (2)
  • X-Axis 22.0"
  • Y-Axis 22.0"
  • Z-Axis 26.0"
  • Pallet Index 1 Degree
  • Spindle Speed 12,000 RPM
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 20 / 15 HP
  • Spindle Center to Table Top 2.4" - 24.4"
  • Spindle Nose to Table Center 2.8" - 28.7"
  • Tools 60
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (T - T / C - C) 0.9 / 2.8 Seconds
  • Max Tool Diameter 2.7" / 6.6"
  • Max Tool Length 17.7"
  • Max Tool Weight 17.6 lbs.
  • Max Workpiece Dia / Height 24.8" / 34.6"
  • Machine Dimensions (L x W x H) 165.9" x 107.1" x 98.9"
  • Machine Weight 16,000

Product Features

  • MORIC 730BM CNC Control
  • 15" Color TFT
  • Coolant Thru Spindle (1000 psi)
  • 60 Tool Magazine
  • Renishaw Touch Probe
  • Automatic Tool Presetter
  • Shower Coolant
  • Chip Conveyor (Rear Exit)
  • Spindle Chiller Unit
  • 14,805 Power On Time
  • 8281 Operation Time
  • 4848 Cutting Time
  • Manufacture Date December 2013
