Special Item

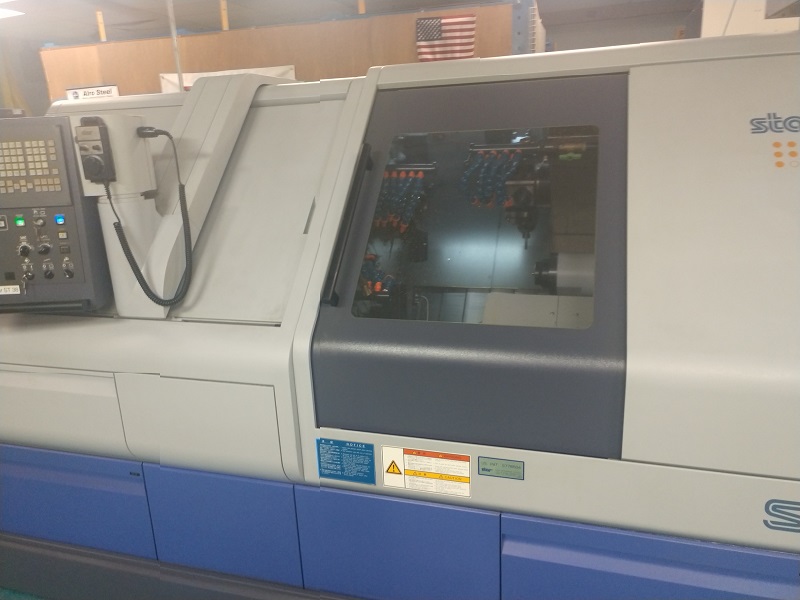

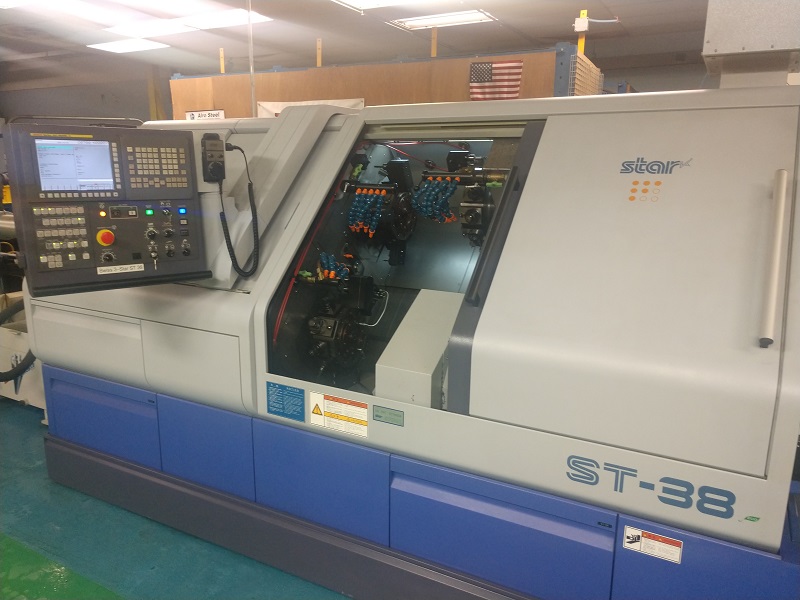

2013 STAR ST-38

FANUC 31i, 1.5" Bar, (3) Turrets w/ Y-Axis, (30) Live Tool Stations, Main and Sub Spindle, Barfeeder, High Pressure Coolant, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 38mm (1.5")
  • Max Machining Length 350mm (13.78")
  • Milling Speed 5700 RPM
  • Sub Spindle Index .001 Degrees
  • Sub Spindle Motor 3 HP
  • Sub Spindle Speed 7000 RPM
  • Machine Dimensions (L x W x H) 137" x 73.2" x 73.5"
  • Machine Weight 13,779 LBS
  • Back Working Turret (1) 10 Stations
  • Front Working Turrets (2) 10 Stations Each
  • Main Spindle Indexing .001 Degrees
  • Main Spindle Motor 10 HP
  • Main Spindle Speed 7000 RPM
  • Max Depth of Hole Capability 120mm
  • Max Drilling Capability 23mm
  • Max Length For Front Ejection 150mm
  • Number of Live Tools Max 3 Tools / Station
  • Number of Turning Tools 2 Tools/Station
  • Tool Shank 16mm / 20mm

Product Features

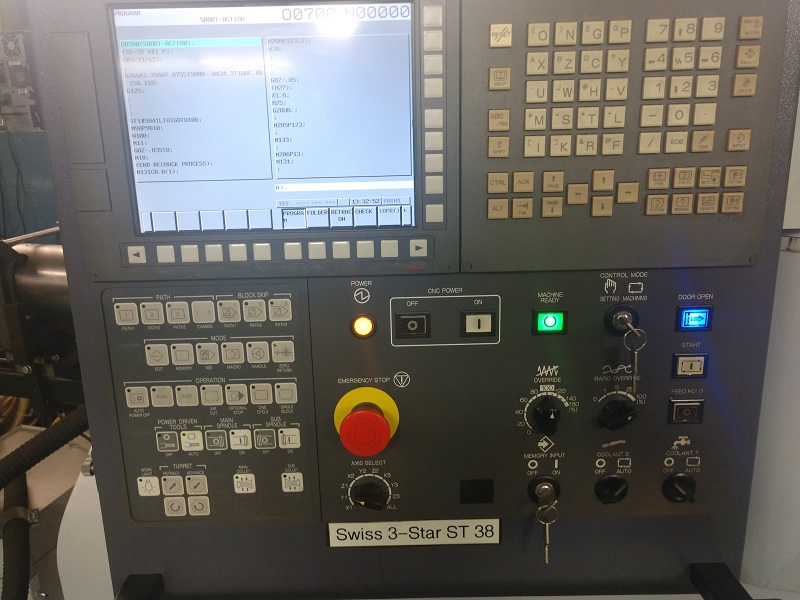

  • Fanuc 30iA CNC Control
  • 10.4" Color LCD

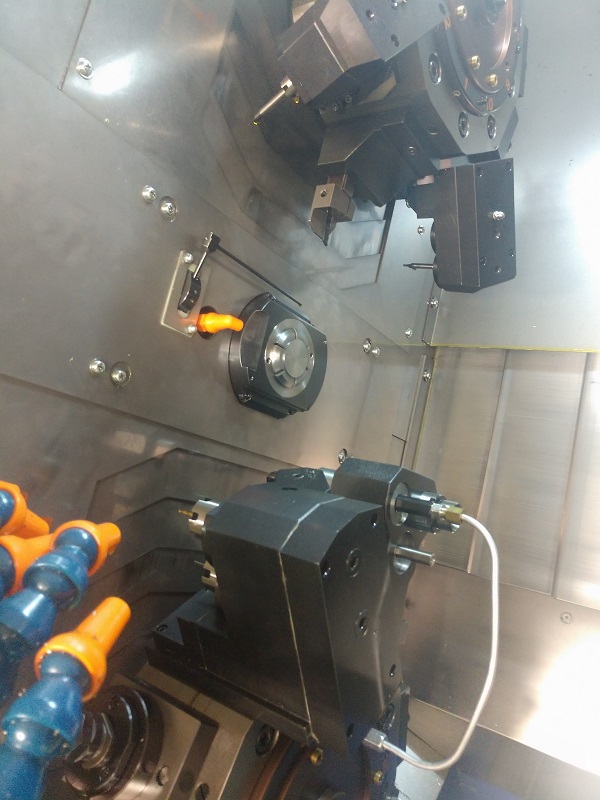

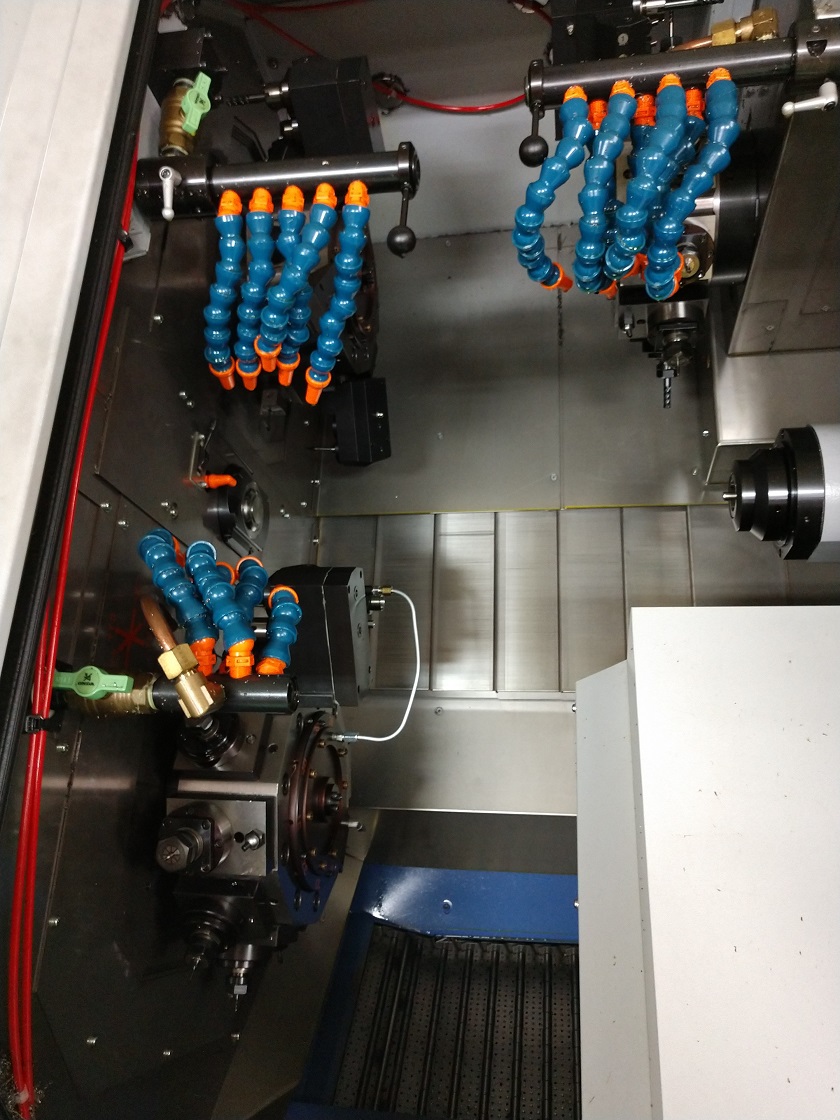

  • (3) 10 Station Turrets
  • Y-Axis Milling on Each Turret
  • Cs Contour Control for Main & Sub Spindle
  • Max (3) Tools per Station per Turret

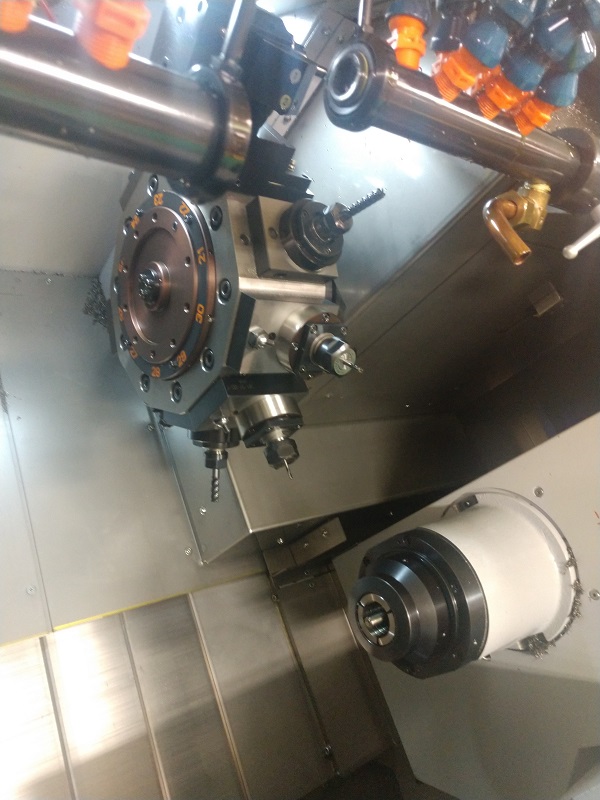

  • Programmable Sub Spindle
  • Synchronized Revolving Guide Bushing S38
  • Main & Sub Spindle Chiller Unit
  • Spindle Cooling Unit
  • Coolant Chiller Unit
  • Air Purge Unit
  • Parts Separator
  • Parts Exit Conveyor
  • Coolant Level Detector (Lower Limit)
  • Broken Cutoff Tool Detector
  • Earth Leakage Breaker
  • Barfeed Interface

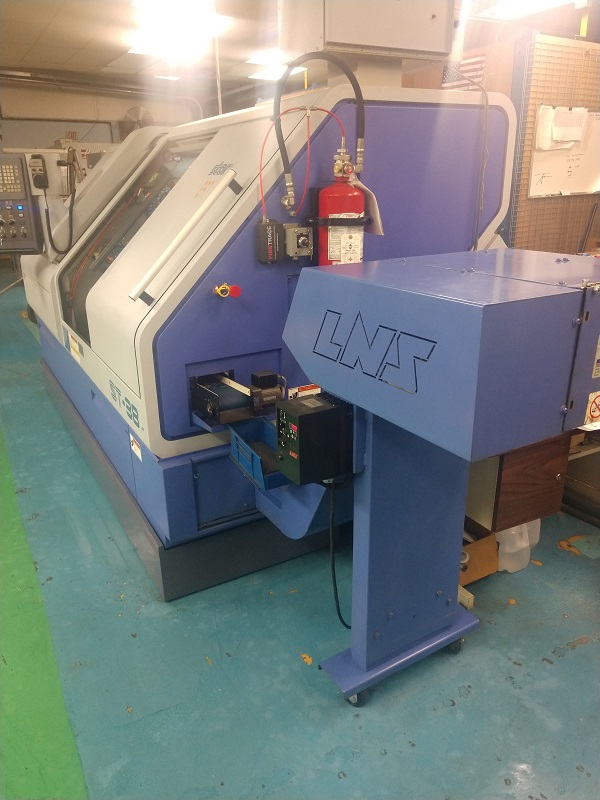

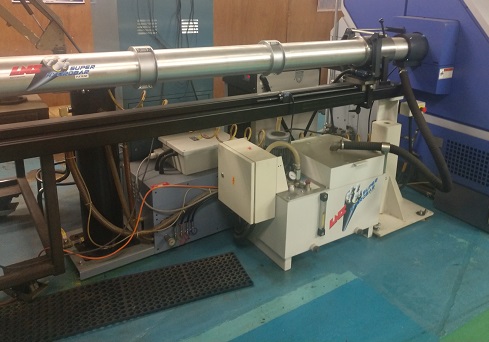

  • LNS Super Hydrobar 6.38 HS-4.8 Indexable Barrel 12 ft. Hydrodynamic Barfeed

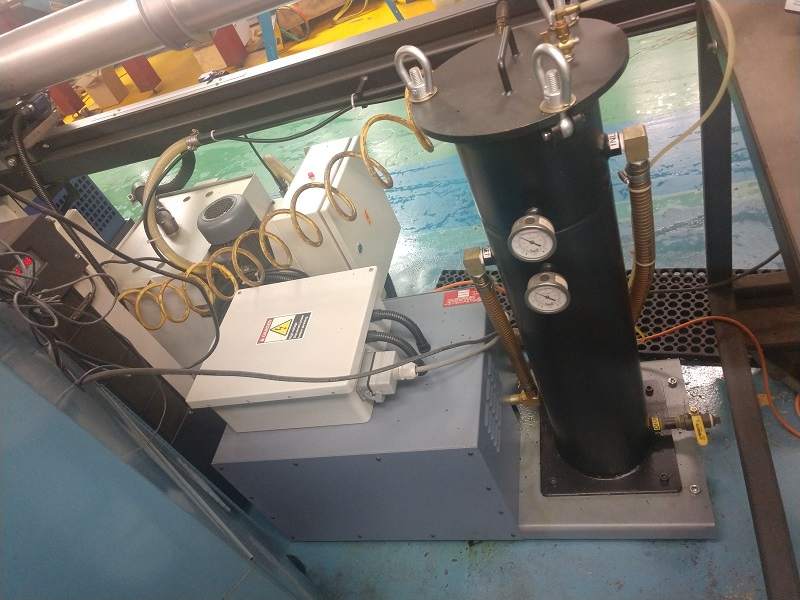

  • High Pressure Coolant (Oil Only)
  • Tri Mist Buster
  • Parts Ejector Set 38mm (Spring Type)
  • Parts Ejection Detector
  • Chip Conveyor (Side Exit)
