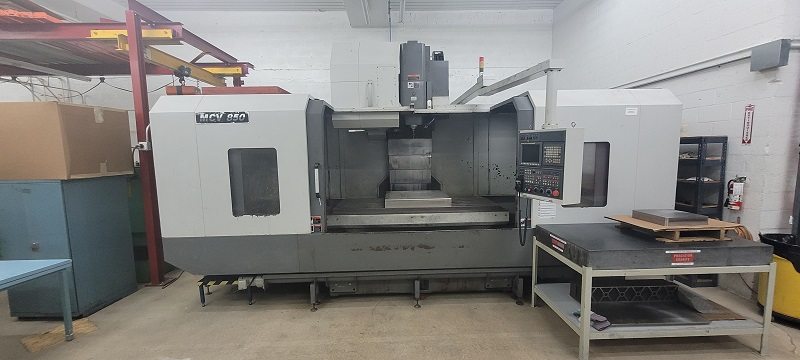

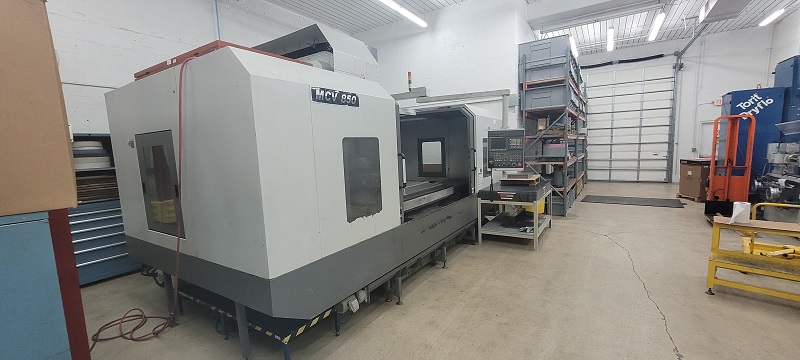

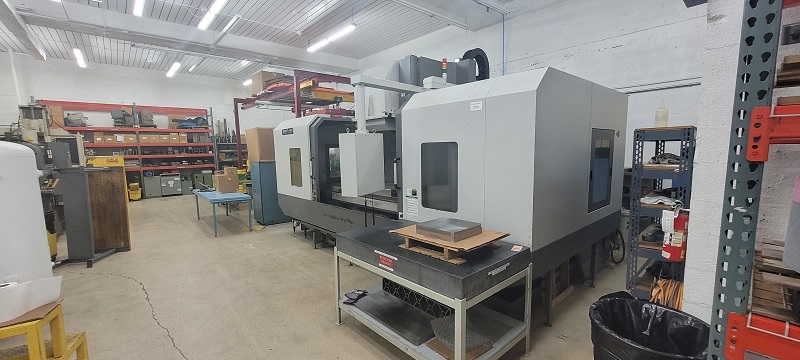

2013 SAMSUNG MCV 850
FANUC 0i-MD, 79.33.31'', Cat 50, 6000 RPM, 25 HP, 40 Tools, Through Spindle Coolant, Chip Conveyor, Gearbox, Box Ways
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
X-Axis 78.74"
-
Y-Axis 33.46"
-
Z-Axis 31.5"
-
Table Size 80.71" x 33.46"
-
Spindle Speed 6000 RPM
-
Spindle Taper CAT 50
-
Spindle Motor 25 HP
-
Tools 40
-
Table Load Capacity 6600 lbs.
-
Rapid Traverse Rates (X & Y / Z) 787/630 IPM
-
Max Tool Diameter 4.3" / 7.8"
-
Max Tool Length 13.8"
-
Max Tool Weight 35 lbs.
-
Machine Dimensions (L x W x H) 217" x 141" x 141"
-
Machine Weight 40,000 lbs.
-
Spindle Nose to Table Top 7.87" - 39.37"
-
Spindle Torque 566 ft. lbs.
-
Tool Change Time (T- T) 2.5
Product Features
- FANUC 0iMD CNC Control
- 10.4" Color LCD
- USB Port
- Manual Guide i
- Rigid Tapping
- Through Spindle Coolant (290 psi)
- 40 Position Side Mount Tool Changer
- Three Color Tower Light
- Remote Jog Handle
- 1280 M Memory
- 400 Registered Programs
- Tool Life Management
- Background Editing
- Helical Interpolation
- Custom Macro B with 600 User Variables
- Inch/Metric Programming
- 400 Sets of Tool Offsets
- 48 Sets of Work Coordinates
- Mirror Image
- Skip Function
- Optional Block Skip
- Top Splash Cover

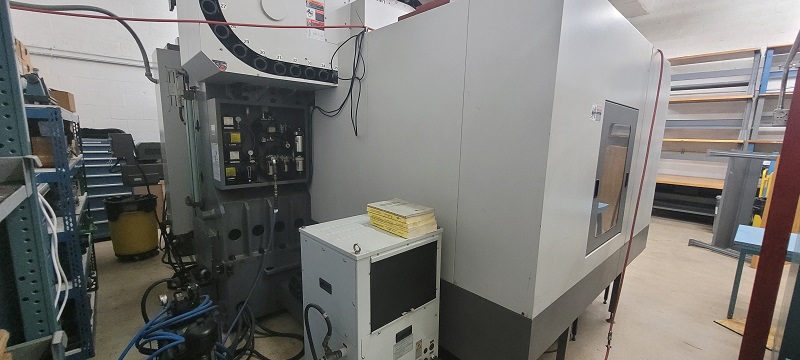

- Spindle Chiller Unit
- Lift Up Chip Conveyor (Rear Exit)
- Two Gear Range Headstock
- Heavy Duty Box Way Construction
- 15,104 Power On Time
- 3118 Run Time
- 3400 Cutting Time
