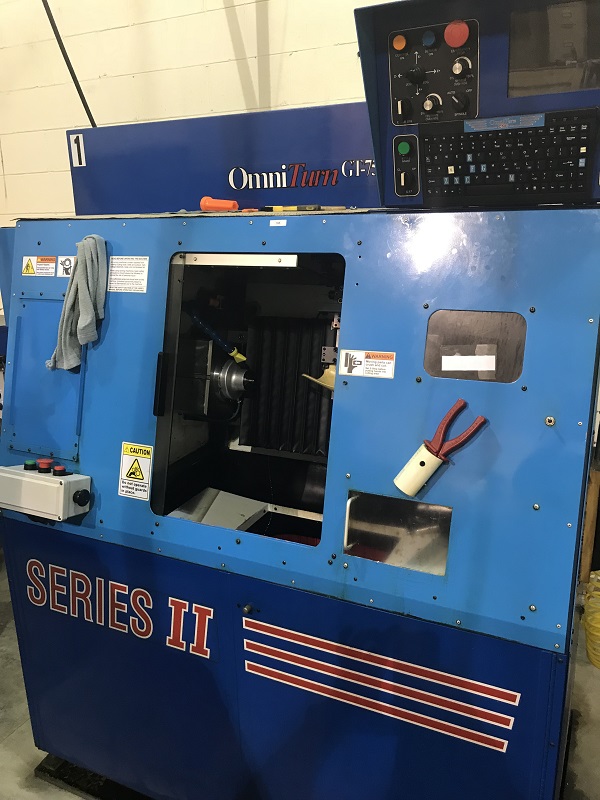

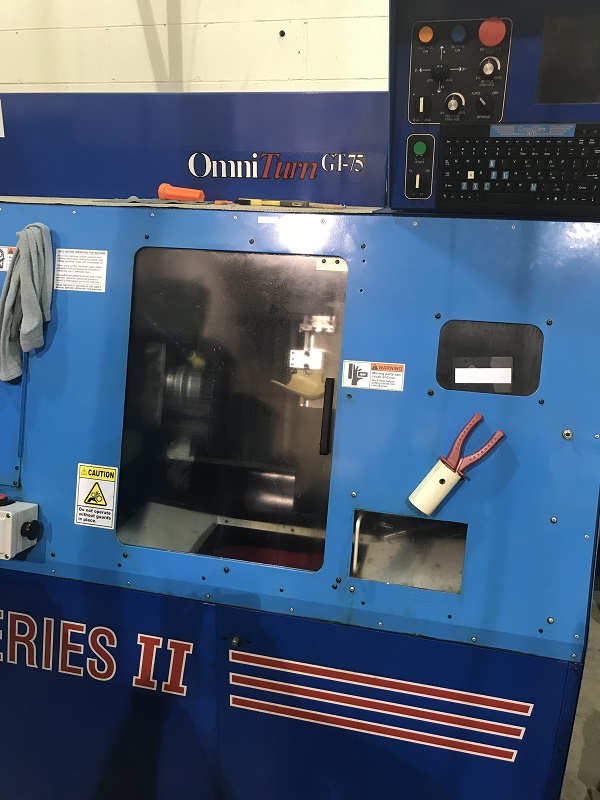

2013 OMNITURN GT-75 SERIES II

G35, 1" Bar, 4" Chuck, 6" Max Dia, 9" Length, Gang Tool, 4000 RPM, Collet Chuck
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 4"
  • Max Diameter Bar Capacity 1.062"
  • Spindle Motor 4.5 HP
  • Spindle Speed 10 - 4000 RPM
  • Spindle Nose 5C
  • Spindle Bore 1.4"
  • Tools Gang
  • Rapid Traverse Rates 300 IPM
  • X-Axis Travel 12"
  • Z-Axis Travel 9"
  • C-Axis Index 1 Degree
  • Machine Dimensions (L x W x H) 66" x 34" x 75"
  • Machine Weight 1500 lbs.
  • Max Turning Diameter 6"
  • Max Turning Length 9"
  • Tool Plate 14" x 6"

Product Features

  • OMNITURN PC BASED CNC CONTROL
  • 9" Monochrome CRT
  • 5C Collet Chuck

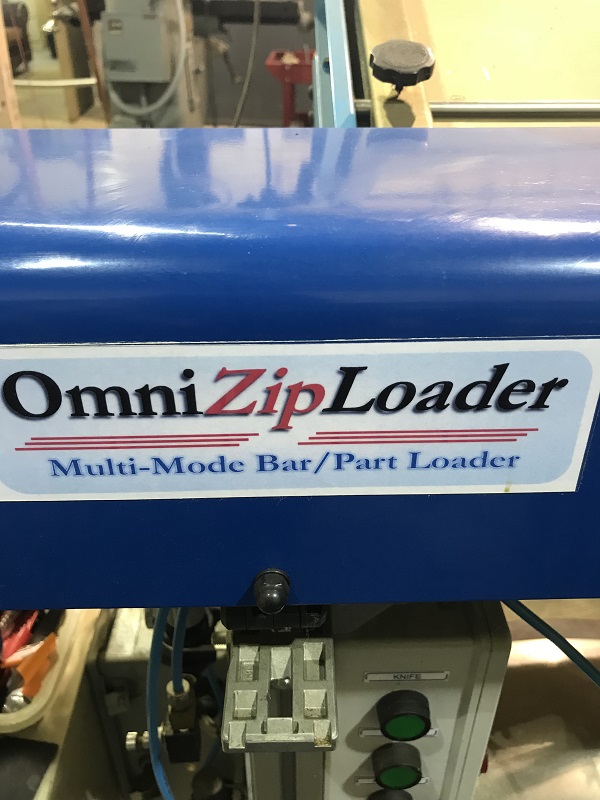

  • OMNI ZIP LOADER Barfeed
  • Alpha Numeric Keyboard
  • Gang Tool Plate
  • 0.5" Tool Height
