Special Item

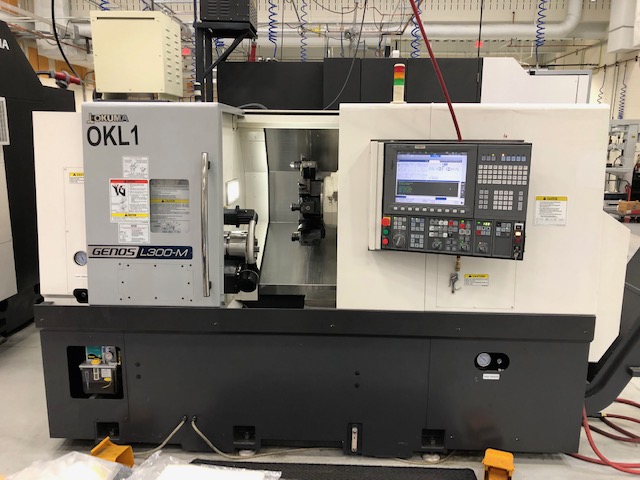

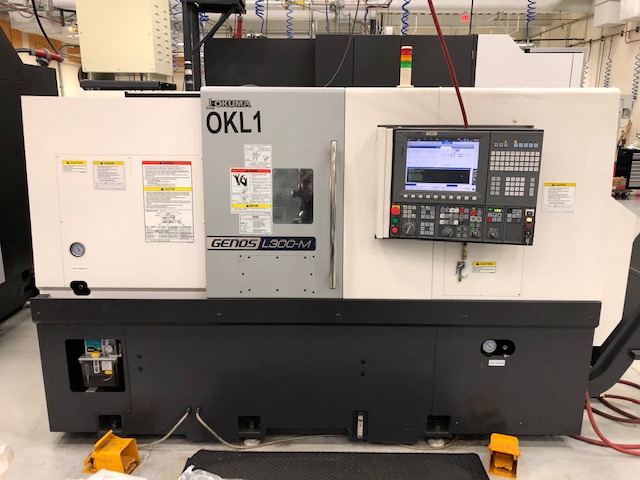

2013 OKUMA GENOS L300MW

OKUMA OSP-P300L-R, 2.63" Bar, 8" Chuck, 12 Tools, 20 HP, 3000 RPM, Live Tooling, Sub Spindle, Chip Conveyor, Tool Presetter, From a Tech School
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.63"
  • Max Swing Over Bed / Carriage 20.47" / 14.57"
  • Max Machining Length 17.7"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 25 - 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Tools 12
  • Milling Motor 5 HP
  • Milling Speed 4500 RPM
  • Sub Spindle Bore 2.09
  • Sub Spindle Size 6"
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates (X / Z) 787 / 984 IPM
  • X-Axis Travel 9.25"
  • Z-Axis Travel 20.47"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step) 0.1 Second
  • Machine Dimensions (L x W x H) 119" x 73" x 72.1"
  • Machine Weight 11,880 lbs.
  • Max Turning Diameter 11.81"

Product Features

  • OKUMA OSP-P300L-R CNC CONTROL
  • 15" Color TFT
  • (2) USB Ports
  • C-Axis Live Tooling Capability

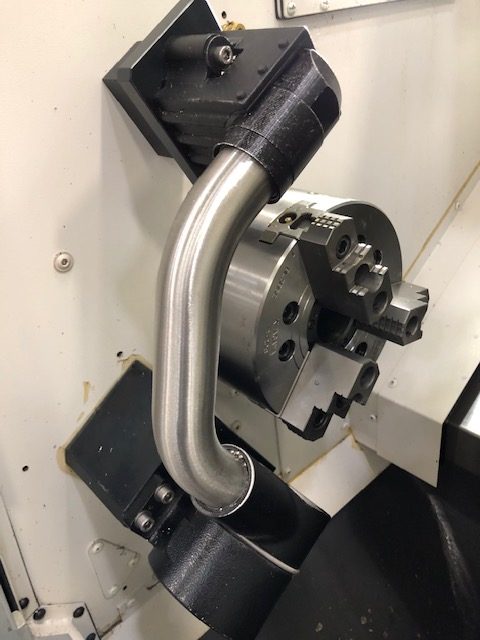

  • 8" Kitagawa B208 Hydraulic Chuck on Main Spindle

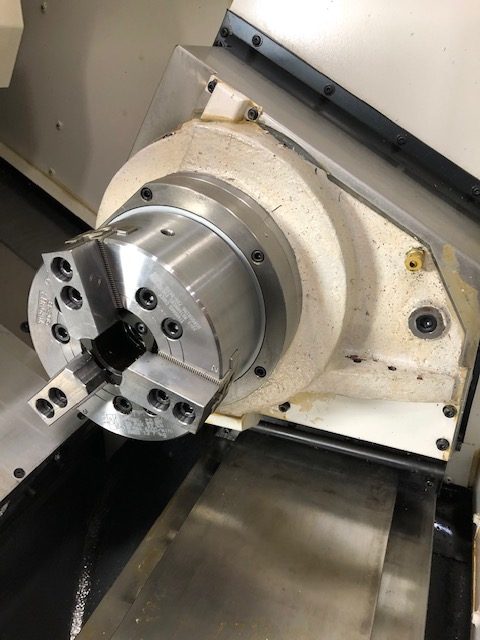

  • 6" Kitagawa B206 Hydraulic Chuck on Sub Spindle

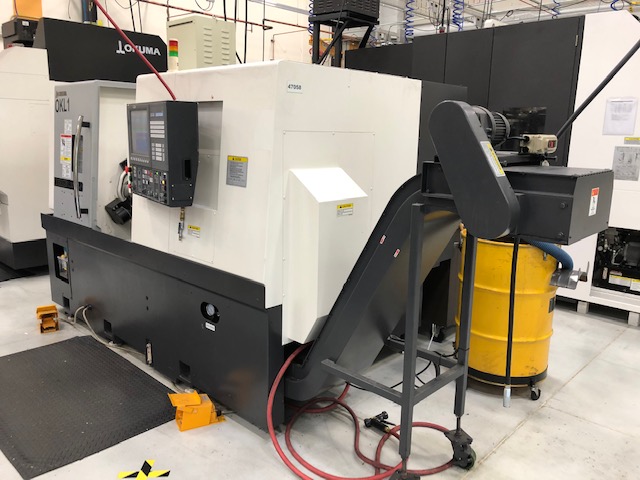

  • Chip Conveyor (Side Exit)
  • Manual Touch Setter
  • Three Color Tower Light
  • Servo Driven Turret
  • Load Monitor
  • Thread Override
  • Robot Interface
  • Program Stop Special
  • Cycle Time Renew

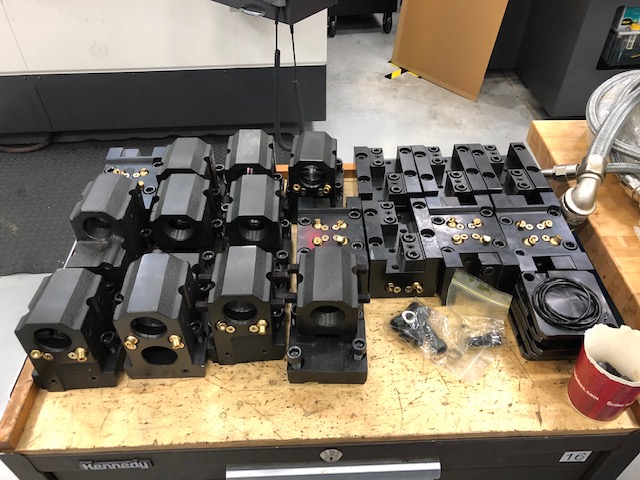

  • (1) Face Live Holder
  • (1) OD Live Holder
  • (4) Boring Bar Holders
  • (1) Double Boring Bar Holder
  • (2) Tandem Turning Holders
  • (2) Tandem Facing Holders
  • (2) Turret Caps
  • Manufacture Date May 2013
  • Coming From a Technical School

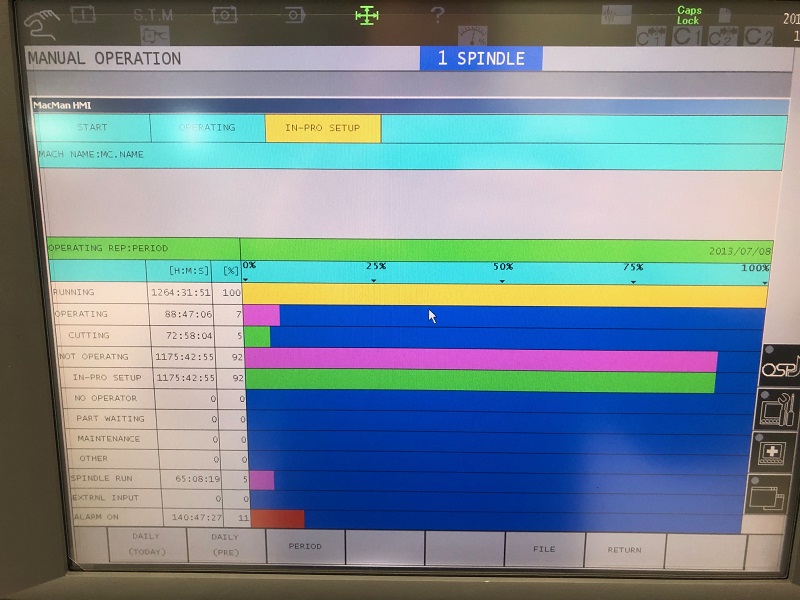

  • 1167 Running Time
  • 133 Operating Time
  • 115 Cutting Time
  • 1033 Not Operating Time
  • 83 Spindle Run Time
