2013 Mazak VCN COMPACT 5-Axis

Mazak Matrix CNC Control, 16.20.20", 5-Axis, 30 Tools, TSC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 19.69
  • Y-Axis 16.93"
  • Z-Axis 20.08"
  • A-Axis Tilt +/- 140 Degrees
  • B-Axis Rotation +/- 360 Degrees
  • Spindle Speed 20,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 25 HP
  • Rapid Traverse Rates 1417 IPM
  • Max Table Weight 661 LBS
  • Max Trunnion Load 66.15 LBS
  • Machine Dimensions (L x W x H) 59.06" x 101.57" x 107.9"
  • Machine Weight 10,580 LBS
  • Rotary Table Diameter 3.94"
  • Spindle Nose to Table Top 5.9" - 25.98"

Product Features

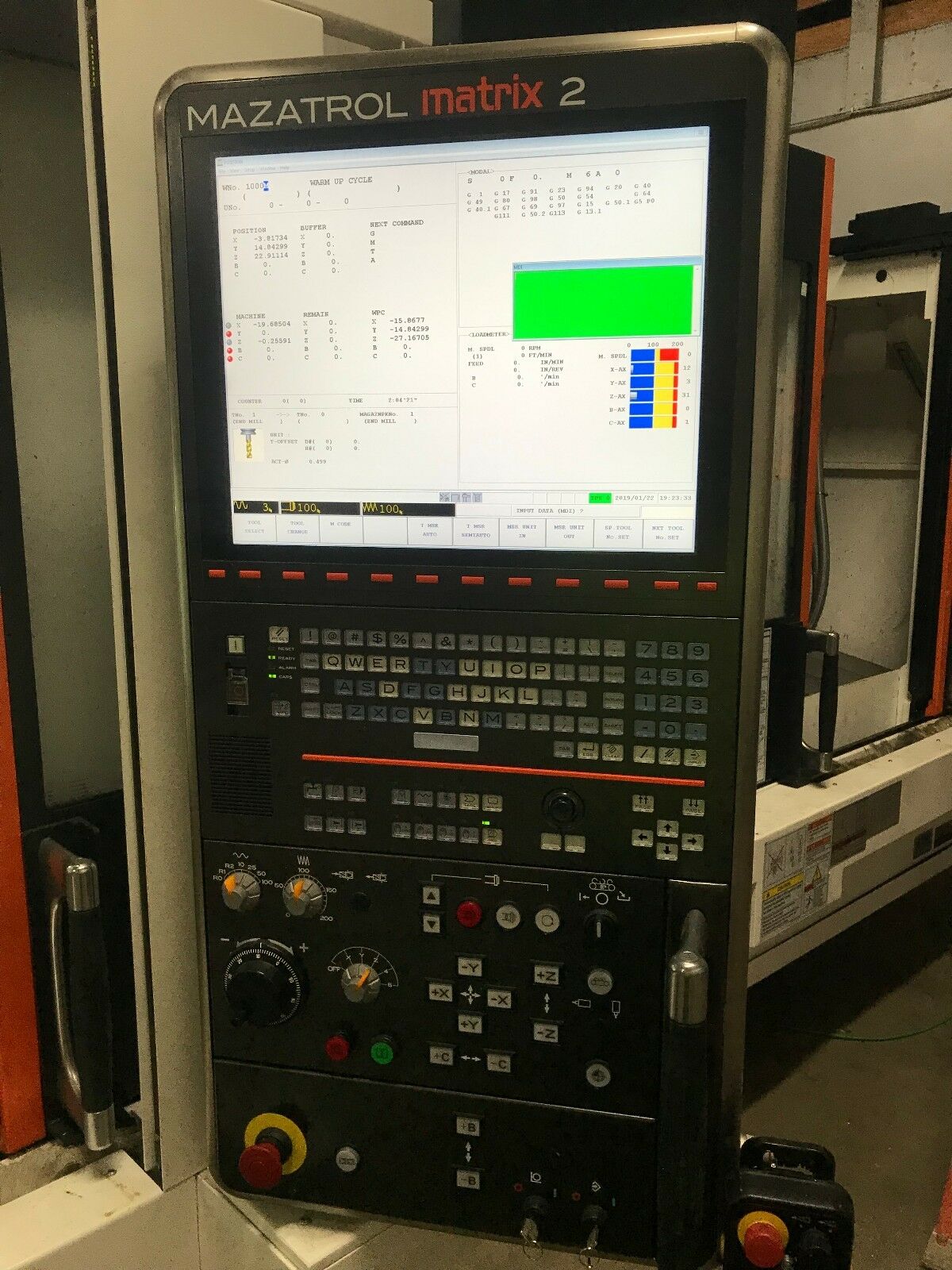

  • Mazatrol Matrix 2 CNC Control
  • 19 Inch Color LCD

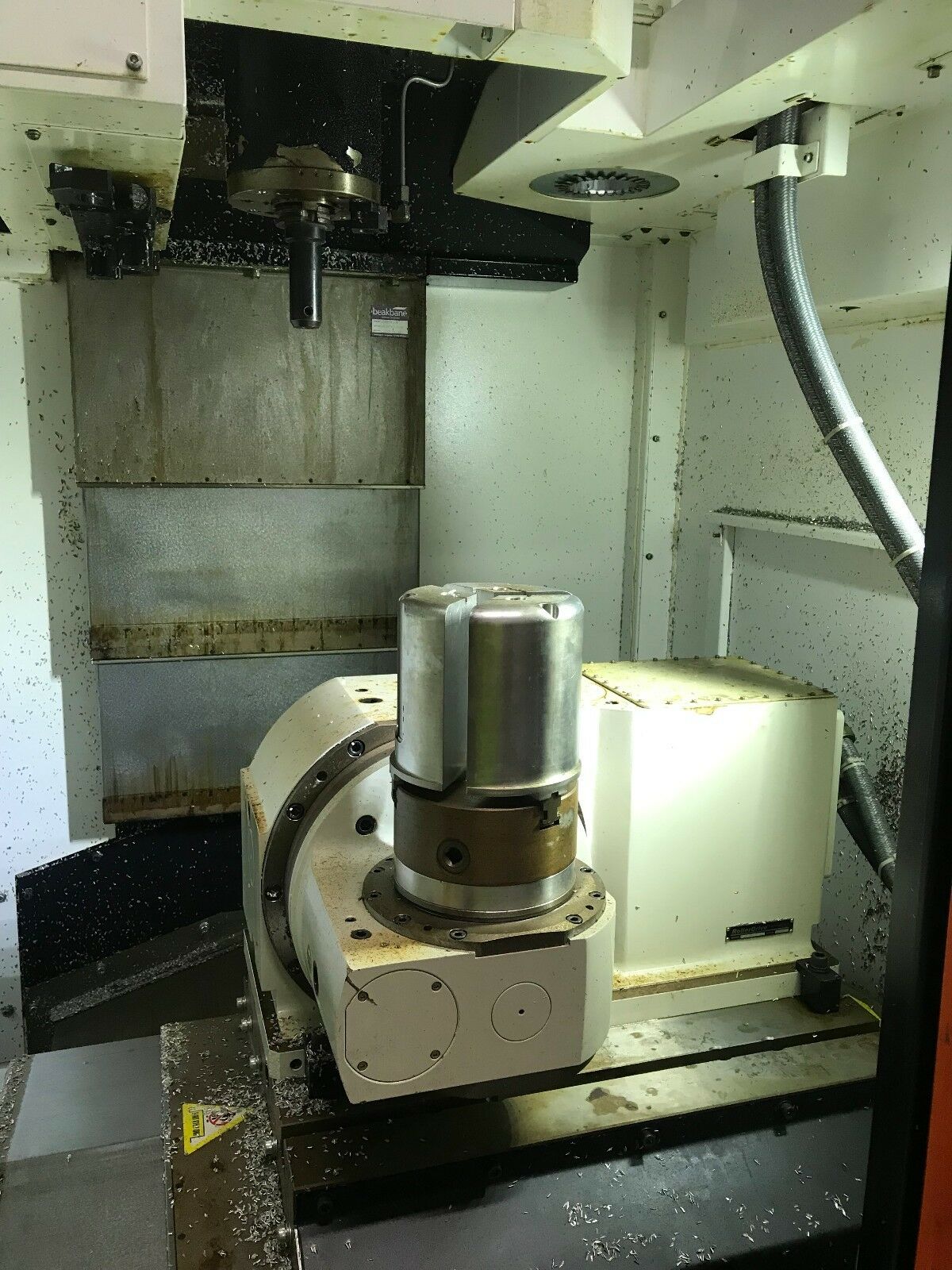

  • 5-Axis RT100 NC Rotary/Tilt Trunnion Table
  • Simultaneous 5-Axis Capability

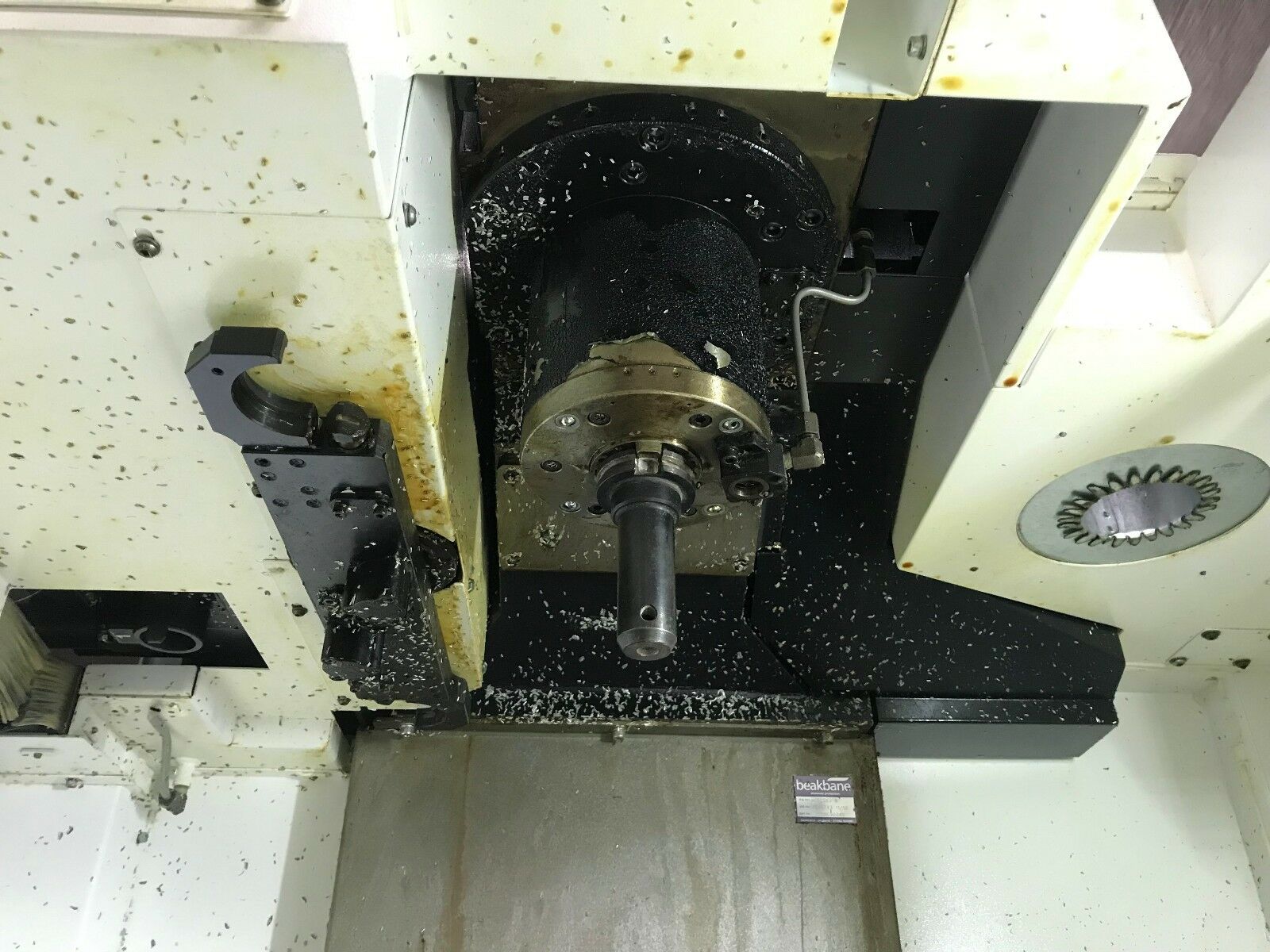

  • 20,000 RPM Spindle
  • 30 Tool Magazine
  • Coolant Thru Spindle (213 PSI)
  • High Column for Extended Height Machine
  • Spindle Chiller Unit

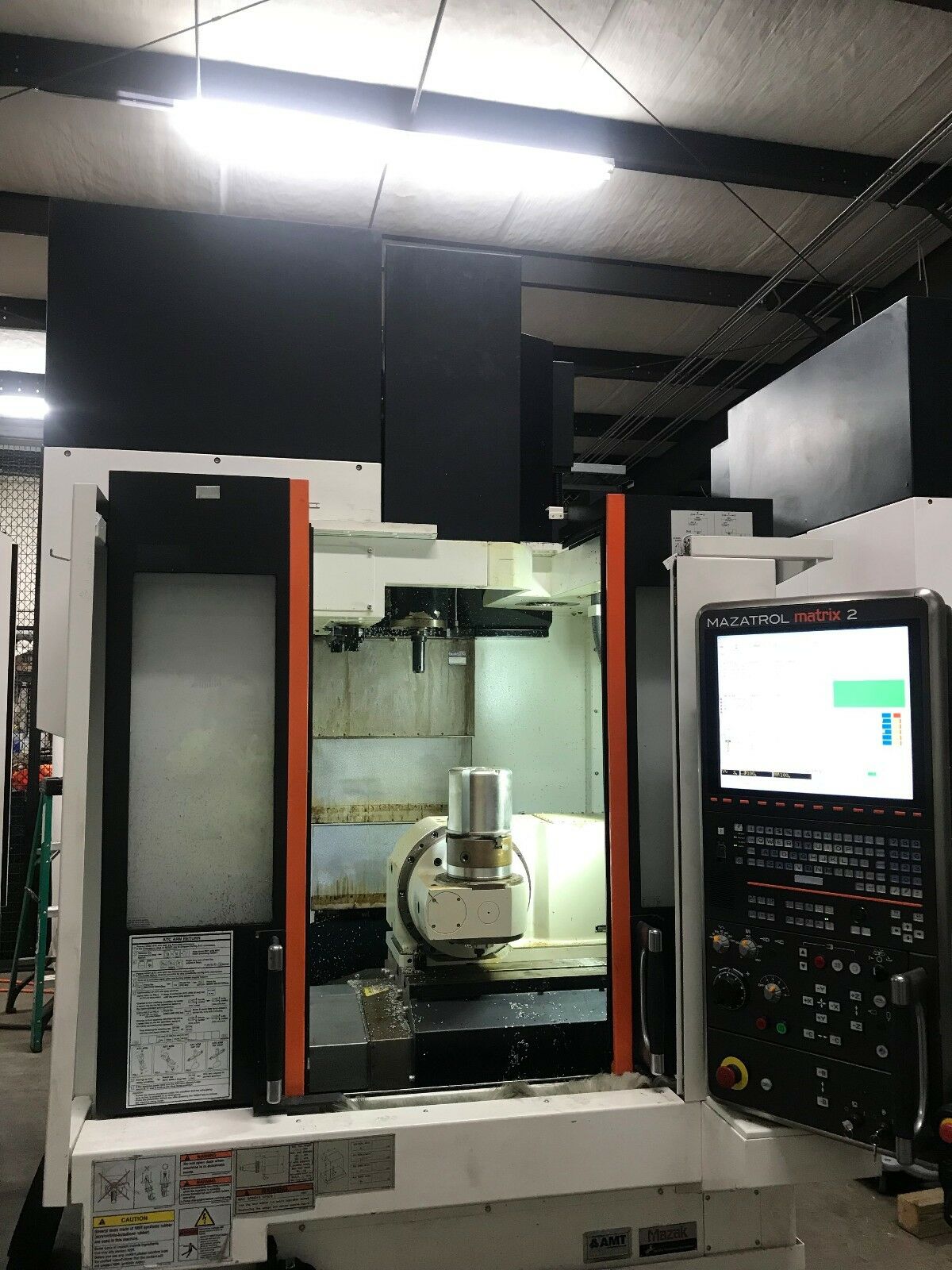

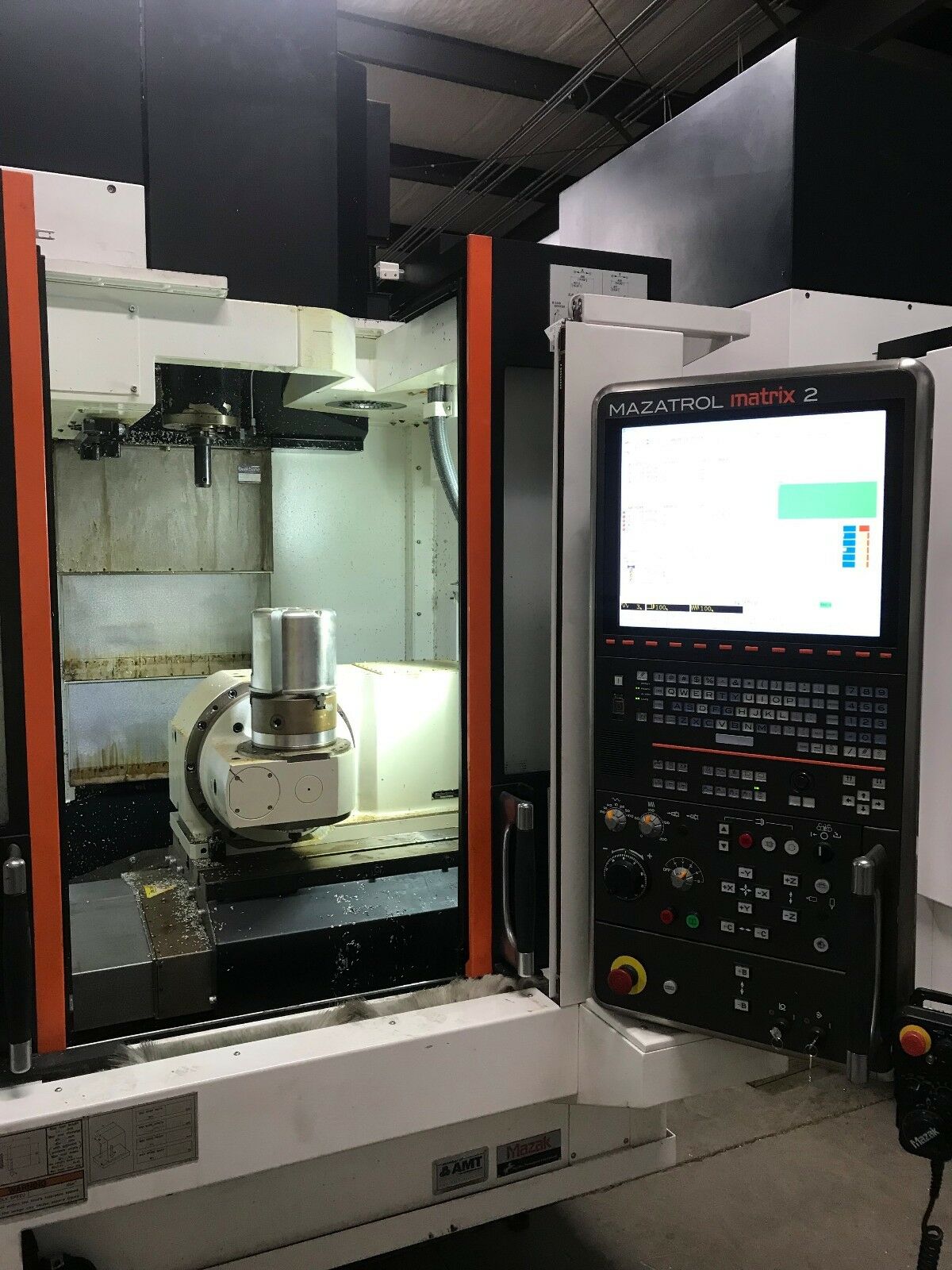

  • Auto Front Door
  • LAN Port in Electrical Cabinet
  • MT Connect Prep
  • EIA/ISO Code Input Function
  • Cardbus I/F (2-Slot)
  • EIA Dynamic Compensation
  • Mazacc-3D High-Speed Software
  • High Smoothing Control
  • 3D Coordinate Conversion
  • Fine Spline Interpolation
  • Shape Compensation for Rotary Axes
  • Nurbs Interpolation
  • Tool Radius Compensation
  • 5-Axis Spline Interpolation
  • Absolute Encoder
  • Workpiece Error Compensation
  • Dual Chip Conveyors
