< Back to Vertical M/C

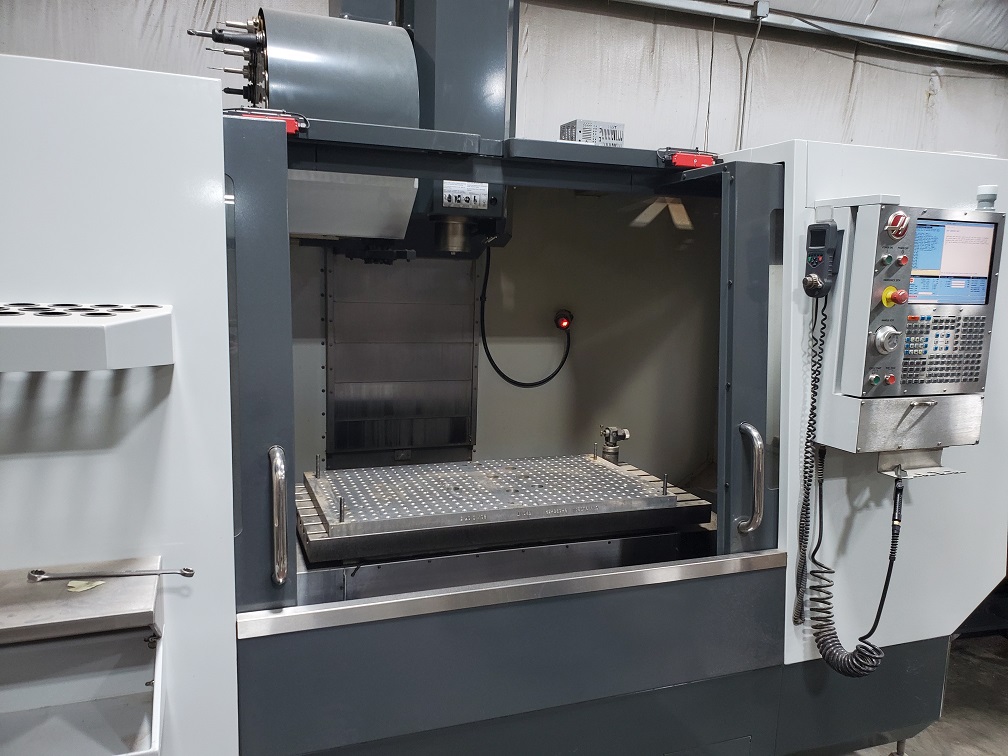

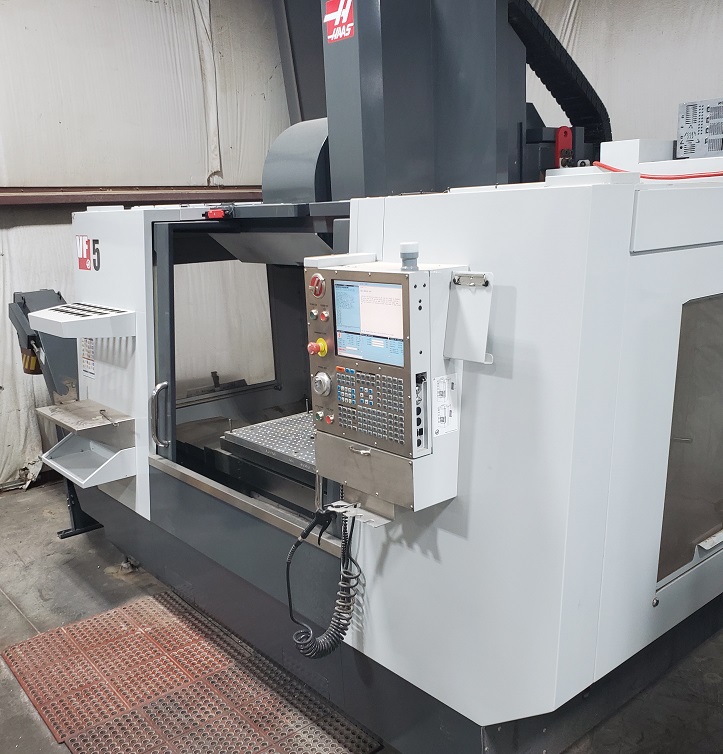

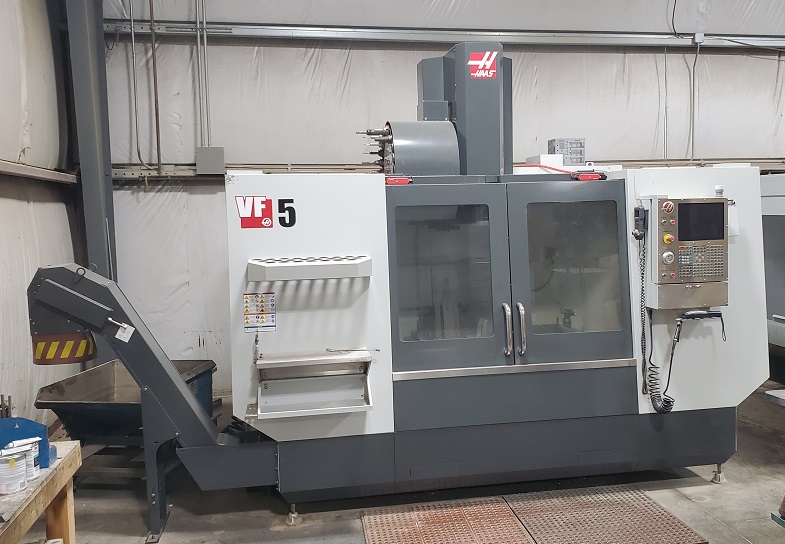

2013 HAAS VF-5 / 40

50.26.25", 8100 RPM, Cat 40, 24 Tools, Probes, Rotation & Scaling, High Speed Machining, Extended Mem, Quick Code, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 50"
  • Y-Axis 26"
  • Z-Axis 25"
  • Table Size 52" x 23"
  • Spindle Speed 8100 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 HP
  • Tools 24
  • Table Load Capacity 4000 lbs.
  • Rapid Traverse Rates 710 IPM
  • Max Tool Diameter 6"
  • Max Tool Length 12"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 173" x 102" x 112"
  • Machine Weight 14,525 lbs.
  • Spindle Nose to Table Top 7" - 32"
  • Tool Change Time (T - T / C - C) 2.8 / 3.6 Seconds

Product Features

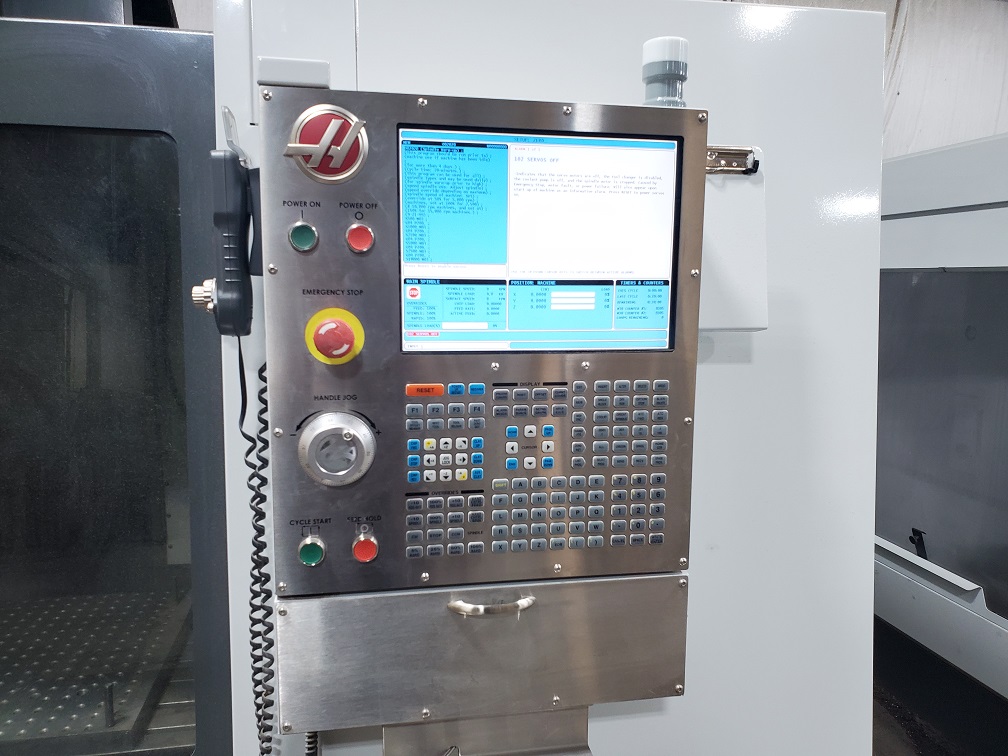

  • HAAS CNC CONTROL
  • 12" Color LCD
  • Remote Jog Handle
  • 24+1 Side Mount Tool Changer
  • High Speed Machining
  • Coordinate Rotation & Scaling
  • Spindle Orientation
  • Quick Code Programming
  • Rigid Tapping
  • Multi-Auger Chip Conveyor
  • Extended Memory
  • 1MB
  • Macros
  • Ethernet Interface
  • USB
  • 9299 Servo Time Hours
  • 5135 Motion Time Hours
  • 5215 Spindle Time Hours
