Special Item

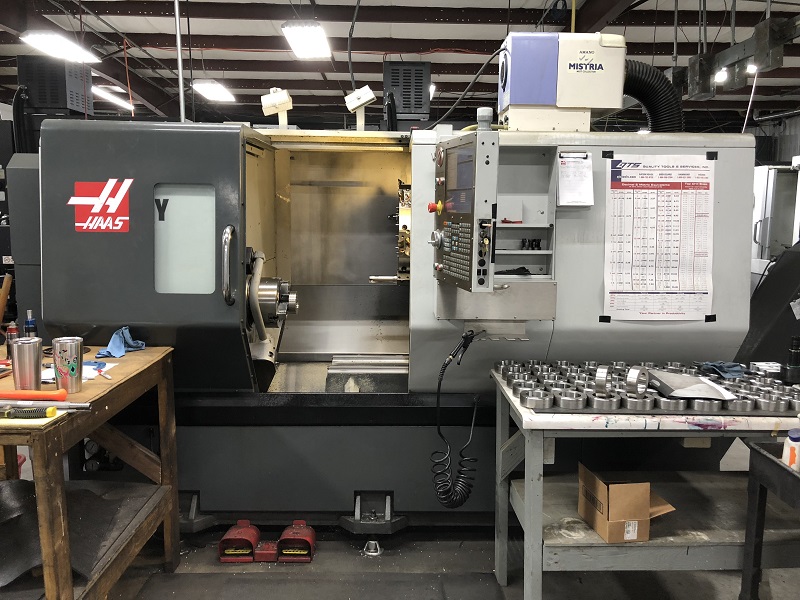

2013 HAAS ST-30Y

10" Chuck, 3" Bar, 12 Tools, 3400 RPM, 30 HP, Y-Axis, Tailstock, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed / Carriage 31.75" / 20.75"
  • Max Machining Length 26"
  • Spindle Motor 30 HP
  • Spindle Speed 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"
  • Tools 12
  • Milling Motor 5 HP
  • Milling Speed 6000 RPM
  • Rapid Traverse Rates (X / Y / Z) 472 / 472 / 945 IPM
  • X-Axis Travel 12.5"
  • Z-Axis Travel 26"
  • Y-Axis Travel + / - 2.0"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x W x H) 152" x 99" x 96"
  • Machine Weight 14,000 lbs.
  • Max Turning Diameter 21"
  • Spindle Torque 300 ft. lbs.

Product Features

  • HAAS CNC Control
  • 12" Color LCD
  • C & Y-Axis Milling Capability

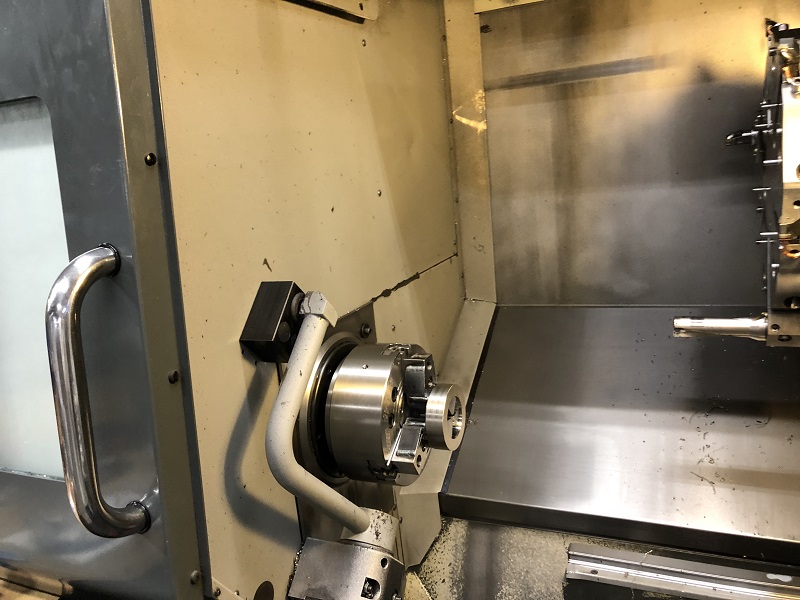

  • 10" Hydraulic Chuck
  • Fully Programmable Hydraulic Tailstock
  • Tool Presetter

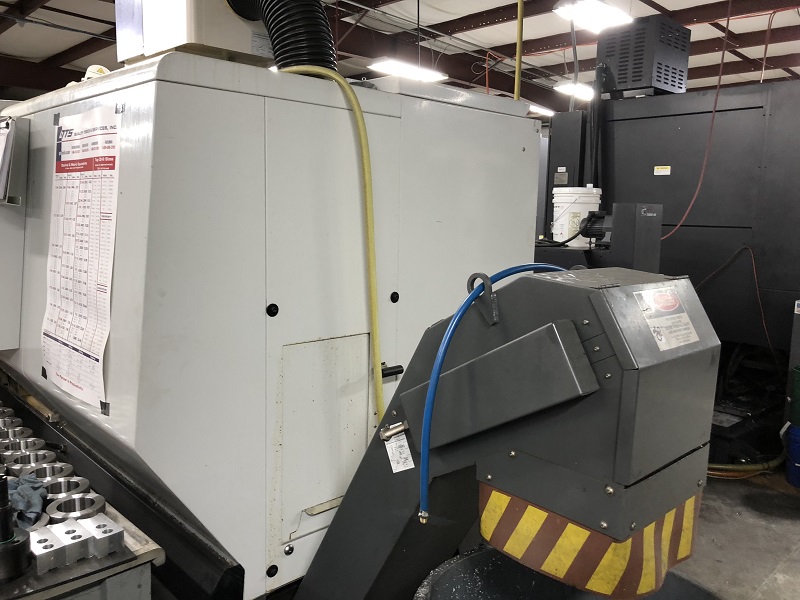

  • Chip Conveyor (Side Exit)
  • Hybrid Turret
  • High Intensity Lighting
  • (1) Face Live Holder
  • (6) OD Wedge Blocks
  • Manufacture Date May 2013
  • 2025 Servo Time
  • 187 Motion Time
  • 477 Spindle Time
