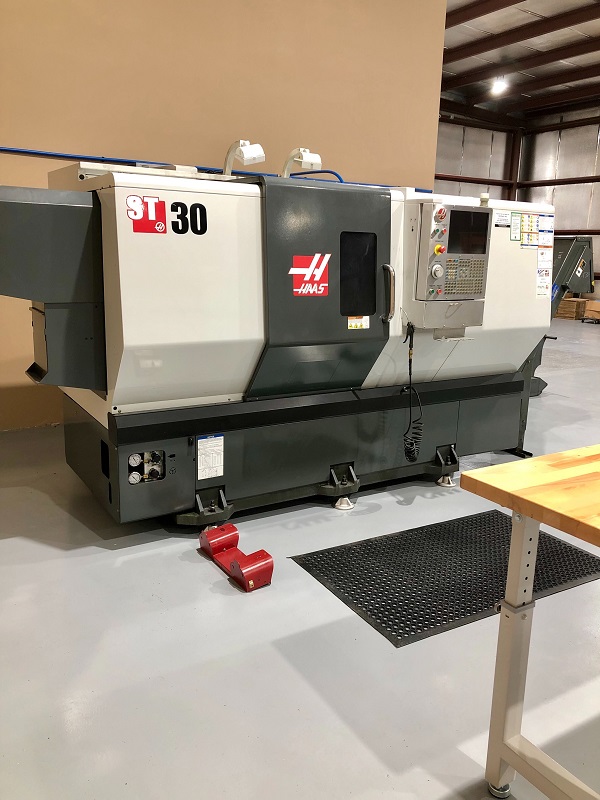

2013 HAAS ST-30T

3" Bar, 10" Chuck, 3400 RPM, 30 HP, 12 Tools, Tool Presetter, Tailstock, Steady Rest, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed / Carriage 31.75" / 20.75"
  • Max Machining Length 26"
  • Spindle Motor 30 HP
  • Spindle Speed 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"

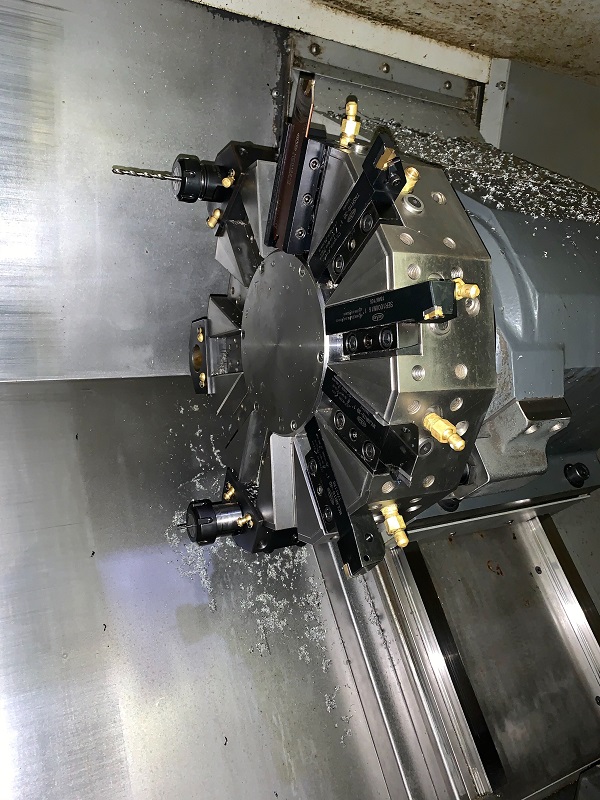

  • Tools 12
  • Rapid Traverse Rates (X & Z) 945 IPM
  • X-Axis Travel 12.5"
  • Z-Axis Travel 26"
  • Machine Dimensions (L x W x H) 152" x 99" x 96"
  • Machine Weight 14,000 lbs.
  • Distance Between Centers 30"
  • Max Turning Diameter 21"
  • Spindle Torque 300 ft. lbs.

Product Features

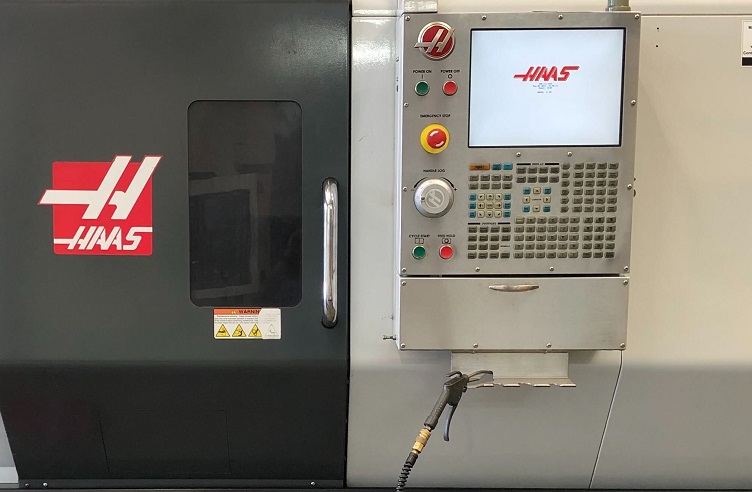

  • HAAS CNC Control
  • 12" Color LCD
  • USB Port

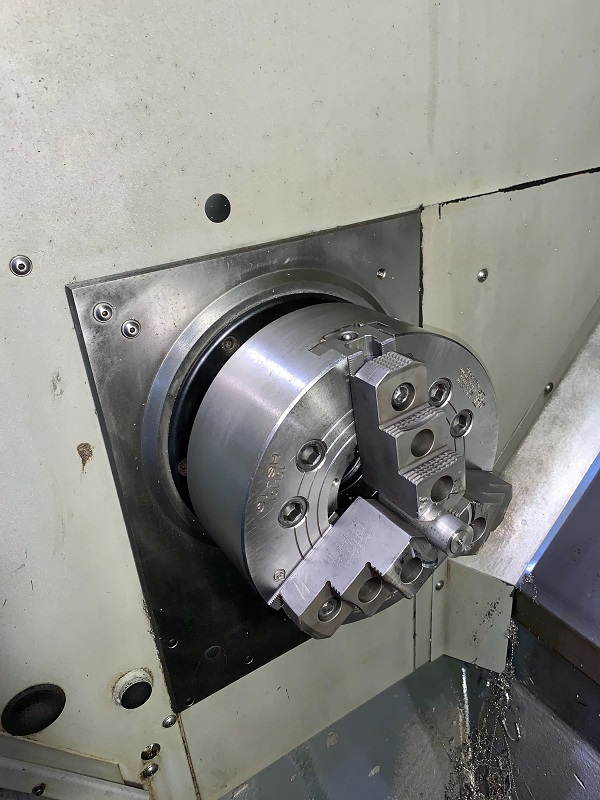

  • 10" Hydraulic Chuck

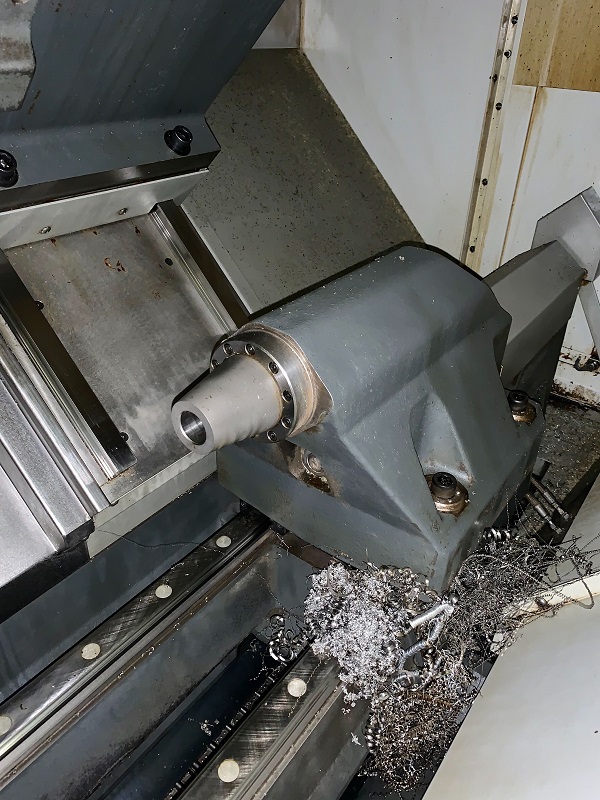

  • Fully Programmable Hydraulic Tailstock
  • Programmable Steady Rest
  • Automatic Tool Presetter
  • Chip Conveyor (Belt Type Side Exit)
  • Intuitive Programming System
  • Rigid Tapping
  • High Intensity Lighting
  • Manufacture Date January 2013
  • 1813 Motion Time
  • 1809 Spindle Time
