Special Item

2013 HAAS ST-10

1.75" Bar, 6.5" Chuck, 6000 RPM, 12 Tools, 15 HP, Parts Catcher, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6.5"
  • Max Diameter Bar Capacity 1.75"
  • Max Swing Over Bed / Carriage 25.25" / 16.25"
  • Max Machining Length 14"
  • Spindle Motor 15 HP
  • Spindle Speed 6000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.31"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 1200 IPM
  • X-Axis Travel 7.88"
  • Z-Axis Travel 14"
  • Turret Index (Single Step / Full) 0.5 Seconds
  • Machine Dimensions (L x W x H) 115" x 76" x 83"
  • Machine Weight 7900 lbs.
  • Max Turning Diameter 14"
  • Spindle Torque 75 ft. lbs.

Product Features

  • HAAS CNC Control
  • 10.4" Color LCD
  • 6.5" Hydraulic Chuck

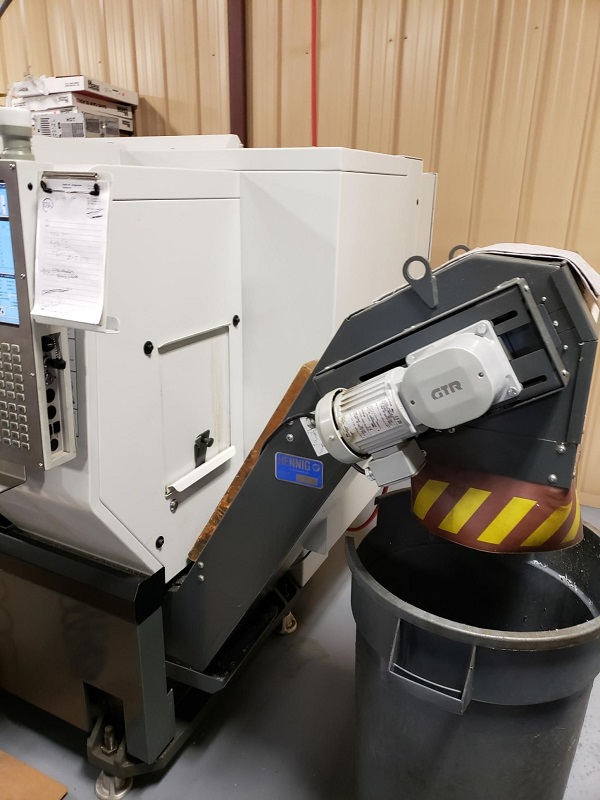

  • Hennig Belt-Type Chip Conveyor (Side Exit)
  • Tool Presetter
  • Auto Parts Catcher
  • Bolt-On Turret
  • Rigid Tapping
  • Chucker (No Tailstock But Field Retrofittable)
  • (4) Boring Bar Holders
  • Manufacture Date December 2013
  • 6299 Servo Time
  • 3153 Motion Time
  • 3543 Spindle Time
