Special Item

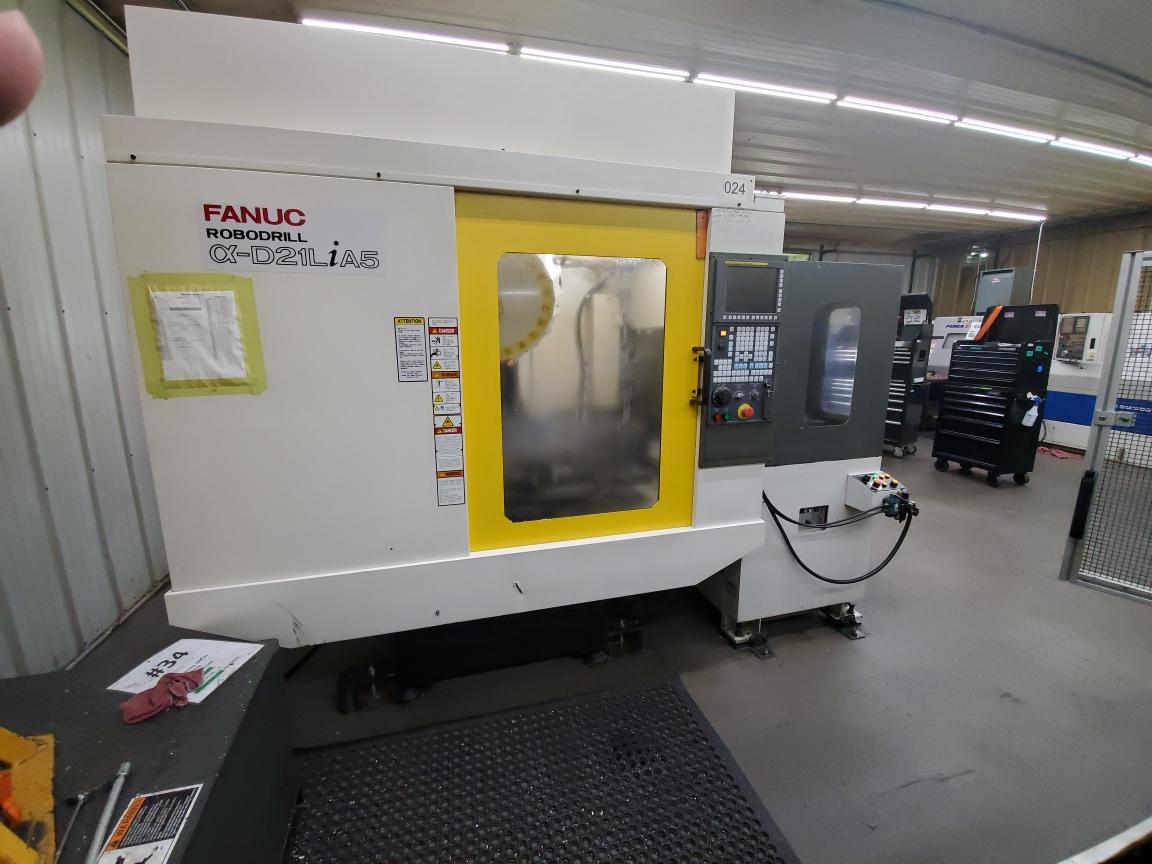

2013 FANUC ROBODRILL a-D21LiA5 + 2PC

FANUC 31i-B5, 27.15.13", 24000 RPM, 21 Tools, BT-30 Big Plus, 35 HP, Two Pallet Changer, TSC 700 psi, Mist Buster
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 27.55"
  • Y-Axis 15.74"
  • Z-Axis 12.99"
  • Table Size 27.5" x 15.4" (2)
  • Spindle Speed 24000 RPM
  • Spindle Taper Big Plus BT 30
  • Spindle Motor 34.8/7.3 HP
  • Tools 21
  • Table Load Capacity 220 lbs.
  • Rapid Traverse Rates 2125 IPM
  • Max Tool Diameter 3.14"
  • Max Tool Length 9.84"
  • Max Tool Weight 6.6 lbs.
  • Machine Weight 5104 lbs.
  • Tool Change Time (T - T / C - C) 0.9 / 1.6 Seconds

Product Features

  • Fanuc 31i-B5 CNC Control
  • 10.4" Color LCD
  • Through Spindle Coolant (700 psi)
  • 24000 RPM Spindle Speed

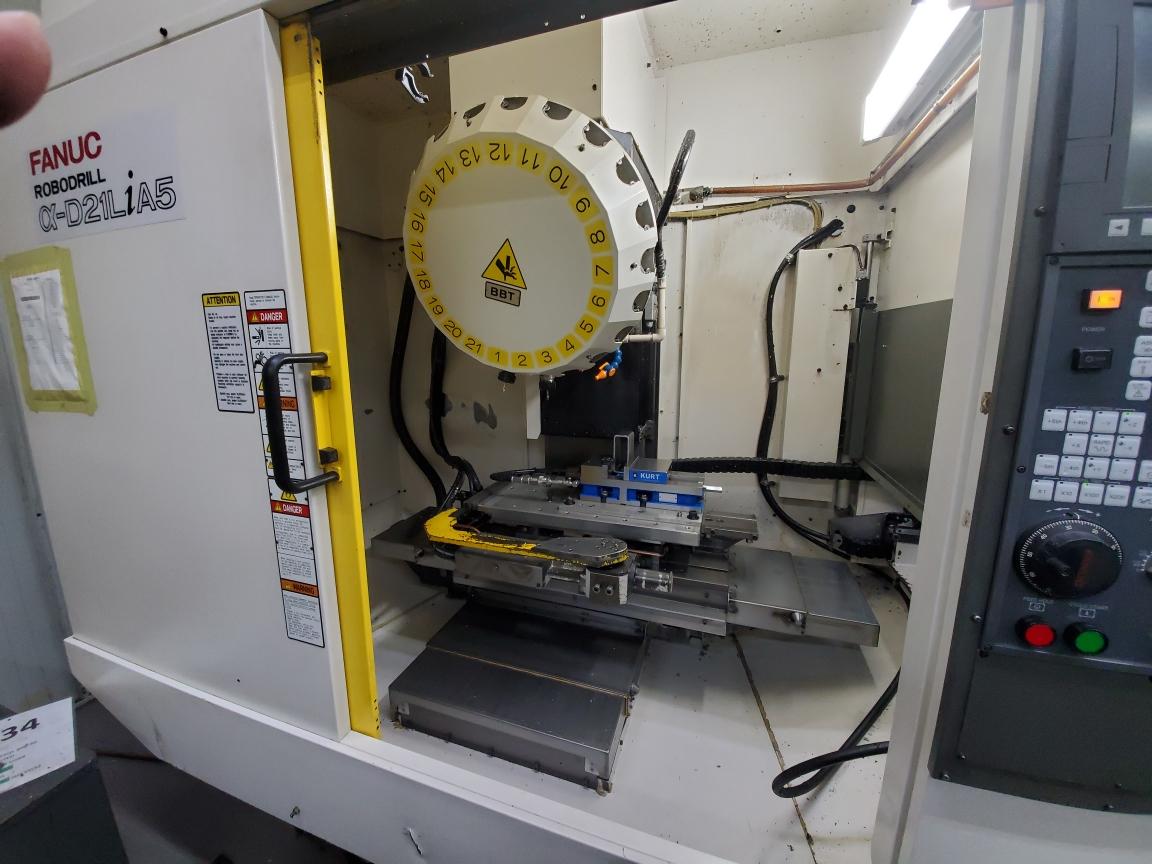

  • 21 Position Drum Turret
  • 27.55" Extended X-Axis Travel

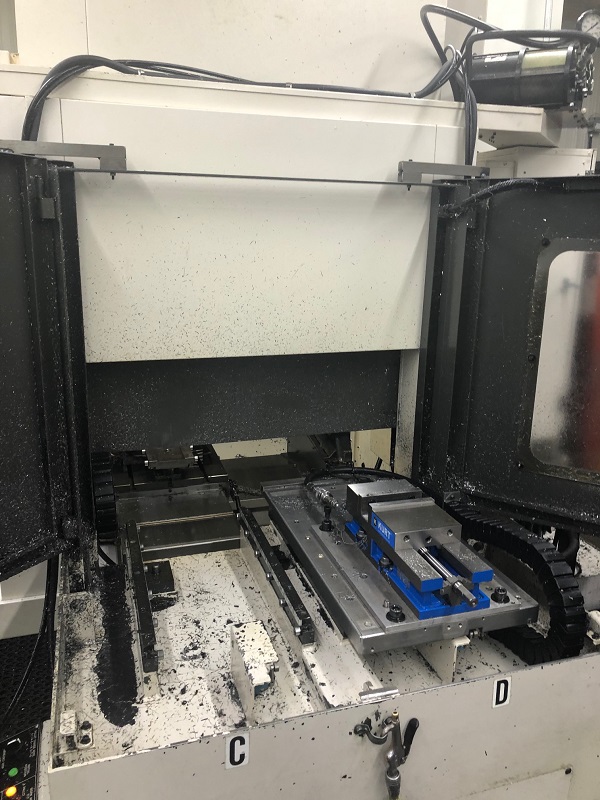

  • Auto Two Pallet Changer
  • Mist Buster
  • AI Contour Control II
  • NANO Smoothing
  • Jerk Control
  • High Speed Processing
  • 1000 Block Look Ahead Expansion
  • 2 MB NC Memory
  • Inverse Time Feed
  • Background Editing
  • 1280 M Memory
  • 1000 Registerable Programs
  • Tool Compensation C
  • Work Coordinates 6 + 48
  • Custom Macro B
  • Rigid Tapping
  • 600 Sets Variable Memory Expansion
  • Multi-Step Skip Function
  • Roof Insert
  • Manufacture Date April 2013

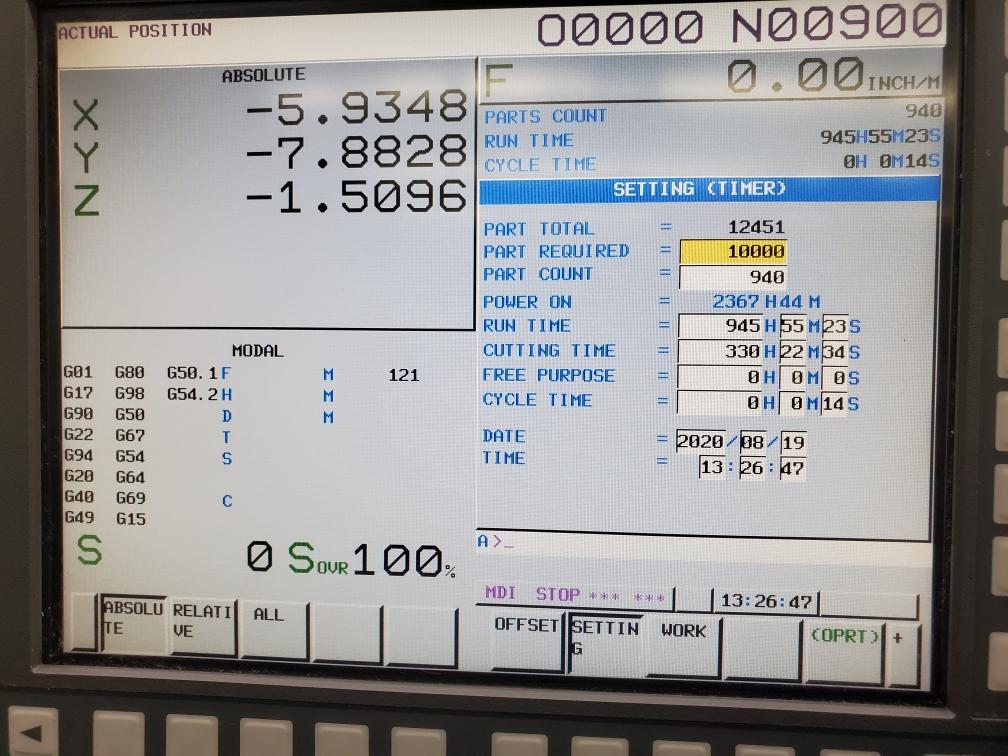

  • 2367 Power On Time
  • 945 Run Time
  • 330 Cutting Time
