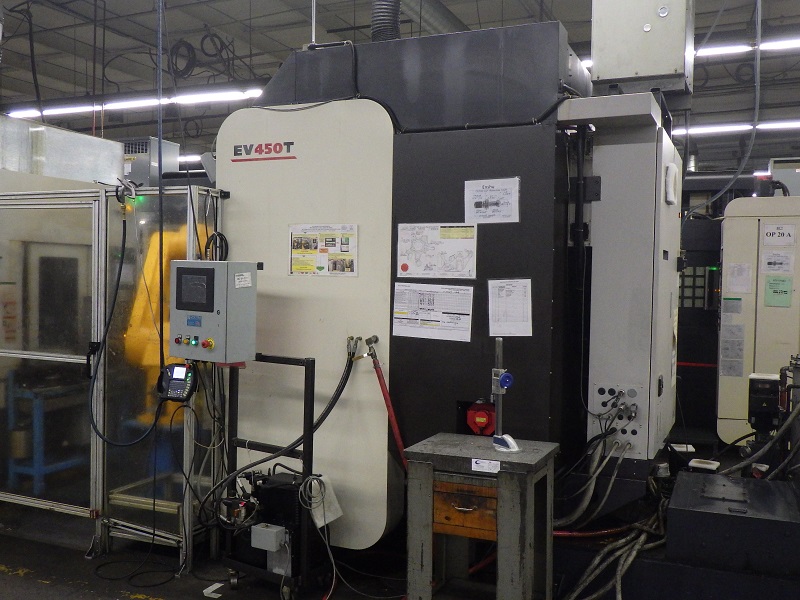

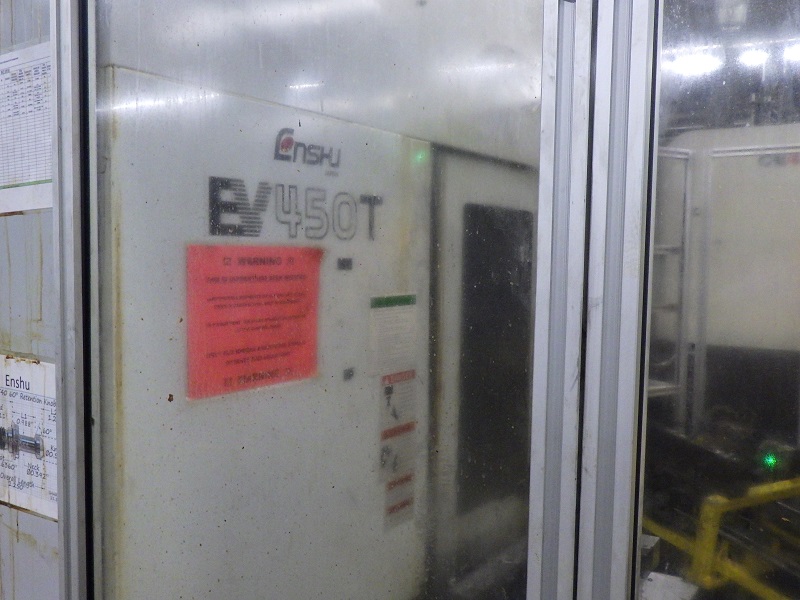

2013 ENSHU EV450T

Fanuc 31iB, 22.18.18", 10000 RPM, Cat 40, 25 HP, 24 SMTC, Pallet Changer, Integral Hydraulic Fixturing, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 22"
  • Y-Axis 17.7"
  • Z-Axis 18.1"
  • Table Size 20.9" x 15.7" (2)
  • Spindle Speed 40 - 10,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 25 HP
  • Tools 24
  • Table Load Capacity 1100 lbs.
  • Rapid Traverse Rates 1969 IPM
  • Max Tool Diameter 3.5" / 5.7"
  • Max Tool Length 11.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 83" x 96" x 106"
  • Machine Weight 9900 lbs.
  • Pallet Change Time 4.8 Seconds
  • Spindle Nose to Table Top 7.9" - 26"
  • Spindle Torque 70 ft. lbs.
  • Tool Change Time (T - T / C - C) 1.0 / 3.5 Seconds

Product Features

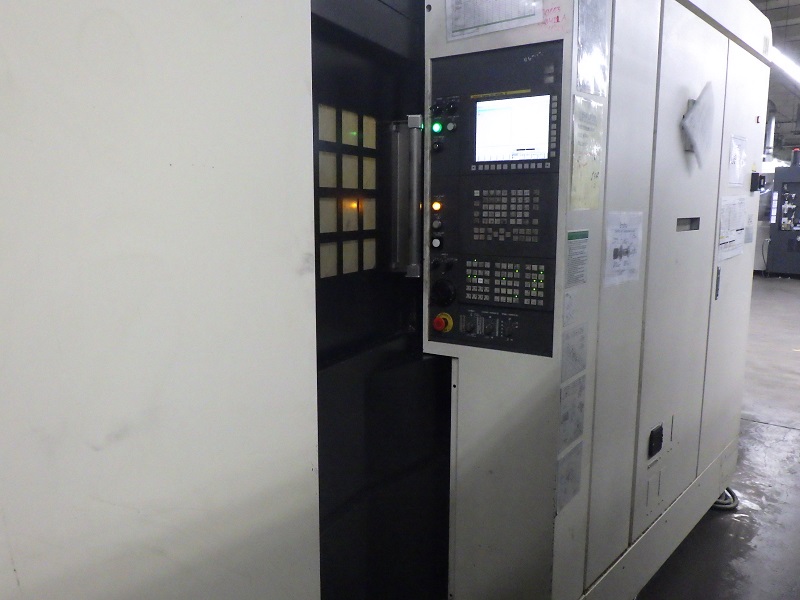

  • Fanuc 31iB CNC Control
  • 10.4" Color LCD
  • USB & PC/MCIA Interface

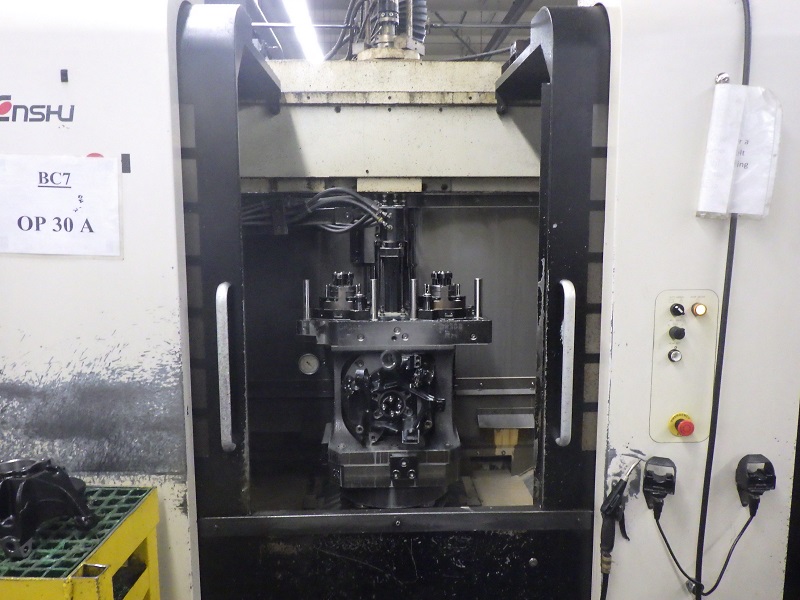

  • Automatic Two Pallet Changer
  • 24 Position Side Mount Tool Changer

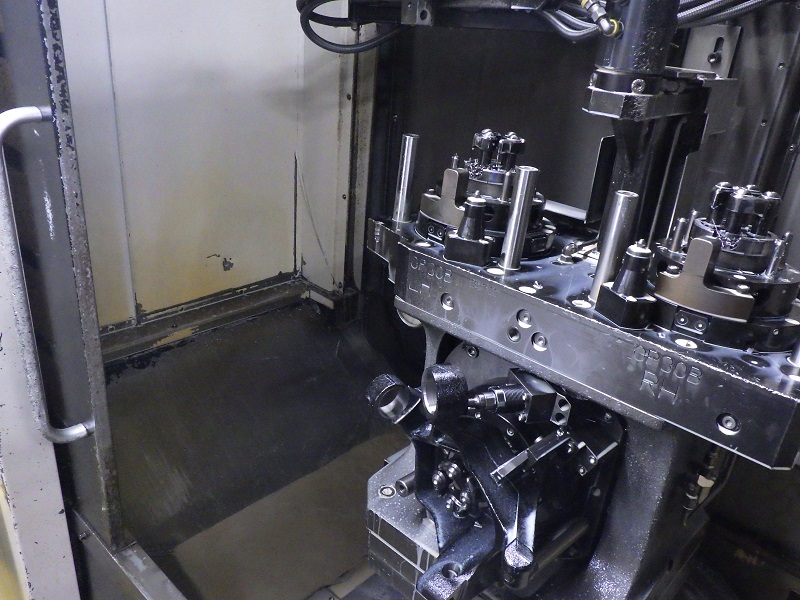

  • Integral Hydraulic Fixturing Through the Pallets

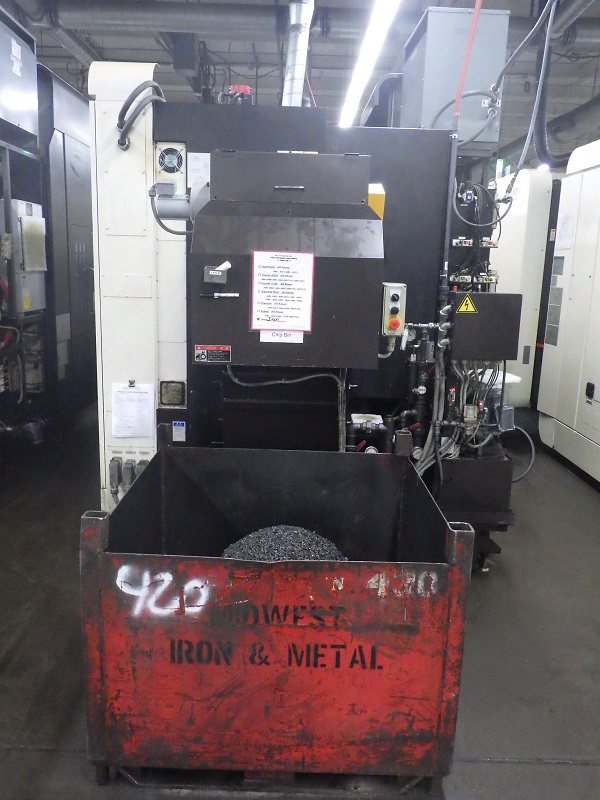

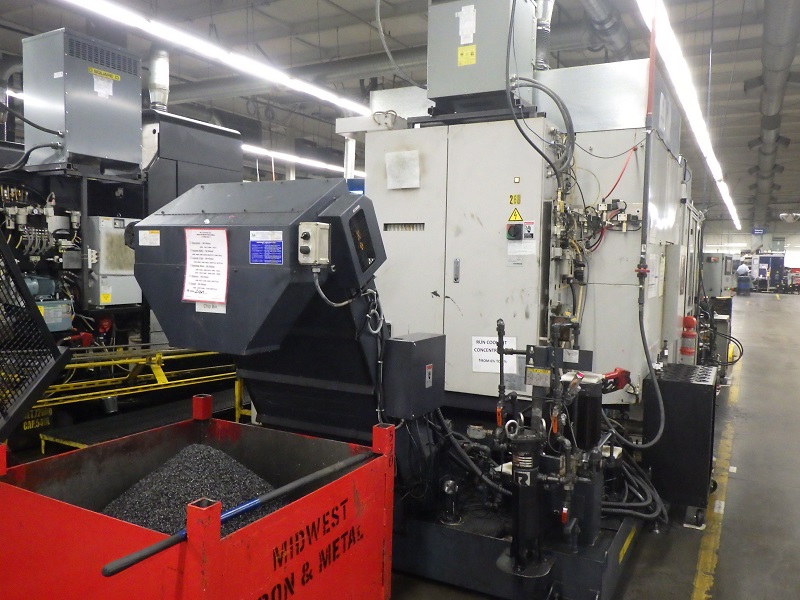

  • Chip Conveyor (Rear Exit)
